When manufacturers compare Fiber Laser vs. CO2 Laser for Stainless Steel, the decision affects more than the cutting process. It directly influences production capacity, electricity consumption, nitrogen usage, maintenance workload, edge quality, operator efficiency, machine uptime, and long-term cost per part.
For most new stainless steel cutting projects, a fiber laser cutting machine is the more practical choice. Fiber laser technology is widely used for thin and medium stainless steel because it delivers fast processing, concentrated energy, compact beam transmission, and high compatibility with automated production systems.
A CO2 laser can still cut stainless steel effectively. However, CO2 systems usually involve higher power consumption, more complicated beam delivery, additional optical maintenance, and lower cutting speed in many stainless steel applications.
The right solution depends on material thickness, production volume, gas costs, part complexity, existing equipment, workshop infrastructure, and expected business growth.

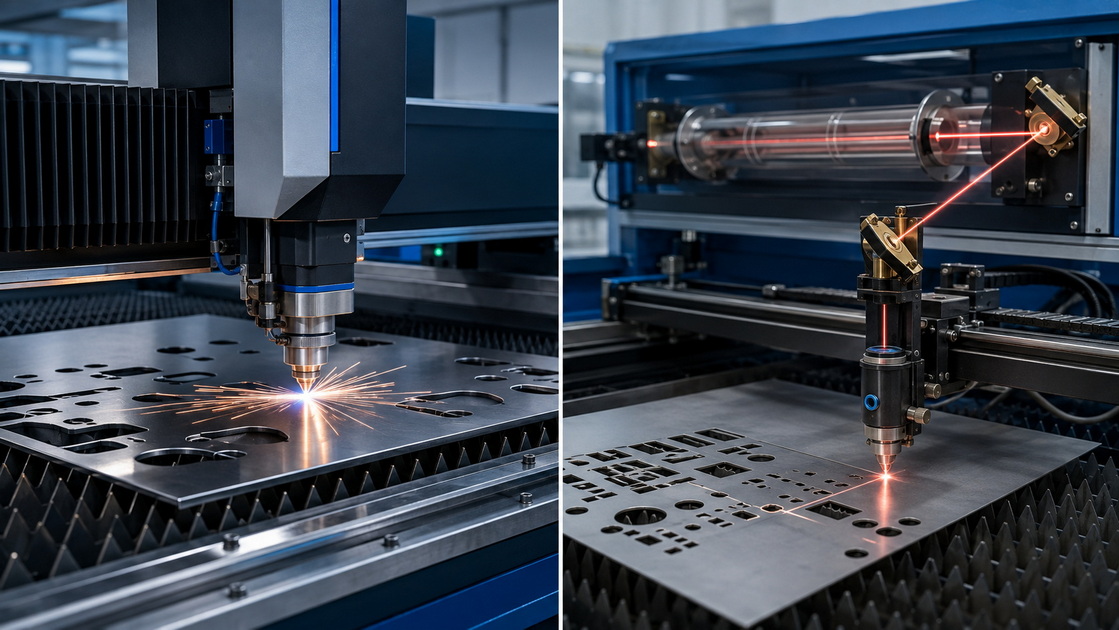

A fiber laser and a CO2 laser generate and deliver energy in different ways.
A fiber laser is a solid-state laser. It uses diode-generated energy amplified through an optical fiber. The beam is transmitted through a flexible fiber cable to the cutting head.
A CO2 laser uses a gas mixture, usually including carbon dioxide, nitrogen, and helium. The beam is generated in a resonator and transmitted through a series of mirrors before reaching the cutting head.
The wavelength difference between these two technologies is important.
Fiber lasers generally operate at a wavelength of about 1.06 micrometers. CO2 lasers generally operate at a wavelength of about 10.6 micrometers.
Stainless steel absorbs fiber laser energy more efficiently. This allows fiber laser machines to cut many stainless steel sheets more quickly while using less electrical energy for comparable production output.
| Feature | Fiber Laser | CO2 Laser |
|---|---|---|
| Laser Type | Solid-State Laser | Gas Laser |
| Typical Wavelength | About 1.06 μm | About 10.6 μm |
| Beam Delivery | Optical Fiber Cable | Mirrors and Beam Path |
| Stainless Steel Absorption | High | Lower |
| Electrical Efficiency | Higher | Lower |
| Thin Sheet Cutting Speed | Very High | Lower |
| Routine Maintenance | Lower | Higher |
| Reflective Metal Capability | Strong | More Limited |
| New Stainless Steel Projects | Usually Preferred | More Limited Use |
For most sheet metal fabrication operations, the key advantage is clear: fiber lasers transfer energy into stainless steel more efficiently.

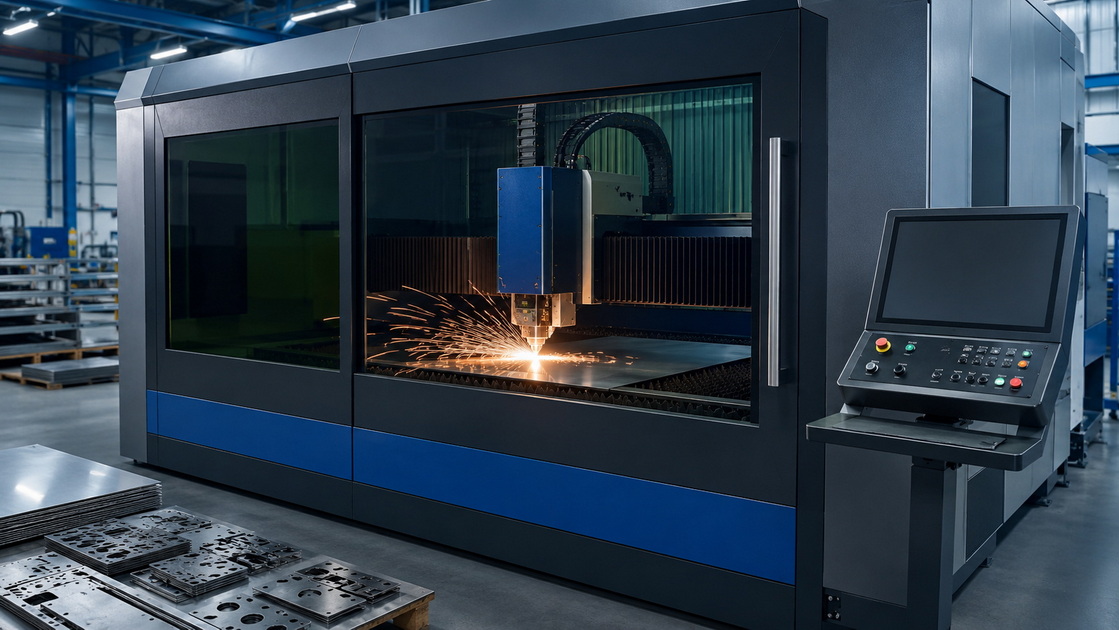

Cutting speed is often the most visible difference between fiber and CO2 laser systems.
Fiber lasers are especially effective for thin stainless steel sheet. In many applications between 0.5 mm and 6 mm, fiber laser cutting machines can process parts substantially faster than comparable CO2 laser systems.
This advantage becomes more important when the factory produces repeat parts such as:
- Electrical enclosures
- Kitchen equipment panels
- Stainless steel cabinets
- Elevator panels
- HVAC components
- Decorative metal screens
- Machine covers
- Brackets and supports
- Ventilation panels
- Perforated stainless steel parts
A faster cutting cycle can increase output without adding another production shift. It can also reduce lead times for customers and improve machine availability for urgent jobs.
Fiber laser technology is often a strong choice when:
- The primary material is stainless steel
- The average material thickness is below 8 mm
- The factory handles medium or high production volumes
- Short delivery times are important
- The business uses nitrogen cutting for clean edges
- Automation is planned
- The production workflow includes frequent repeat orders
CO2 lasers can still perform well in selected applications. However, their lower speed on thin stainless steel often makes them less suitable for new high-output fabrication projects.
The best laser technology should be selected according to the thickness range processed most often.
A common mistake is choosing equipment based on occasional maximum thickness rather than daily production requirements.
For example, a company may cut 1 mm to 4 mm stainless steel for most of its orders but occasionally process 12 mm plate. In this situation, the machine should be selected around the production mix that creates the highest share of revenue and machine time.
| Stainless Steel Thickness | Fiber Laser Suitability | CO2 Laser Suitability | Practical Consideration |
|---|---|---|---|
| 0.5–2 mm | Excellent | Acceptable | Fiber laser usually provides the strongest speed advantage |
| 3–6 mm | Excellent | Acceptable | Fiber laser is commonly preferred for regular production |
| 8–12 mm | Strong with suitable power | Possible | Test real parts, cutting speed, and gas cost |
| Above 12 mm | Project-Specific | Project-Specific | Compare quality, cycle time, and operating cost before purchase |
A machine selected for thick plate may be unnecessarily expensive if most work involves thin sheet. A machine selected only for thin sheet may create future limitations if thicker stainless steel becomes a regular production requirement.
Both fiber and CO2 laser systems can produce good stainless steel edge quality when correctly configured.
However, machine technology alone does not guarantee acceptable results. The finished edge depends on a combination of machine condition, cutting parameters, assist gas, material quality, and part geometry.
Important factors include:
- Laser power
- Beam quality
- Cutting-head condition
- Nozzle centering
- Protective lens condition
- Nitrogen purity
- Assist gas pressure
- Focus position
- Cutting speed
- Material flatness
- Material surface finish
- Protective film quality
- Corner control and machine acceleration
A properly configured fiber laser can produce narrow kerfs, low-burr edges, and clean stainless steel surfaces. This can reduce downstream grinding, polishing, and deburring work.
However, buyers should avoid approving a machine based only on a supplier's standard sample parts. A generic logo or a simple rectangle does not prove that the machine can process real production parts consistently.

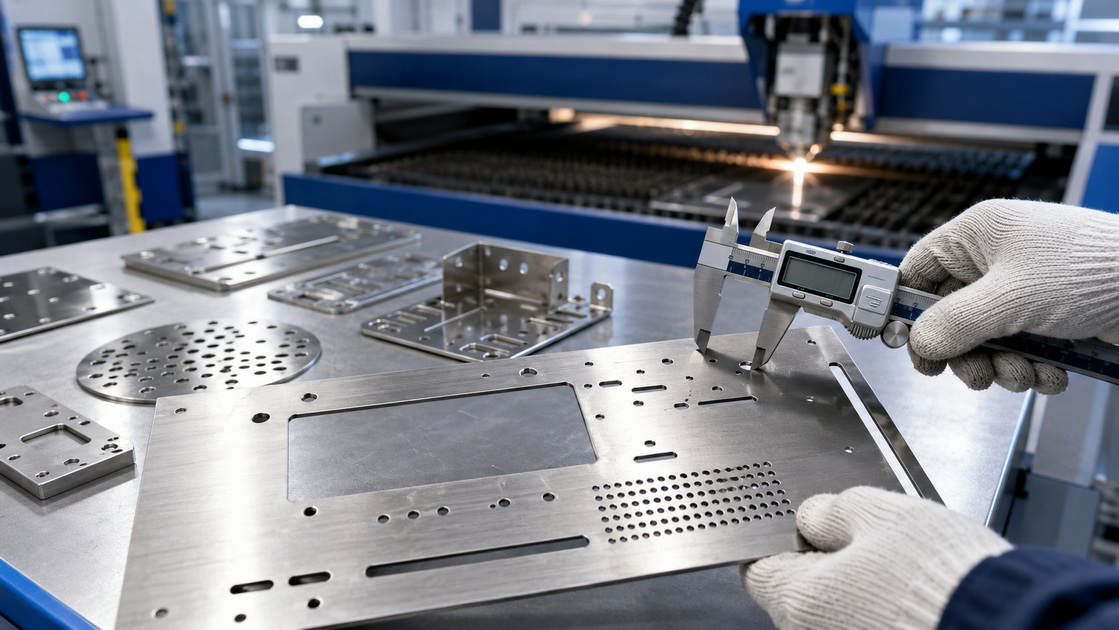

The most valuable machine test is not a standard demonstration. It is a cutting test using your own drawings, material grades, thicknesses, and quality requirements.
A reliable test file should include:
- Small holes
- Dense perforation patterns
- Small slots
- Sharp internal corners
- Tight-radius curves
- Narrow bridges
- Long contours
- Closely spaced features
- Mixed hole sizes
- High-density nesting
- Protective-film stainless steel
- Complex production geometry
Small holes are especially important. They can reveal whether the machine has stable beam quality, accurate nozzle centering, correct focus control, reliable motion performance, and properly developed cutting parameters.
For example, a manufacturer producing 2 mm stainless steel electrical enclosures should send its actual ventilation-panel drawing. This test is much more useful than evaluating a large decorative sample with a simple cut pattern.
The best sample is often the part that causes the most trouble in current production.
Fiber laser systems are generally more electrically efficient than CO2 lasers.
CO2 laser technology typically requires more input energy because of the way it generates and transmits the laser beam. Fiber laser technology usually converts a larger share of electrical input into useful cutting output.
This can lower electricity cost and support higher production capacity. However, electricity is only one part of the total operating-cost calculation.
| Cost Factor | Fiber Laser | CO2 Laser |
|---|---|---|
| Electrical Demand | Usually Lower | Usually Higher |
| Beam Delivery | Fiber Cable | Mirror-Based Beam Path |
| Optical Alignment | Less Frequent | More Frequent |
| Routine Maintenance | Generally Lower | Generally Higher |
| Cooling Demand | Usually Lower | Usually Higher |
| Thin Stainless Steel Productivity | Higher | Lower |
| Nitrogen Requirement | Can Be High | Can Vary by Application |
| Automation Compatibility | Strong | More Limited in New Projects |
A fiber laser may use more nitrogen in some stainless steel cutting applications because it can operate at high speeds and higher gas pressures. Therefore, buyers should avoid comparing machines only by hourly nitrogen consumption.
The correct calculation is:
Total Cutting Cost Per Part=(Energy Cost + Gas Cost + Consumables + Labor + Maintenance + Downtime)/Accepted Parts Produced
A machine that uses more nitrogen per hour may still have a lower cost per part if it completes more acceptable parts in less time.
Nitrogen is commonly used as the assist gas for stainless steel laser cutting because it helps create a clean edge with minimal oxidation.
This matters for parts that will be:
- Welded
- Polished
- Brushed
- Powder coated
- Used in food equipment
- Used in architectural fabrication
- Installed in visible decorative applications
- Used in medical, laboratory, or clean-equipment environments
Nitrogen cost should be considered early in the purchasing process.
Ask the supplier to provide cutting information for your actual materials, including:
1. Stainless steel grade
2. Material thickness
3. Laser power
4. Cutting speed
5. Nitrogen pressure
6. Nozzle diameter
7. Estimated gas consumption
8. Expected edge condition
9. Recommended nitrogen purity
10. Cutting time per part
This information helps buyers compare total production cost between different machines and different laser-power options.
Maintenance requirements strongly affect machine uptime, service cost, and daily production planning.
A CO2 laser usually requires more frequent attention to its beam delivery system. The beam travels through mirrors and optical components, which must remain clean and correctly aligned.
A fiber laser uses a fiber-optic beam-delivery system. This design removes much of the long mirror-based beam path associated with CO2 lasers.
Fiber laser cutting machines still require regular maintenance. Main tasks include:
- Cleaning protective lenses
- Replacing damaged protective lenses
- Inspecting nozzles
- Checking nozzle centering
- Replacing ceramic rings when needed
- Maintaining the chiller
- Checking water quality
- Cleaning the cutting bed
- Removing slag and scrap
- Lubricating guide rails
- Inspecting pneumatic lines
- Monitoring electrical connections
- Maintaining fume extraction equipment
CO2 laser systems may require additional work related to:
- Mirror cleaning
- Mirror alignment
- Beam-path inspection
- Optical contamination control
- Bellows inspection
- Gas-system maintenance
- Resonator maintenance
- Cooling-system management
- Beam-quality adjustment
For manufacturers with limited technical staff, lower maintenance complexity can improve production stability and reduce unexpected downtime.
| Application | Recommended Technology | Main Reason |
|---|---|---|
| Stainless Steel Cabinets | Fiber Laser | Fast cutting and clean edge quality |
| Kitchen Equipment Panels | Fiber Laser | High productivity on thin and medium sheet |
| Elevator Panels | Fiber Laser | Precise cutting for decorative stainless steel |
| Electrical Enclosures | Fiber Laser | Strong performance for holes, slots, and contours |
| Perforated Metal Panels | Fiber Laser | Efficient dense-hole processing |
| HVAC Stainless Components | Fiber Laser | Fast repeat production |
| Custom Metal Fabrication | Fiber Laser | Flexible for mixed production orders |
| Thick Non-Metal Materials | CO2 Laser | Suitable for acrylic, wood, and selected plastics |
| Existing CO2 Production Cell | CO2 Laser Can Remain Viable | Decision depends on output and maintenance cost |
| High-Volume Stainless Steel Production | Fiber Laser | Better cycle time and automation potential |
CO2 laser technology still has a place in some factories.
A CO2 laser may remain suitable when:
- The factory already owns a reliable CO2 machine
- The machine is fully depreciated
- Production volume is low
- Stainless steel is not the main material
- The business processes non-metal materials
- Experienced CO2 technicians are available
- The existing machine still meets delivery requirements
- Capital investment must be delayed
For a factory that already owns a functioning CO2 laser, replacement should be based on actual operating data.
Review:
- Monthly cutting hours
- Material thickness distribution
- Electricity bills
- Nitrogen usage
- Maintenance spending
- Downtime records
- Rework rate
- Delivery delays
- Operator labor
- New-order requirements
If the CO2 machine continues to meet production needs, immediate replacement may not be necessary. If it causes bottlenecks, high operating cost, or repeated quality issues, a fiber laser may offer a strong upgrade path.
Selecting a fiber laser cutting machine requires a structured evaluation process.
List the materials, grades, thicknesses, and sheet sizes your business processes most frequently.
Common materials include:
- 304 Stainless Steel
- 316 Stainless Steel
- Brushed Stainless Steel
- Mirror Stainless Steel
- Protective-Film Stainless Steel
- Carbon Steel
- Galvanized Steel
- Aluminum
- Brass
- Copper
The machine should be configured around the materials that generate the highest production volume and profit.
The right equipment configuration should solve an existing production problem.
Common bottlenecks include:
- Slow cutting speed
- Poor hole quality
- Excessive burrs
- High nitrogen cost
- Manual sheet loading
- Long setup time
- Low nesting efficiency
- Frequent machine downtime
- Excessive deburring
- Inconsistent part dimensions
A higher-power laser is not always the answer. In some factories, an exchange table, better nesting software, automatic loading, or improved gas supply may create a larger improvement than additional laser power.

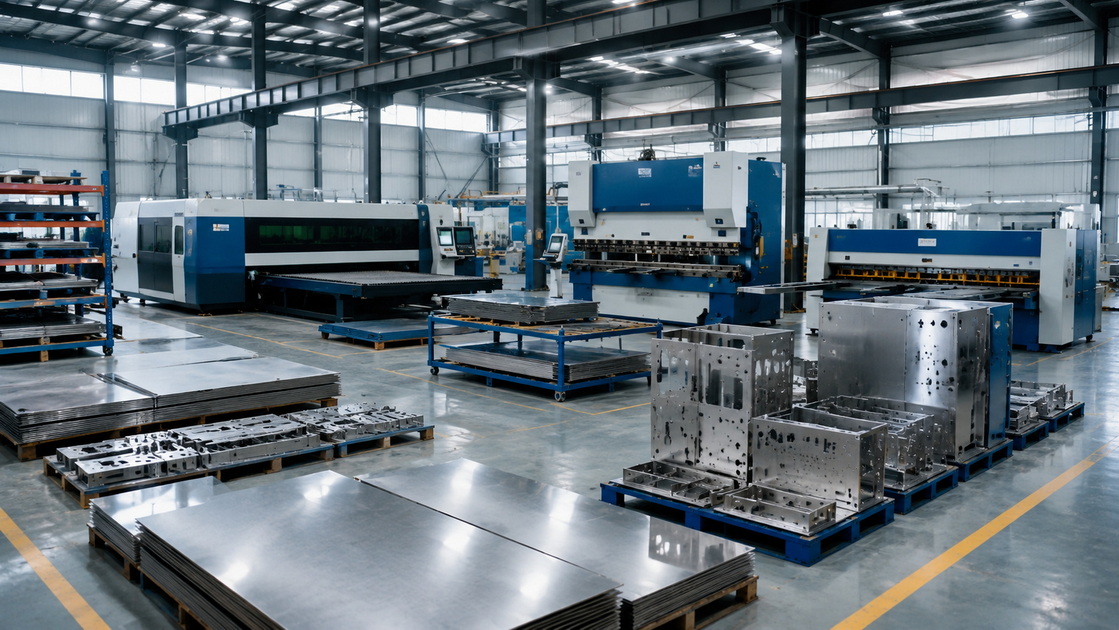

Automation should match the workload and labor structure of the factory.
Possible configurations include:
- Manual loading and unloading
- Exchange table
- Semi-automatic loading
- Automatic loading and unloading
- Automatic sorting
- Material storage tower
- Integrated production line
A manual machine can be suitable for custom job shops and lower production volume. Automated loading and unloading can be more appropriate for high-volume repeat production.
The machine quotation should identify the brands and models of all critical components.
Confirm the following before signing the contract:
- Laser source
- Cutting head
- CNC controller
- Servo motors
- Servo drives
- Gearbox or reducer
- Guide rails
- Chiller
- Electrical components
- Pneumatic components
- Fume extraction system
- Automation equipment
- Safety enclosure
Any component substitution should require written approval before installation.
CNDY-Press manufactures fiber laser cutting machines and sheet metal processing equipment for global fabrication projects. The company supports fiber laser cutting, CNC bending, shearing, rolling, V-grooving, and related metalworking processes.
For buyers requiring OEM or ODM support, CNDY-Press can provide customized production based on material requirements, cutting thickness, working area, laser power, electrical standards, automation level, branding requirements, and production workflow.
Typical project options include:
- Customized laser power
- Open-bed or enclosed laser cutting machines
- Exchange-table configuration
- Automatic loading and unloading systems
- Sheet-and-tube cutting options
- Customized voltage and frequency
- Private-label machine branding
- Customized color design
- English-language manuals
- Operator-interface language support
- Spare-parts packages
- Integration with CNC press brakes
- Integration with CNC shearing machines
- Integration with V-grooving machines
- Sample cutting based on customer drawings
This approach is suitable for distributors, growing metal fabrication companies, and equipment brands requiring flexible configurations and coordinated sheet metal processing solutions.
For most stainless steel fabrication projects, fiber laser cutting machines provide the strongest overall balance of speed, efficiency, maintenance simplicity, automation compatibility, and production flexibility.
CO2 laser systems can still be valuable for legacy equipment, mixed-material production, and selected low-volume operations. However, their higher energy demand and more complex optical maintenance often make them less attractive for new stainless steel cutting investments.
The correct investment decision should be based on actual material mix, thickness range, part design, production volume, gas supply, operating cost, labor availability, and future expansion plans.
A detailed inquiry, real-part sample test, documented configuration list, and clear factory acceptance standards can reduce purchasing risk and help ensure that the selected machine delivers stable long-term value.
For fiber laser cutting equipment, integrated sheet metal production lines, and customized OEM or ODM manufacturing projects, CNDY-Press can support buyers with project-based equipment planning and configuration development.
For most new stainless steel cutting projects, fiber laser technology is usually the stronger choice. It often provides higher cutting speed, better electrical efficiency, lower routine maintenance, and better compatibility with automated sheet metal fabrication.
Yes. A CO2 laser can cut stainless steel when equipped with suitable power, optics, assist gas, and cutting parameters. However, it is often slower and more energy-intensive than fiber laser technology for stainless steel sheet processing.
The required power depends on stainless steel thickness, production volume, sheet size, and expected cycle time. For many thin and medium sheet applications, 3 kW to 6 kW can be suitable. Higher power may be needed for thicker material, higher output, larger worktables, or automated production.
It can require high nitrogen pressure or flow in certain stainless steel applications. However, because fiber laser machines often cut faster, buyers should calculate nitrogen cost per completed part rather than comparing nitrogen consumption per hour.
A properly configured fiber laser can produce clean, narrow, and low-burr stainless steel edges. The final result depends on the material, nitrogen quality, nozzle condition, focus setting, laser power, cutting speed, and part geometry.
1. [TRUMPF Laser Cutting Technology Comparison]
2. [TRUMPF Laser Cutting Applications]
3. [IPG Photonics Laser Cutting Performance and Efficiency]
4. [Bystronic CO2 vs Fiber Technology]
5. [Esprit Automation Fiber vs CO2 Lasers]
6. [Mid Atlantic Machinery CO2 vs Fiber Laser Cutting]
7. [CNDY-Press About Us]
