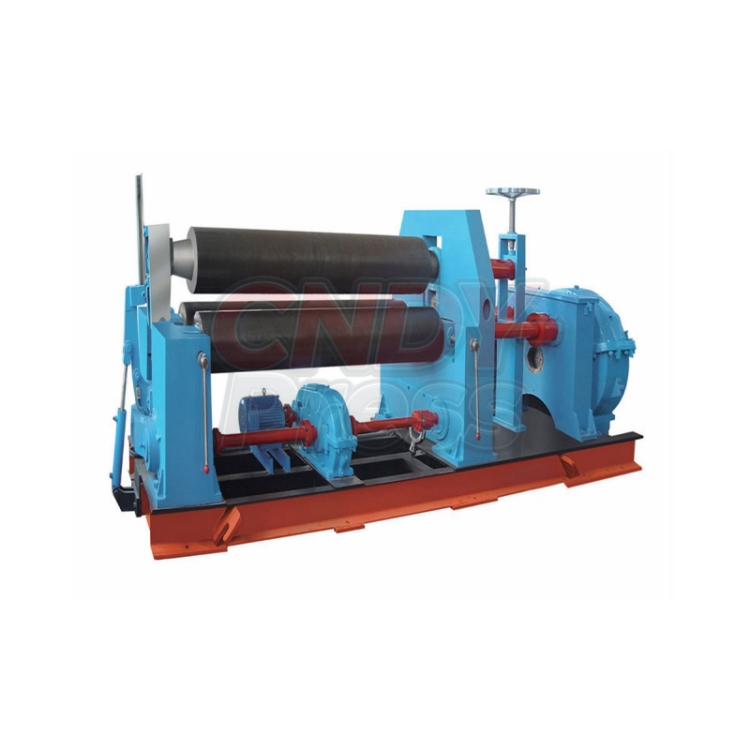

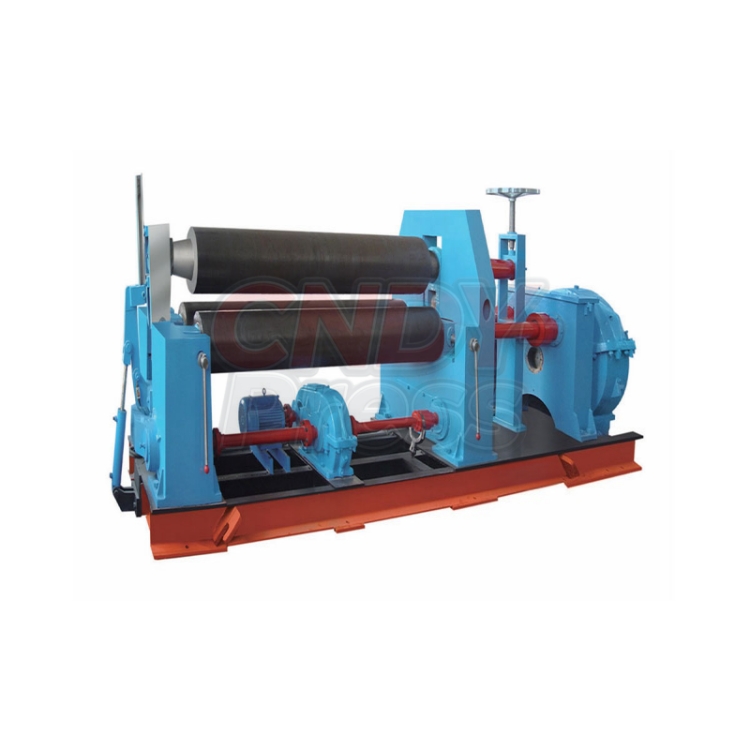

The three rollers symmetrical plate rolling machine features ultra-high efficiency, ease of operation, and a simple intelligent structure. It is easy to operate and has a mobile operation platform.

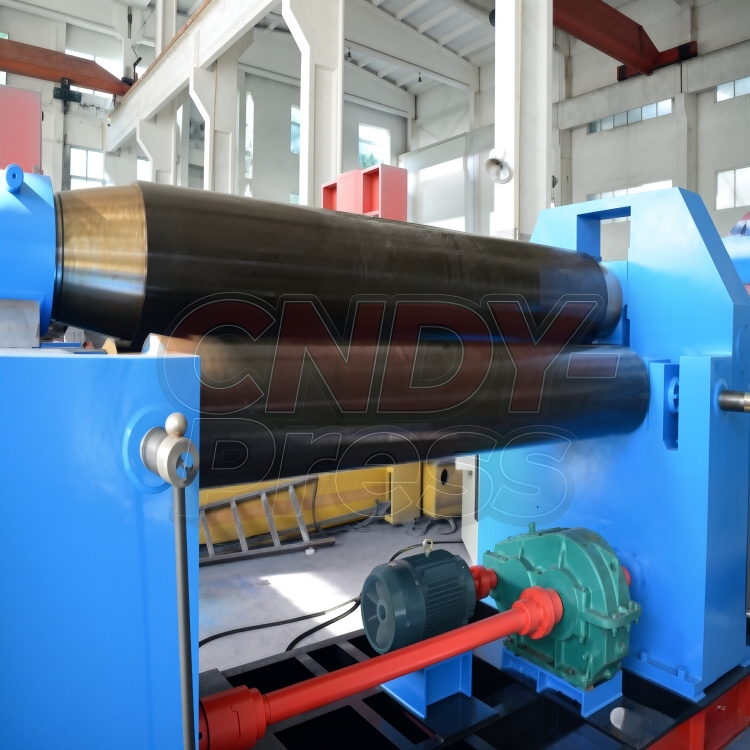

The machine's structure is a mechanical symmetrical upward-adjusting three-roll plate rolling machine. The upper roller moves vertically at the symmetrical position between the two lower rollers.

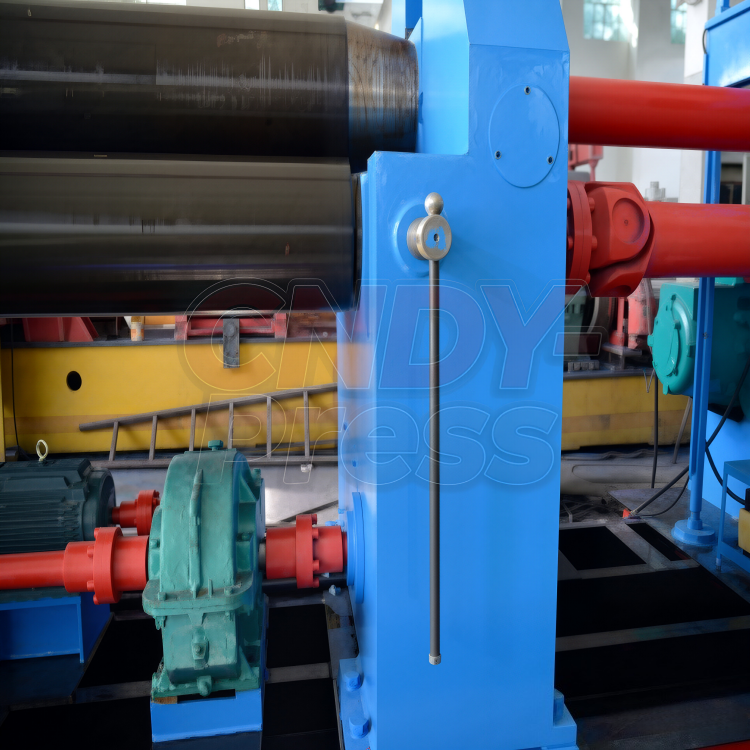

It achieves this through screw-screw nut worm gear transmission. The two lower rollers rotate, and the output gear of the reducer meshes with the gear of the lower roller to provide torque for rolling the sheet metal.
Upper roller section: Upper roller, tipping balance device, discharging device.
Lower roller section: Two lower rollers, left and right frames, motor, reducer.
Frame section: Base, motor base, reducer base, transfer gear base.
Electrical section: This equipment is composed of left and right frames, upper roller device, lower roller device, base, tipping device, discharging balance device, and electrical system.
The base and frame of this machine adopt a welded structure, with strict requirements for weld quality and stress relief treatment to ensure that the machine has sufficient strength and rigidity under working load, thereby improving the accuracy of rolled sheet metal.
The lower roller drive and upper roller lifting are all electrically operated, and all operations are controlled by centralized electrical control, making them easy to operate.
The upper roller is installed in two oil-free self-lubricating bearing bodies, embedded on the inner sides of the frame on both sides, and driven by worm gears at both ends to move up and down.
