※ The machine tool body adopts an integral welding and processing structure, which is treated as a whole by annealing furnace to eliminate internal stress and prevent deformation. The main components of the machine body are analyzed using ANSYS finite element analysis software, ensuring the reliability of the machine tool and the accuracy of the entire machine.
※ The main oil cylinders on both sides adopt a closed-loop control method composed of German imported electro-hydraulic servo valves and imported grating rulers. The slider position feedback accuracy is high, the operation is accurate and stable, the synchronization performance is good, and the bending accuracy and the repeated positioning accuracy of the slider are high.

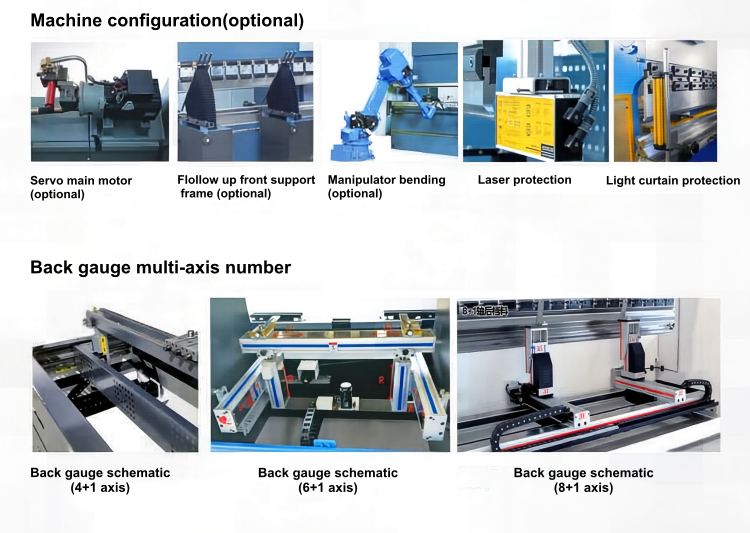

※ The functional components in the rear blocking material are made of imported components, ensuring the accuracy of the rear blocking material. Multiple rear blocking material shafts with more complete functions can be customized according to the actual needs of customers for the rear blocking material structure.
※ The hydraulic system adopts an integrated control system imported from Germany, which reduces the installation of pipelines, ensures the stability of the machine tool, and has a simple and beautiful appearance.

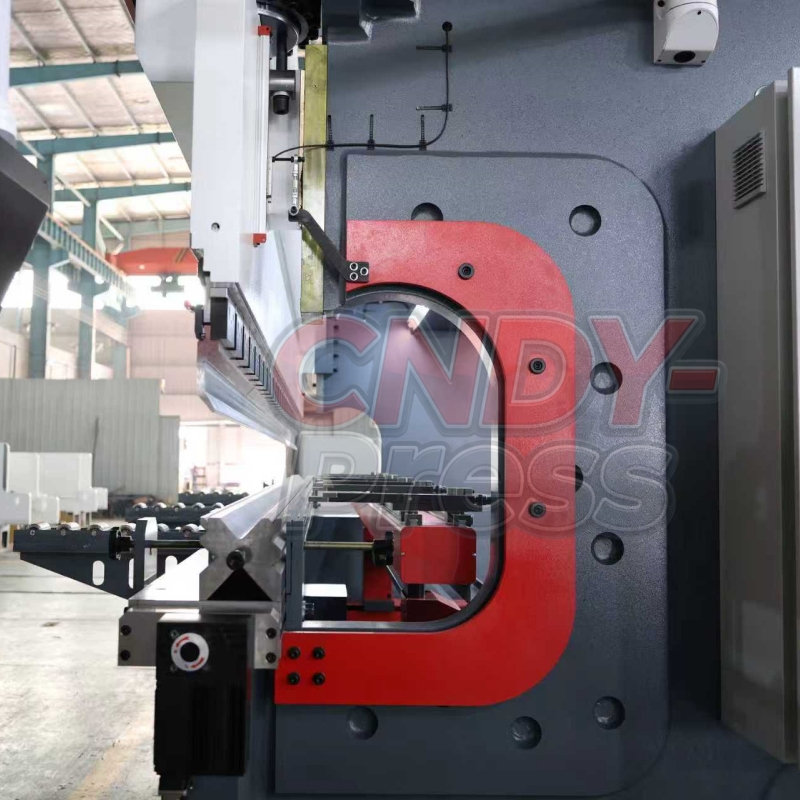

※ There are C-shaped plates on both sides of the body, and high-precision grating rulers are installed on the C-shaped plates to avoid the influence of deformation of the body on the bending accuracy during the operation of the bending machine.
※ The lower workbench is equipped with a mechanical deflection automatic compensation mechanism, which achieves effective compensation without blind spots, high bending accuracy, and ensures long-term stable operation.
※ The electro-hydraulic CNC system adopts professional CNC system for electro-hydraulic servo press brake from Italy ES,Holland DELEM,or Swiss CYBEKEC COMPANIES. It can achieve graphic programming of bending angles, angle adjustment compensation, automatic calculation and adjustment of bending pressure, automatic calculation of worktable deformation compensation, workpiece unfolding length, bottom bending pressure, opening distance, automatic retreat of rear stop materials, and other functions.
