When I visit high-end sheet metal shops today, CNC grooving machines are often the quiet "secret weapon" behind ultra-clean corners, sharp folds, and architectural panels that look almost seamless. For a manufacturer like CNDY‑Press, focused on OEM and ODM sheet metal solutions, understanding how V-grooving works—and when to use it—is essential to delivering consistent, premium results with minimal waste. In this article, I'll walk through CNC V-grooving from a practical, expert perspective: how the machines work, where they add value, how current CNC trends affect them, and what buyers should look for in real production environments. [blog.3ds]
A V-grooving machine cuts a precise V-shaped groove along a defined line on a flat sheet, typically stainless steel, aluminum, copper, or other decorative metals. By locally reducing thickness at the bend line, the grooved area can be bent more easily and accurately, producing crisp edges and tight radii that standard press brake bending alone cannot achieve. This makes V-grooving a key technique for premium façades, elevator panels, interior fit-out, and high-end furniture or signage. [bestsheetmetalmachine]

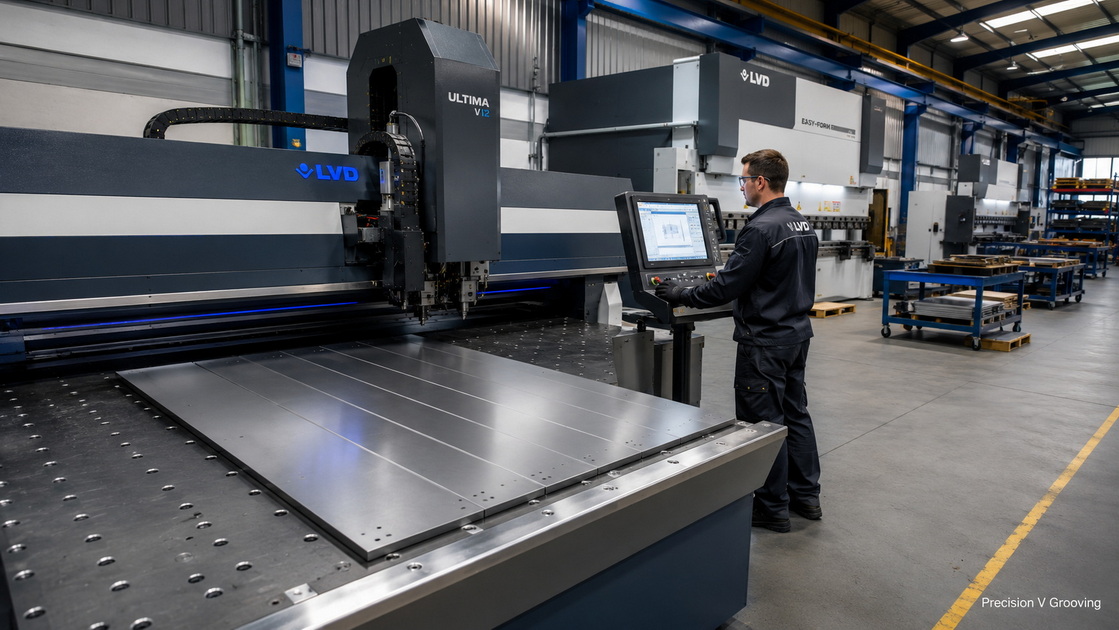

In practice, you place the sheet on the worktable, clamp it, and let the gantry-mounted cutter head follow a programmed path to create one or multiple grooves before the panel moves to a press brake or hand bending station. [durmapress]
The original Hunsone article outlines a basic process that aligns well with what we see in modern workshops. As an industry practitioner, I would describe the workflow as follows: [durmapress]

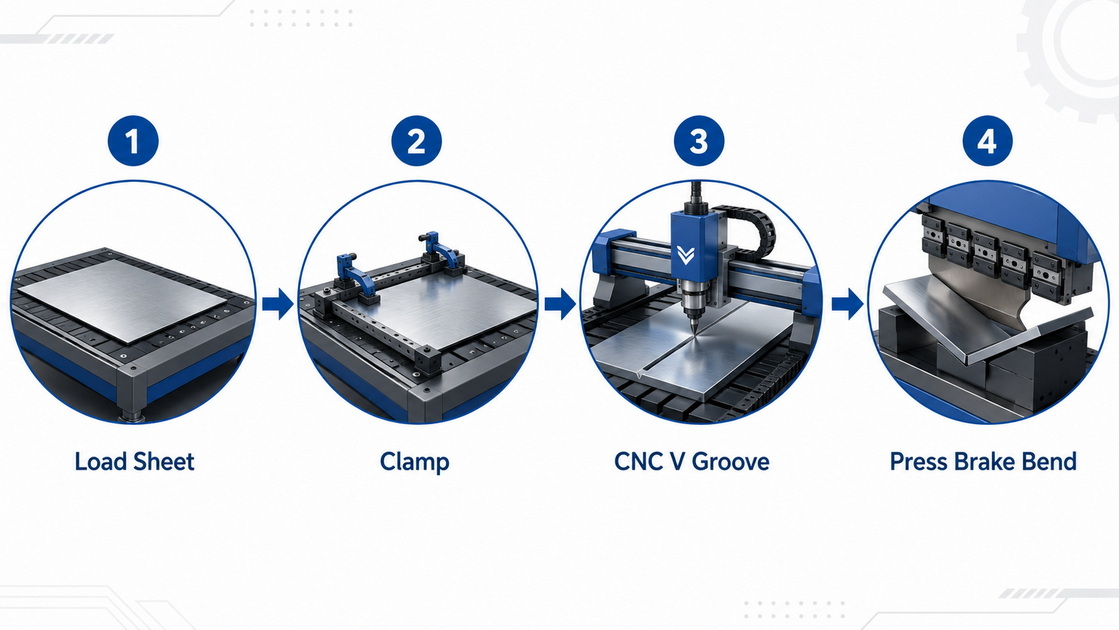

1. Load and clamp the sheet.
The operator positions the sheet on the worktable and locks it using the clamping system to prevent any movement. [durmapress]
2. Set groove parameters.
On the control panel or CNC controller, the operator defines groove depth, width, angle, and path—often from a CAD/CAM file. [bestsheetmetalmachine]
3. Run the grooving program.
The gantry system moves the cutter head over the sheet; the cutter executes one or more passes to reach the target depth with high precision. [bestsheetmetalmachine]
4. Inspect and bend.
After grooving, the sheet is removed and bent along the groove line on a press brake or, for some thin materials, even by hand. [thefabricator]
Modern CNC V-grooving machines use dedicated software to manage tool paths, residual thickness, and multi-groove patterns, which is critical when every millimeter counts—especially in sectors like aerospace, architecture, and high-end retail fixtures. [shop.adhmt]
The Hunsone article provides a good base list of components; from an engineer's viewpoint, these elements directly determine accuracy, throughput, and maintainability. [shop.adhmt]
| Component | Role in Accuracy and Productivity |
|---|---|
| Gantry System | Moves the cutter head smoothly over large sheets; rigidity reduces vibration and chatter. (durmapress) |
| Cutter Head | Hosts knives and tools that form V-shaped grooves; precision of tooling impacts edge quality. (durmapress) |
| Worktable | Supports the sheet; flatness and vacuum or mechanical clamping prevent micro-shifts. (durmapress) |
| Control Panel / CNC Controller | Lets you program depth, angle, sequence, and paths; CNC adds repeatability for complex jobs. (durmapress) |
| Clamping System | Ensures the sheet stays fixed during cutting, critical for long grooves and thin materials. (durmapress) |
| Sensors and Monitoring | Some machines use sensors to verify groove depth and tool load in real time. (durmapress) |
For CNC grooving machines, digital controls, automatic lubrication, and dust/exhaust management are no longer optional—they are part of keeping the machine accurate and the environment safe. [tzmachinery]
V-grooving machines come in several configurations, each suited to specific production scenarios. [shop.adhmt]
- Mechanical V-grooving machine – Gear-driven, suitable for lighter sheets where cost and simplicity matter. [bestsheetmetalmachine]
- Hydraulic V-grooving machine – Uses hydraulic power to handle thicker or harder metals with stable cutting forces. [durmapress]
- Vertical V-grooving machine – Upright design optimized for tall or narrow panels and space-constrained workshops. [tzmachinery]
- CNC V-grooving machine – Computer-controlled, ideal for repeat jobs, complex patterns, and high-volume production. [shop.adhmt]
For a manufacturer like CNDY‑Press, CNC V-grooving machines are central because OEM and ODM customers expect consistent corners, repeatable geometry, and tight tolerances across batches. [bestsheetmetalmachine]
Industry sources highlight V-grooving as a standard technique in precision bending for architectural panels, elevator interiors, premium cabinetry, advertising signage, and decorative façades. It works particularly well on stainless steel and aluminum panels where visible edges must be sharp, clean, and aesthetically "high end." [thefabricator]
V-grooving can reduce material thickness at the bend line by roughly half—for example, from about 0.080 inch to 0.040 inch—allowing tight radii and crisp external corners after bending. [thefabricator]
From a process engineering standpoint, V-grooving is not just cosmetic; it has measurable benefits:
- Improved bending accuracy. Reducing thickness at the bend line stabilizes angle control and reduces springback. [thefabricator]
- Sharper corners and smaller radii. Panels look more "monolithic," which is essential in architectural and high-visibility applications. [shop.adhmt]
- Material savings and design flexibility. You can use thinner materials to achieve the visual impact of thicker panels. [durmapress]
- Better joint quality. Score-folded bends can serve as clean, tight seams for bonding, welding, or mechanical joining. [thefabricator]
For OEM/ODM work, these benefits translate into lower rework, fewer cosmetic rejects, and a more premium feel that end customers immediately notice. [shop.adhmt]
However, V-grooving is not a universal solution. [bestsheetmetalmachine]
- Tooling requirements. Thick sheets and hard alloys may demand specific knife geometries and high-quality tooling. [bestsheetmetalmachine]
- Maintenance load. Hydraulic and CNC machines require scheduled maintenance of hydraulics, guides, and electronics. [tzmachinery]
- Upfront investment. High-precision CNC groovers have higher purchase costs, which must be justified by throughput and quality gains. [in-xmachineinc]
These trade-offs are why many shops deploy V-grooving strategically: on signature panels, critical bends, or places where visual quality drives revenue. [thefabricator]
One gap in many basic explanations is how to set parameters to avoid tool damage and poor bends. Industry guidance fills that in. [tzmachinery]
According to specialized V-grooving references, operators typically set a residual thickness (the remaining material under the groove) at around 0.8 mm by default, and not less than 0.3 mm. Grooving depth is reached in multiple passes: the first cut should not exceed about 0.8 mm, and the process usually requires at least two passes to reduce burrs and protect the knives. [bestsheetmetalmachine]
This multi-pass strategy is particularly important for long panels, where shops often use 3–4 knives simultaneously, each with slightly different feed amounts, to balance tool load and achieve uniform grooves. [bestsheetmetalmachine]

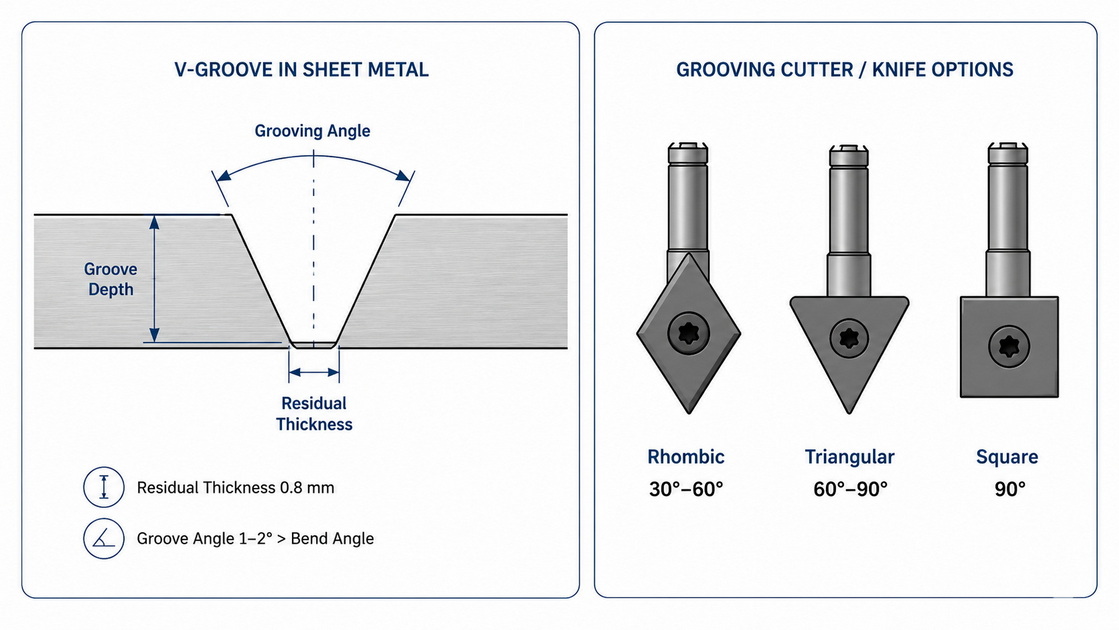

Precision bending with V-grooves depends on matching the grooving angle to the required bending angle, typically making the groove 1–2° greater than the final bend angle to accommodate springback. Knife selection is then tuned to groove angles: [bestsheetmetalmachine]
- For V-grooves between 45° and 60°, rhombic knives with about a 35° top angle are recommended. [bestsheetmetalmachine]
- For 60°–80°, triangular knives are preferred. [bestsheetmetalmachine]
- For 80°–90°, rhombic knives around 80° top angle are used. [bestsheetmetalmachine]
- Above 90°, square knives are the typical choice. [bestsheetmetalmachine]
After grooving, the bending die opening is usually chosen around 6–8 times the material thickness, and the upper die angle is kept near 84° to avoid clamping or surface damage at the bend. [bestsheetmetalmachine]
These parameters are where a specialized supplier like CNDY‑Press adds real value: helping OEM/ODM customers translate drawings into reliable grooving and bending setups. [shop.adhmt]
Recent CNC machining trends show that machines—including groovers—are becoming data-driven and highly integrated. In 2026, key shifts include: [mtavietnam]
- AI-native machining and digital twins that simulate tool paths and predict tool wear before production. [techpro-cnc]
- Robotic loading/unloading and multi-tasking systems to support lights-out operation. [mtavietnam]
- IoT sensors and real-time monitoring that turn each machine into a data collection node for the factory. [in-xmachineinc]
For CNC V-grooving, this means smarter control of groove depth, automatic adjustment based on tool wear, and seamless integration with press brakes, lasers, and panel lines. [blog.3ds]
Sustainable manufacturing is also shaping CNC machine design, with emphasis on energy efficiency, reduced scrap, and better dust/particle control. V-grooving can contribute by allowing thinner materials to achieve stiff, high-quality structures, reducing overall metal consumption and transportation weight. [techpro-cnc]
For OEM and ODM customers, these developments support stronger ESG messaging without sacrificing visual and mechanical performance. [in-xmachineinc]
The original article highlights high-level selection tips; expanded for real B2B decisions, a practical checklist looks like this. [durmapress]
- Material range and thickness. Confirm supported materials and thickness window (for example, 0.3–6 mm stainless steel) against your product portfolio. [vistmac]
- Panel size and layout. Check maximum grooving length and width, plus clamping method, for large architectural panels or narrow elevator trims. [vistmac]
- Control system and software. Favor CNC controllers with user-friendly HMI, CAD/CAM import, and offline programming. [durmapress]
- Speed and productivity. Review cutting speeds (e.g., 8–15 m/min for 2 mm stainless on vertical machines) and cycle times for typical panels. [tzmachinery]
- Accuracy and repeatability. Ask for sample parts, angle measurements, and process capability data over long runs. [shop.adhmt]
- Maintenance and service. Evaluate access to spares, knife replacement ease, lubrication systems, and local technical support. [tzmachinery]
Manufacturers like CNDY‑Press can go further by matching machine specs with actual project types—architectural façades, elevator cabins, cabinets, etc.—rather than just catalog numbers. [in-xmachineinc]
V-grooving involves moving cutters and heavy sheets, so basic safety discipline is crucial:
- Always wear gloves and eye protection and follow the operator manual. [durmapress]
- Ensure clamping systems are fully engaged before running a program. [durmapress]
- Test emergency stop and safety sensors during setup and at regular intervals. [tzmachinery]
In smart sheet metal facilities, CNC V-grooving machines are integrated with press brakes, laser cutters, and ERP/MES systems. Benefits include: [mtavietnam]
- Automatic program transfer from CAD/CAM to both grooving and bending machines. [shop.adhmt]
- Shared material and batch data for traceability and quality audits. [techpro-cnc]
- Optimized line balancing, where V-grooving capacity matches bending and finishing steps. [mtavietnam]
This integration is where an OEM/ODM partner with process expertise—not just machine sales—can significantly reduce startup time and error rates. [in-xmachineinc]
CNC V-grooving machines have evolved from niche tools into core assets for premium sheet metal fabrication, enabling tight bends, high visual quality, and efficient use of materials. In 2026 and beyond, integrating these machines into smart, data-driven lines is how OEM and ODM producers turn bending detail into strategic differentiation. [blog.3ds]
If you are planning to add or upgrade CNC grooving capability for architectural panels, elevator cabins, or high-end metal furniture, contact CNDY‑Press to review your drawings, materials, and volume targets—we can help you select the right V-grooving solution and integrate it seamlessly into your existing bending and cutting processes. [in-xmachineinc]
1: What is the main advantage of using a V-grooving machine before bending?
It locally reduces material thickness at the bend line, allowing sharper corners, smaller radii, and more accurate angles than bending a full-thickness sheet alone. [thefabricator]
2: Which materials are most commonly processed with CNC V-grooving?
Stainless steel and aluminum are most common, but V-grooving can also be applied to other metals and some plastics used in architectural and decorative applications. [thefabricator]
3: How do I choose between mechanical, hydraulic, and CNC V-grooving machines?
Mechanical models suit light sheets and lower budgets; hydraulic machines handle thicker or harder metals; CNC groovers are best for repeat jobs, complex patterns, and tight tolerances. [shop.adhmt]
4: What parameters are critical for high-quality V-grooves?
Residual thickness, groove depth, groove angle vs bending angle, knife geometry, and die opening all affect edge quality and bending accuracy. [thefabricator]
5: How does V-grooving fit into a smart factory or Industry 4.0 setup?
CNC groovers can connect to CAD/CAM, MES, and IoT platforms, sharing data on programs, tool wear, and production batches to support automation and predictive maintenance. [blog.3ds]
