For many fabrication shops, the press brake is the bottleneck that controls overall delivery time, rework rates, and labor costs. The decision between a pneumatic CNC press brake and a hydraulic CNC press brake directly affects bending accuracy, energy consumption, uptime, and long‑term ROI. [alibaba]
From our perspective as CNDY‑Press, a manufacturer focused on CNC press brakes and full sheet‑metal processing lines, we see three core questions drive the choice: [machangroup]
- What thickness and material mix are you bending most of the time?
- How many shifts and how much batch variety do you run?
- How sensitive are you to energy cost and maintenance downtime?

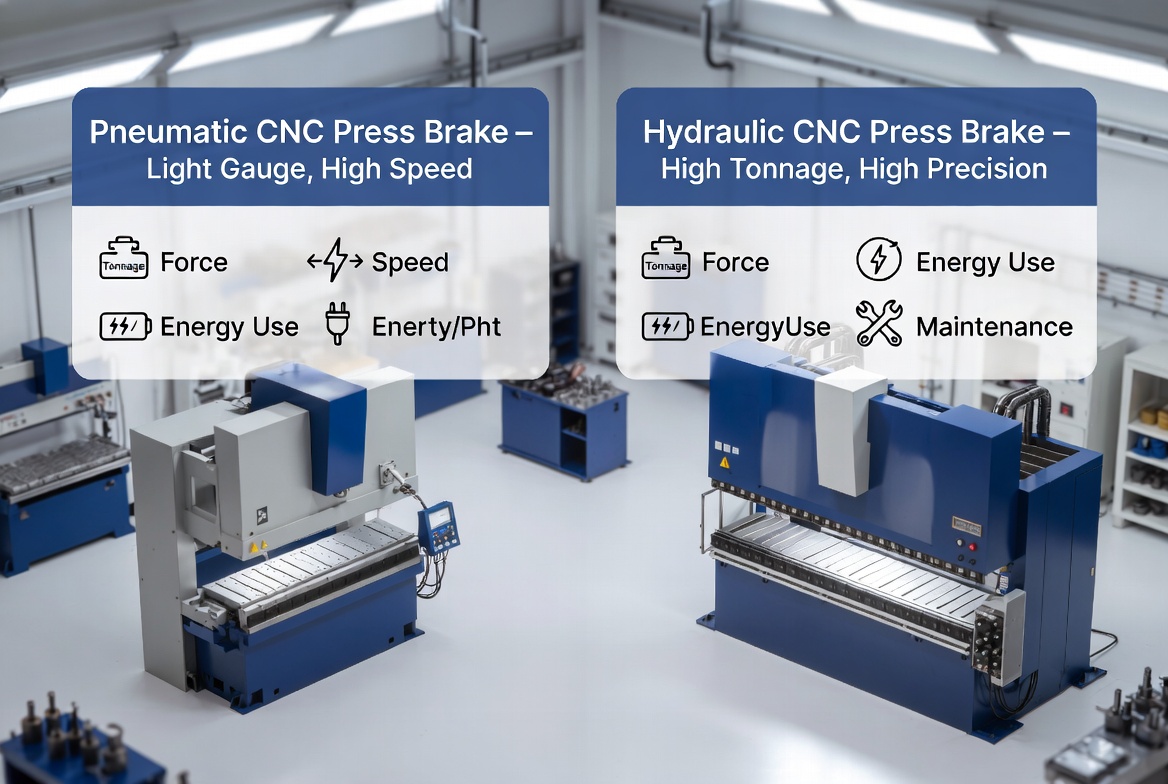

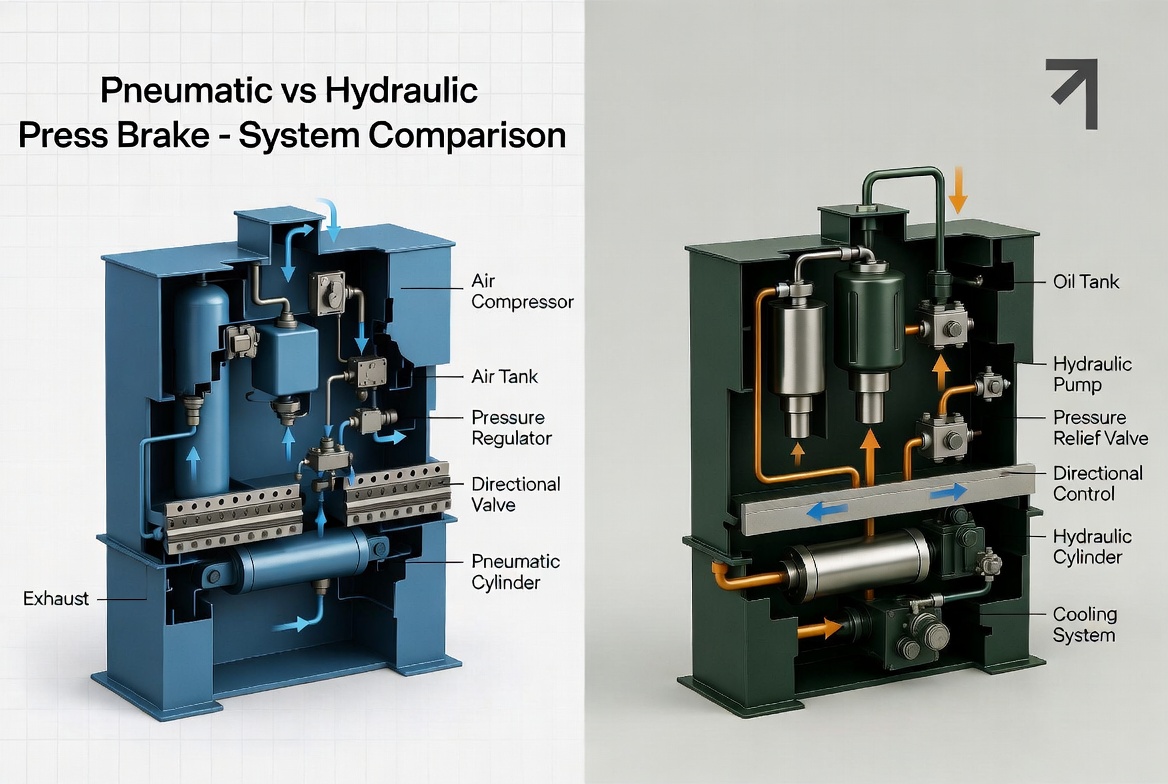

Pneumatic press brakes use compressed air as the power medium, while hydraulic press brakes rely on pressurized hydraulic oil to generate force. This core difference drives almost everything else: tonnage, cycle speed, thermal behavior, and maintenance patterns. [hunsone]
A pneumatic CNC press brake converts compressed air into linear force via cylinders controlled by a CNC system. Because air is compressible, the system reacts quickly and is naturally suited for high‑cycle, light‑duty bending tasks. [ahyawei]
Key characteristics:
- Fast actuation thanks to the rapid response of compressed air.
- Lower maximum tonnage, limiting use with thick or high‑strength plate.
- Less heat generation in the actuation system, supporting a stable working environment. [hunsone]
- Typically compact footprints ideal for small workshops or cells. [ahyawei]
Hydraulic CNC press brakes use pumps to pressurize oil, which then drives cylinders controlled by servo valves and CNC axis control. Oil is incompressible, giving high force density and stable pressure over the full stroke. [alibaba]
Key characteristics:
- Very high tonnage and bending length suitable for thick carbon steel, stainless, and high‑strength alloys. [alibaba]
- Consistent pressure and smooth motion, supporting high precision and repeatability. [compraco.com]
- More complex systems with pumps, valves, hoses, and cooling that demand structured maintenance. [jinqiu]
- Increasingly available with servo‑hydraulic drives that cut energy consumption by up to roughly 30% vs. older constant‑pump systems. [alibaba]
Hydraulic CNC press brakes dominate when you need force. Pneumatic systems are naturally limited by air pressure and cylinder size, making them best for thinner sheets. [ahyawei]
- Pneumatic: ideal for light‑gauge sheet metal, e.g., control panels, thin cabinets, and simple brackets.
- Hydraulic: suited for 6–20 mm carbon steel and beyond, depending on machine rating and tooling, covering structural parts, chassis, and heavy enclosures. [ahyawei]
For jobs with tight tolerances and complex bend sequences, hydraulic CNC press brakes generally deliver higher accuracy and repeatability. Oil's incompressibility allows finer control over ram position and pressure. [compraco.com]
- Hydraulic CNC: integrates multi‑axis backgauges and compensation features (crowning, deflection compensation) for dimensional stability over long parts. [compraco.com]
- Pneumatic CNC: satisfactory for simple bends and moderate tolerance work; air pressure fluctuation can introduce small variation if not carefully controlled. [ahyawei]
Pneumatic brakes are often faster in stroke movement for light‑duty parts, especially in high‑frequency, repetitive bending. Hydraulic systems, however, maintain high productivity when dealing with heavy materials and longer strokes. [hunsone]
- Pneumatic: short strokes, quick up‑down movement, efficient on thin work with many repeated bends.
- Hydraulic: smart hydraulics with fast approach, reduced idle strokes, and optimized decompression make them competitive even on mixed‑thickness batches. [alibaba]
From a lifetime cost perspective, maintenance is where the differences hit your bottom line month after month.
Pneumatic systems are mechanically simpler, with fewer components that can wear or leak. Their maintenance routines are lighter and easier to standardize. [hunsone]
Typical tasks include:
- Regular air quality checks (filters, dryers) to avoid moisture and contamination.
- Periodic inspection of seals and hoses for air leakage.
- Cleaning valves and lubricating moving parts according to the service manual.
Because the system generates little extra heat and uses air instead of oil, the risk of messy leaks and overheating is lower. That makes pneumatic machines attractive for operators who want low‑touch upkeep and minimal environmental handling requirements. [hunsone]
Hydraulic CNC press brakes demand more structured preventive maintenance because hydraulic oil, seals, and hoses are all consumable elements. With a good program, you gain reliability; without one, you risk leaks, pressure loss, and unplanned downtime. [jinqiu]
Core tasks:
1. Hydraulic oil management – regular level checks, viscosity and contamination monitoring, and scheduled oil changes.
2. Seal and hose inspection – watching for micro‑leaks, cracking, or aging that can compromise pressure stability. [jinqiu]
3. Cooling and filtration – maintaining filters and coolers to manage heat and protect system components. [ahyawei]
4. CNC and servo system care – software updates, parameter backups, and periodic sensor calibration. [jinqiu]
Hydraulic systems have more wear‑and‑tear components but also more potential to integrate predictive maintenance using sensors and Industry 4.0 connectivity, reducing unscheduled stops over time. [linkedin]
Energy and operating costs are now strategic factors, especially in multi‑shift, high‑volume environments.
Pneumatic systems are often described as energy‑efficient for light work because they avoid continuous hydraulic pump operation. However, air compression is itself relatively energy intensive, so real‑world efficiency depends heavily on compressor performance and air system design. [hunsone]
- Good fit for short cycles, light force, and smaller machines where compressor capacity is already installed for other tools.
- Low heat generation and low noise levels contribute to a more comfortable shop environment. [hunsone]
Traditional hydraulic systems can waste energy by running pumps continuously, but modern servo‑hydraulic systems have changed that picture. [alibaba]
- Servo‑hydraulic CNC press brakes can reduce energy consumption by up to around 30% compared with older constant‑speed pump designs, especially in variable‑load conditions. [alibaba]
- Because hydraulic systems can process thick material in fewer passes, the energy per finished part often compares favorably for heavy‑duty applications. [linkedin]
For shops targeting low‑thickness work in high volumes, pneumatic can be efficient; for mixed or heavy‑thickness portfolios, servo‑hydraulic CNC often delivers better overall cost per bend.
The CNC press brake market is growing quickly as metal fabrication shifts toward automation, customization, and smart factories. [intelmarketresearch]
- The global CNC hydraulic press brake market is forecast to grow at around a 4.8% CAGR from 2026 to 2033, driven by automation and customized components demand. [linkedin]
- The broader CNC press brake machine segment is projected to expand at a double‑digit CAGR in some studies, with Asia‑Pacific as the fastest‑growing region due to rapid industrialization. [linkedin]
Hydraulic CNC machines are at the center of this growth, integrating:
- Multi‑axis backgauges and automatically adaptable tooling.
- Industry 4.0 connectivity, IoT sensors, AI‑assisted diagnostics, and remote service. [linkedin]
Pneumatic systems continue to hold a strong niche in cost‑sensitive, light‑gauge markets where simple, fast bending is needed without high force or complex compensation features. [ahyawei]
From our OEM/ODM experience, we usually guide customers through three practical scenarios before recommending pneumatic or hydraulic solutions.
Profile: electrical cabinets, IT racks, HVAC ducts, and enclosures, mostly in 0.8–2.5 mm sheet, with many changeovers per shift.
- Best fit: Pneumatic CNC press brake or compact hydraulic CNC with low tonnage.
- Why: fast cycles, low maintenance burden, and minimal oil handling align with quick‑turn, light‑gauge production. [hunsone]
Profile: chassis, structural beams, industrial brackets, and thick stainless or high‑strength steels.
- Best fit: High‑tonnage hydraulic CNC press brake with multi‑axis control and crowning.
- Why: only hydraulic systems offer the force, rigidity, and advanced compensation needed to maintain angle accuracy over large, thick parts. [compraco.com]
Profile: mixed portfolio, uncertain future product mix, planning automation upgrades and digitalization.
- Best fit: Servo‑hydraulic CNC press brake prepared for Industry 4.0 integration.
- Why: combines high force, good energy performance, and a path toward connected, automated bending cells. [linkedin]
| Dimension | Pneumatic CNC Press Brake | Hydraulic CNC Press Brake |
|---|---|---|
| Power medium | Compressed air (ahyawei) | Pressurized hydraulic oil (ahyawei) |
| Typical tonnage | Lower, for thin to medium sheet (ahyawei) | Medium to very high, handles thick and hard materials (ahyawei) |
| Accuracy & repeatability | Good for simple parts; affected by air fluctuations (ahyawei) | High precision, stable pressure, advanced compensation options (alibaba) |
| Cycle speed | Very fast on short, light strokes (ahyawei) | Fast approach and return, optimized for heavier strokes (alibaba) |
| Maintenance load | Fewer parts, simple checks and cleaning (ahyawei) | More components; requires structured oil, seal, and hose maintenance (ahyawei) |
| Energy behavior | Efficient for light duty; depends on compressor system (ahyawei) | Improved with servo‑hydraulic; up to ~30% energy savings vs. older units (alibaba) |
| Noise & heat | Low noise, low heat generation (hunsone) | Higher noise/heat without mitigation; manageable with modern designs (ahyawei) |
| Ideal applications | Light‑gauge panels, small brackets, high‑frequency simple bends (ahyawei) | Heavy structural parts, thick plate, high‑precision multi‑bend parts (ahyawei) |

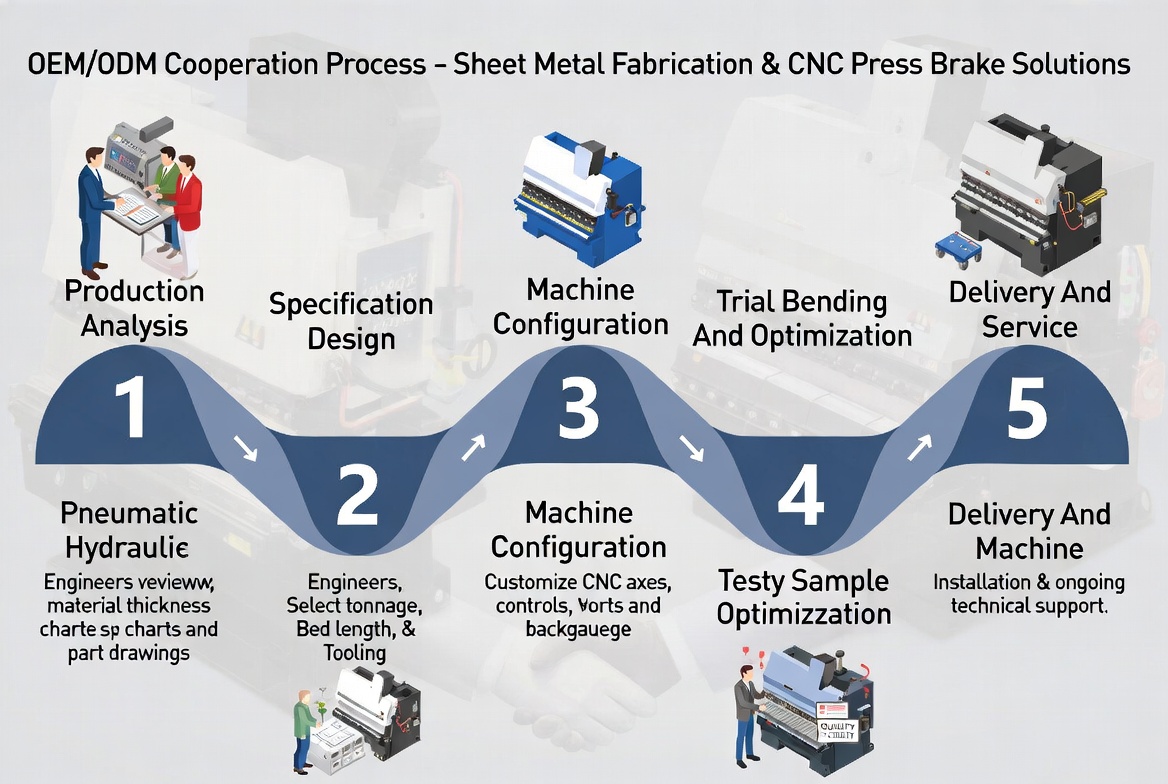

As a dedicated CNC press brake and sheet‑metal equipment manufacturer, we see many customers struggle to translate theory into the right machine specification for their actual production environment. A supplier with OEM/ODM capabilities can reduce this risk by tailoring the machine to real‑world workflows instead of forcing a standard catalog model into a misfit role. [odmtool]
What we typically customize for clients:
- Tonnage and bed length to match specific product families and future expansion needs.
- CNC control level and axis count (backgauge axes, crowning, angle measurement) to balance budget with accuracy.
- Integration with upstream laser cutting and downstream automation for full‑line efficiency.
- Safety systems, guarding, and ergonomics adapted to local regulations and operator habits.
If you are still undecided between pneumatic and hydraulic CNC press brakes, co‑developing a specification with your OEM/ODM partner helps you simulate future jobs, estimate maintenance budgets, and define measurable ROI targets before committing capital.
Use this 5‑step checklist before sending your RFQ or machine inquiry:
1. Define your material envelope – minimum and maximum thickness, material grades, and typical part lengths.
2. Quantify part mix and batch size – percentage of light vs. heavy work, single‑piece vs. batch repetition.
3. Map your tolerance and quality requirements – critical dimensions, visible surfaces, and acceptable rework rates.
4. Estimate energy and maintenance budget – electricity cost, available maintenance staff, and tolerance for downtime.
5. Clarify digital roadmap – need for Industry 4.0 connectivity, data collection, and remote diagnostics.
For light, repetitive jobs with moderate tolerance, a pneumatic CNC press brake offers lean, low‑maintenance operation. For demanding, thick, or high‑precision work—and for shops planning a smart‑factory journey—a hydraulic CNC press brake (ideally servo‑hydraulic) is usually the safer long‑term investment. [linkedin]
If you are planning a new line, upgrading existing machines, or launching an OEM/ODM project, now is the best time to align your press brake choice with your next five years of product strategy. With a clear understanding of pneumatic vs. hydraulic performance and maintenance trade‑offs, you can avoid under‑powered machines, excessive upkeep, or hidden energy costs.
Share your material mix, target throughput, and tolerance requirements with our engineering team, and we can help you define a tailored CNC press brake configuration—pneumatic, hydraulic, or hybrid—that fits your production reality and budget.
Q1: Can a pneumatic CNC press brake replace a hydraulic machine completely?
A1: For light‑gauge sheet and simple geometries, a pneumatic press brake can cover most work, but it will not replace a hydraulic machine for thick, high‑strength, or highly complex parts that require high tonnage and advanced compensation. [alibaba]
Q2: Which type is better for very tight angle tolerances?
A2: Hydraulic CNC press brakes are generally better for tight angle tolerances because oil‑based systems provide more stable pressure and integrate more advanced compensation and measurement features. [compraco.com]
Q3: How big is the maintenance cost difference over 5–10 years?
A3: Pneumatic systems typically have lower routine maintenance costs due to fewer wear components, while hydraulic machines incur ongoing costs for oil, filters, seals, and hoses, but they may deliver higher throughput and more value on heavy work over the same period. [jinqiu]
Q4: Are modern hydraulic CNC press brakes still noisy and energy hungry?
A4: Modern servo‑hydraulic designs significantly reduce both noise and power consumption compared with older constant‑pump models, making them more acceptable in energy‑sensitive and operator‑friendly environments. [linkedin]
Q5: What if my product mix changes in the future?
A5: If you expect your product mix to become thicker, more complex, or more customized, a hydraulic CNC press brake with room for automation and Industry 4.0 integration is usually the more future‑proof choice, especially when specified with an OEM/ODM partner. [machangroup]
