Laser cutting kerf is the narrow channel of material removed by the laser beam as it cuts through metal. It is formed by the focused beam, the melted material, and the assist gas that clears the cut path.
In practical manufacturing, kerf is the reason a finished part may come out slightly smaller than the drawing. That small difference becomes important when parts must fit together accurately, especially in slots, holes, tabs, and precision assemblies.
Kerf influences dimensional accuracy, nesting efficiency, and final assembly quality. Even a small change in kerf can affect hole size, slot fit, and the consistency of repeated production runs.
For OEM and ODM manufacturing, kerf consistency matters even more because the same design may be repeated across different batches, materials, or thicknesses. If kerf is not controlled, the same drawing can produce parts that fit well in one run and poorly in the next.
Kerf width depends on material type, thickness, cutting speed, focus position, assist gas, and machine setup. In fiber laser cutting, kerf is usually narrow on thin sheet metal and wider on thicker materials.
| Material / Condition | Typical Kerf Range |
|---|---|
| Thin mild steel | 0.10–0.15 mm |
| Stainless steel | 0.10–0.20 mm |
| Aluminum | 0.15–0.20 mm |
| General laser cutting range | 0.20–0.40 mm |
These values are practical references, not fixed numbers. The actual kerf on a specific machine should always be confirmed with a test cut.

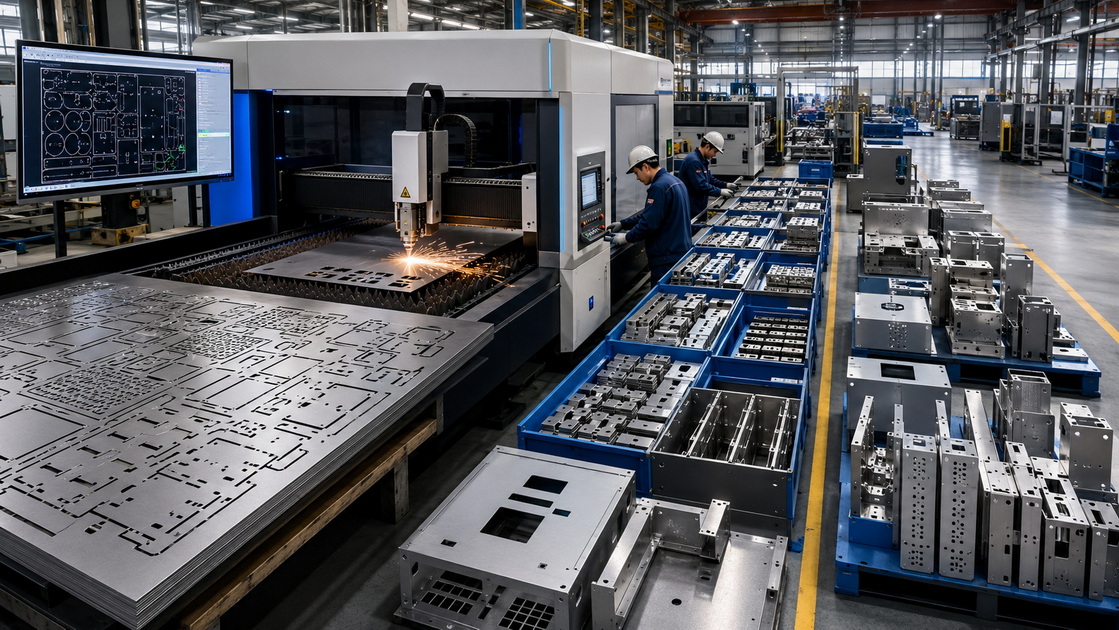

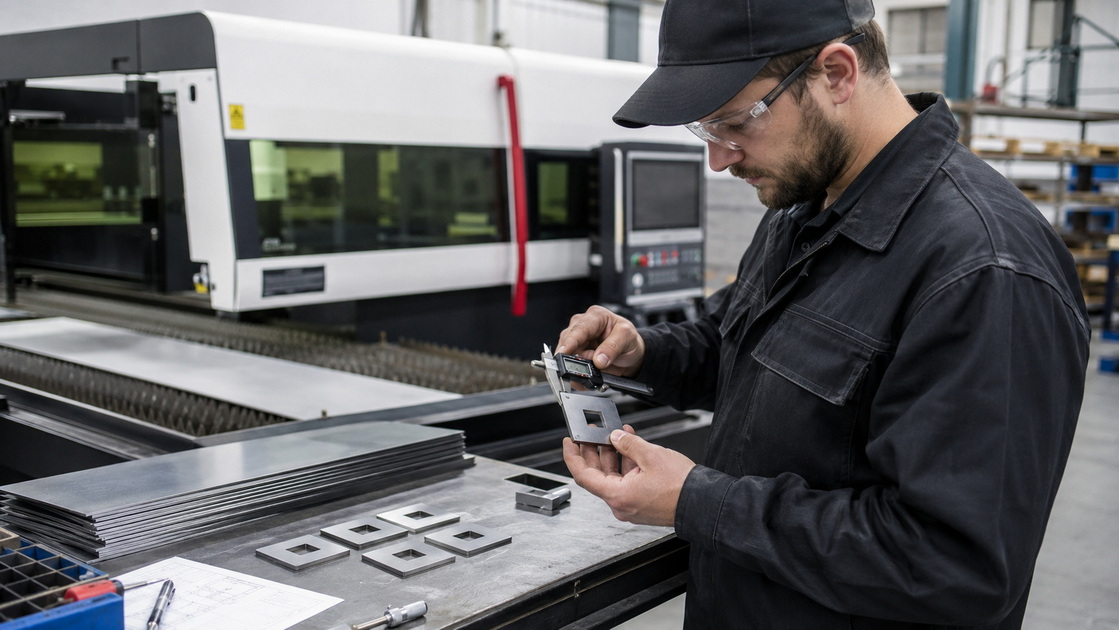

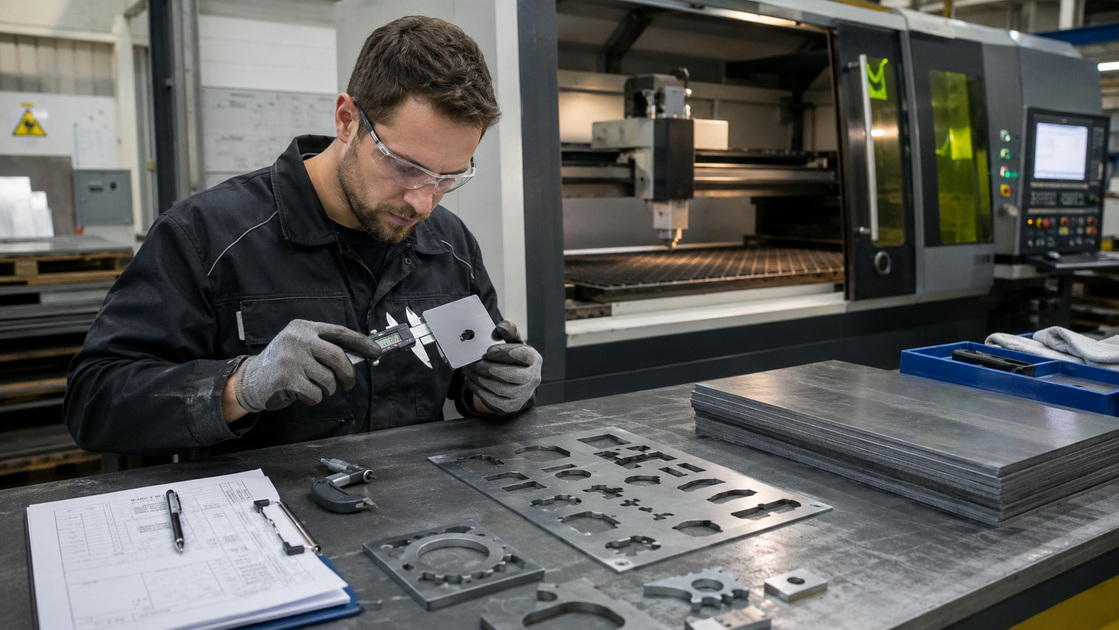

A simple kerf test starts with a known shape, such as a square or slot test piece. After cutting, the part is measured with calipers and compared with the original design size.
A basic method is:
1. Cut a test part using the same material and settings.
2. Measure the finished dimension carefully.
3. Compare it with the design dimension.
4. Divide the difference by two to estimate the kerf per side.
For example, if a 30 mm test square measures 29.5 mm after cutting, the total difference is 0.5 mm. That means the kerf effect is about 0.25 mm per side.
Kerf compensation means adjusting the cut path so the finished part matches the intended dimension. For outer profiles, the offset is usually outward; for internal holes and slots, the offset is usually inward.

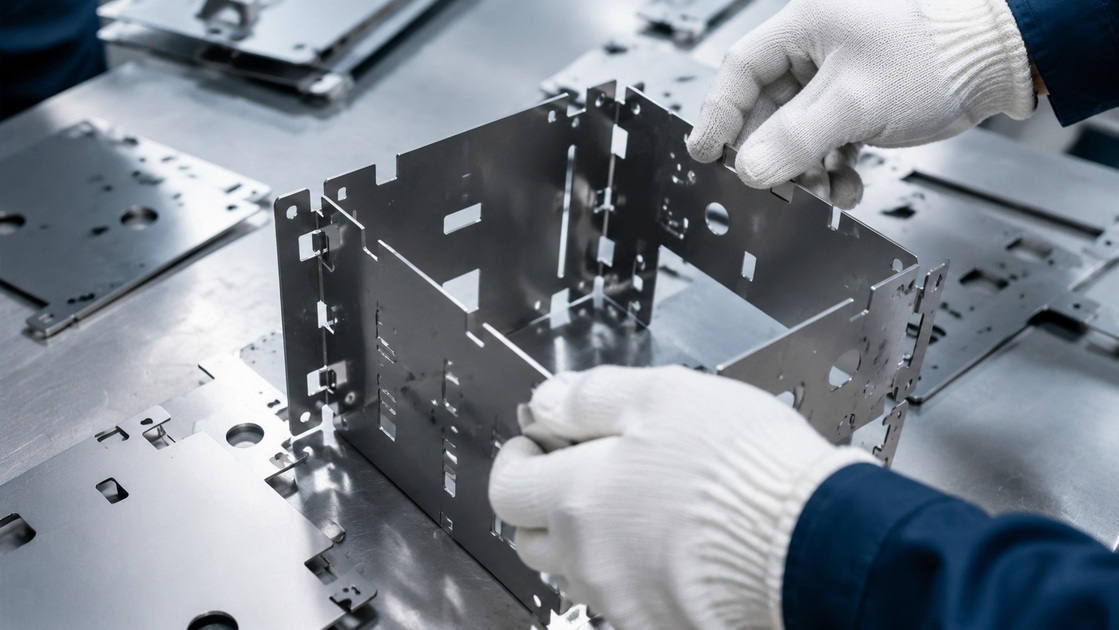

This is especially important for press-fit parts, interlocking joints, and precision mounting holes. Without compensation, internal cutouts may become too large and external profiles may become too small.
A reliable production workflow is to keep separate kerf values for each material and thickness group. That is much safer than using one universal value for every job.
Several process variables influence kerf width and edge quality. The most important are cutting speed, focus position, assist gas, material thickness, and nozzle condition.
Cutting speed has a strong effect on kerf size and cut quality. Research and industry guides both show that speed changes the width of the cut and the stability of the edge.
If the beam is not focused correctly, the kerf can widen or become uneven from top to bottom. This can also increase taper and reduce fit accuracy.
Assist gas helps remove molten metal from the cut zone. The gas type and pressure influence edge quality, dross formation, and kerf stability.
As thickness increases, the laser stays in the material longer and the kerf often becomes wider. A kerf value that works for thin sheet may not work for thick plate.
Kerf is not always the same at the top and bottom of the cut. In many cases, the top edge is slightly wider, while the bottom edge is narrower, which creates taper.
This matters when straight walls, tight slots, or clean-fit assemblies are required. A part can have the correct average kerf and still be unsuitable if taper is too strong.
A repeatable shop-floor workflow helps keep kerf under control:
1. Confirm the material grade and thickness.
2. Set the correct machine parameters.
3. Run a first-article test cut.
4. Measure the result with calipers.
5. Apply the kerf value in CAD or CAM.
6. Recheck whenever material or settings change.
This approach works well for both prototype work and repeat production because it reduces guesswork and helps keep dimensions stable across batches.
Kerf is not only about part accuracy. It also affects material usage, nesting efficiency, and scrap rate. A more stable kerf can support better sheet utilization and fewer rejected parts.
In production environments, this makes kerf a meaningful cost factor. Better control can improve yield without changing the drawing itself.
For custom manufacturing projects, kerf should be documented as part of the process standard. That record should include material type, thickness, focal settings, gas choice, nozzle type, and approved kerf allowance.
It is also smart to keep a first-article reference sample for each important part family. That gives the team a physical benchmark for future orders and helps prevent fit issues when production is repeated months later.
| Process Item | Why It Matters |
|---|---|
| Focus position | Affects cut concentration and taper |
| Assist gas | Influences edge quality and material removal |
| Cutting speed | Changes kerf width and stability |
| Thickness | Usually increases kerf and taper |
| Nozzle condition | Affects consistency and repeatability |
Kerf is a small measurement with a large impact on laser cutting quality. When it is measured, recorded, and compensated correctly, parts fit better, assemblies become more reliable, and production becomes more consistent.
For sheet metal manufacturers, especially those handling custom OEM and ODM work, kerf control should be treated as a standard part of the process rather than an afterthought. That is the most practical way to improve accuracy and reduce avoidable production issues.
