Laser cutting aluminum is no longer a niche capability reserved for labs or high‑end aerospace factories; it is now a core process for competitive sheet‑metal shops and OEMs worldwide. As a manufacturer of fiber laser cutting machines and turnkey sheet‑metal solutions, I'll walk you through what really matters when you want consistent, burr‑free aluminum parts—based on shop‑floor experience, current 2026 data, and proven process recipes. [heatsign]
Aluminum used to be considered "tricky" for lasers because of its high reflectivity and thermal conductivity, but modern fiber laser systems and better process control have changed the game. Today, industrial systems routinely cut aluminum sheet up to around 25–30 mm with tight tolerances and excellent edge quality. [arcuscnc]
- High precision: Typical cutting tolerances reach around ±0.01 mm on well‑tuned industrial fiber laser systems. [ud-machine]
- High speed: Cutting speeds may reach about 140 IPM while still maintaining quality on suitable thicknesses. [ud-machine]
- Less waste: Nesting and narrow kerfs can cut material waste from roughly 15–20% down to about 5–8% in many applications. [ud-machine]
For OEMs and job shops, that combination of precision, speed, and lower scrap makes laser cutting aluminum one of the most cost‑effective options for sheet parts under about 10 mm thick. [arcuscnc]
Yes—aluminum can absolutely be cut with a laser, but it needs the right setup and parameters. Compared with mild steel, aluminum reflects more of the beam and pulls heat away quickly, so simply copying a steel cutting recipe is a common and costly mistake. [arcuscnc]
Key challenges you must manage:
- Reflective surface: Can cause back‑reflection and unstable cutting if optics and parameters are not optimized. [arcuscnc]
- High thermal conductivity: Heat spreads quickly, which can reduce local temperature and disrupt the melt pool. [sciencedirect]
- Surface oxide: The natural oxide layer can scatter the beam and affect piercing and edge quality.
When you select the right laser source, assist gas, and cutting parameters, these issues become manageable—and you gain all of laser cutting's benefits in return. [arcuscnc]

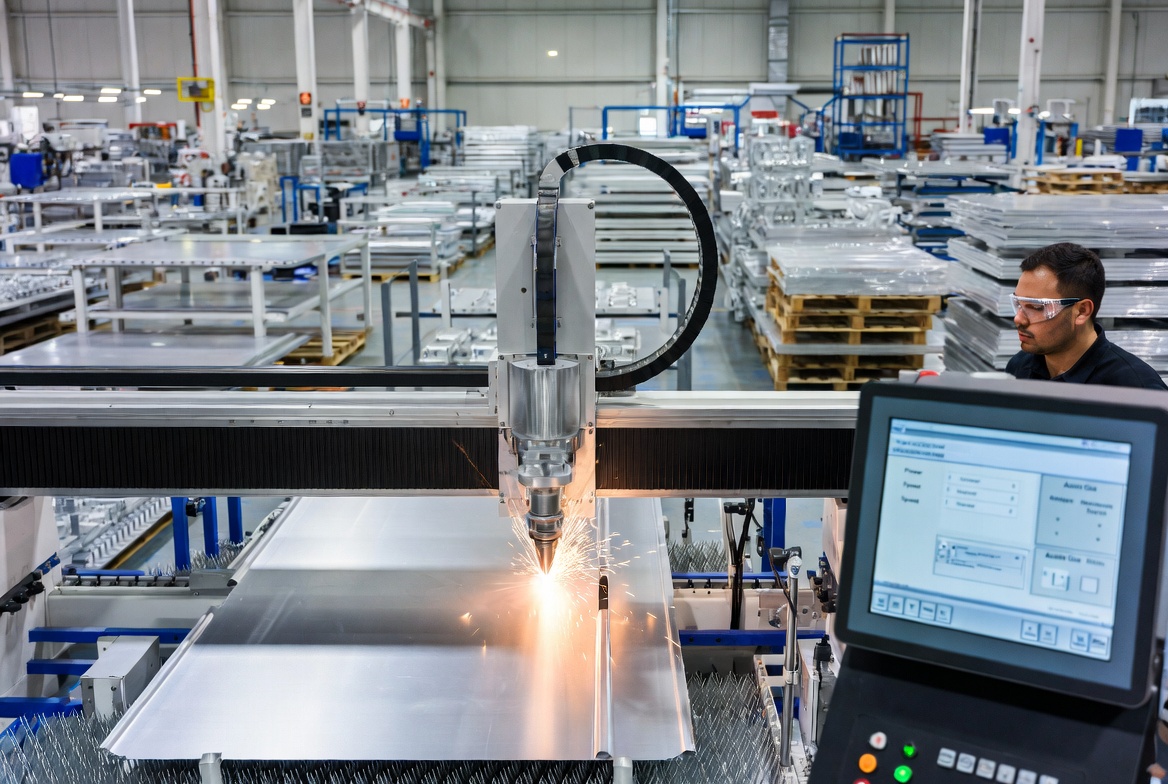

The full process for laser cutting aluminum typically moves through five stages.
1. Programming the job
- Import CAD (DXF/STEP) into CAM or CNC software.
- Define material grade and thickness (e.g., 5052, 6061, 2–6 mm).
- Apply proven cutting technology tables for aluminum (power, speed, gas, focus).
2. Material loading and alignment
- Place sheets flat on the cutting table and check for distortion.
- Confirm sheet orientation to match the nesting layout and avoid collision.
3. Laser calibration and test cuts
- Set focus position relative to sheet surface (often slightly below the top surface for aluminum).
- Adjust power, duty cycle, and assist‑gas pressure based on thickness.
- Run a short test coupon to confirm dross, kerf width, and edge color.
4. Cut execution
- The laser beam melts/evaporates metal; high‑pressure nitrogen or air ejects molten material from the kerf. [arcuscnc]
- CNC motion keeps speed and path accurate to achieve the programmed tolerance.
5. Post‑processing
- Remove any residual dross and lightly deburr edges if necessary.
- Inspect parts for dimensional accuracy and surface finish, especially for cosmetic components. [ud-machine]
A well‑tuned production line integrates these steps with automatic loading/unloading and real‑time monitoring, enabling "lights‑out" production for repeat aluminum parts. [mgsaws]
Fiber lasers dominate modern sheet‑metal cutting because of their high efficiency, compact design, and excellent performance on metals. [heatsign]
- Energy efficiency: Wall‑plug efficiency over 40% is typical, which translates into lower power bills.
- Speed: High power density delivers very fast cutting on thin‑to‑medium aluminum sheets. [ud-machine]
- Low maintenance: No gas laser tube and fewer moving optics, reducing downtime and consumable costs.
In 2026, fiber is widely considered the primary choice for aluminum sheet up to around 25–30 mm in most industrial applications. [ud-machine]
CO₂ lasers use an electrically stimulated gas mixture and generally have lower efficiency and higher operating costs than fiber lasers.
- They may handle reflective materials like aluminum relatively well, but require larger chillers and more maintenance.
- For many users, the higher energy consumption and service demands make CO₂ less attractive than modern fiber systems. [heatsign]
Solid‑state lasers can deliver excellent beam quality, making them interesting for very fine, intricate features.
- However, they are less commonly used in mainstream industrial aluminum sheet cutting due to efficiency and cost trade‑offs.
Despite advanced hardware, process parameters are what separate clean, repeatable cuts from scrap. [arcuscnc]
- For aluminum, a slightly negative focus (below the surface) helps maintain a stable melt and reduce dross. [arcuscnc]
- As thickness increases, the optimal focus tends to move deeper into the material to keep energy distribution balanced. [arcuscnc]
Aluminum has a relatively narrow "sweet spot" for cutting speed. [arcuscnc]
- Too fast: The beam trails behind, causing incomplete penetration and sharp, backward‑angled "high‑speed dross". [arcuscnc]
- Too slow: Excess heat builds up, enlarging the heat‑affected zone and producing heavy, rounded dross beads. [sciencedirect]
An effective approach on a new thickness is to start at a higher speed and reduce in small steps until the dross disappears while kerf and edge color remain stable. [arcuscnc]
- Nitrogen is the most common choice for clean, oxide‑free edges, especially on visible parts and weld‑prep components. [arcuscnc]
- Oxygen can increase cutting speed on some materials, but it promotes oxide formation and is less common for finish‑critical aluminum.
- Clean dry air is increasingly used on thin aluminum when cost and acceptable cut quality align. [heatsign]
Not all aluminum behaves the same in front of a laser beam, so grade selection is critical.
- 5052: Very common for sheet‑metal enclosures, panels, and brackets thanks to its good formability and corrosion resistance.
- 6061: Widely used structural grade with good strength; cuts well but may require more parameter fine‑tuning to balance edge quality and speed.
Most industrial fiber laser machines comfortably cut thin to medium aluminum sheets up to about 1 inch (≈25 mm), depending on laser power and optics. [ud-machine]
| Parameter | Traditional methods | Fiber laser cutting aluminum |
|---|---|---|
| Precision tolerance | ±0.1 mm | ±0.01 mm ud-machine |
| Cutting speed | ~50 IPM | Up to ~140 IPM ud-machine |
| Material waste | 15–20% | ~5–8% ud-machine |
| Edge finish | Needs machining/deburr | Often burr‑free, minimal finishing ud-machine |
This performance is the main reason many manufacturers shift aluminum components from sawing, punching, and milling to fiber laser cutting lines. [mgsaws]
- High precision and repeatability suitable for industries like automotive, aerospace, and electronics. [mgsaws]
- Fast throughput on thin and medium sheet thicknesses, especially in automated cells. [mgsaws]
- Design freedom: Complex contours, micro‑features, and tight nesting are straightforward in CAM. [ud-machine]
- Higher hourly cost than some legacy methods because of machine cost, gas consumption, and power. [arcuscnc]
- Parameter sensitivity: Aluminum is less forgiving than mild steel; small changes in focus, speed, or gas can show up in edge quality. [arcuscnc]
- Optics protection: Back‑reflection and contamination demand good nozzle, lens, and protective glass maintenance. [arcuscnc]
When these factors are handled correctly, the cost per finished part remains highly competitive because of the time saved and the reduction in secondary operations. [ud-machine]
In 2026, laser cutting aluminum is entrenched in multiple sectors that demand both precision and speed. [mgsaws]
- Automotive: Lightweight brackets, battery trays, EV enclosure panels, and structural reinforcements. [mgsaws]
- Aerospace: High‑precision structural parts and interior components where weight reduction is crucial. [mgsaws]
- Construction & architecture: Facade elements, custom profiles, perforated panels, and decorative screens. [ud-machine]
- Electronics & energy: Heat sinks, housings, and components for renewable energy systems. [ud-machine]

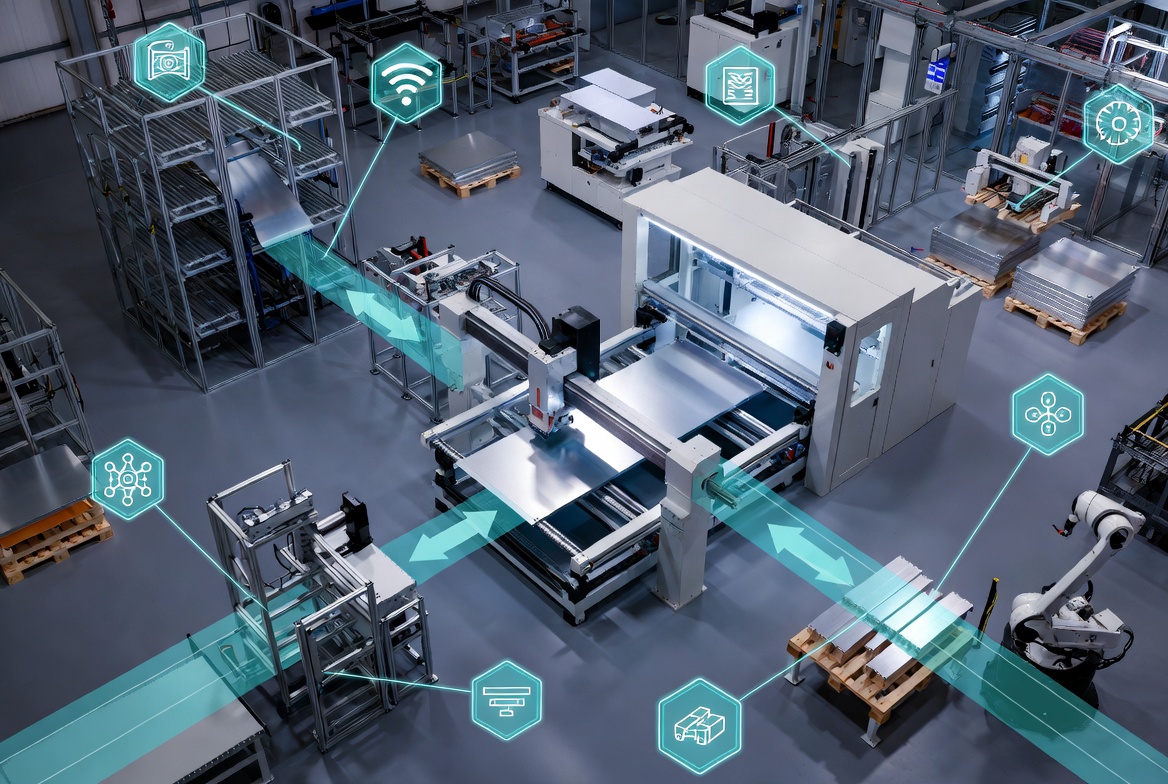

Many manufacturers now integrate fiber laser systems with bending, welding, and automated storage systems to create end‑to‑end aluminum fabrication cells. [mgsaws]
This is where shop‑floor practice matters. Below is a condensed checklist you can apply when setting up a new aluminum job.
1. Define requirements clearly
- Tolerance, cosmetic standard, and final application.
- Will parts be anodized, powder‑coated, or welded?
2. Choose the right aluminum
- For general sheet work, 5052 or 6061 are strong default options.
- Match thickness to part function and available laser power.
3. Prepare the machine
- Clean support slats, nozzle, protective glass, and check assist‑gas filters.
- Load aluminum‑specific cutting technology in the controller.
- Start with manufacturer‑recommended tables for aluminum thickness and grade.
- Adjust focus slightly negative relative to the surface and inspect dross and edge quality. [arcuscnc]
- Optimize cutting speed in small steps; watch for changes in dross shape and kerf consistency. [arcuscnc]
Hourly rates for laser cutting aluminum can range roughly from tens to a few hundred dollars per hour globally, depending on region, machine power, and level of automation. However, you must consider costs at the part level, not only the machine hour. [arcuscnc]
Key economic factors:
- Machine efficiency: Modern fiber lasers can be 10–50 times faster than some traditional machining processes for sheet parts under about 10 mm, drastically reducing cycle times. [ud-machine]
- Material usage: Efficient nesting and narrow kerfs cut scrap and raw‑material spend. [ud-machine]
- Finishing and assembly: High‑quality edges often eliminate separate deburring and shorten downstream operations. [ud-machine]
For OEMs producing recurring parts, investing in a dedicated fiber laser line often pays back through higher throughput, less rework, and better design flexibility. [mgsaws]
In 2026, leading fiber laser cutting systems are more than just "cutting tools"; they are data‑driven production platforms. [heatsign]
You can expect features such as:
- AI‑assisted nesting and path optimization to reduce scrap and cycle time. [heatsign]
- Real‑time monitoring of power, gas usage, and cut quality to avoid scrap. [heatsign]
- Automation interfaces for loading/unloading, storage towers, and bending cells. [mgsaws]
For manufacturers who regularly cut aluminum plus carbon steel, stainless steel, and other alloys, a flexible fiber laser cell is often the central hub of the fabrication workflow. [heatsign]
From a user‑experience perspective—whether you are an engineer, purchaser, or operator—clarity and feedback loops are crucial.
- Provide clean drawings and tolerances, and note any cosmetic surfaces explicitly.
- Share sample parts and photos when transferring jobs between shops or plants.
- Standardize internal cutting "recipes" for common grades and thicknesses, and keep them documented with part numbers.
Over time, these practices reduce miscommunication and make laser‑cut aluminum projects more predictable and repeatable.
If you are evaluating laser cutting aluminum for a new project or planning to upgrade from older cutting technologies, now is an excellent time to benchmark modern fiber laser solutions. [heatsign]
- Start by listing your top 10–20 recurring aluminum parts (material, thickness, volumes).
- Estimate potential savings in cycle time, material usage, and secondary operations with a fiber laser approach.
- Then schedule a technical consultation and sample‑cut session with a specialist team to validate edge quality, tolerances, and real‑world throughput on your parts.
A short pilot run will show you very quickly whether aluminum laser cutting can deliver the productivity, quality, and flexibility your production line needs.
1. Is fiber or CO₂ better for cutting aluminum in 2026?
Fiber lasers have become the preferred choice for most aluminum sheet‑metal cutting because they are more energy‑efficient, faster, and easier to integrate with automation than CO₂ systems for typical industrial applications. [heatsign]
2. What is the maximum thickness of aluminum that can be laser cut?
With appropriate power and optics, industrial fiber laser systems can cut aluminum sheets up to roughly 25–30 mm while maintaining acceptable edge quality and productivity. [ud-machine]
3. Why is nitrogen often used as assist gas for aluminum?
Nitrogen helps produce bright, oxide‑free edges on aluminum, which is important for cosmetic parts and for components that will be welded or coated later. [arcuscnc]
4. How precise is laser‑cut aluminum compared with traditional methods?
Well‑configured fiber laser machines can achieve tolerances around ±0.01 mm and significantly reduce the need for secondary machining compared with many traditional cutting processes. [ud-machine]
5. Is laser cutting aluminum cost‑effective for small batches?
Yes, because setup is mostly digital, laser cutting is economical even for small batches and prototypes, especially when designs change frequently and you want to avoid custom tooling. [ud-machine]
1. Accurl. "Laser Cutting Aluminum – Comprehensive Guide." [Link].
2. UD‑Machine. "Aluminium Laser Cutting: Precision and Efficiency in Metal Fabrication." 2025.[Link]. [ud-machine]
3. Arcus CNC. "Laser Cutting Aluminum: Tips for Clean Edges (The 2026 Guide)." 2026.[Link]. [arcuscnc]
4. HeatSign. "A Complete Guide to Laser Cutting Technology in 2026." 2026.[Link]. [heatsign]
5. MG Saws. "Latest Trends in Cutting Machinery: What's Shaping the Industry in 2026." 2026.[Link]. [mgsaws]
