When engineers and purchasing managers ask me which CNC shearing machine they should invest in, the question almost always boils down to this: Should we choose a guillotine shear or a swing beam shear for our sheet metal line? [ras-systems]
As a manufacturer deeply involved in the R&D, customization, and long‑term service of CNC shearing machines, I have seen both technologies succeed—and fail—depending on how well they match the actual production scenario, material mix, and accuracy requirements. [hydraulicguillotineshear]

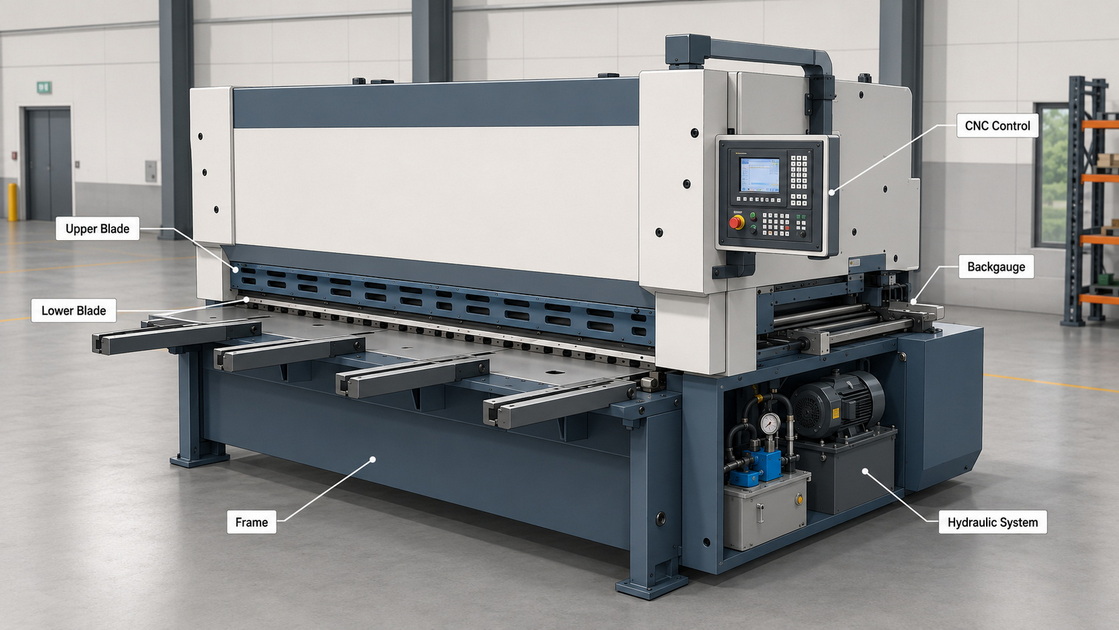

A CNC shearing machine is a sheet metal cutting solution that uses a straight blade to perform linear cuts with high repeatability, controlled by a CNC system that manages backgauge position, cutting length, stroke, and often blade gap or rake angle. [ras-systems]
In modern fabrication shops, CNC shears are core equipment for:
- Cutting raw plate to size before bending, punching, or laser cutting [ras-systems]
- High‑volume straight cutting for production lines in automotive, construction, and appliance manufacturing [chinasmartcnc]
- Pre‑processing before welding and assembly, where dimensional accuracy directly affects downstream cost [linkedin]
Within hydraulic shearing technology, guillotine shears and swing beam shears are the two dominant designs used worldwide. [chinasmartcnc]

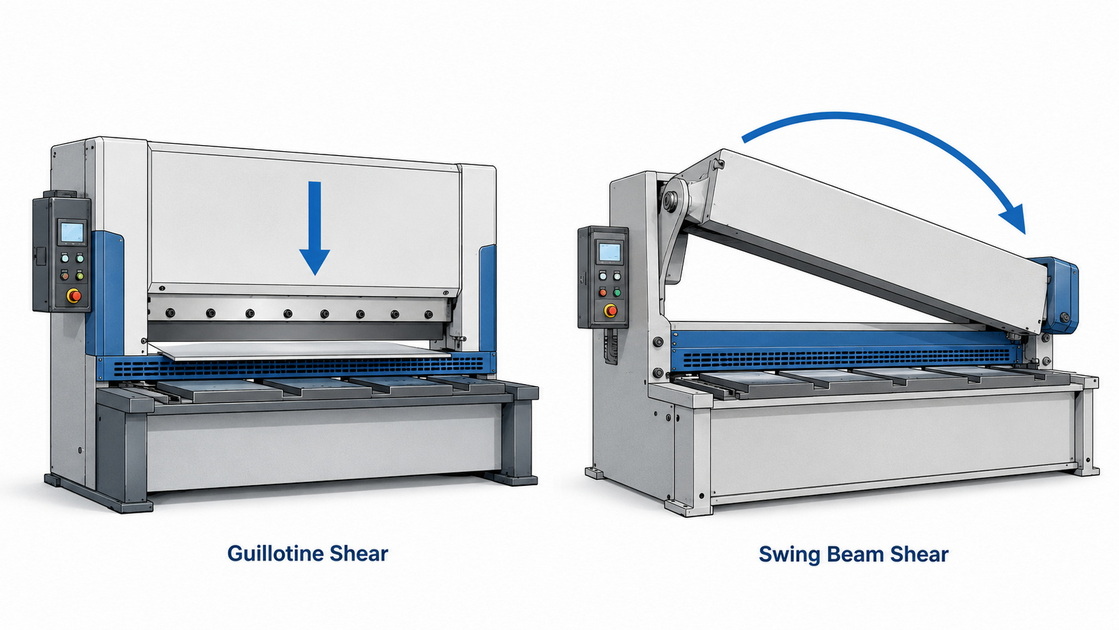

Before we dive deep, here is a quick, buyer‑friendly overview of how the two types compare based on what I see in real projects. [hydraulicguillotineshear]
| Dimension | Guillotine Shear | Swing Beam Shear |
|---|---|---|
| Blade motion | Vertical, straight‑line downstroke (ras-systems) | Circular arc / pivoting swing of upper beam (ras-systems) |
| Typical accuracy | Higher straightness, less distortion; often used where tolerances are strict (hydraulicguillotineshear) | Slightly lower accuracy; sufficient for many general fabrication jobs (hydraulicguillotineshear) |
| Material thickness focus | Better for thicker plates (typically above about 8 mm) (hydraulicguillotineshear) | Very efficient for thin to medium plates (about 2–8 mm) (hydraulicguillotineshear) |
| Rake angle | Usually adjustable to match different thicknesses and materials (ras-systems) | Fixed rake angle; designed to balance quality and efficiency (ras-systems) |
| Blade gap adjustment | Often motorized or electrically controlled from panel | Typically manual adjustment |
| Frame and rigidity | Heavy, rigid frame; designed for high‑precision, high‑duty cutting (ras-systems) | Simpler structure, lower failure rate, good efficiency for general use (ras-systems) |
| Investment level | Higher initial equipment cost, lower risk on critical jobs (hydraulicguillotineshear) | More cost‑effective for standard production and OEM work (hydraulicguillotineshear) |
From an engineering perspective, a guillotine shear uses a vertically moving upper blade that travels in a straight line towards a fixed lower blade, supported by a rigid welded frame with precision guides. [linkedin]
Modern guillotine shears adopt an all‑steel welded frame, with right‑angle guides at four corners and hydraulic pre‑tensioning to ensure rigidity and cutting accuracy under load. [chinasmartcnc]
The upper beam moves straight down relative to the lower blade, which minimizes plate distortion and delivers very high straightness of the cut edge, often with accuracy roughly twice that of a swing beam shear in comparable conditions. [hydraulicguillotineshear]
One of the strongest advantages, and something that buyers often underestimate, is how adjustable a guillotine shear can be: [ras-systems]
- The rake angle can be tuned based on plate thickness and material type.
- The blade gap is commonly adjusted electrically or via motorized mechanisms from the operator panel.
- Long, four‑edged blades and movable blade supports make it easier to keep the gap uniform and extend blade life. [ras-systems]
In practical terms, this means the operator can optimize cut quality and reduce burrs and deformation when switching between different plate specs.
In my experience, I typically recommend guillotine shears when:
- You frequently cut thick plates, often above about 8 mm, where a straight vertical cut provides better results. [linkedin]
- You work in automotive, heavy vehicle, rolling stock, shipbuilding, or high‑strength alloy processing, where tight tolerances and smooth cuts are essential. [hydraulicguillotineshear]
- You run large batches of parts where small accuracy improvements translate into major downstream savings in bending, welding, and fitting. [hydraulicguillotineshear]
Buyers in these scenarios often see guillotine shears not as a cost, but as an insurance policy for their quality and reputation.
A swing beam shear uses a pivoting upper beam that moves along a circular arc, with the top blade mounted on a knife frame and the bottom blade fixed on the worktable. [linkedin]
This motion is comparable to a scissor action: the upper blade swings through the sheet while the lower blade stays in place, delivering an efficient cut with a relatively simple mechanical layout. [linkedin]
Swing beam shears are designed to keep the straightness and parallelism of the cut within the requirements of general fabrication, while minimizing plate distortion. [ras-systems]
Key characteristics include: [hydraulicguillotineshear]
- The use of an oblique cutting edge for smoother shearing.
- A design that achieves high efficiency and a low failure rate, thanks to fewer complex moving parts.
- Worktables often equipped with support balls, reducing surface scratching when plates slide during positioning.
During cutting, the blade angle and clearance change along the swing path, which is perfectly acceptable for many thin and medium‑thickness applications.
Unlike guillotine designs, swing beam shears usually have a fixed rake angle, optimized by the manufacturer for typical thickness ranges. [ras-systems]
For blade gaps:
- Operators adjust the gap manually, which is sufficient for many general fabrication workflows.
- Upper blades often have fewer cutting edges (for example, two edges on top, four on the bottom), but are easier and cheaper to manage in smaller shops.
I usually recommend swing beam shears when customers: [linkedin]
- Process mainly thin to medium plates, typically in the 2–8 mm range, where the shear effect is comparable to guillotine cutting but at a more favorable cost level.
- Run mixed OEM or ODM jobs with many order variants but moderate accuracy demands, as in HVAC, electrical cabinets, light‑duty structural components, or general fabrication.
- Need a robust, low‑maintenance, cost‑effective solution rather than the absolute highest precision in every scenario.
For many OEM customers, a properly configured swing beam shear is the most economical way to achieve stable quality and throughput.
From a technical standpoint, the decision between the two designs should be driven by how you balance accuracy, throughput, and total cost of ownership. [hydraulicguillotineshear]
- Guillotine shears: Vertical motion means less plate distortion, more accurate straightness, and higher repeatability on thick and high‑strength materials. [linkedin]
- Swing beam shears: Circular motion still delivers good straightness, especially for thin sheet, but may not match guillotine performance on very thick plate or extreme precision jobs. [ras-systems]
In several customer audits, the guillotine design consistently produced smoother cuts and lower bending correction time when working with heavy plate. [hydraulicguillotineshear]
- Guillotine frames tend to be heavier and more rigid, using all‑steel welded structures and multi‑point guided beams for high‑duty cycles. [chinasmartcnc]
- Swing beam shears rely on a robust but simpler frame, benefiting from lower complexity and easier maintenance. [ras-systems]
For high‑volume, 24/7 operations with thick plate, rigidity pays off in reduced blade wear and more stable accuracy.
From a maintenance standpoint: [hydraulicguillotineshear]
- Swing beam shears often have a lower failure rate thanks to a more straightforward mechanism.
- Guillotine shears may require more precise preventive maintenance but reward that with stable high‑accuracy performance.
In both cases, correct blade gap settings, hydraulic oil quality, and regular inspection are critical to ensure long machine life.
When I help buyers select between a guillotine shear and a swing beam shear, I walk them through a simple but effective decision framework. [facturmfg]
Ask yourself: What plate thickness and material types represent 70–80% of your volume? [linkedin]
- Mostly thin sheet (2–3 mm) with occasional 6–8 mm jobs → A swing beam shear is often the more economical and efficient choice. [linkedin]
- Regular cutting of thick plate (8 mm and above), high‑strength alloys, or heavy structural components → A guillotine shear is usually the safer long‑term investment. [hydraulicguillotineshear]
If your downstream processes are very sensitive to edge quality—such as precision bending, robotic welding, or cosmetic exposed surfaces—guillotine shears have a clear advantage. [linkedin]
For general fabrication, where small variations are acceptable and parts are often machined further, a swing beam shear usually meets requirements comfortably. [hydraulicguillotineshear]
- Multi‑shift, high‑volume lines with continuous heavy workload often justify the higher capital cost of guillotine shears. [ras-systems]
- Single‑shift operations or mixed, project‑based OEM work can gain more from the lower acquisition costs and simpler maintenance of swing beam machines. [hydraulicguillotineshear]
Beyond the purchase price, consider: [facturmfg]
- Blade life and cost of replacement
- Downtime due to maintenance or wrong gap settings
- Scrap rate due to poor cut quality or distortion
A correctly specified machine, whether guillotine or swing beam, will reduce rework and scrap far more than the difference in initial investment.

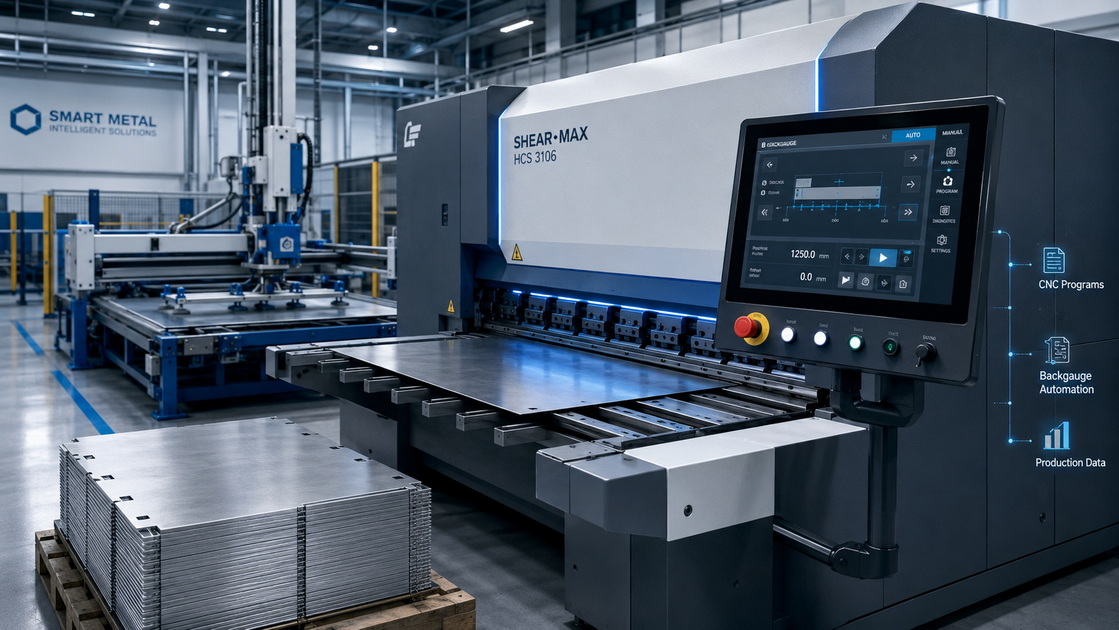

Compared with traditional mechanical or purely hydraulic shears, modern CNC shearing machines provide several layers of digital control that directly impact throughput and labor utilization. [enstreamsolutions.wordpress]
Today's buyers expect: [athenaswc]
- CNC‑controlled backgauges with fast positioning and memory for common part sizes
- Storage of cutting programs for recurring orders
- Integration with nesting software or ERP for automated job scheduling
For OEM and ODM manufacturing, these features shorten setup times and reduce dependence on individual operator experience.
Advanced shear lines increasingly incorporate: [enstreamsolutions.wordpress]
- Light curtains and safety guards tied into CNC logic
- Stroke counters, maintenance reminders, and alarm logs
- Optional data interfaces to track machine utilization and OEE
For larger plants and global customers, this kind of transparent, data‑driven operation is now part of what builds trust and long‑term cooperation.

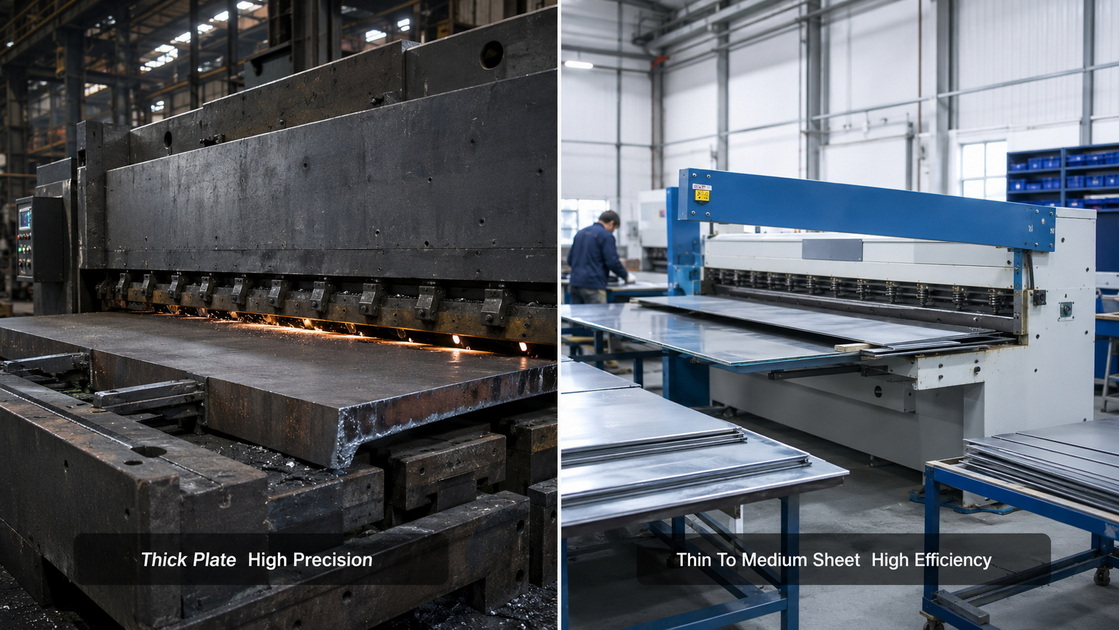

Over the past years, working with different industries, I have seen clear patterns in how leading manufacturers choose between guillotine and swing beam designs. [linkedin]
- Automotive and heavy vehicle components: These users often run thick structural plate and high‑strength materials. They typically prefer guillotine shears for their higher accuracy and smoother edges, which reduce rework in downstream welding and assembly. [linkedin]
- Electrical cabinet and enclosure manufacturers: They mainly process thin sheet for panels, doors, and covers. For them, swing beam shears offer sufficient precision at a better cost point, with high efficiency and low failure rates. [ras-systems]
- General job shops and OEM/ODM providers: Many of these companies handle mixed batch work with variable thickness. They often choose swing beam shears as the baseline solution, then add a guillotine shear once heavy plate work becomes a stable business segment. [hydraulicguillotineshear]
These patterns are not rigid rules, but they do reflect how experienced buyers balance performance and budget in the real world.
Selecting between a hydraulic guillotine shear and a swing beam shear is ultimately a strategic decision about quality, throughput, and total cost—not just a checklist of specs. [ras-systems]
If you are planning a new production line, upgrading aging equipment, or launching a custom OEM / ODM project, I strongly recommend discussing your material mix, thickness range, accuracy targets, and automation needs with an experienced engineering team before finalizing your choice. [orbitmedia]
Ready to evaluate the right CNC shearing solution for your facility? Reach out to our technical sales team to share your drawings, plate specifications, and production targets, and we will recommend a configuration tailored to your real‑world application. [pixerts]
1: Which is better for thick plate cutting?
For frequent cutting of thick plate (typically above about 8 mm), a guillotine shear generally provides higher accuracy, smoother edges, and less distortion, which reduces downstream rework. [linkedin]
2: Are swing beam shears accurate enough for precision work?
Swing beam shears offer good straightness and are accurate enough for many general fabrication applications, especially with thin and medium‑thickness sheet, but may not match guillotine performance in the most demanding tolerance scenarios. [ras-systems]
3: Does a guillotine shear always cost more to operate?
Guillotine shears often have a higher initial cost and may require more precise maintenance, but their superior accuracy and adjustability can reduce scrap, rework, and downstream correction, lowering total cost over the life of the machine for suitable applications. [ras-systems]
4: What is the advantage of CNC control on a shearing machine?
CNC control enables fast, repeatable backgauge positioning, program storage for recurring jobs, and better integration with factory planning systems, which collectively increase throughput and reduce reliance on manual adjustments. [athenaswc]
5: How should I prepare data before requesting a shearing machine quotation?
Before requesting a quote, you should define typical material types, thickness ranges, sheet sizes, required tolerances, expected monthly volume, and any automation or integration requirements; this allows the manufacturer to recommend the most suitable shear type and configuration. [visionamp]
