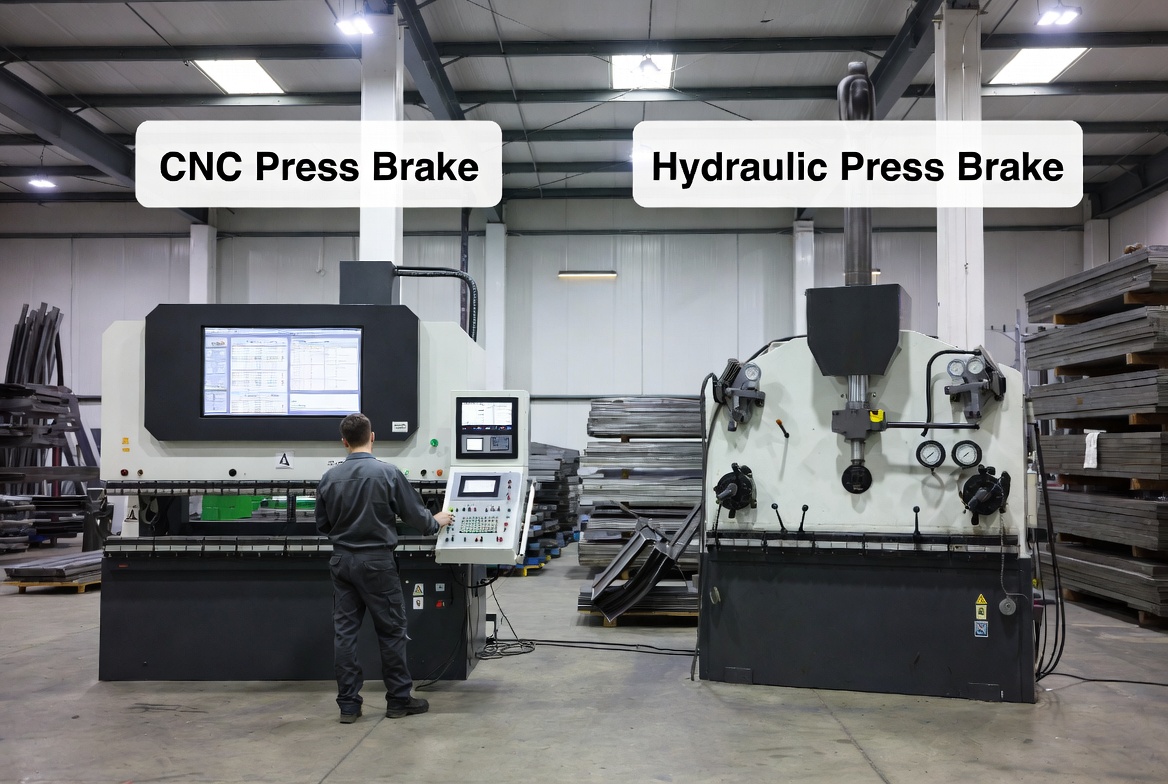

CNC press brakes and traditional hydraulic press brakes each solve different problems in a modern fabrication shop, and in 2026 the "better" choice depends on your part mix, tolerance demands, labor situation, and growth plans. [bendforcebrakes]
As someone who has spent years helping metal fabrication shops evaluate press brakes on the production floor, I can tell you there is no one-size-fits-all answer. CNC press brakes shine in high‑mix, high‑precision, and automation‑ready environments, while hydraulic press brakes still offer unmatched value for heavy‑gauge, high‑tonnage bending with simpler geometries. In 2026, what matters is how each technology fits your parts, operators, and business roadmap, not just the nameplate tonnage. [e-ci]
A CNC press brake uses a computer numerical control system to manage ram movement, backgauges, crowning, and bending sequences, ensuring repeatable accuracy even on complex parts. Modern machines integrate multi‑axis backgauges (up to 6+ axes), high‑resolution linear encoders, and servo or servo‑hydraulic drives that adjust pressure and position hundreds of times per second. [adhmt]
From my experience on shop visits, the biggest shift since 2020 is that a CNC press brake is no longer just a machine—it is a data node in your production system. In 2026, many shops connect these brakes to ERP/MES systems to pull bend programs, track OEE, and standardize setups across shifts, which dramatically reduces dependence on a single "star operator." [shiniteknife]

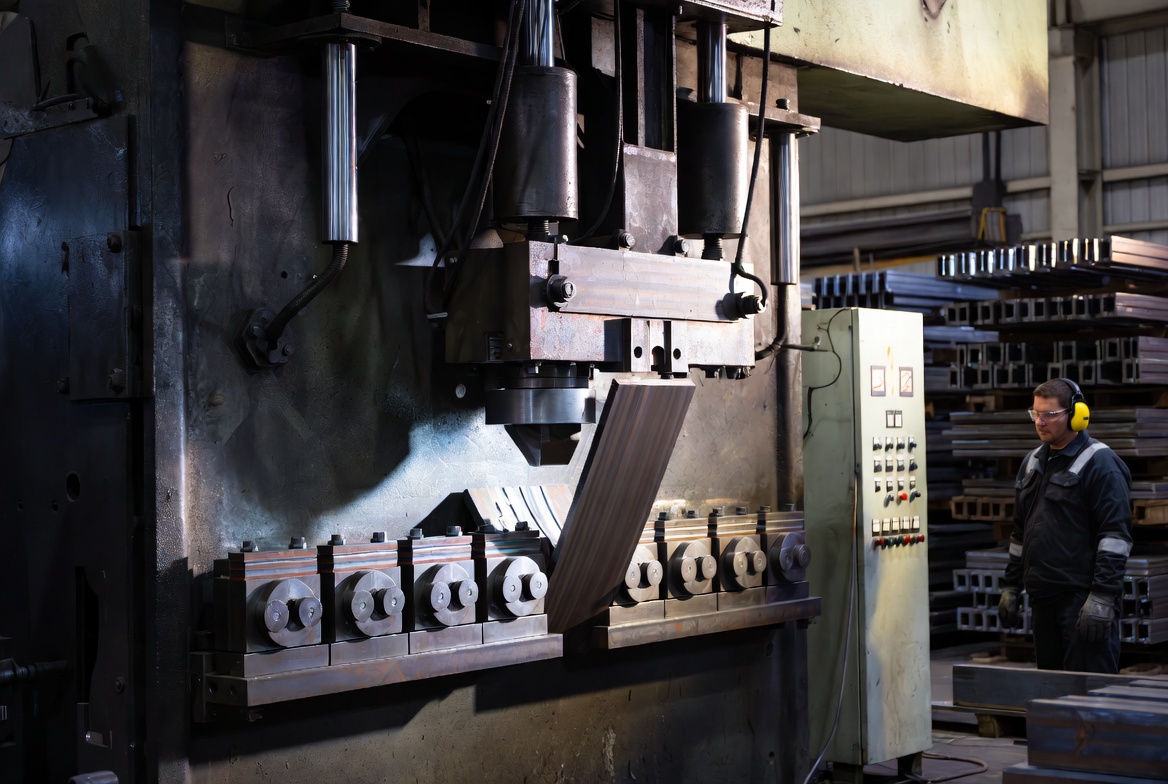

A hydraulic press brake uses hydraulic cylinders to provide the force needed to bend sheet and plate, with control systems ranging from simple NC to advanced CNC. Traditional hydraulic designs are valued for their robustness and their ability to deliver high tonnage for thick, high‑strength materials at a reasonable acquisition cost. [alibaba]
In many heavy‑fabrication shops—especially in construction, mining, and agricultural equipment—operators still rely on hydraulic press brakes as their primary workhorse. They accept slightly lower automation and speed in exchange for durability, simple maintenance, and predictable behavior with difficult materials. [e-ci]
> Note: In 2026, many machines are "CNC hydraulic press brakes"—controlled by CNC but powered hydraulically—so the real comparison is often between advanced CNC architectures and simpler hydraulic systems. [alibaba]
- CNC press brakes use multi‑axis CNC controllers, high‑resolution encoders, and proportional valves to monitor and correct ram position and angle in real time. [adhmt]
- Traditional hydraulic brakes with simpler control rely more on mechanical stops and operator skill, which can introduce variability between shifts, especially on complex bends. [transformadosmetalicostoral]
- For thin‑gauge and tight‑tolerance work, CNC machines routinely achieve angle accuracy on the order of minutes, which is critical for aerospace, electronics, and high‑end cabinetry. [e-ci]
From a user standpoint, CNC machines feel "forgiving": once you dial in the program, the machine protects consistency shift after shift. Straight hydraulic machines, by contrast, reward experienced operators but can punish inexperience when part variety increases. [transformadosmetalicostoral]
- CNC press brakes drastically reduce setup time by storing programs, tools, and bend sequences; in many shops, changeovers drop from hours to minutes. [bendforcebrakes]
- Multi‑axis CNC backgauges can move several times faster than simpler systems, enabling shorter cycle times, especially for multi‑bend parts. [adhmt]
- Hydraulic brakes can achieve high approach speeds but often lose time in manual gauging, angle corrections, and trial bends. [transformadosmetalicostoral]
In 2026, buyers increasingly treat setup time as a cost line, not just an annoyance. For high‑mix, low‑volume work, the time you spend programming and adjusting a hydraulic machine can quietly cost more than the price difference to a CNC press brake over a few years. [shiniteknife]
- Hydraulic press brakes remain the standard for very thick plate and extremely high‑tonnage bending because hydraulic systems handle overloads and shock loads well. [bendforcebrakes]
- CNC press brakes are available in high tonnages too, but the cost rise is more pronounced at the upper end, which is why many heavy‑industry shops stick with traditional hydraulic designs. [bendforcebrakes]
- Hybrid servo‑hydraulic CNC machines combine strong tonnage with precise control and are becoming popular in 2026 for shops that need both power and accuracy. [e-ci]
If your core business is bridge components, heavy structural beams, or thick excavator parts, a rugged hydraulic press brake with a solid frame can still be the most economical choice today. [alibaba]
Industry analyses show that the CNC press brake market is expected to grow at mid‑single to low‑double‑digit CAGR between 2026 and 2033, fueled by demand for high‑precision metal components and factory automation. Asia‑Pacific, including China, remains the fastest‑growing region, driven by industrialization and adoption of advanced manufacturing, which impacts pricing and availability worldwide. [linkedin]

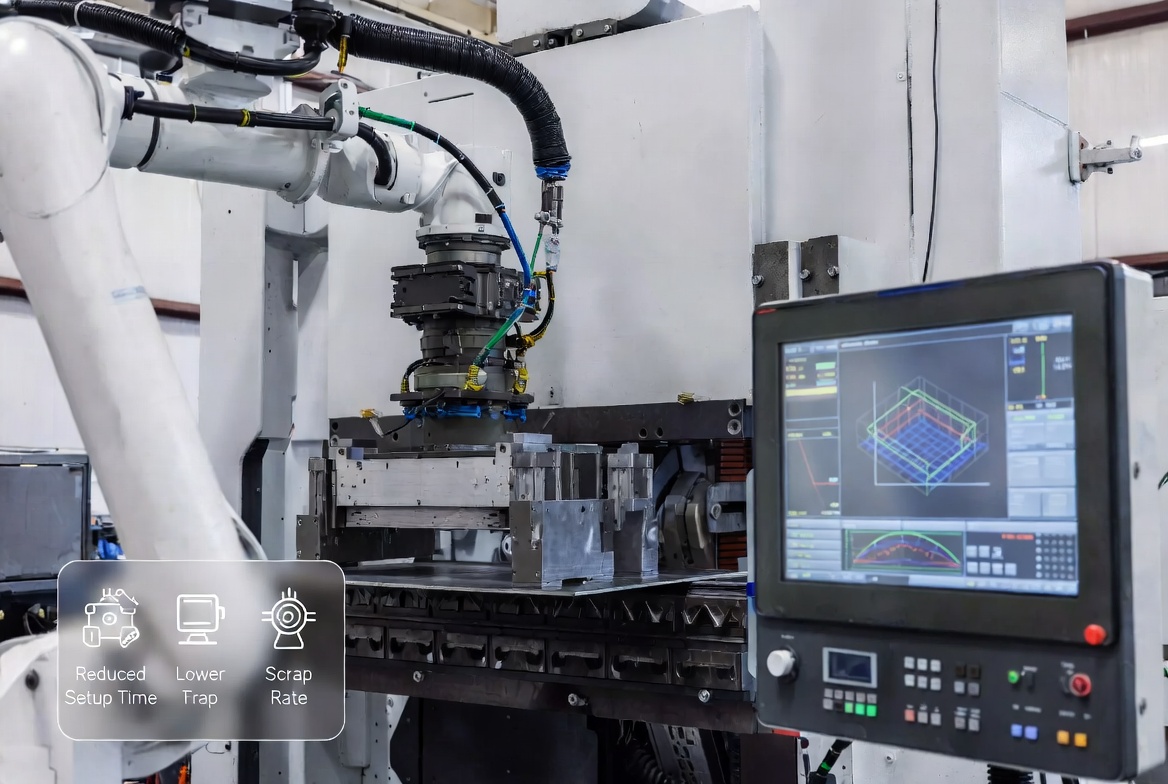

From a strategic perspective, I see more small and mid‑size shops adopting robotic bending cells and offline programming around CNC press brakes, turning what used to be manual bottlenecks into lights‑out operations. Hydraulic machines without CNC simply cannot plug into this ecosystem in the same way. [mac-tech]
- Modern servo‑hydraulic and hybrid CNC press brakes can cut energy use by up to around 30% compared with traditional constant‑running hydraulic pumps, depending on duty cycle. [alibaba]
- Electric or hybrid CNC models reduce oil volume, leakage risk, and noise, which helps shops meet environmental and workplace‑safety targets. [e-ci]
- In long shifts, reduced energy consumption and less heat generation translate directly into lower operating cost and more stable bending accuracy. [bendforcebrakes]
Given new ESG requirements many OEMs push down to their suppliers, energy‑efficient CNC machines are increasingly a sales argument, not just a cost consideration. [mac-tech]
- Entry‑level or mid‑range hydraulic press brakes usually cost less upfront than fully‑featured CNC machines with multi‑axis backgauges. [transformadosmetalicostoral]
- However, CNC press brakes often deliver lower cost per part over time through reduced scrap, faster setups, fewer re‑bends, and compatibility with automation. [shiniteknife]
- For capacities above a certain tonnage, price differences between basic hydraulic and CNC hydraulic designs narrow, making CNC more compelling as a long‑term investment. [harsle]
When I run ROI models with shop owners, the tipping point is usually labor and scrap, not the sticker price. If you pay skilled operators to constantly tweak angles on a hydraulic machine, a CNC press brake frequently pays for itself in two to four years, sometimes faster in high‑mix environments. [shiniteknife]
- Both CNC and hydraulic press brakes rely on hydraulic systems (unless fully electric), so oil quality, filters, seals, and hoses matter in either case. [alibaba]
- CNC machines introduce more electronics, sensors, and software; they require better electrical conditions and occasional control updates, but they also provide diagnostic data that speeds up troubleshooting. [alibaba]
- Traditional hydraulic brakes have fewer electronic components and can be repaired by local technicians, which some remote or small shops value. [transformadosmetalicostoral]
In practice, a well‑built CNC hydraulic press brake from a reputable manufacturer can be just as reliable as a simpler hydraulic machine, while giving you more tools to detect problems early. [e-ci]
Use this simple framework when deciding between CNC and hydraulic press brakes for your shop:
1. Analyze your part mix
- High‑mix, small‑batch, tight tolerance → favor CNC press brake. [shiniteknife]
- Low‑mix, heavy‑gauge, simple geometries → hydraulic press brake may suffice. [bendforcebrakes]
2. Quantify your labor constraints
- Hard to hire experienced benders, high turnover, multi‑shift operations → CNC reduces dependence on individual operator "feel." [mac-tech]
- Stable team of highly skilled operators, low staff turnover → hydraulic machines can remain productive.
3. Evaluate your growth and automation plans
- Plan to add robots, offline programming, or smart factory initiatives → CNC press brake is the only viable path. [mac-tech]
- No near‑term automation plans and focus on basic fabrication → hydraulic is still a valid, lower‑cost entry.
4. Model total cost of ownership (TCO)
- Include purchase price, energy, tooling, maintenance, scrap, rework, and estimated throughput gains. [alibaba]
- If payback period for CNC is under your target (often 3–5 years), you are likely under‑estimating its strategic value. [shiniteknife]
| Factor | CNC Press Brake (2026) | Hydraulic Press Brake (2026) |
|---|---|---|
| Control & accuracy | High precision, multi‑axis CNC, excellent repeatability for complex parts (e-ci) | Good for many jobs, more dependent on operator skill (e-ci) |
| Setup & changeover | Fast program recalls and automatic sequencing, ideal for high‑mix work (adhmt) | Slower setups, more trial bends and manual adjustments (e-ci) |
| Tonnage & heavy work | Available in high tonnages, especially hybrid servo‑hydraulic (e-ci) | Strong value in very high tonnage and thick plate bending (bendforcebrakes) |
| Automation readiness | Easy integration with robots, MES, offline programming (bendforcebrakes) | Limited; usually manual or basic gauging only (e-ci) |
| Energy efficiency | Typically better, especially electric/hybrid designs (e-ci) | Higher energy use with constant‑running pumps (e-ci) |
| Operator skill requirement | Supports less‑experienced operators via stored programs (bendforcebrakes) | Rewards highly skilled operators, higher training demands (e-ci) |
| Upfront cost | Higher initial investment in most ranges (bendforcebrakes) | Lower purchase price for many capacities (bendforcebrakes) |
| Long‑term ROI | Strong in high‑mix, high‑precision, multi‑shift environments (bendforcebrakes) | Good in low‑mix, heavy‑duty, cost‑sensitive shops (bendforcebrakes) |

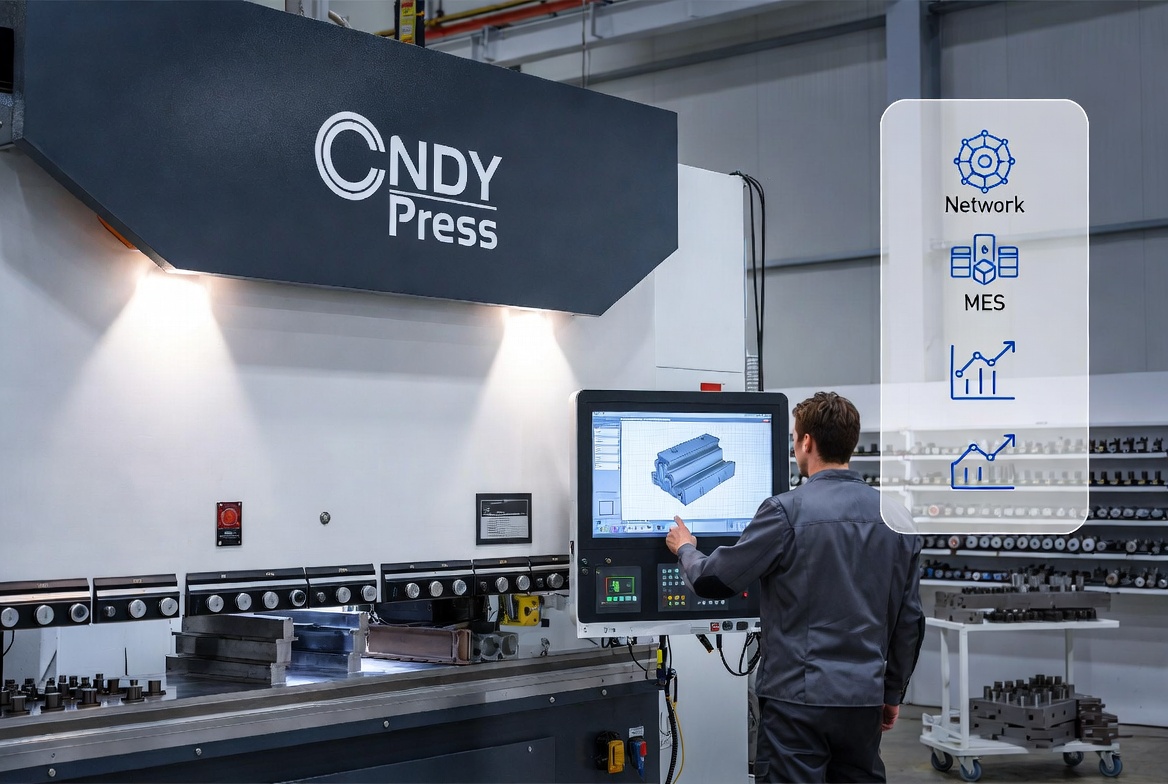

As a manufacturer focused on CNC press brakes and integrated sheet‑metal lines (CNDY‑Press), the most common mistake I see is buying tonnage instead of capability. Many shops over‑invest in raw tonnage with basic hydraulics and under‑invest in control systems, which limits their ability to produce complex, high‑margin work and to respond to design changes quickly. [mac-tech]
From our project experience with OEM and ODM clients, three patterns repeat:
- Shops that upgraded from older hydraulic brakes to modern CNC press brakes typically cut setup times by 30–50% and significantly reduced angle‑related scrap on high‑mix production. [bendforcebrakes]
- Automation‑ready CNC lines helped customers handle volatile demand, because they could scale across shifts with less dependence on highly specialized operators. [mac-tech]
- When we co‑designed tooling and bending sequences with customers, CNC control allowed us to lock down process windows and certify parts for demanding industries such as automotive and electronics. [alibaba]
If you are bidding on global OEM work in 2026, your customers increasingly expect that level of process control, traceability, and repeatability. [masscnctech]
Choose a CNC press brake if:
- You run many part numbers per week with frequent design changes.
- You must hold tight tolerances and consistent angles for downstream assembly. [adhmt]
- You plan to add robots or automated tool change in the next 3–5 years. [mac-tech]
- You struggle to hire and retain highly experienced press brake operators. [shiniteknife]
Typical industries:
- Automotive and EV components
- HVAC, cabinets, and enclosures
- Electronics and precision metal products
- Job shops servicing multiple OEMs with short lead times [alibaba]
A traditional hydraulic press brake can be a smart choice if:
- You mainly bend thick plate with simple geometries (brackets, gussets, flanges). [alibaba]
- Your product range is stable and does not change frequently. [transformadosmetalicostoral]
- You have experienced operators who prefer manual control and "feel." [e-ci]
- You need a lower capital outlay to get started or add backup capacity. [transformadosmetalicostoral]
Typical industries:
- Construction equipment
- Heavy structural fabrications
- Agricultural machinery
- Local fabrication shops focused on basic work [bendforcebrakes]
Working as both an equipment manufacturer and a long‑term partner, we approach every CNC press brake project with a process‑first mindset. That means we start with your part drawings, material specs, volume forecasts, and current cycle times, and then configure machine tonnage, bed length, CNC axes, and tooling to match your reality—not a brochure. [alibaba]
For OEM/ODM clients, typical support includes:
- Joint feasibility reviews to decide whether a CNC press brake, a heavy hydraulic press brake, or a combination line best fits your product roadmap. [alibaba]
- Bending simulations and sample runs to verify cycle times and angles before you commit to capital expenditure. [alibaba]
- Operator training tailored to your shift structure so you can safely leverage advanced CNC functions from day one. [alibaba]
In 2026, a CNC press brake is generally the better strategic choice for shops that:
- Target high‑precision, high‑mix work
- Expect to grow or automate
- Want to reduce dependence on a few expert operators [shiniteknife]
A hydraulic press brake remains an excellent fit when you:
- Focus on heavy plate and simple parts
- Operate in price‑sensitive markets
- Need rugged reliability with basic controls at a lower entry cost [alibaba]
If you are unsure, a common pattern is to standardize on CNC press brakes for mainstream production and keep at least one heavy hydraulic machine as a specialist for thick or unusual jobs. That hybrid approach gives you flexibility today and a clear path to automation tomorrow. [mac-tech]
Q1. Are CNC press brakes always more accurate than hydraulic press brakes?
A1. CNC press brakes are usually more accurate because they use encoders, proportional valves, and real‑time angle control, while basic hydraulic brakes rely more on mechanical stops and operator skill. [adhmt]
Q2. Is a CNC press brake worth the higher price for a small shop?
A2. If your shop runs high‑mix parts or struggles with skilled labor, the reduced setup time, lower scrap, and easier training often justify the higher upfront cost within a few years. For very simple, low‑mix work, a hydraulic brake can still be more economical. [transformadosmetalicostoral]
Q3. Can I automate a hydraulic press brake later if I start with one now?
A3. Basic hydraulic presses can sometimes be retrofitted with gauging or simple automation, but they usually cannot match the integration level of a CNC press brake with robot cells, offline programming, and MES connectivity. [bendforcebrakes]
Q4. Which type of press brake is better for thick plate?
A4. For very thick plate and extreme tonnage, traditional hydraulic press brakes are still widely used because of their robustness and cost‑effectiveness, although CNC hydraulic and hybrid machines are closing the gap. [alibaba]
Q5. How does energy consumption compare between CNC and hydraulic press brakes?
A5. Modern servo‑hydraulic and electric CNC press brakes can cut energy usage substantially versus older constant‑running hydraulic systems, which saves money and reduces environmental impact over the machine's life. [e-ci]
