CNC plate rolling delivers measurably higher ROI than manual rolling for most small to mid-sized factories once volumes and quality requirements pass a modest threshold, but manual machines still have a place for ultra-low volume, simple work and repair jobs. The smartest strategy for many shops is not "CNC vs. manual", but defining clear breakpoints where each technology is used, and then calculating ROI around your real mix of parts, operators, and delivery pressures. [linkedin]
From my own experience working with small fabrication shops that later grew into regional OEM suppliers, the turning point was never the first CNC machine itself, but the moment they started to quantify time, scrap, and labor dependence instead of only looking at sticker price. On paper, manual plate rolls look "cheaper and flexible"; in real production, they often lock you into your most experienced operator and cap your growth. [steckermachine]

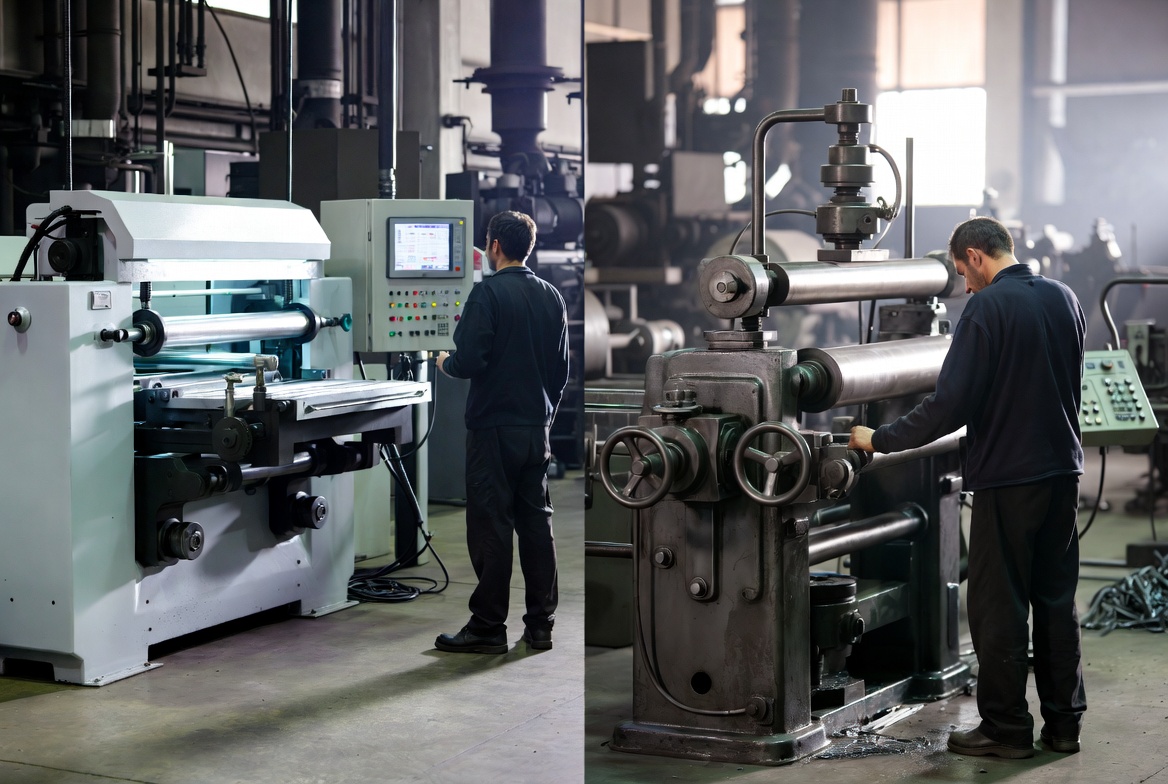

CNC plate rolling uses programmable controls to set parameters such as bending sequence, roll positions, and repeat passes, then executes them with minimal human intervention. In modern lines, CNC (or NC) rolls provide: [energymission]
- Programmable recipes for different materials and thicknesses
- Automated repeat cycles with stored programs
- Integrated safety and diagnostic features
Industry data on CNC rolling and bending consistently shows higher accuracy, faster cycle times, and significantly less dependence on operator "feel" compared with purely manual machines. For a small factory, this means the process becomes teachable and scalable, not locked in the head of one expert. [blog.3ds]
Manual plate rolls rely on the operator to set and adjust roll positions by hand, visually checking the radius and correcting after trial passes. For very short runs, simple radii, repair jobs, or thick parts that would be overkill on CNC, this approach can still make sense. However, manual rolling has structural limits: [southernfabsales]
- Quality and repeatability depend heavily on operator skill
- More re-rolls and test passes are common
- Output per shift drops as fatigue and variability increase
In many shops I have visited, the oldest manual roller is often the bottleneck machine: always busy, always waiting for one specific operator, and always slightly behind schedule.
When you calculate ROI, focus on total cost per good part, not equipment price alone. The main variables are: [sogaworks]
1. Machine acquisition and financing
2. Labor hours per part
3. Scrap and rework
4. Throughput and delivery reliability
5. Maintenance and downtime
Assume a small fabricator must roll 10 mm steel cylinders for local tank builders. We can compare CNC vs. manual using realistic (but simplified) assumptions inspired by industry productivity observations. [harsle]
Assumptions (per 8-hour shift): [energymission]
- Manual plate roll: 2 good parts per hour, 5% scrap/rework
- CNC plate roll: 5 good parts per hour, 1% scrap/rework
- Loaded labor cost per operator: 30 USD/hour
- Additional cost per scrapped part (material + time): 80 USD
| Metric | Manual plate rolling | CNC plate rolling |
|---|---|---|
| Typical output per hour | 2 parts (sogaworks) | 5 parts (sogaworks) |
| Labor hours per part | 0.5 | 0.2 |
| Labor cost per part | 15 USD | 6 USD |
| Scrap / rework rate | 5% (energymission) | 1% (energymission) |
| Scrap cost per 100 parts | 400 USD | 80 USD |
Even before considering energy and maintenance, the CNC line cuts labor cost per part by more than 50%, and scrap-related loss by 80% in this simplified example. Over a year of daily production, those differences compound into tens of thousands of dollars, which typically pay back the higher CNC investment within 1–3 years for small to mid-sized factories with stable demand. [linkedin]
It would be a mistake to say manual plate rolling is "dead". There are specific scenarios where a manual roll is not only viable but strategic. [southernfabsales]
- Very low-volume jobs (prototypes, one-offs, non-repeating parts)
- On-site or workshop repair of tanks, ducts, and structures
- Simple radii on thick sections where precision tolerances are loose
- Back-up capability when the main CNC line is overloaded
For job shops that live on extremely mixed, low-volume work, the ROI on a high-end CNC roll will be slower unless the sales team can stabilize repeat orders. If your typical order is "two pieces for Monday," manual machines will remain part of your mix for a long time. [southernfabsales]
However, for small to mid-sized factories that are trying to move up the value chain, manual rolling creates several hidden costs: [sogaworks]
- Skill bottleneck: Only a few operators can handle complex rolling consistently.
- Schedule risk: If they are sick or leave, delivery dates slip.
- Quality variance: Each batch looks slightly different, making downstream fit-up and welding more difficult.
These are exactly the pain points that push many owners to move toward CNC or NC plate rolls when they start serving OEMs or export customers.

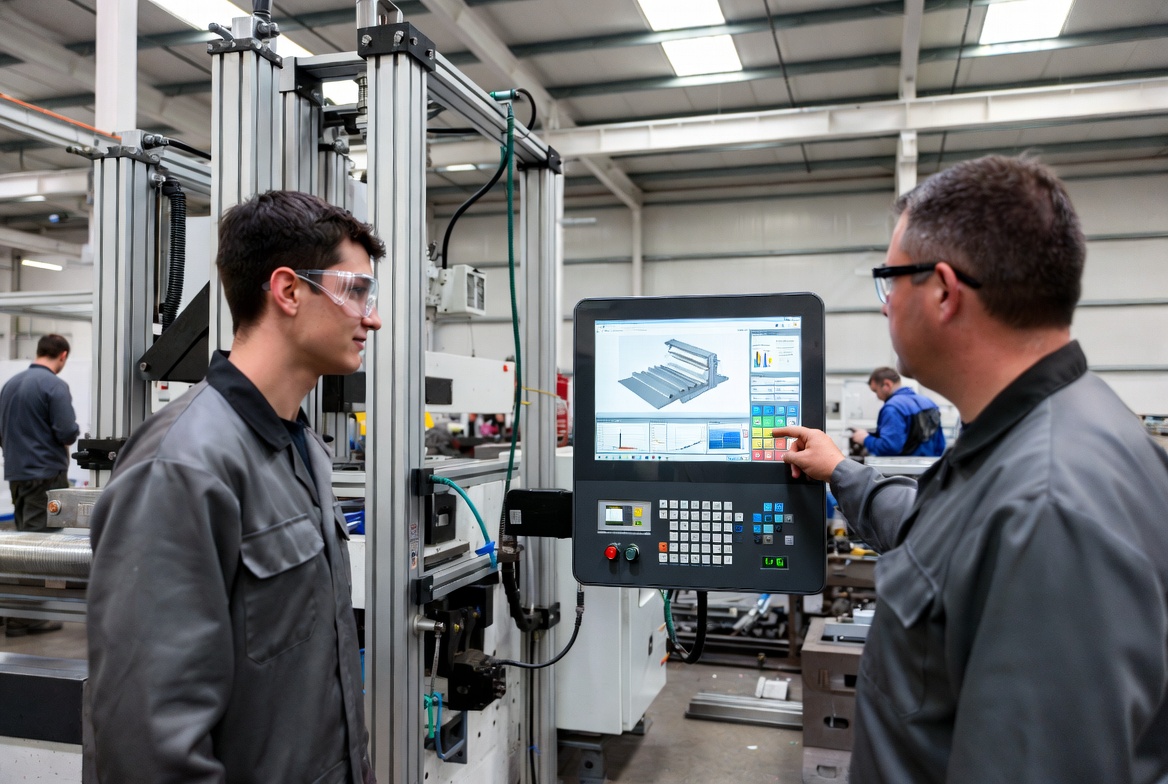

In 2026, CNC and NC systems are increasingly designed so that operators can be trained in weeks instead of years, with intuitive HMIs and guided workflows. This reduces dependence on a small pool of "old masters" and lets you reorganize shifts without losing quality. [steckermachine]
Forward-looking shops are investing heavily in internal training programs around CNC and automation rather than paying premium salaries to chase rare manual experts. When you price ROI, include the cost of recruiting, training, and retaining high‑skill manual operators versus upskilling semi-skilled workers on CNC plate rolls. [blog.3ds]
CNC plate rolls maintain consistent geometry, ovality, and straightness across batches because the programs lock in and repeat the same positions and sequences. Manual machines, by contrast, drift with operator fatigue and day-to-day variations. [harsle]
For small to mid-sized factories aiming to supply pressure vessels, structural components, or export products, this process capability translates directly into fewer customer complaints, less rework, and higher acceptance during audits. That "soft" ROI often becomes a real number the first time you avoid losing a contract due to inconsistent forming. [steckermachine]
CNC plate rolling enables higher parts-per-hour and longer unattended or lightly attended runs, especially when combined with basic automation around feeding and removal. As CNC machining more broadly moves toward lights-out and connected production, the same expectations are spreading into plate forming cells. [energymission]
For owners, this means:
- Shorter lead times, allowing you to accept rush orders at a premium
- More predictable capacity, improving your ability to quote accurately
- Fewer surprises during peak seasons
These effects are exactly what most financial directors look for when approving a CNC investment.
Instead of relying on generic claims, plug your own numbers into a simple ROI model. You can follow this sequence inspired by standard machine-selection best practices. [southernfabsales]
1. Profile your jobs
- List plate thickness ranges, widths, materials, and minimum/maximum diameters.
- Note how many parts of each type you roll per month.
2. Measure your current performance
- Average setup time per job on manual rolls.
- Rolling time per part and total parts per shift.
- Scrap and rework rates, including time spent fixing defects.
3. Estimate CNC performance with vendor benchmarks
- Expected cycle time reduction for your materials and thicknesses.
- Predicted scrap and rework reductions from programmable control.
- Required operator skill level and training time.
4. Convert to annual cost and savings
- Calculate labor, scrap, and overhead cost per part for manual vs. CNC.
- Multiply by your annual volume to get yearly savings.
5. Compare against total CNC investment
- Include purchase price, financing, tooling, installation, and training.
- Compute payback period (investment / annual savings) and internal rate of return.
Shops that follow this discipline often discover that a CNC plate roll becomes cash-positive much sooner than expected, especially once realistic scrap and overtime are included. [linkedin]
Industry guides to selecting plate rolls emphasize that the right sizing and configuration are critical to long-term ROI. When evaluating CNC vs. manual, pay particular attention to: [southernfabsales]
- Material thickness and width capacity – choose capacity at least 20% above your heaviest regular workload. [harsle]
- Top roll diameter and geometry – smaller diameters can achieve tighter radii but may limit thickness. [southernfabsales]
- Drive system and control features – torque, speed, NC/CNC capabilities, and available automation interfaces. [harsle]
- Frame rigidity and build quality – impacts precision, repeatability, and long-term stability. [southernfabsales]
- Safety, maintenance, and warranty support – reduce downtime and unexpected costs. [harsle]
Choosing correctly here is often where experienced OEMs like CNDY‑Press can add expert guidance, because matching the machine envelope to your workload is what turns theoretical ROI into real cash flow.
Recent CNC machining trends show rapid adoption of AI-assisted monitoring, digital twins, and robot-tended cells to stabilize capacity and reduce defects. While plate rolling is a specific niche, the same principles are moving into bending and forming: [blog.3ds]
- Predictive maintenance on rolls and drive systems
- Automated logging of rolling parameters for traceability
- Integration with upstream cutting and downstream welding cells
For small and mid-sized factories, selecting CNC plate rolls that are ready for basic connectivity and data collection protects your investment as these trends reach forming operations.

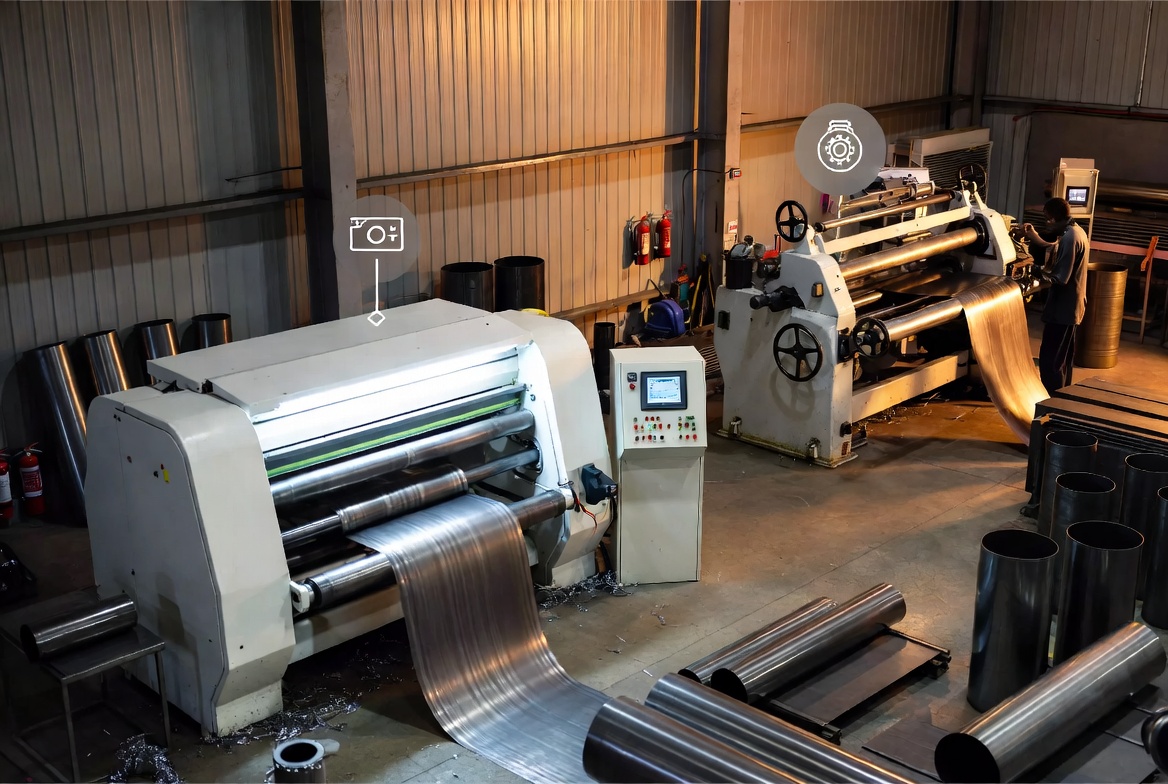

In many factories I have advised, the optimal solution is a hybrid approach: keep at least one manual roll for emergency, repair, and ultra-low-volume work, and shift all repeatable, quality-critical jobs to CNC. This strategy balances capital expenditure with flexibility. [linkedin]
A typical evolution path looks like this:
- Phase 1: One manual roll handles everything.
- Phase 2: Add a CNC plate roll for core product lines; keep the manual for odd jobs.
- Phase 3: Standardize programs, integrate basic automation, and use the manual roll only for special cases.
For a manufacturer like CNDY‑Press, this is exactly where OEM and ODM customization adds value: tailoring CNC plate rolling solutions and control logic to your real product mix, not a generic catalog scenario.
If you are running a small or mid-sized factory and considering upgrading from manual plate rolling, the most valuable next step is not just downloading a catalog, but discussing your actual job mix, operator skills, and future roadmap with an experienced OEM partner.
CNDY‑Press focuses on CNC plate rolling machines and complete sheet metal forming lines for factories exactly like yours, and we can help you:
- Model ROI based on your real part families and volumes
- Choose the right CNC plate roll configuration and control options
- Design custom OEM/ODM solutions that fit into your existing workflow
If you want a realistic ROI calculation and a practical upgrade plan—not just a machine quote—reach out to our engineering team and share three things: your top plate thickness, your typical annual volume, and your current bottlenecks. We will come back with a tailored CNC vs. manual rolling roadmap within a defined timeframe.
Q1: Is CNC plate rolling always cheaper than manual rolling for small factories?
Not always; for very low volumes and simple repair jobs, manual rolling can still be cost-effective, but once volumes and quality requirements rise, CNC typically delivers lower cost per part and better ROI. [sogaworks]
Q2: How long is a typical payback period for a CNC plate roll?
For small to mid-sized factories with steady demand, many projects reach payback in 1–3 years when labor, scrap, and overtime reductions are fully counted. [steckermachine]
Q3: Do I need highly skilled operators to run CNC plate rolls?
Modern CNC and NC plate rolls are designed so that semi-skilled operators can become productive after structured training, reducing dependence on a few manual experts. [energymission]
Q4: What if my product mix changes frequently—does CNC still make sense?
If your mix is high but your annual volume per family is still significant, CNC recipes and quick program switching often handle variety better than manual, especially when consistent quality is necessary. [blog.3ds]
Q5: Can I keep my manual roll and still add a CNC machine?
Yes, many factories keep a manual roll for odd jobs and repair work while shifting high-volume and critical parts to CNC, which is often the most balanced and risk‑aware approach. [southernfabsales]
