Laser cutting machines and shearing machines each excel in different sheet metal scenarios: laser cutting wins on precision and complex shapes, while shearing dominates fast, straight-line production on standard sheets. Choosing the right one for precision sheet work depends on your tolerances, part geometry, material mix, and budget. [prima-press]
As a manufacturer like CNDY‑Press that develops fiber laser cutting machines and other sheet metal lines, I've seen many workshops over‑ or under‑invest because they chose the wrong main cutting process for their sheet jobs. From an engineer's and shop-owner's perspective, the real question is not "which is better" but "which is better for this specific part, thickness, and tolerance?" [candomach]
In this guide, I'll walk you through how experienced metal fabricators compare laser cutting machines vs. shearing machines for precision sheet work, so you can align your investment with your production and quality targets. [adhmt]
A fiber laser cutting machine focuses a high‑energy laser beam onto the sheet surface, melting or vaporizing the material along a programmed path. CNC motion control moves the beam or the worktable to generate straight lines, curves, and highly complex geometries with minimal mechanical contact. Because the process is non‑contact, tool wear is low and edge quality can be extremely smooth with a narrow kerf. [jslw-machinery]
Key characteristics of laser cutting machines: [primafiberlaser]
- High precision and repeatability on thin to medium‑thick plates
- Excellent for complex shapes, contours, and holes
- Capable of cutting various materials (steel, stainless, aluminum, brass, some non‑metals)
- Higher initial investment and more complex maintenance
A shearing machine (often a hydraulic guillotine or swing beam shear) uses an upper and lower blade to apply high shear force, cutting the sheet in a straight line. The process is purely mechanical, with the sheet clamped and then cut in one stroke along the blade length. This makes shearing extremely fast and cost‑effective for straight cuts and panelizing large sheets into blanks. [jslw-machinery]
Key characteristics of shearing machines: [prima-press]
- Excellent for straight-line cuts with good edge straightness
- Very high throughput for repetitive, simple cuts
- Generally lower capital cost and simpler maintenance
- Limited to straight edges, no internal contours or complex shapes
When we talk about precision sheets, we usually care about dimensional accuracy, edge straightness, burr level, and how parts behave in downstream bending or welding. [jslw-machinery]
- Laser cutting machines routinely achieve tight tolerances for contour parts, especially on thin and medium‑thickness sheets. [adhmt]
- Shearing machines deliver very high straightness along the cut line, with high‑end CNC shears reaching straightness accuracies around 0.03 mm per meter in demanding applications like pre‑shearing before laser welding. [jslw-machinery]
In real projects, we often see:
- Use laser cutting for parts with holes, slots, profiles, and complex edges.
- Use shearing for rectangular blanks where consistent straight edges are more critical than complex geometry.
Laser cutting introduces a heat-affected zone (HAZ), though modern fiber lasers keep it relatively small, with smooth edges and minimal dross when parameters and gas settings are optimized. Shearing, by contrast, is a cold mechanical process, so there is no HAZ at all, and the edge typically has a characteristic shear, burnish, and fracture zone. For subsequent bending and welding, both methods can work well if the process is correctly set, but sheared edges are often favored where absolutely no thermal influence is allowed. [primafiberlaser]
Key takeaway:
- Choose laser cutting when contour precision, small holes, and clean visible edges matter.
- Choose shearing when straightness, zero heat input, and fast blanking dominate your priorities.
A modern fiber laser cutting machine can handle a wide range of metals, including stainless steel, carbon steel, aluminum, copper, and brass, and in some setups even non‑metals like plastics and wood. A shearing machine is typically used for metal sheets only and is not suited to non‑metal materials. [adhmt]
If your workshop processes more than two or three material types, laser cutting offers far greater flexibility and shorter changeover times, especially with automatic parameter libraries and material databases. [primafiberlaser]
For sheet metal thickness, the rules of thumb many fabricators use are: [prima-press]
- Laser cutting: extremely efficient and precise on thin plates (often 1–3 mm), and competitive up to medium thicknesses depending on laser power and gas type.
- Shearing: can handle a broad thickness range (for example 0.2–30 mm in typical industrial setups) and often becomes faster than laser cutting as thickness increases, especially for simple straight cuts. [jslw-machinery]
Some reports indicate that for thin plates, shearing can be 5–10 times faster than laser cutting when doing repetitive straight-line cuts, making it attractive for bulk blanking operations. [candomach]
From a production manager's point of view, throughput per shift often matters more than pure cutting speed. [candomach]
Laser cutting machines combine:
- High cutting speeds
- Fast repositioning
- Nesting software that optimizes part layout
This combination allows maximum material utilization and reduces scrap, especially on mixed part nests. For job shops handling many part numbers with varied shapes, a laser often becomes the central flexible cutting hub. [linkedin]
Shearing machines, especially hydraulic guillotine shears, excel in simple, repeated operations: [prima-press]
- Cutting full-size sheets into standard blanks
- High‑volume straight-line cutting for panel production
- Quick setup with minimal programming
Downtime is usually low, limited mainly to blade sharpening, clearance adjustment, and routine hydraulic checks. For panel factories or any operation where 80–90% of cuts are straight lines, a shear line can deliver more parts per hour at a lower cost per cut than a laser. [candomach]
Comparative view: [adhmt]
| Factor | Laser Cutting Machine | Shearing Machine |
|---|---|---|
| Initial equipment cost | Higher adhmt | Lower adhmt |
| Operating cost per hour | Moderate to higher (power, gas, optics) adhmt | Lower (mainly power, blades) candomach |
| Programming and setup time | Higher for complex nests adhmt | Low for straight cuts candomach |
| Material utilization | Very high (nesting) adhmt | Medium (rectangular blanks) candomach |
For manufacturers like CNDY‑Press, the actual cost per part depends on part mix and utilization rate. A laser that runs 16–20 hours per day on mixed parts can quickly pay back its higher investment through flexibility and material savings. A shear, on the other hand, shines in high‑volume standardized products where programs rarely change. [adhmt]
- Shearing machines have simpler mechanical structures and generally require less specialized maintenance; main tasks include lubrication, blade grinding or replacement, and hydraulic checks. [candomach]
- Laser cutting machines require attention to optics, laser source, assist gas systems, and CNC control, and unexpected downtime (e.g., laser source replacement or misalignment) can significantly impact output if preventive maintenance is neglected. [adhmt]
In practice, this means you need more skilled technicians to run and maintain lasers reliably, while shear operators can be trained relatively quickly.
From a process integration standpoint, here is a practical rule set many experienced fabricators follow: [primafiberlaser]
Use laser cutting machines when:
1. You need complex shapes: curves, internal holes, slots, cutouts, logos, and nested parts.
2. You have tight contour tolerances and visible edge quality requirements.
3. You process multiple materials and thicknesses frequently.
4. You want to maximize material utilization using advanced nesting.
5. You plan to offer flexible, small‑batch or multi‑variety production services.
Use shearing machines when:
1. Most jobs involve straight-line cuts on rectangular or square panels.
2. Thickness is in the medium to thick range and parts are simple.
3. You prioritize throughput and low cost per cut over shape flexibility.
4. You prefer equipment with lower initial cost and simpler maintenance.
5. You already have downstream processes (punching, laser, plasma) that will handle complex shapes later.

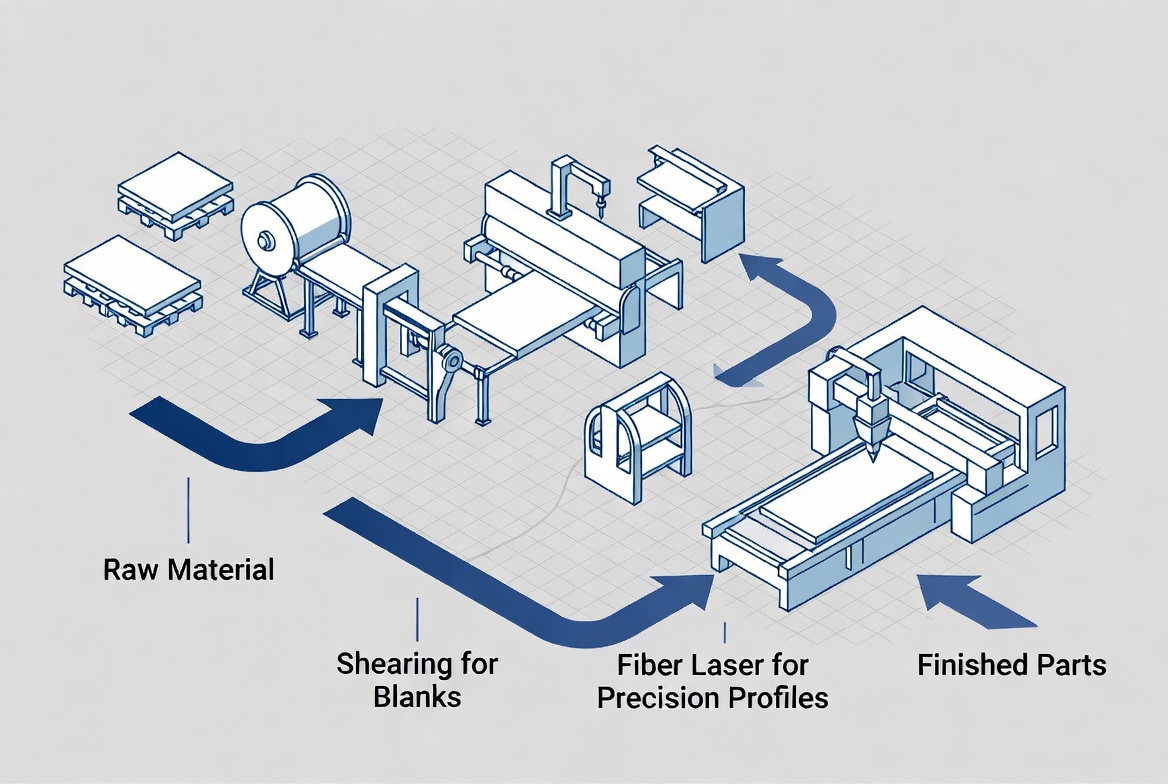

Many advanced workshops now combine shearing and laser cutting in a hybrid layout: [candomach]
- The shear cuts incoming full-size sheets into standardized blanks with minimal waste.
- The laser then performs precise contour cutting, holes, and detailed work on these blanks.
This approach can reduce laser cutting time per part, improve material utilization, and produce high‑precision sheet components with lower overall cost.
In recent years, many metal fabricators that previously relied mainly on shearing and punching have added fiber laser cutting machines to handle high‑value precision components. Industry analyses show that fiber lasers are particularly competitive for thin to medium‑thickness stainless steel and carbon steel when surface quality and pattern flexibility are important. [stylecnc]
In practical projects, manufacturers often:
- Keep their shears for bulk blanking and heavy‑gauge straight cuts.
- Use fiber lasers as a precision center for high‑value parts with demanding tolerances and complex edges.
- Offer OEM and ODM customers flexible design modifications without changing hardware tooling.
For a company like CNDY‑Press that both manufactures fiber laser systems and offers contract cutting, this hybrid model allows you to demonstrate your own laser technology while still using shearing where it remains the most economical choice. [stylecnc]
When advising OEM and ODM clients, we typically walk through this five‑step checklist to decide between laser cutting, shearing, or a combination: [adhmt]
1. Define part shapes and tolerances
- Mostly rectangular pieces with relaxed edges? Shearing is often sufficient.
- Complex outlines, tight tolerances, aesthetic edges? Lean toward laser cutting.
2. Analyze material mix and thickness
- Many different materials and thicknesses in small batches? Laser offers greater flexibility.
- High volume, one or two standard steel thicknesses? Shearing may be more economical.
3. Evaluate target volume and changeover frequency
- High variety, frequent drawing changes: laser can adapt faster via programming.
- Stable, repetitive production: shearing lines with simple setups deliver high throughput.
4. Calculate total cost per part, not just machine price
- Include nesting gains, scrap rate, labor cost, and maintenance in your model.
- Model hybrid flows (shear + laser) for large contracts and see if they cut cycle times.
5. Consider your operator and maintenance capability
- Do you have or can you train advanced technicians for laser maintenance and programming?
- If not yet, you may start with shearing and add laser capacity in stages.
If you are still unsure whether a laser cutting machine or a shearing machine is better for your precision sheet project, the smartest move is to review your drawings and annual volume with an equipment specialist. At CNDY‑Press, our engineering team can analyze your material mix, tolerances, and growth plan, then recommend a laser, a shear, or a hybrid setup tailored to your OEM or ODM needs. [stylecnc]
Send your typical part drawings (DXF/DWG), thickness range, and annual quantities to our application team so we can simulate your cost per part and propose a customized cutting solution.
Q1: Which machine is more precise for sheet metal?
A well‑configured fiber laser cutting machine offers higher contour precision and better performance on complex shapes, while a high‑quality shear delivers excellent straight-line accuracy and edge straightness. [jslw-machinery]
Q2: Is laser cutting always better than shearing for thin sheets?
Not always: laser cutting gives superior flexibility and contour quality, but for simple straight cuts on thin sheets, shearing can be 5–10 times faster and more economical. [prima-press]
Q3: Can a shearing machine replace a laser cutting machine?
For workshops producing mainly rectangular blanks and panels with moderate tolerances, a shear can cover most needs, but it cannot handle internal cutouts, curves, or complex geometries like a laser. [jslw-machinery]
Q4: What about maintenance and downtime differences?
Shearing machines typically have simpler maintenance and shorter downtimes focused on blade care, while laser cutting machines require more specialized maintenance for optics, laser sources, and CNC systems. [adhmt]
Q5: Do I need both laser cutting and shearing?
Many modern metal fabrication plants use both: shearing for high‑volume straight blanking and fiber laser cutting for high‑value precision parts, achieving the best balance of cost, capacity, and flexibility. [candomach]
