Press brakes and folding machines can both bend stainless steel, but they excel in different scenarios, especially when you move into complex stainless steel geometries and higher-strength grades. From an engineer's and process-optimization perspective, a modern CNC press brake is usually the more versatile "backbone" for complex stainless jobs, while folding machines shine in specific panel-style, surface‑critical applications. [shenchong]
In stainless steel fabrication, choosing between a CNC press brake and a folding machine is no longer a simple "old vs. new" question—it is a strategic decision that affects quality, throughput, and lifetime cost per part. As a manufacturer focused on CNC press brakes and turnkey sheet metal solutions, we see daily how the wrong choice at the equipment level can lock a factory into higher scrap rates, slower setups, and hidden surface‑quality problems that only appear at final assembly. [adhmt]

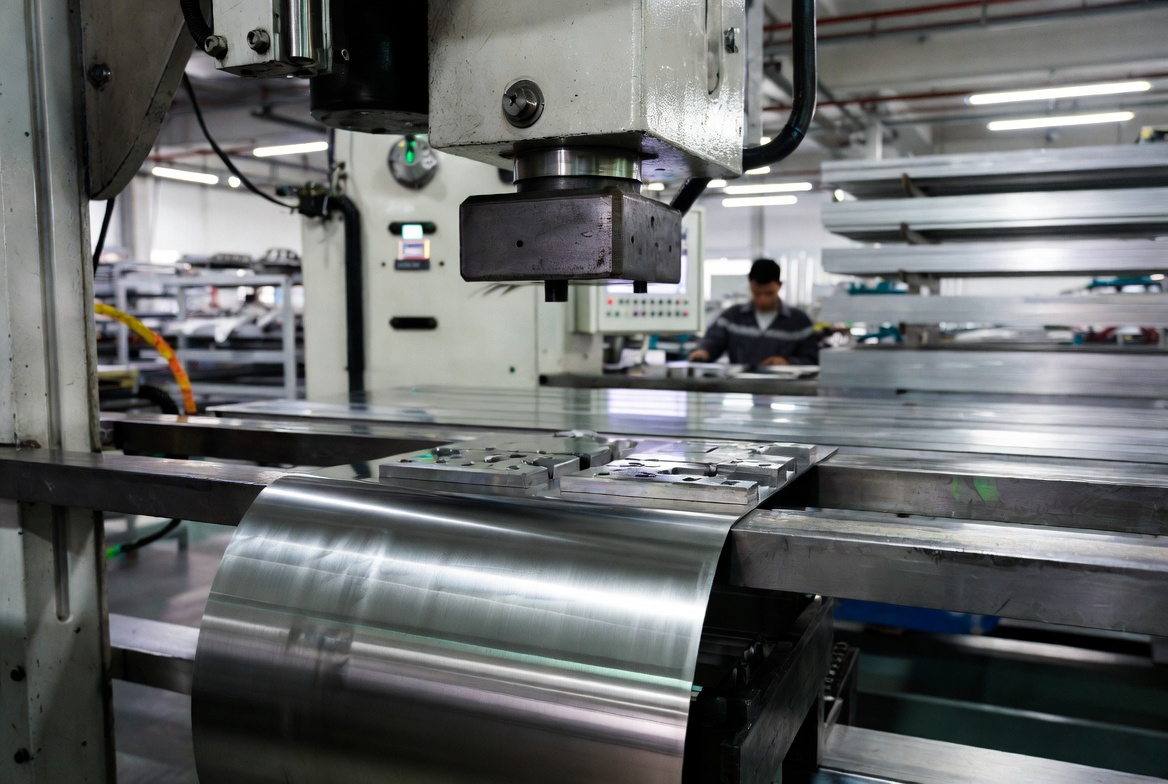

A CNC press brake bends metal by driving an upper punch into a lower die, forcing the stainless sheet to follow the die angle under controlled tonnage and stroke. Multi‑axis CNC controls manage ram position, backgauge axes, and crowning to maintain angles within about ±0.1° and backgauge accuracy at sub‑millimeter levels in modern machines. With the right tooling, this allows V‑bending, bottoming, air bending, hemming, and offset bending on the same machine—an essential capability for complex stainless products with multiple bend types in one part. [seathertechnology]
A folding machine (CNC folder or panel bender) clamps the stainless sheet along the bend line, then swings a folding beam up or down around a radius to form the bend. Because the sheet remains mostly stationary and only the beam moves, the process greatly reduces sliding friction and risk of dents on pre‑painted or brushed stainless surfaces. This makes folders attractive for long panels, doors, and enclosure components where cosmetic finish is critical and bend lines are relatively simple and straight. [linkedin]
For complex, multi‑step stainless parts, a CNC press brake typically offers higher geometric flexibility and better integration with advanced gauging and tooling. Folders are very precise on straight flanges, but their bending envelope and toolset are more restrictive, which limits deep channels, tight box geometries, and combinations of positive and negative bends close together. [ras-systems]
From the shop floor perspective:
- Press brake strengths
- Complex, multi‑angle geometries.
- Short leg flanges and tight return bends.
- Thick and high‑strength stainless materials.
- Integration with robots and offline CAM systems. [rsm-machinery]
- Folding machine strengths
- Long panels and door skins with consistent flanges.
- Pre‑finished, painted, or brushed stainless sheets.
- One‑operator handling of large parts that would require two operators on a press brake. [sheetmetalindustries]
Press brakes handle a wider range of thicknesses and strengths because they apply high concentrated force through the punch and die set. Modern folders can bend surprisingly thick mild steel and stainless panels, but they are still limited by clamping and beam capacity, making very thick or ultra‑high‑strength stainless better suited to a high‑tonnage press brake. [shenchong]
When we engineer bending processes for stainless, we see three critical variables:
- Grade (for example, 304 vs 316 vs 430)
- Thickness and direction of rolling
- Required inside radius and minimum flange length [bergekcnc]
A CNC press brake allows finer control over punch radius, die opening, and tonnage to match these variables, minimizing cracking and excessive work hardening in demanding stainless applications. [seathertechnology]
Because the sheet slides over the lower die during press‑brake bending, contact points can leave slight die marks or dents, especially on polished or brushed stainless surfaces. Tool films, radius dies, and protective foils help, but they increase setup cost and complexity. [austgen.com]
Folders, by contrast, clamp and bend without dragging the sheet across tooling, so they inherently protect the surface, which is why many door, elevator, and architectural panel producers rely on them for cosmetic stainless work. In practice, many factories use a hybrid strategy: high‑complexity interior parts go to the press brake, while visible outer skins run on folding lines. [ras-systems]

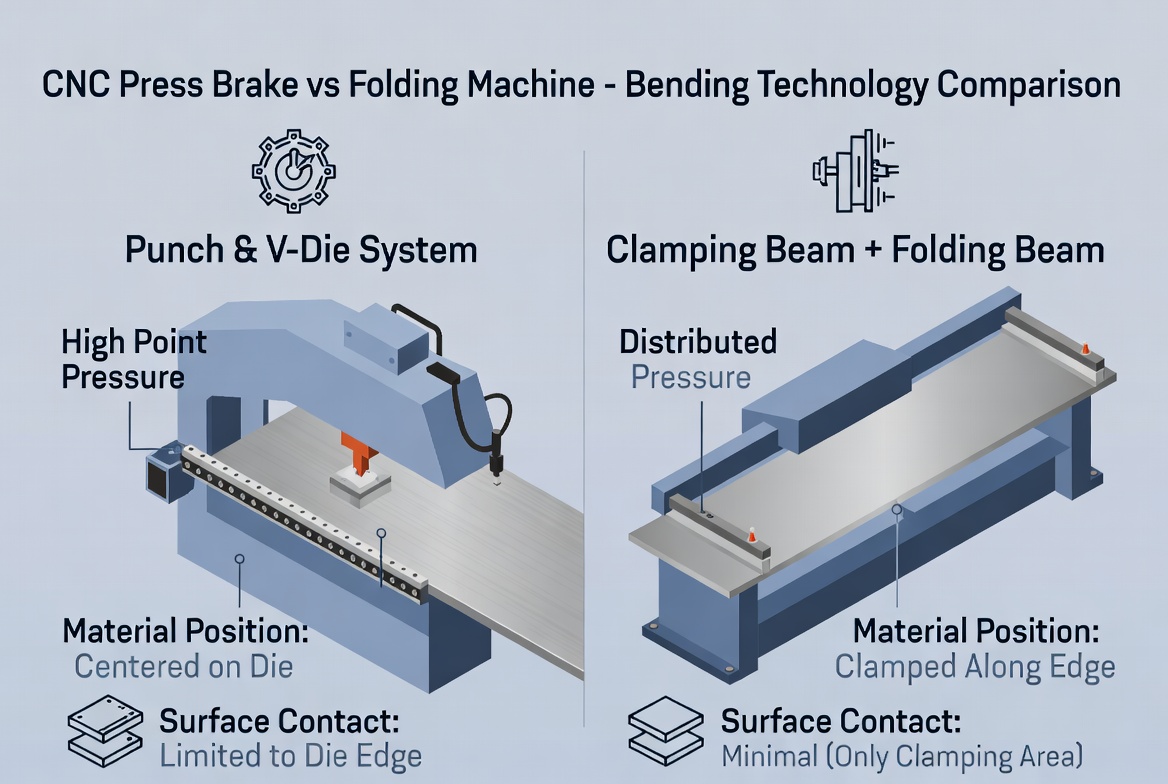

| Factor | CNC Press Brake (CNDY‑Press style) | Folding Machine (CNC folder) |
|---|---|---|
| Bending principle | Punch/die air or bottom bending shenchong | Clamping + swinging folding beam shenchong |
| Best for part types | Complex, multi‑angle stainless parts, boxes, frames shenchong | Long panels, door skins, simple flanges ras-systems |
| Material range | Thin to thick, high‑strength stainless shenchong | Thin to medium sheets and panels ras-systems |
| Surface marking risk | Higher; needs protective tooling shenchong | Very low; minimal sliding contact shenchong |
| Setup flexibility | Wide tooling variety, quick changeovers with CNC memory rsm-machinery | More limited toolset but fast for recurring panel work linkedin |
| Complexity of bend sequences | Excels at complex sequences, offsets, tight returns shenchong | Limited near clamps and machine frame shenchong |
| Automation integration | Strong, robot‑ready, offline programming friendly rsm-machinery | Available but less common in heavy fabrication linkedin |
| Typical operators | Skilled press‑brake technicians; training needed sheetmetalindustries | Easier learning curve on repeat panel parts linkedin |
From an operations perspective, *how* you bend stainless is as important as *which* machine you use. Stainless steel exhibits significant spring‑back, work hardening, and surface sensitivity compared with carbon steel. For complex parts, we recommend combining the following methods on a CNC press brake: [bergekcnc]
1. Air bending with optimized die openings
Use larger V‑openings (8–12× material thickness) to reduce tonnage and avoid cracking on high‑strength grades, then compensate for spring‑back via CNC angle correction tables. [seathertechnology]
2. Sequenced multi‑hit bending
For deep channels or Z‑profiles, break a severe bend into two or more controlled hits with different tool setups rather than forcing one extreme hit, which risks cracking and distortion. [bergekcnc]
3. Bottoming or coining only where necessary
Reserve bottoming or coining for small, critical flanges because they heavily cold‑work stainless and increase spring‑back management complexity. [seathertechnology]
4. Integrated hemming station
Use combination punches that support both bending and hemming operations in a single setup to create safe edges on stainless doors, covers, and panels. [rsm-machinery]
For panel‑type parts, a folding machine can reduce handling damage and operator fatigue, especially when long stainless sheets would otherwise require two press‑brake operators. In mixed‑product factories, this often becomes a pure OEE decision: move large, simple panels to the folder and reserve your highest‑precision CNC press brakes for complex stainless components. [sheetmetalindustries]
Across projects, we see the same pitfalls and best practices repeat:
- Calculate bend allowances for each stainless grade instead of reusing mild steel data.
- Pre‑compensate spring‑back in CNC programs and verify with first‑article measurements.
- Use appropriate punch radii to avoid sharp inside corners that initiate cracks.
- Control heat input if hot bending or local annealing is used, to prevent surface damage. [bergekcnc]
These steps combine with tool selection and machine capability to determine whether a job runs stable at 500 parts—or generates rework and warranty claims.
In industries like HVAC, electrical enclosures, machinery covers, and custom stainless furniture, engineers are pushing more complexity into the sheet metal stage to reduce welds and assemblies. CNC press brakes with advanced tooling libraries and offline programming allow you to drive this complexity directly from 3D models into repeatable bending sequences. [rsm-machinery]
Concrete advantages in these scenarios include:
- Multi‑radius parts and variable angle bends on a single part.
- Tight box shapes where flange clearance around clamps would block a folder.
- Prototype runs where you need quick tool changes and flexible programming. [sheetmetalindustries]
From a lifecycle‑cost perspective, this usually means your CNC press brake becomes the first choice for high‑mix, complex stainless work, while folders remain specialized assets for selected product lines.

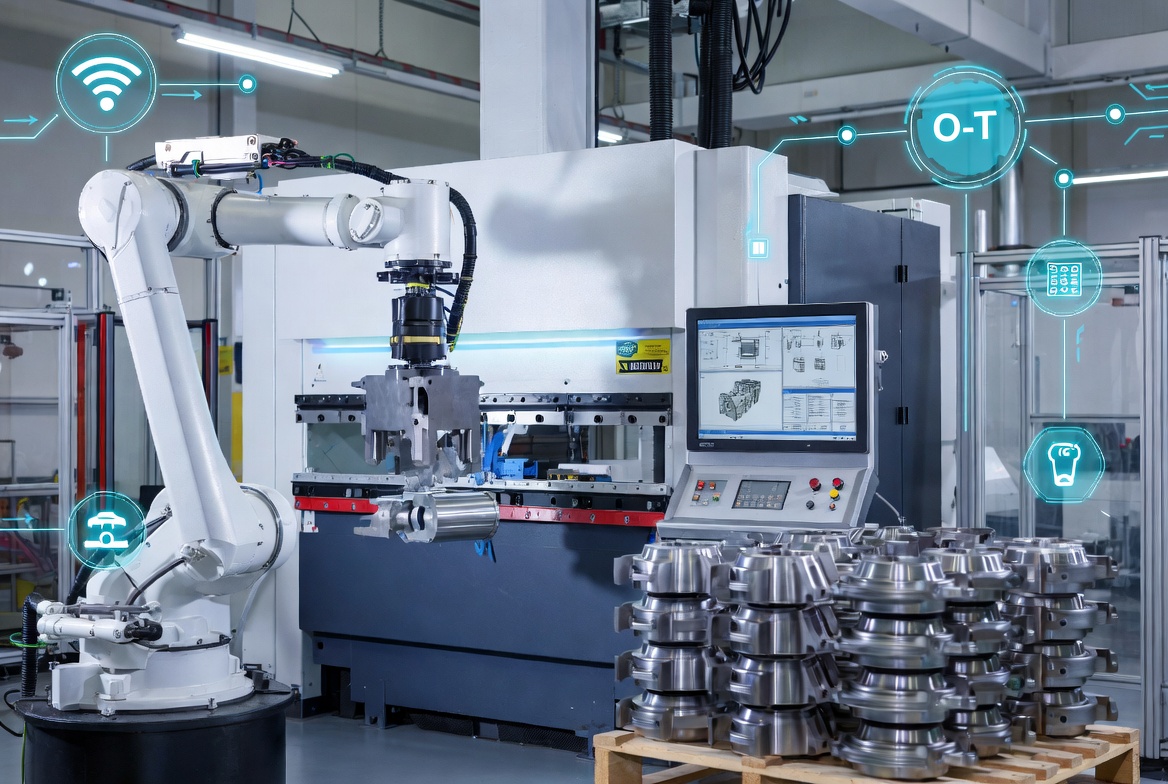

Modern CNC press brakes integrate with robots, automated tool changers, and MES/ERP systems more widely than folding machines in heavy fabrication. This integration matters when you need traceable quality data and consistent bending performance across multiple shifts and operators. [rsm-machinery]
Automation‑ready press brakes support:
- Robotic loading/unloading of stainless blanks.
- Auto‑tooling changes between stainless batches.
- Angle‑measurement systems that feed back to the CNC in real time. [sheetmetalindustries]
If your stainless program involves thousands of complex parts per month, these capabilities are often decisive in selecting a press brake over a folder.

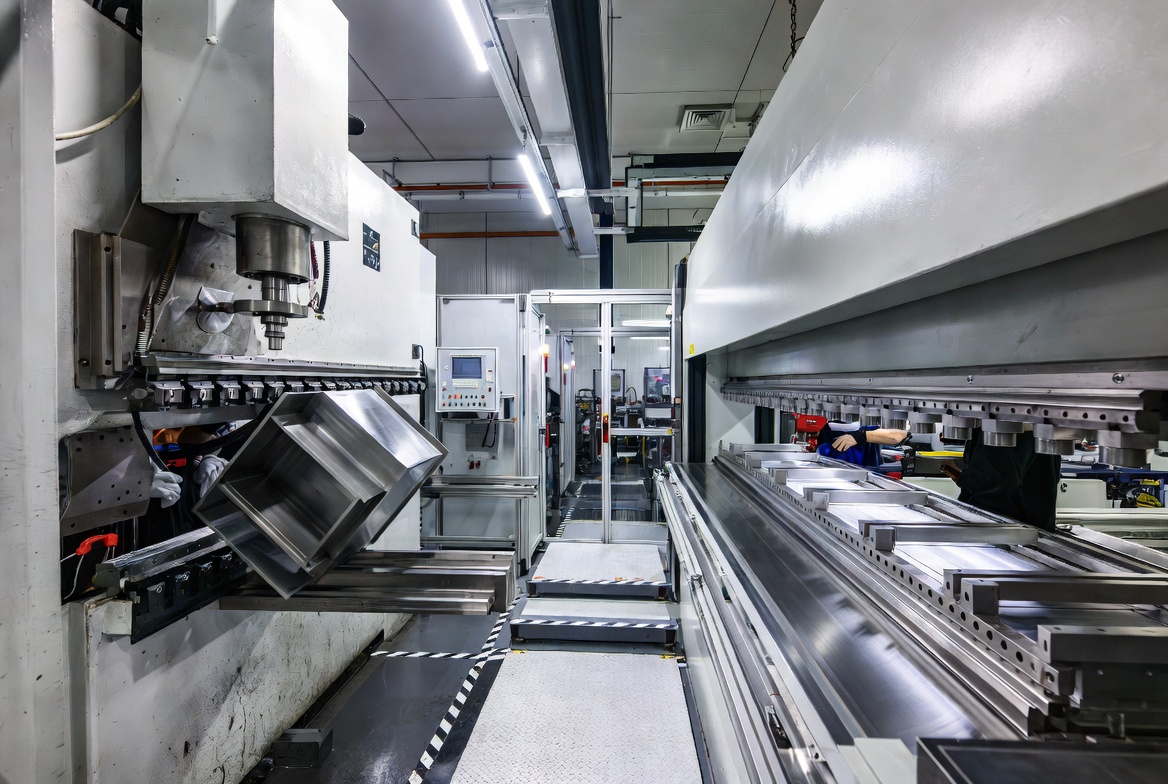

A manufacturer of stainless electrical cabinets for food processing needed tight‑tolerance internal brackets, frames, and visible doors. They chose:
- CNC press brake for internal brackets and frames with multi‑angle bends, offsets, and structural requirements, relying on flexible tooling and stored CNC programs.
- Folding machine for exterior doors and large side panels to protect brushed stainless surfaces and allow one‑operator handling of long parts. [austgen.com]
This split increased total bending throughput and reduced rework on cosmetic surfaces while maintaining geometric precision on load‑bearing parts.
A custom machinery builder working with thick stainless components and frequent design changes standardized on high‑tonnage CNC press brakes. Their reasons included broad material range, easier prototyping, and better integration with 3D design workflows; a folding machine was evaluated but not selected due to thickness limits and geometry constraints. [shenchong]
As an OEM and ODM manufacturer of CNC press brakes and complete sheet metal lines, we treat machine selection as a lifecycle decision, not a one‑time purchase. For complex stainless projects, we use three lenses: [adhmt]
- Time dimension: Lifetime cost per bent part, including tool changes, setup, training, and automation compatibility. [adhmt]
- Dynamic dimension: Thermal stability, acceleration, and control accuracy during long stainless runs. [adhmt]
- Business fit: Mix of part complexity, batch sizes, and cosmetic requirements in your existing and future product roadmap. [adhmt]
In most high‑mix stainless environments, this analysis points toward a flexible, automation‑ready CNC press brake as the central asset, complemented by folders only when justified by panel‑heavy, surface‑critical product groups. [ras-systems]
Before you decide "press brake vs. folding machine" for stainless, walk through these questions:
1. What percentage of your stainless parts require multi‑angle or box‑type bends?
2. How critical is cosmetic finish vs hidden structural performance?
3. What is your real material mix in thickness and grade over the next 5 years?
4. Do you plan to integrate robots or digital production control?
5. Are you running high‑mix/low‑volume or stable, repetitive panel product lines?
If you answer "high‑mix complexity," "wide thickness range," and "automation," a CNC press brake will almost always deliver better long‑term ROI; if most of your work is long, repetitive panels with premium surfaces, a folder can complement your bending cell.
Choosing between a press brake and a folding machine is not about brand loyalty; it is about building the right bending cell for your stainless portfolio and future product roadmap. If you are planning a new line or upgrading from manual bending, share your typical stainless drawings, thickness range, and monthly volumes so we can simulate setups, estimate cycle time, and design an OEM/ODM solution based on CNC press brakes, or a hybrid line where a folder genuinely adds value. [rsm-machinery]
Q1: Which machine is better for complex stainless box parts?
A CNC press brake is typically better because its tooling variety and bending envelope can handle tight boxes, offsets, and multi‑angle sequences that are difficult or impossible on a folder. [shenchong]
Q2: When should I choose a folding machine for stainless?
Choose a folding machine when you produce long, relatively simple panels from pre‑finished or brushed stainless and want to minimize surface marks and operator handling efforts. [austgen.com]
Q3: Do press brakes always damage stainless surfaces more than folders?
Press brakes have higher risk of marking, but with protective tooling, radius dies, and foils, they can achieve high‑quality finishes; folders simply start with an inherent surface‑protection advantage. [austgen.com]
Q4: Can both machines be used in the same stainless production line?
Yes, many factories use press brakes for complex internal parts and folding machines for outer panels and doors to balance flexibility, surface quality, and throughput. [ras-systems]
Q5: How does CNC control improve stainless bending quality?
Advanced CNC systems enable precise control of bend angle, backgauge position, and crowning, compensating for spring‑back and material variation, which is essential with work‑hardening stainless steels. [seathertechnology]
