Choosing between a box and pan brake and a CNC press brake is a production decision, not simply a machine purchase. A box and pan brake is practical for short runs, repair work, simple boxes, trays, pans, and shallow folded parts. A CNC press brake is built for repeatable industrial bending, heavier materials, complex profiles, larger components, tighter tolerances, and scalable output.

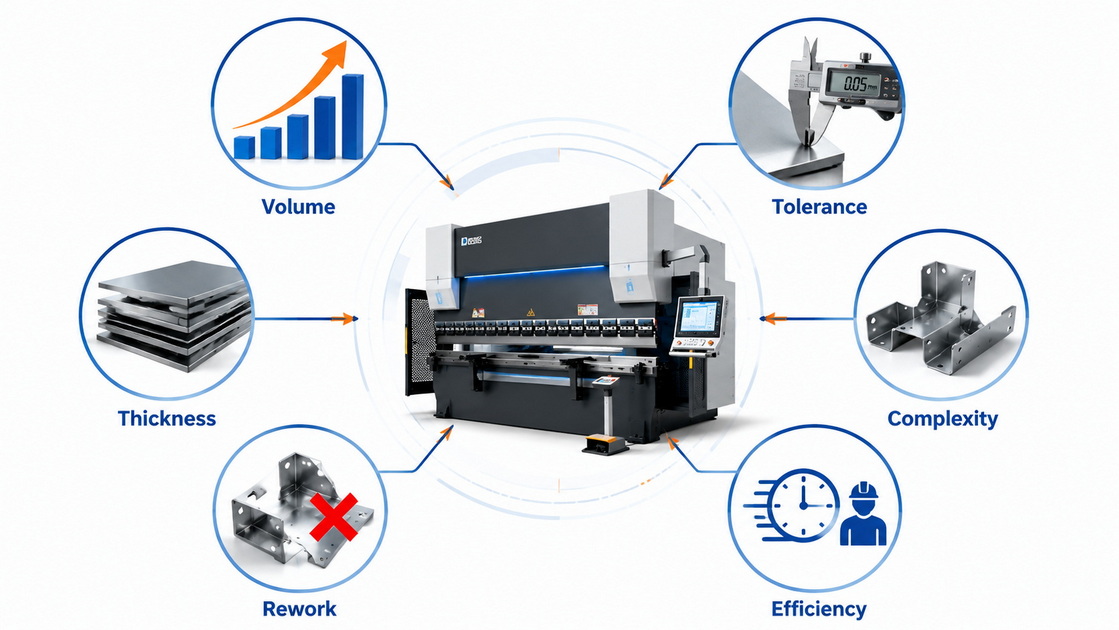

The right time to upgrade is usually when manual forming begins to limit quality, throughput, operator consistency, or part complexity. For fabrication businesses, the decision should be based on actual part data, including material grade, thickness, bend length, required angles, batch size, daily output, labor availability, and future product mix.

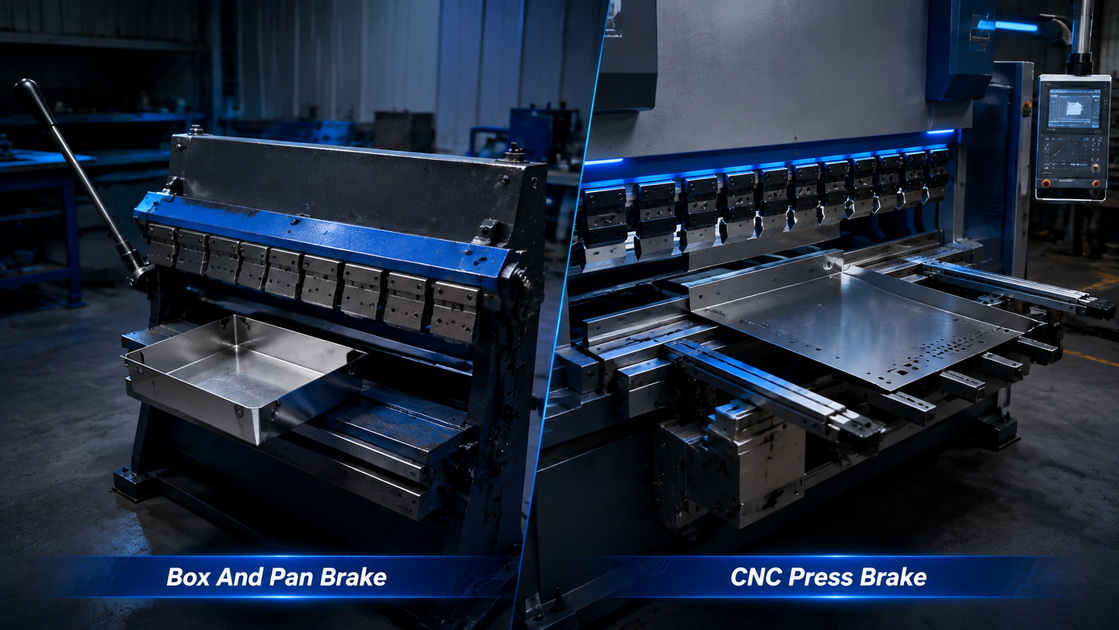

| Factor | Box and Pan Brake | CNC Press Brake |
|---|---|---|
| Main purpose | Manual folding of boxes, pans, trays, and simple channels | Precision bending for industrial sheet-metal production |
| Operating method | Manual clamping and folding leaf | CNC-controlled ram, backgauge, and bending sequence |
| Best production volume | Prototypes, repairs, and small batches | Repeated batches, medium-volume, and high-volume production |
| Typical material range | Thin sheet metal | Thin to thick sheet metal, depending on tonnage and tooling |
| Bending accuracy | Operator-dependent | High repeatability with programmed control |
| Part complexity | Simple folded shapes | Multi-bend, deep, complex, and repeatable profiles |
| Tooling | Removable fingers | Punches, V-dies, hemming tools, offset tools, radius tools, and custom tooling |
| Setup time | Fast for simple manual jobs | Efficient for recurring jobs and programmed part families |
| Labor requirement | High operator involvement | Lower manual dependency after setup |
| Automation potential | Limited | High, including robotic loading and unloading |
| Initial investment | Lower | Higher |
| Long-term production value | Best for low-output work | Best for scalable industrial manufacturing |
A box and pan brake offers flexibility for simple manual forming. A CNC press brake offers control, consistency, capacity, and production scalability.
A box and pan brake, also known as a finger brake, is a sheet-metal folding machine designed to create boxes, pans, trays, channels, and other formed parts with multiple bends.
Unlike a standard straight brake, a box and pan brake uses removable clamping fingers. These fingers allow the operator to leave clearance around previously formed flanges and create parts with side walls.
The operator positions the sheet, adjusts the fingers, clamps the material, and raises the bending leaf to create the required angle.
Box and pan brakes are commonly used for:
- HVAC transition pieces
- Flashing
- Roofing parts
- Small enclosures
- Electrical boxes
- Trays
- Pans
- Repair parts
- Prototype components
- Custom workshop projects
- Small fabrication jobs
A box and pan brake is useful because it is straightforward and adaptable for low-volume work.
Its main advantages include:
- Lower initial equipment cost
- Simple operation
- Fast manual adjustment
- Removable fingers for box-shaped parts
- Compact workshop footprint
- Suitable for one-off fabrication
- Useful for repair and maintenance work
- Low software dependency
- Practical for thin sheet metal
- Easy visual control during bending
For a fabrication shop producing occasional trays, small boxes, flashing, or prototype enclosures, a box and pan brake may provide enough capability.
The limitations become more noticeable as production requirements increase.
A manual box and pan brake may create challenges with:
- Repeatable bend angles
- Long bending lengths
- Thick materials
- High-strength materials
- Complex multi-bend parts
- High daily output
- Operator fatigue
- Large-batch consistency
- Deep formed sections
- Detailed production records
- Automated material handling
The machine relies heavily on operator skill. An experienced operator can produce high-quality parts, but results may vary between shifts, employees, and production batches.
A CNC press brake is an industrial sheet-metal bending machine that uses a controlled ram, backgauge, punch, and die to form sheet metal into precise angles and profiles.
The CNC system controls key bending parameters, including ram position, bend angle, backgauge position, bend sequence, material compensation, and tool setup.
CNC press brakes are used in industries that require repeatability, productivity, and stable dimensional accuracy.
Typical applications include:
- Electrical cabinets
- Server racks
- Machinery guards
- Elevator parts
- Automotive components
- Agricultural machinery
- Construction equipment
- Stainless-steel enclosures
- Metal furniture
- Kitchen equipment
- HVAC products
- Telecom cabinets
- Energy equipment
- Architectural metalwork
- Industrial brackets and channels
A CNC press brake can be configured with hydraulic, electro-hydraulic, hybrid, or servo-electric drive systems. The right configuration depends on tonnage, bending length, production volume, precision requirements, energy targets, and automation plans.
A CNC press brake gives fabricators greater control over the bending process.
Key advantages include:
- High bend-angle repeatability
- Programmable backgauge positions
- Multi-step bending sequences
- Faster recurring-job setup
- Higher capacity for thick materials
- Support for long bending lengths
- Compatibility with precision tooling
- Reduced dependence on manual positioning
- Better output consistency between operators
- Bending-program storage
- Support for offline programming
- Easier integration with automated material handling
- Better scalability for industrial production
For recurring production parts, CNC control helps reduce variation. The machine can recall proven bend sequences, gauge positions, and angle settings, reducing setup time when the same part returns for another production run.
The operating principle differs significantly between the two machines.
A box and pan brake clamps material across the bend line. The operator raises a hinged leaf, folding the exposed sheet upward.
This process is effective for simple bends and box-style forming. Removable fingers create clearance for flanges and formed sides.
The machine applies bending force across a broad clamping area rather than using a punch-and-die forming process.

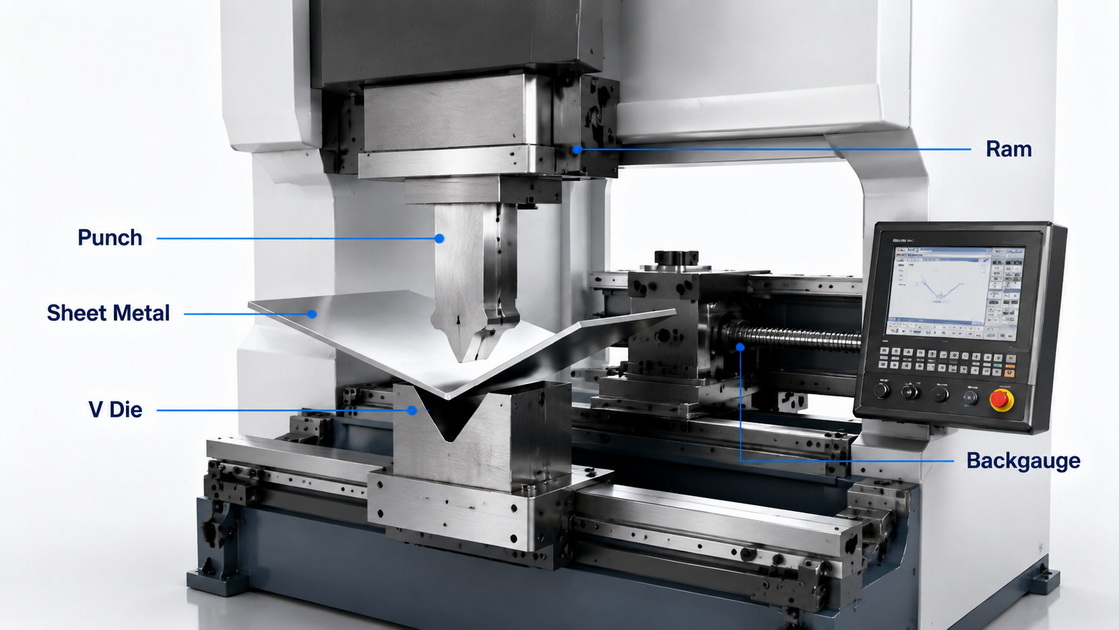

A CNC press brake uses a punch to press material into a lower die. The most common method is air bending, where the material contacts the punch tip and the shoulders of the V-die without being fully pressed to the bottom.
A CNC press brake can also perform:
- Bottom bending
- Coining
- Hemming
- Offset bending
- Radius bending
- Multi-step forming
- Channel forming
- Z-bending
- Deep box forming
- Custom-profile bending
Bending force depends on material tensile strength, thickness, bend length, die opening, bending method, and tooling configuration. Air bending generally needs less force than bottom bending or coining, but it requires good springback control.
| Performance Factor | Box and Pan Brake | CNC Press Brake |
|---|---|---|
| Bend angle control | Manual and operator-dependent | CNC-controlled and repeatable |
| Backgauge control | Manual measurement | Programmable multi-axis positioning |
| Material thickness | Usually limited to thinner sheets | Depends on machine tonnage and tooling |
| Long parts | Limited by manual handling | Available in long-bed industrial configurations |
| Multi-bend jobs | Slower and more skill-dependent | Programmed sequences improve consistency |
| Complex profiles | Limited | Broad capability with suitable tooling |
| Repeatability | Moderate | High |
| Production speed | Suitable for low volume | Suitable for repeated and industrial production |
| Operator fatigue | Higher | Lower per part after setup |
| Quality documentation | Limited | Better program and parameter control |
| Automation | Minimal | Compatible with robotic cells and material handling |
| Future expansion | Limited | Strong potential for automation and process integration |
A box and pan brake remains useful in many workshops.
It is often the right choice when:
- Production is low volume
- Most parts are simple boxes, trays, or pans
- Material thickness is within the machine's capability
- Part size is relatively small
- Operators need quick hands-on adjustment
- The business focuses on repairs or one-off custom work
- Budget is limited
- Tolerance requirements are moderate
- Work involves frequent design changes
- Programmable repeatability is not required
For example, a maintenance workshop producing replacement flashing, small trays, electrical covers, or custom repair panels may benefit from the flexibility of a box and pan brake.
The goal is not to replace a manual machine before it reaches its practical limit. The goal is to recognize when it becomes a production bottleneck.
A CNC press brake becomes more valuable when the cost of inconsistent manual production exceeds the cost of industrial equipment.
If operators frequently adjust bend angles, remake parts, or correct inconsistent flange dimensions, manual bending may be reducing profitability.
Repeated rework can increase:
- Material scrap
- Labor cost
- Delivery delays
- Quality complaints
- Inspection workload
- Customer returns
A CNC press brake can store proven bend programs and improve repeatability across similar jobs.
Manual bending works for small batches. It becomes inefficient when the same part must be produced hundreds or thousands of times.
Higher volumes increase the value of:
- Repeatable backgauge positioning
- Faster setup for recurring jobs
- Stored production programs
- More consistent bend angles
- Lower operator fatigue
- Better part-to-part consistency
A box and pan brake is generally more suitable for thinner sheet metal. As material thickness or tensile strength increases, manual bending becomes more demanding and less consistent.
CNC press brakes can be configured with the tonnage, bed length, tooling, crowning system, and backgauge design needed for higher-capacity work.
A simple tray may be easy to form manually. A cabinet panel, electrical enclosure, machine guard, or complex bracket may require several accurate bends in sequence.
CNC programming helps operators follow the correct order. It can also reduce measurement errors and improve repeatability across multi-bend parts.
Many industrial customers require consistent flange lengths, stable bend angles, and repeatable part geometry.
This is common in:
- Electrical enclosures
- Telecom cabinets
- Automotive components
- Stainless-steel equipment
- Industrial machinery
- Building systems
- Precision metal assemblies
When dimensional consistency becomes a contract requirement, a CNC press brake provides greater process control.
Manual bending depends heavily on experienced operators. If the business relies on one or two highly skilled workers, production can become vulnerable when those employees are unavailable.
A CNC press brake does not remove the need for trained operators. However, it can standardize repeat jobs through programs, tooling setups, backgauge control, and documented procedures.
If production time changes significantly depending on the operator or setup, it becomes harder to quote jobs accurately.
CNC press-brake programs can make cycle times more predictable. This supports more reliable costing, scheduling, and delivery commitments.
Many companies focus only on daily part quantity. A more useful measurement is setup time per part family.
A shop may produce only 30 parts per day, but if it changes between 10 different part designs, manual measuring and repeated setup can consume most of the shift.
A CNC press brake can store programs for recurring parts. When the same job returns, the operator can recall bend sequences, backgauge positions, and key settings instead of rebuilding the process from the beginning.
Track the following for four weeks:
- Number of part numbers produced
- Setup time for each job
- First-piece inspection time
- Rework rate
- Scrap rate
- Operator time per part
- Average order size
- Delivery delays caused by bending
This data often provides a clearer upgrade decision than machine price alone.
Not every CNC press brake is suitable for every factory. The right machine should match the intended product mix.
The required tonnage depends on:
- Material type
- Material tensile strength
- Sheet thickness
- Bend length
- Die opening
- Bending method
- Tooling configuration
A common tonnage calculation considers material thickness squared, bend length, V-die opening, material strength, and bending method.
Small increases in material thickness can create much larger force requirements because thickness is squared in the calculation.
Do not select tonnage based only on the thickest sheet. Review the full material range, longest bend length, highest-strength material, planned tooling, and expected production growth.
A basic CNC press brake may use X-axis backgauge control. More complex parts may require additional axes.
Common backgauge configurations include:
- X-axis for front-to-back positioning
- R-axis for backgauge height adjustment
- Z1 and Z2 axes for independent finger movement
- X1 and X2 axes for complex gauging
- Additional axes for specialized bending work
More axes can improve flexibility for complex parts, but they also add cost and programming requirements.
Long bends can create deflection in the machine bed and ram. A crowning system compensates for this deflection and helps maintain consistent bend angles across the full bending length.
Crowning is especially important for:
- Long parts
- Thick materials
- High-tonnage bending
- Tight tolerance requirements
- Repeated production work
Tooling affects part quality, bend radius, surface condition, cycle time, and machine versatility.
A practical tooling plan may include:
- Standard punches
- V-dies
- Gooseneck punches
- Hemming tools
- Offset tools
- Radius tools
- Acute-angle tooling
- Custom tools for special profiles
Tooling should be selected based on the actual parts to be produced, not only the machine quotation.
Press brake safety should be included in every equipment decision.
The point of operation creates serious hazards. Safety measures should prevent contact with hazardous areas while allowing normal operation, setup, and maintenance.
Important safeguards may include:
- Laser safety devices
- Light curtains
- Two-hand controls
- Protective guards
- Interlocked side guards
- Foot-pedal controls with emergency stops
- Safe-speed functions
- Anti-repeat functions
- Emergency-stop systems
- Safe tooling-change procedures
- Lockout and tagout procedures
- Operator training
Safety requirements vary by country, machine type, and operating environment. Buyers should confirm applicable local requirements and ensure that safety devices are correctly configured for their intended work.
Consider a workshop producing electrical enclosures.
At the beginning, the shop may use a box and pan brake to make small cabinet panels, mounting trays, and covers. The machine is suitable while order volumes are low and designs change frequently.
As orders increase, the shop may begin producing 50 to 100 enclosure sets each week. Every set requires multiple bends, consistent flange lengths, accurate door gaps, and repeatable assembly dimensions.
At this stage, manual measurement can create variation. Operators may spend significant time checking panels, adjusting bends, and correcting misalignment during assembly.
A CNC press brake can improve this process by storing bend sequences, positioning the backgauge automatically, and supporting repeatable production. The benefit is not only faster bending. It can also reduce downstream assembly problems, improve quoting confidence, and make delivery schedules more predictable.
The initial purchase price is only one part of the decision.
| Cost Factor | Box and Pan Brake | CNC Press Brake |
|---|---|---|
| Machine investment | Lower | Higher |
| Tooling investment | Lower | Higher but more versatile |
| Labor per part | Higher | Lower after setup |
| Rework risk | Higher for repeated production | Lower with stable programs |
| Training requirement | Practical manual skill | Operator and programming training |
| Maintenance | Simple mechanical maintenance | Hydraulic, electrical, and control maintenance |
| Capacity expansion | Limited | Strong through tooling and automation |
| Automation options | Minimal | Available |
| Long-term cost per part | Can rise with volume | Can decline with repeat production |
A CNC press brake should be evaluated as a production-capacity investment. Its value comes from better repeatability, reduced labor variation, improved material use, shorter setup for recurring parts, and the ability to support more demanding industrial work.
CNDY-Press, operated by Maanshan Deyan Precision Machinery Technology Co., Ltd., develops CNC press brakes and complete sheet-metal processing equipment for manufacturers, distributors, and project buyers.
Available solutions can be configured around:
- Required bending tonnage
- Bending length
- Material type and thickness
- CNC controller preference
- Backgauge axes
- Hydraulic or servo-hybrid system
- Crowning requirements
- Safety configuration
- Tooling package
- Front support system
- Automatic tool clamping
- Robotic automation compatibility
- Custom voltage and electrical standards
- OEM branding
- ODM machine development

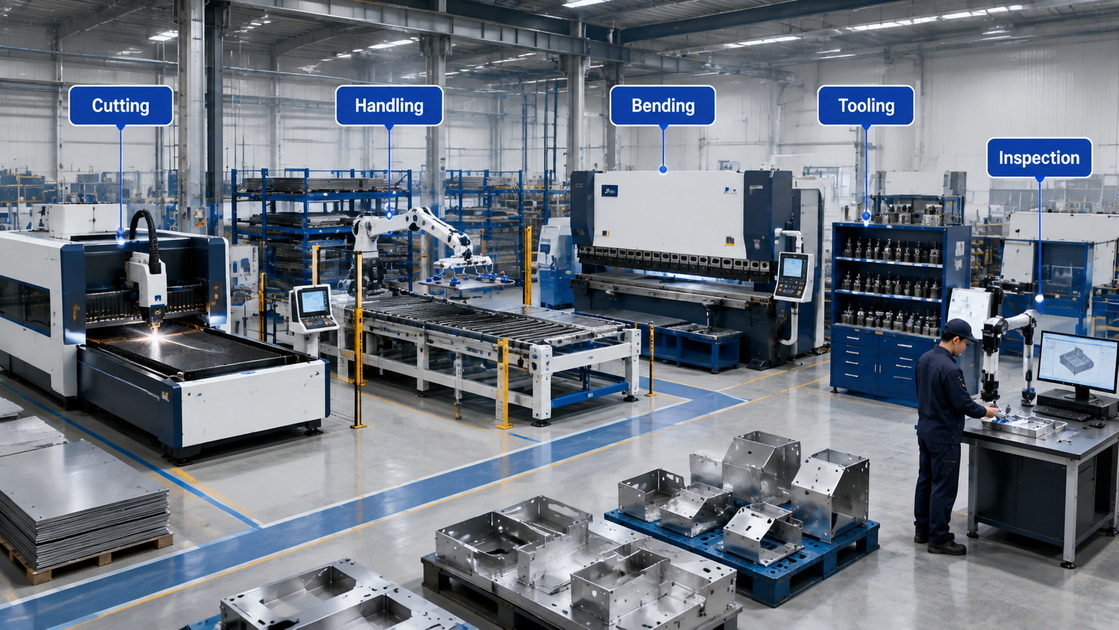

For buyers that need a complete production line, CNC press brakes can be matched with fiber laser cutting machines, CNC shearing machines, plate rolling machines, grooving machines, and material-handling systems.
A box and pan brake is a practical machine for simple folding, low-volume work, repairs, and basic box or tray fabrication. It remains valuable when flexibility and low equipment cost matter more than automation and repeatability.
A CNC press brake becomes the stronger choice when production volume increases, part tolerances tighten, materials become thicker, designs become more complex, or manual setup begins to create delays and rework.
The best upgrade decision should be based on real production data. Track setup time, batch size, scrap, rework, delivery delays, material range, and future growth. This provides a clearer business case than comparing machine prices alone.
CNDY-Press supports manufacturers and equipment distributors with CNC press brakes, fiber laser cutting machines, shearing machines, plate rolling machines, grooving machines, and customized sheet-metal equipment. Share your material range, maximum thickness, bending length, typical parts, production target, and desired automation level to develop a press-brake configuration that fits your production plan.
A box and pan brake can handle simple folded parts, trays, pans, and boxes within its material and size limits. It cannot fully replace a CNC press brake for high-volume production, thick materials, tight tolerances, complex multi-bend parts, or repeatable industrial work.
The main advantage is repeatable bending control. CNC programming, backgauge positioning, bend sequences, and tooling support help improve consistency, reduce setup variation, and increase productivity for recurring parts.
A workshop should consider upgrading when rework increases, batches grow, material thickness rises, part complexity increases, delivery deadlines become harder to meet, or skilled manual operators become a production bottleneck.
Required tonnage depends on material type, tensile strength, thickness, bend length, die opening, and bending method. Use actual part data and a verified tonnage calculation before selecting a machine.
Air bending forms the sheet using the punch tip and the shoulders of the V-die. Bottom bending presses the material more deeply into the die. Bottom bending usually requires more force but can provide different angle-control characteristics.
1. Occupational Safety and Health Administration. [Power Press Brakes]
2. Bystronic. [How to Calculate Press Brake Tonnage]
3. Productivity Inc. [Press Brake Tonnage Calculator]
4. The Fabricator. [Know Your Press Brake Safeguarding Options]
5. Surplus Record. [Metal Brakes Buying Guide]
6. Elite Metal Tools. [Straight Brake vs Box and Pan Brake]
7. CNDY-Press. [About Us]
