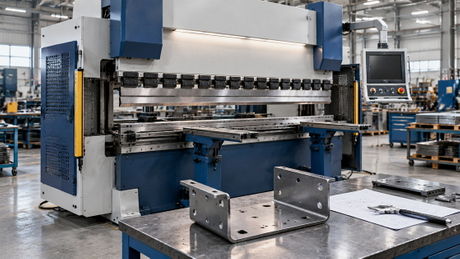

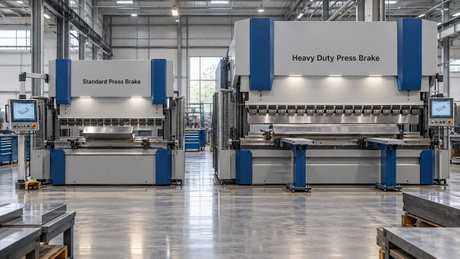

A CNC press brake is a computer-controlled machine that bends sheet metal or plate by pressing it between a punch and a die. Its control system coordinates programmed movements, such as ram positioning and backgauge adjustment, to produce a planned sequence of bends.
Manufacturers use CNC press brakes to make brackets, cabinets, electrical enclosures, equipment panels, and other formed components. The main advantage is repeatable control over a process that would otherwise require more manual adjustment.
However, computer control does not automatically guarantee accurate parts. Material variation, tooling, machine configuration, programming, and operator practice all influence the result.
My starting point when evaluating a CNC press brake is therefore application: which parts must it produce, from which materials, at what volume and tolerance?
For CNDY-Press customers considering standard equipment, OEM projects, or customized manufacturing, those answers provide a better specification than machine tonnage alone.
A CNC press brake follows a programmed sequence, but a conventional machine still normally requires an operator to position and reposition the workpiece.
The program identifies the required bends and relevant process information.
Depending on the control and software, operators may enter dimensions manually, use graphical programming, or import compatible design data.
The system may assist with tool selection, bend sequencing, and collision checks. These functions depend on the supplied software and available machine data.
The backgauge provides reference positions for locating the sheet.
Its fingers move to programmed locations, helping establish flange dimensions and subsequent bending positions.
The operator must seat the workpiece correctly. A programmable backgauge does not automatically load or align every component.
The ram moves the punch toward the die, applying force to deform the material.

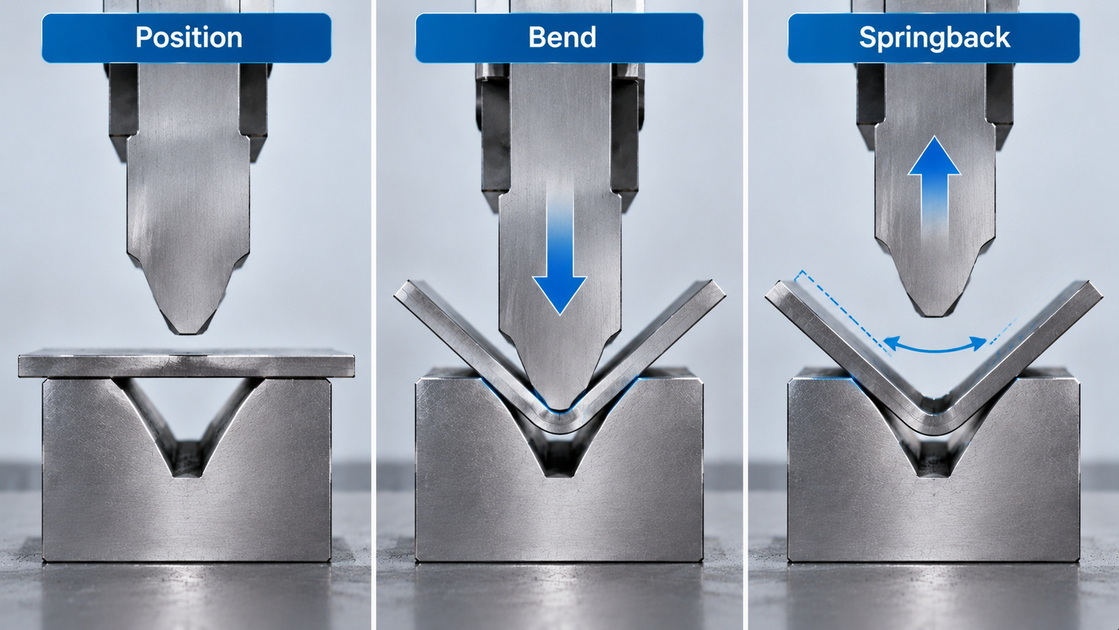

In air bending, the sheet contacts the punch and the die shoulders without fully conforming to the die faces. Punch penetration strongly influences the bend angle.
Bottoming and coining use different contact conditions and force requirements. They should not be treated as interchangeable versions of the same setup.
After forming, the ram retracts and the material partially recovers through springback.
The operator checks the part and continues through the sequence. Some machines offer angle measurement or adaptive correction, but these are configuration-dependent features—not universal capabilities.
| Component | Function | What Buyers Should Check |
|---|---|---|
| Frame, ram, and bed | Carry and transmit forming loads | Approved loading conditions and structural performance |
| Drive system | Generates and controls movement | Force, speed, duty requirements, and maintenance |
| CNC control | Coordinates programmed operations | Software functions, usability, and support |
| Backgauge | Provides workpiece reference positions | Travel, axes, finger design, and accessibility |
| Punch and die | Establish the forming interface | Geometry, compatibility, and load ratings |
| Crowning system | Compensates for relevant deflection | Adjustment method and performance under load |
| Safeguarding | Controls access to hazardous movement | Suitability for the machine and intended tasks |
These components must be evaluated together. Upgrading one element cannot compensate for an unsuitable overall configuration.
Axis counts describe controlled movements, but manufacturers may count optional functions differently.
Request an axis-by-axis description rather than comparing numbers alone.
On many electro-hydraulic machines, Y1 and Y2 represent separately controlled ram positions at each side.
This arrangement supports synchronization. It does not, by itself, establish finished-part angular accuracy.

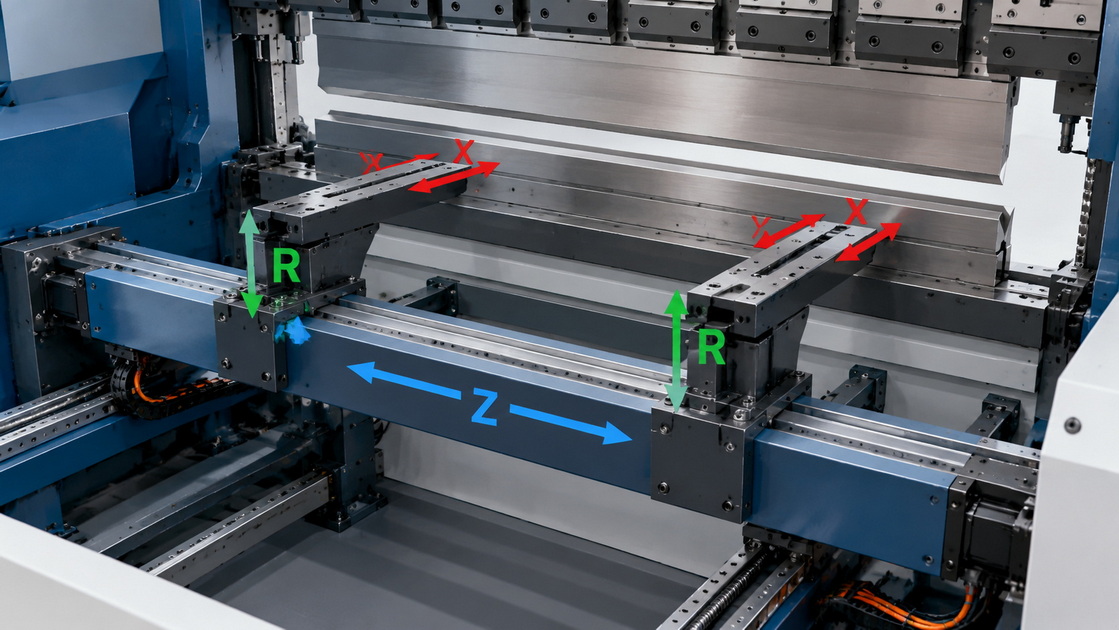

Common axis terminology includes:
- X: Backgauge movement toward and away from the tooling.
- R: Backgauge height adjustment.
- Z: Lateral positioning of backgauge fingers.
Some configurations provide independent finger movements or additional functions.
Choose axes around the bend sequence. Extra axes are useful when they reduce difficult positioning or manual adjustments—not merely because a larger number looks more advanced.
Some quotations count crowning or other powered functions in the total.
Compare the actual movement, travel, control method, and purpose of each axis before deciding which machine offers greater capability.
The drive architecture influences machine design, but it does not determine suitability on its own.
| Drive Type | General Characteristics | Evaluation Priority |
|---|---|---|
| Hydraulic | Broad range of available forming capacities | Hydraulic design, thermal behavior, maintenance, and control |
| Electric | Uses an electrically driven forming mechanism | Application envelope, cycle performance, and energy profile |
| Hybrid or servo-hydraulic | Combines electric motor control with hydraulic force generation | Actual operating cycle, system design, and service requirements |
Avoid assuming that every electric machine is faster or every hydraulic machine consumes more energy under all conditions.
Ask suppliers to compare representative production cycles, including idle periods, setup, handling, and forming. Energy claims should identify the measurement conditions.
Air-bending force depends on material strength, thickness, bend length, and die opening.
Under otherwise comparable conditions:
- Longer bends require more total force.
- Greater tensile strength increases force requirements.
- Thickness has a strong, approximately squared relationship with force.
- A wider V opening generally reduces required force.
Use the actual material specification and thickness tolerance. "Steel" is not a complete engineering input.
A wider die may reduce force but change the formed radius and minimum practical flange length.
Confirm that the proposed tooling can produce the drawing—not simply make the force calculation fit a smaller machine.
Also verify the force units. Metric tonnes-force and U.S. short tons are different.
The punch, die, holders, and adapters have their own limits.
Tooling load is often specified per unit length. A short tool segment cannot safely receive the full force available from a large machine.
Ask the supplier to confirm tooling ratings, engaged length, concentrated loading, and any restrictions on off-center work.
The angle under load differs from the angle after unloading because material recovers elastically.
Material grade, geometry, and batch variation affect the correction required. A stored program may still need adjustment when production material changes.
The machine and tooling system deflect under load. Crowning compensates for relevant deflection to help maintain a consistent angle along the bend.
However, crowning does not eliminate problems caused by unsuitable tooling, inconsistent material, or incorrect positioning.
A ram-positioning specification describes machine movement. It does not automatically establish the angle, flange length, or overall dimensions of a finished component.
Ask for performance evidence on representative parts with agreed measurement methods.
A machine may have enough force for every individual bend yet still fail to complete the part.
Check stroke, daylight, throat depth, tool height, backgauge access, and removal clearance.
Review the last bends especially carefully. Previously formed flanges can interfere with the tools, frame, or handling space.
Rated bending speed is only part of production time.
Include programming, tool changes, first-piece approval, loading, repositioning, and unloading.
For mixed production, reducing setup can matter more than shortening the forming stroke. Compare a representative batch rather than an isolated machine movement.
"CAD/CAM compatible" does not explain what is included.
Confirm:
- Supported file types.
- Offline programming licenses.
- Tool and material databases.
- Postprocessor compatibility.
- Software update arrangements.
- Training and remote support.
- Backup and recovery procedures.
These details influence long-term usability and should appear in the quotation or agreement.
Typical applications include:
- Electrical cabinets and control enclosures.
- HVAC brackets and fabricated panels.
- Machinery guards and structural accessories.
- Commercial equipment housings.
- Architectural sheet-metal components.
- Vehicle and industrial equipment brackets.
The same machine will not necessarily suit every application. Tight-radius aluminum work, long stainless panels, and thick structural plate can require different tooling and handling arrangements.
For regulated or safety-critical components, machine capability is only one part of the required production qualification.
Computer control does not remove crushing, trapping, or moving-workpiece hazards.
Safeguarding must suit the machine, material, and operating task. Appropriate measures may include protective devices, interlocked guarding, safe operating procedures, and controlled access.
Large workpieces can move upward during bending and create additional trapping hazards. Handling equipment must be assessed as part of the process.
Operators need training in setup, tooling limits, inspection, and safe adjustment. Maintenance and tasks involving hazardous energy require an appropriate isolation procedure.
Do not bypass protective systems to compensate for an unsuitable setup.
A broad advertised price range is rarely sufficient for procurement.
Important cost drivers include:
- Forming force and working length.
- Drive architecture and controlled axes.
- Tooling and clamping.
- Crowning and measurement options.
- Programming software.
- Handling or automation equipment.
- Installation, training, and service.
- Freight and destination requirements.
Compare quotations using an identical scope.
A lower equipment price may exclude tooling, installation, or software needed for the intended production. Conversely, unnecessary options can increase cost without improving output.
Before placing an order:
1. Submit representative drawings and material specifications.
2. Confirm force calculations and tooling compatibility.
3. Review the complete bending sequence.
4. Define dimensional and angular acceptance criteria.
5. Agree on a production-representative trial.
6. Confirm safeguarding and handling arrangements.
7. Document installation, training, warranty, and spare-parts support.
The acceptance plan should distinguish a visual demonstration from measured production performance.
Record the material, tooling, program, measuring equipment, and test conditions used.
A suitable CNC press brake combines the right force, working envelope, tools, control functions, and support.
CNDY-Press develops, manufactures, sells, and services CNC press brakes and sheet-metal processing equipment. The company also supports OEM, ODM, and customized production projects.
A CNC machine coordinates programmed movements and stores production settings. Conventional machines generally require more manual setup and adjustment. The practical difference depends on the specific control and machine configuration.
Not normally. A conventional CNC press brake still requires manual handling. Automatic loading and repositioning require additional equipment and integration.
Select axes from representative parts and bend sequences. Request a demonstration of how each proposed axis reduces setup or positioning work.
Potentially, within its approved limits. Each material requires suitable tooling, force calculations, and process settings. Surface protection and bendability also need consideration.
Include representative material, agreed tooling, complete bend sequences, measurable tolerances, repeat production, and documented results. Also review software, handling, and training deliverables.
