Vertical and horizontal plate rolling machines can both handle large diameter cylinders efficiently, but they excel under different conditions of plate thickness, diameter range, workshop layout, and automation level. For a manufacturer like CNDY‑Press, the smartest strategy is usually not "which is better in theory", but "which configuration (or mix of both) delivers the lowest cost per finished cylinder for your target products and OEM/ODM projects". [lecn.com]
In modern sheet‑metal fabrication, CNC plate rolling machines are the backbone for producing pressure vessels, wind tower sections, storage tanks, boilers, and structural cylinders. The choice between vertical plate rolling and horizontal plate rolling directly affects your production throughput, floor space usage, operator safety, and the feasibility of rolling very large diameters above several meters. [china-rolling-machine]
From my perspective as an industry practitioner working with OEM and ODM projects, the most efficient solution is always driven by real parts: plate format, thickness, diameter, length, and how the machine integrates with upstream cutting and downstream welding. At CNDY‑Press, we design CNC plate rolling systems around those parameters, rather than pushing a single "one‑size‑fits‑all" configuration. [choongngaiengineering]
Both vertical and horizontal machines use sets of rolls to bend flat plate into cylinders, cones, or arcs, but their geometry and material handling are very different. Understanding those basics is the starting point for choosing the right machine for large diameter work. [mytcnc]

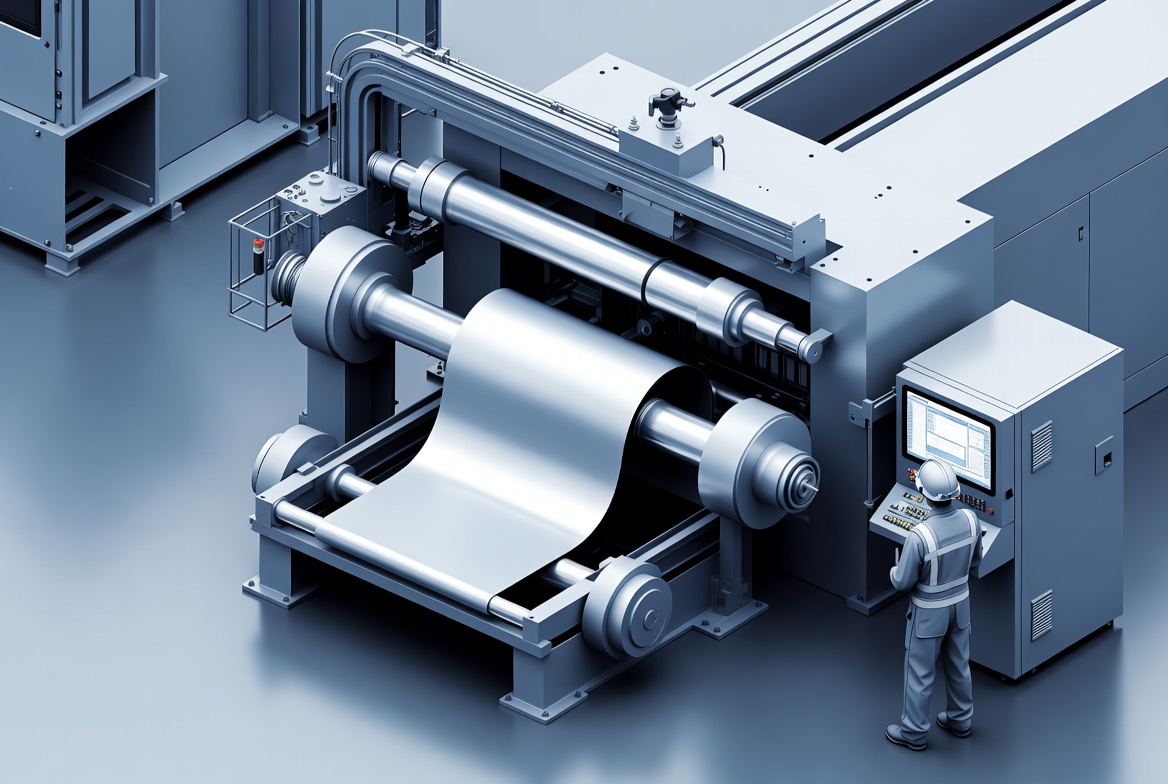

In a horizontal plate rolling machine, the rolls are arranged side‑by‑side, and the plate is fed along a horizontal table. Most heavy‑duty 3‑roll and 4‑roll hydraulic machines for thick plate fall into this category. [alibaba]
Key characteristics from real‑world operation:
- Better suited for thicker plates, because the plate weight is distributed across the horizontal supports and rolls. [lecn.com]
- Commonly used in pressure vessel, shipbuilding, boiler and heavy machinery fabrication where plate thickness can exceed 40–60 mm. [china-rolling-machine]
- 4‑roll hydraulic designs can perform pre‑bending and rolling in a single setup, improving accuracy and reducing straight edges. [alekvs]
- Machines tend to be large and heavy, requiring more floor space and strong foundations in front and behind the rolls. [mytcnc]
For large diameter cylinders, horizontal machines can be extremely efficient when combined with side supports, overhead supports, and automatic feeding systems. [youtube]

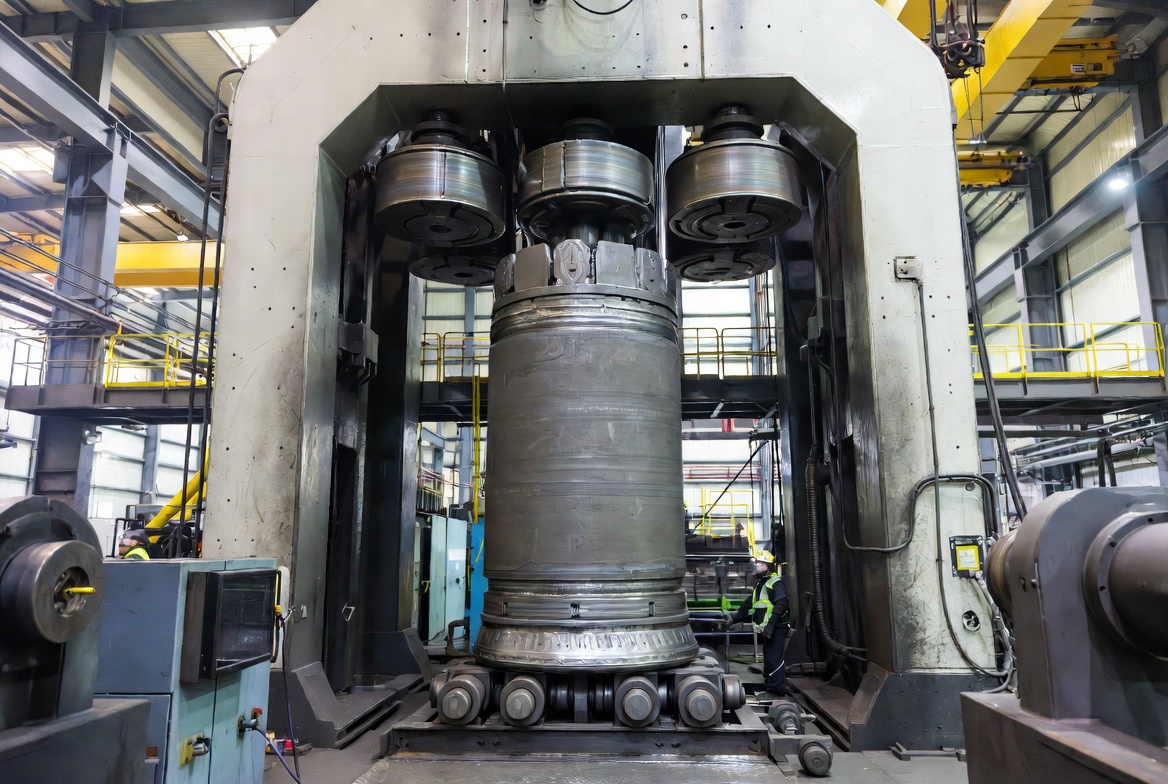

In a vertical plate rolling machine, the rolls are stacked vertically so that the cylinder is built around a vertical axis. The workpiece is supported by the machine frame and often by floor‑level fixtures rather than long side tables. [lecn.com]
Typical vertical machine behavior in practice:
- Compact footprint compared with equivalent horizontal machines handling long or large‑diameter shells. [mytcnc]
- Often more versatile in handling different shapes and sizes, particularly for cones and tall cylindrical shells that are difficult to manage horizontally. [lecn.com]
- Better suited to narrow or irregular plates, because the machine can clamp and hold the plate with less need for long support tables. [mytcnc]
- When designed correctly, vertical machines can apply high rolling forces by concentrating the load on the bottom roll and the machine frame. [lecn.com]
For very large diameters (e.g., sections for storage tanks or towers), vertical rolling can significantly simplify handling and reduce the risk of plate sagging and ovality. [mytcnc]
From an engineering and UX standpoint, the choice is not only about orientation, but about how each configuration interacts with plate size, diameter, and plant layout. [alibaba]
Key differences for large diameter cylinders:
- Orientation and footprint – Vertical machines occupy less floor length, while horizontal machines use more floor space but offer easier integration with conveyors and welding lines. [alibaba]
- Thickness capability – Horizontal machines traditionally handle thicker and wider plates, especially in 4‑roll hydraulic designs. [alekvs]
- Handling of large diameters – Vertical machines can stabilize large diameters under gravity, while horizontal machines rely more heavily on support devices. [youtube]
- Versatility – Vertical machines are often more flexible for cones and mixed geometries, while horizontal machines excel in repetitive cylinder production. [lecn.com]
To assess efficiency, I always look at the cost per finished cylinder, not just machine specs. That total cost is controlled by five major factors. [zetwerk]
- Horizontal 4‑roll machines with hydraulic drive and asymmetrical roll positioning are ideal for thick or high‑strength plates. [alekvs]
- Minimum rolling diameters depend strongly on roll diameter and frame rigidity; precision models can reach very small diameters, while heavy‑duty units focus on larger diameters and thicker plates. [alibaba]
- For extremely large diameters with moderate thickness, vertical machines can reduce straight‑edge length and the number of rolling passes by letting gravity assist forming. [mytcnc]
- Horizontal machines need side supports and overhead supports to prevent sagging when forming large diameters, especially on long shells. [youtube]
- Vertical machines allow the plate to "wrap" around the rolls while being supported close to the floor, reducing the distance operators must move the plate. [lecn.com]
- In a high‑mix OEM environment with many diameters and lengths, vertical machines often reduce handling complexity because they do not require long infeed/outfeed tables. [choongngaiengineering]
- CNC control and digital readout for each roll position are now standard on advanced horizontal hydraulic machines, giving excellent consistency for serial production. [alekvs]
- 4‑roll CNC machines can perform pre‑bending and rolling in one continuous cycle, minimizing straight edges and boosting yield. [alekvs]
- Across the industry, metal fabrication is moving to CAD‑integrated workflows, simulation, and digital twins to validate forming parameters before rolling. [zetwerk]
Both vertical and horizontal machines can benefit from these CNC and automation trends; the orientation mainly affects how the system is integrated into the wider production cell. [choongngaiengineering]
- Horizontal machines handling large diameters require careful design of supports, guards, and access platforms to keep operators away from moving shells. [youtube]
- Vertical machines keep most of the mass close to the floor, which can improve stability and simplify guarding when rolling tall or large‑diameter shells. [mytcnc]
- Automation and robotics are increasingly deployed to handle repetitive loading/unloading tasks, reducing manual intervention and injury risk. [zetwerk]
- Vertical machines are attractive in plants with limited floor space but sufficient height, such as retrofitting into existing workshops. [lecn.com]
- Horizontal lines often align better with conventional material flow from cutting to rolling to welding, particularly when multiple cylinders are joined in line. [youtube]
- According to recent fabrication trends, customisation and flexible, modular cells often give a better long‑term ROI than maximizing the power of a single machine type. [choongngaiengineering]
Drawing on project experience and current industry trends, here is how I would guide a buyer who focuses on large diameter cylinders.
Choose horizontal CNC plate rolling if:
- You process very thick or high‑strength plates (e.g., for high‑pressure vessels or heavy structural components). [alibaba]
- Your shop layout supports long infeed/outfeed space, with overhead cranes and side supports already in place. [youtube]
- You want to build a high‑throughput production line with automated feeding, rolling, welding, and inspection along a horizontal flow. [zetwerk]
In these conditions, a CNC 4‑roll hydraulic machine can offer outstanding repeatability and total cycle time reduction. [alekvs]
Choose vertical plate rolling if:
- You focus on large diameter, moderate‑thickness shells such as storage tanks, silos, and tower sections where handling is a bigger problem than forming force. [mytcnc]
- You need to save floor space and can leverage building height for vertical installation. [lecn.com]
- You manage many sizes and non‑standard geometries, including cones and mixed‑diameter sections, in an OEM/ODM context. [choongngaiengineering]
Vertical systems can reduce material handling steps and improve safety when the cylinder diameter becomes difficult to control in the horizontal position. [mytcnc]
The metal fabrication industry is moving rapidly toward customisation, on‑demand production, and smarter CNC controls. For plate rolling, this means machines are no longer just mechanical devices; they are data‑driven forming systems. [zetwerk]
Key trends that matter to your decision:
- CAD‑to‑machine workflows – Designers send cylinder and cone data directly to the CNC control to generate roll positions and pass sequences. [choongngaiengineering]
- Simulation and digital twins reduce trial‑and‑error and help predict flat‑pattern sizes and springback before rolling. [zetwerk]
- Automation and robotics support material loading, pre‑bending, rolling, and post‑weld calibration, particularly for high‑volume, repetitive cylinders. [zetwerk]
CNDY‑Press can embed these digital capabilities into both vertical and horizontal plate rolling lines, so you are choosing layout and application, not sacrificing intelligence or precision. [china-rolling-machine]
From a practical, operator‑facing perspective, here is a quick checklist that I use in project discussions.
1. Define the product envelope
- Minimum and maximum cylinder diameter
- Plate thickness range and material grade
- Maximum shell length
2. Assess the workshop constraints
- Available floor space vs. building height
- Crane capacity and existing support equipment
- Safety zones and access routes
3. Quantify production patterns
- Few large custom cylinders vs. high‑volume standard designs
- Mix of cones, offsets, and transitions
- Required changeover frequency
4. Target automation level
- Manual loading with simple CNC
- Semi‑automatic cycles with pre‑configured programs
- Fully integrated line from cutting to final weld inspection
By mapping these factors, you can quickly see whether a vertical or horizontal configuration – or a hybrid line – delivers the best throughput and ROI. [china-rolling-machine]

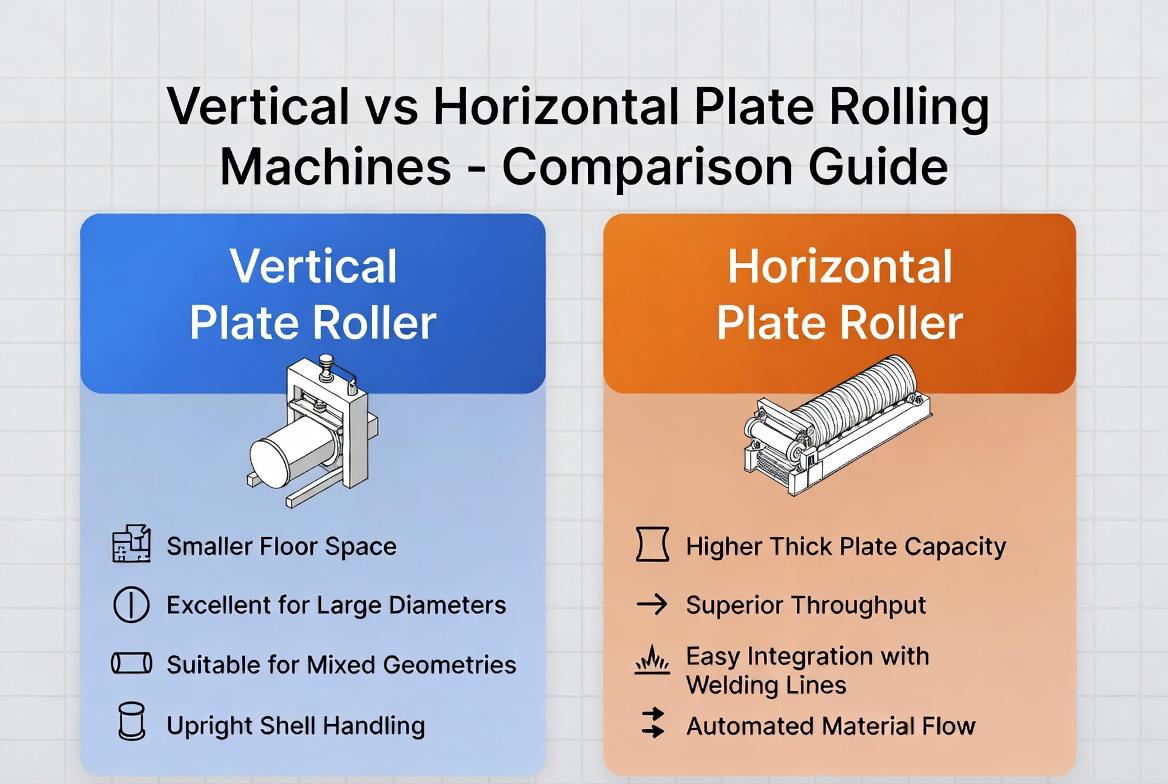

The following table summarizes typical behavior for large diameter cylinder applications; specific performance always depends on exact machine design.
| Aspect | Vertical plate rolling | Horizontal plate rolling |
|---|---|---|
| Typical orientation | Rolls stacked vertically; cylinder formed around vertical axis. lecn.com | Rolls arranged side‑by‑side; cylinder formed horizontally. lecn.com |
| Best diameter range | Very large diameters with moderate thickness; tall shells. lecn.com | Medium to large diameters, especially with thick plates. lecn.com |
| Plate thickness focus | Moderate plate thickness, high versatility. lecn.com | Thicker plates, high‑strength materials. alekvs |
| Floor space usage | Compact footprint, uses building height. lecn.com | Requires longer infeed/outfeed space. lecn.com |
| Handling complexity | Easier control of large diameters with gravity assistance. lecn.com | Needs side/overhead supports to prevent sagging. mytcnc |
| Ideal production pattern | High‑mix OEM/ODM, tanks, towers, cones. lecn.com | High‑volume standard cylinders and pressure vessels. alekvs |
| Automation integration | Integrates well with vertical storage/handling systems. choongngaiengineering | Integrates well with horizontal welding and assembly lines. choongngaiengineering |

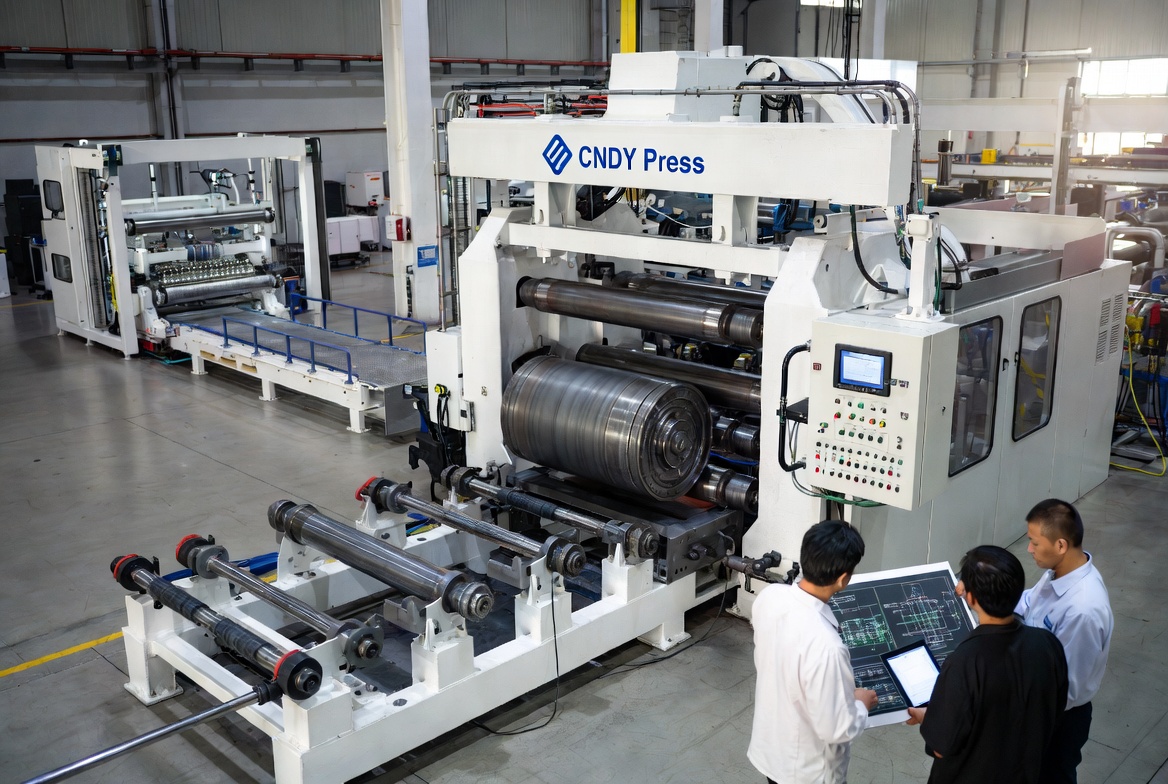

As a manufacturer focusing on CNC plate rolling machines and integrated sheet‑metal solutions, CNDY‑Press can customise both vertical and horizontal configurations to match your product portfolio and market. [china-rolling-machine]
For OEM and ODM customers, typical engineering deliverables include:
- Application‑driven design of roll diameter, machine power, and CNC system based on your cylinder range.
- Integration of side supports, overhead supports, and feeding systems to stabilise large diameter shells. [youtube]
- Custom control interfaces that match your operators' skill levels and export markets, with multi‑language HMI and remote support. [china-rolling-machine]
By combining our forming expertise with your product knowledge, we help ensure your investment in vertical or horizontal plate rolling is aligned with long‑term capacity planning.
If you are planning a new line for large diameter cylinders, the machine orientation is only the first decision. The deeper question is how to combine plate thickness, diameter range, workshop layout, and automation into a coherent, future‑proof system. [alibaba]
CNDY‑Press can work with your engineering and purchasing teams to:
- Analyse your current and upcoming cylinder portfolio.
- Simulate vertical and horizontal scenarios with realistic productivity assumptions.
- Configure a customised CNC plate rolling solution – vertical, horizontal, or hybrid – aligned with your budget and growth targets.
Contact our technical team to discuss your product range and receive an application‑specific machine recommendation and layout proposal.
Q1: Which machine type is better for very thick plates above 50 mm?
Horizontal CNC hydraulic machines, especially 4‑roll designs, are usually better suited for very thick or high‑strength plates because they distribute plate weight across the rolls and can deliver higher rolling forces with good control. [alekvs]
Q2: When does a vertical plate rolling machine make more sense?
Vertical machines are a strong option for very large diameter shells with moderate thickness, especially when floor space is limited and building height is available to support a compact, vertical forming cell. [lecn.com]
Q3: How does CNC control improve efficiency for large diameter cylinders?
CNC control enables precise positioning of each roll, automated pass sequences, and integration with CAD data, which reduces setup time, improves part consistency, and minimises scrap for both vertical and horizontal machines. [choongngaiengineering]
Q4: Can one machine handle both small and very large diameters effectively?
Most plate rolling machines have a practical window defined by roll diameter, machine power, and frame rigidity, so combining extremely small and extremely large diameters in one machine usually involves compromise; many manufacturers deploy dedicated machines for different diameter bands. [alibaba]
Q5: How do current metal fabrication trends influence the choice between vertical and horizontal?
Trends such as customisation, digital twins, and automation encourage buyers to think in terms of flexible, data‑driven forming cells; both vertical and horizontal machines can fit into this model, so the decision is primarily driven by part geometry and plant layout rather than technology maturity. [choongngaiengineering]
