Stainless steel press brake bending demands significantly higher force, more robust tooling, and tighter process control than standard carbon steel bending, but it also delivers superior corrosion resistance and long-term part stability for demanding applications. [shop.adhmt]
From both my own shop-floor experience and what we see across the sheet metal industry, stainless steel bending and standard carbon steel bending follow the same basic press brake principle, yet behave very differently under load. [alekvs]
- Stainless steel has higher tensile strength and pronounced springback.
- Carbon steel (mild steel) is more forgiving, requiring less tonnage and simpler tooling.
- CNC press brakes allow you to switch between the two with precise control of pressure, angle, and backgauge positions. [jstmt]
For CNDY‑Press (CNC press brake and sheet metal solutions), this difference shapes how we size tonnage, select tooling hardness, and design custom OEM/ODM bending cells for global customers.
The root of the pressure difference is in the material properties. [lzkcnc]
- Stainless steel
- Higher ultimate tensile strength (UTS) than mild steel.
- Higher yield strength and stronger springback.
- Typically needs around 50% more bending force than mild steel of the same thickness and die opening. [serralaser]
- Standard carbon steel (mild steel)
- Lower UTS and yield strength.
- Less springback, easier to form and correct.
- Reference material for most press brake force charts. [lzkcnc]

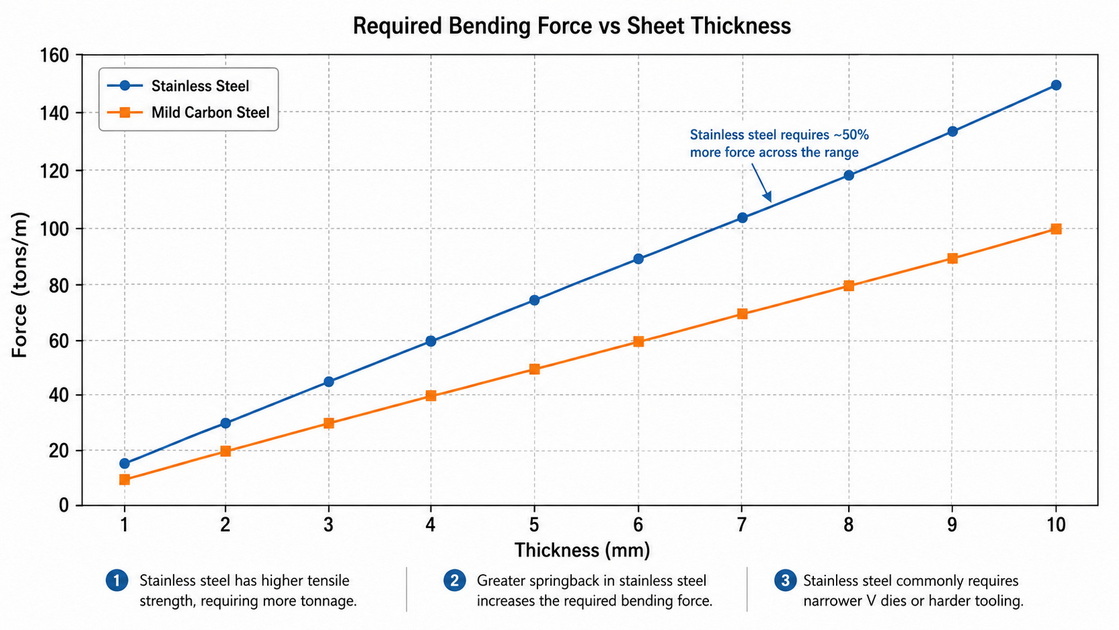

In practical terms, if you can bend a 2 mm mild steel part at 70 kN, the same geometry in stainless steel can easily push you towards 1.5× tonnage on the same V‑die. [serralaser]
Press brake tonnage can be estimated with industry formulas that account for tensile strength, thickness, die opening, and bend length. [harsle]
A commonly used relationship is:
F∝TS×t2×L/V
where:
F = bending force
TS = tensile strength
t = sheet thickness
L = bend length
V = die opening [harsle]
Because stainless steel has higher \(TS\), the required F rises quickly for the same t, L, V. [lzkcnc]
Industry guidance commonly states:
- Stainless steel: about 50% more force than mild steel.
- Aluminum: about 50% less force than mild steel. [lzkcnc]
So, if a given bend in mild steel requires 7 tons, stainless steel of the same geometry may need around 10–11 tons on the same die. [serralaser]
For OEM and high-mix OEM/ODM projects, this has direct impact:
- You must size press brake tonnage for the worst-case stainless job, not the easiest carbon plate.
- Under‑sized brakes run slower, wear tooling faster, and risk safety and accuracy.
- CNC models with dynamic crowning and precise pressure control are especially valuable for stainless work. [miharmle-cnc]

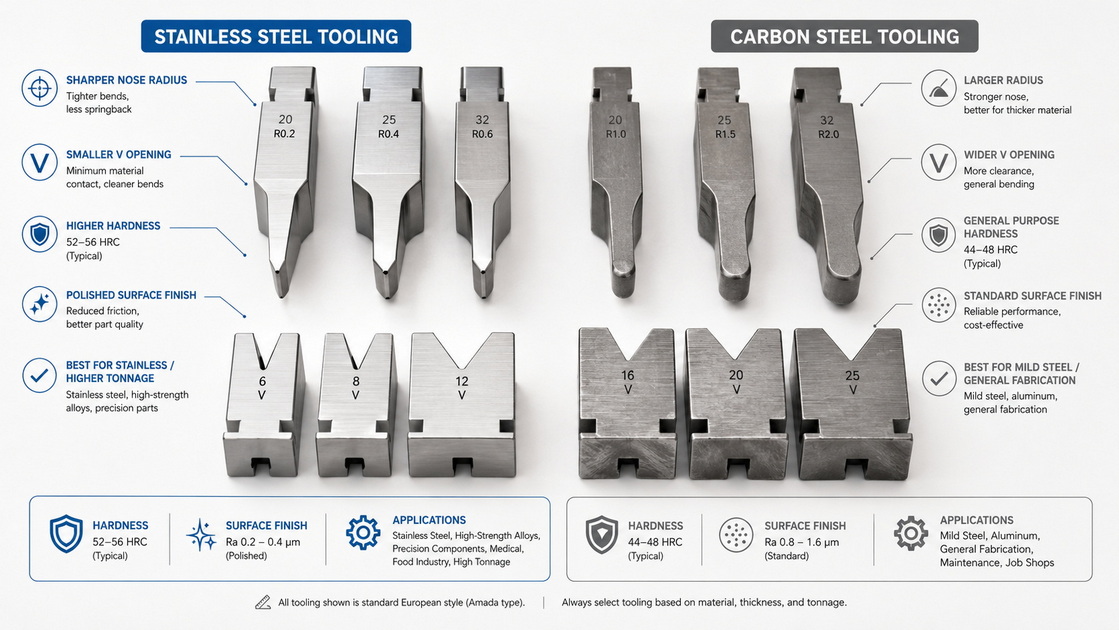

Press brake tooling is typically hardened to around 45 HRC, which allows it to bend parts made from stainless steel (about 28 HRC) and carbon steel without excessive wear. [accurl]
However, in high-volume stainless applications:
- Premium hardened tooling or surface-treated tools are recommended.
- Tooling misselection leads to early cracking, chipped edges, and angle inconsistency, especially at small V‑dies. [accurl]
For stainless steel press brake bending, operators often choose:
- Sharper nose radii for tight bends but within limits of material minimum inside radius.
- Stronger punch bodies to resist higher load and deflection.
- Special gooseneck or offset punches for complex box or channel profiles.
For standard carbon steel bending, general-purpose punches handle a wider range of jobs with less risk of overload. [shop.adhmt]
Die choice directly affects pressure:
- Narrower V‑opening (V) increases pressure but allows sharper bends.
- Wider V reduces required tonnage but increases minimum inside radius and risk of distortion. [harsle]
For stainless:
- Use slightly larger punch radii and carefully chosen V‑openings to control surface marking and springback.
- Pair with hardened dies to withstand higher contact stresses. [shop.adhmt]
For carbon steel:
- Standard V‑dies and general-purpose radii work for most thicknesses.
- Surface damage and galling risk is much lower.
Stainless steel exhibits stronger springback after unloading, so the workpiece tends to open up more than carbon steel at the same programmed angle. [alekvs]
This means:
- You must over-bend more aggressively with stainless.
- CNC angle correction or offline bending databases are extremely valuable. [jstmt]
Carbon steel, by comparison, offers:
- More predictable, smaller springback.
- Easier trial‑and‑error setups, especially on conventional or NC brakes.
In stainless steel press brake bending:
- Angle errors quickly accumulate in multi-bend parts (enclosures, boxes, chassis).
- Tighter tolerances demand CNC crowning, high-resolution encoders, and stable backgauges. [miharmle-cnc]
For standard carbon steel bending:
- Manual corrections and simple feeler gauges often suffice.
- Operators can achieve acceptable accuracy with fewer iterations.
Stainless surfaces are often visible in the final product, so scratches or die marks are not acceptable. [shop.adhmt]
To protect the surface:
- Use polished or ground tooling.
- Apply protective films or inserts in critical bends.
- Ensure proper de‑burring and edge preparation before bending.
Stainless steel's higher strength and abrasiveness increase:
- Tool wear and risk of galling on punch noses.
- Need for more frequent inspection and regrinding of tooling. [accurl]
Standard carbon steel bending:
- Produces less aggressive wear patterns.
- Allows longer tool life under similar production volumes.
From an OEM/ODM project perspective, the choice is driven by end-use requirements, not just bending convenience.
- Food processing equipment.
- Medical and pharmaceutical enclosures.
- Outdoor electrical cabinets and marine components.
- Architectural fascia, handrails, and decorative panels. [miharmle-cnc]
Here, the higher bending force and tooling cost are justified by corrosion resistance and hygiene.
- General machinery frames.
- Industrial supports, brackets, and structural parts.
- Cost-sensitive components that will be painted or coated.
Here, carbon steel bending offers lower tonnage requirements, cheaper tooling, and faster throughput. [jstmt]

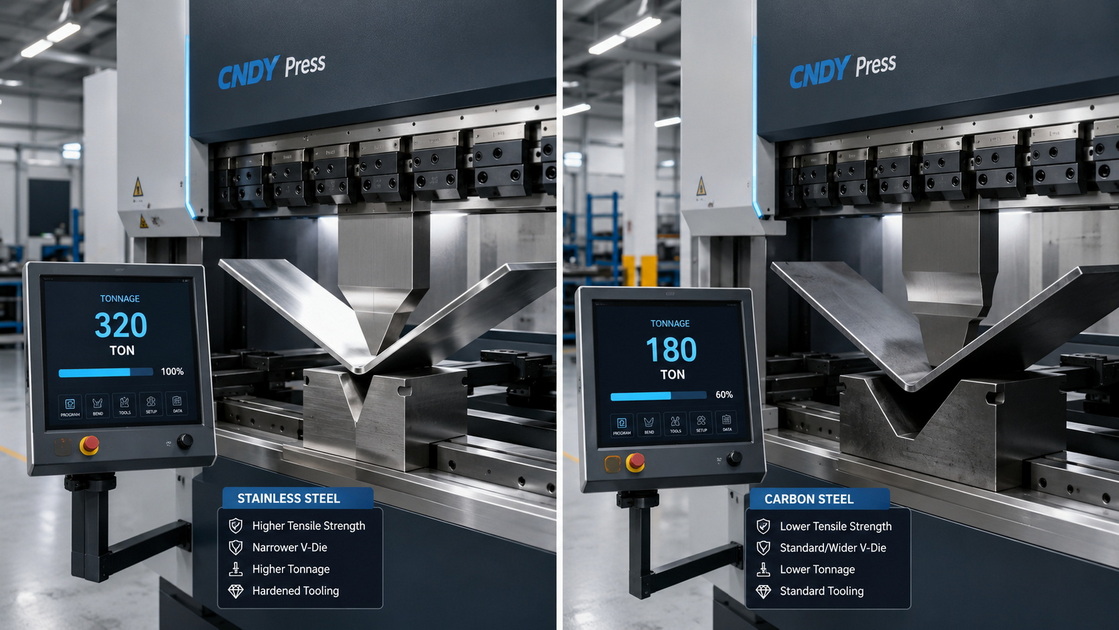

| Aspect | Stainless Steel Press Brake Bending | Standard Carbon Steel Bending |
|---|---|---|
| Required bending force | ≈ 50% higher than mild steel for same thickness and die (lzkcnc) | Baseline reference for force charts, lower tonnage needed (lzkcnc) |
| Tooling hardness need | Prefers hardened, polished punches and dies (accurl) | Standard hardened tooling sufficient in most cases (accurl) |
| Springback | Strong springback, requires greater over-bend (shop.adhmt) | Moderate springback, easier angle control (alekvs) |
| Surface sensitivity | High: scratches, marks often unacceptable (shop.adhmt) | Moderate: many parts will be painted or hidden |
| Tool wear rate | Faster wear and higher risk of galling (accurl) | Slower wear under similar loads (accurl) |
| Typical applications | Hygienic, corrosive, or high-end visible parts (shop.adhmt) | Structural and cost-sensitive industrial components (jstmt) |
| Machine requirements | Higher tonnage, advanced CNC control and crowning (shop.adhmt) | Standard CNC/NC or hydraulic brakes often sufficient (jstmt) |
From a practical engineering viewpoint, here is a simple workflow CNDY‑Press often recommends to customers switching between stainless and carbon steel projects:
1. Clarify the material and thickness.
Confirm grade (e.g., 304 vs. 316 vs. mild steel), thickness, and required bend length.
2. Calculate baseline force.
Use a force calculator or formula for mild steel, then multiply appropriately for stainless (≈1.5×). [harsle]
3. Select the V‑die opening.
Choose V based on material thickness and radius requirements; remember a narrower V dramatically increases pressure. [harsle]
4. Check press brake tonnage and deflection.
Verify that available tonnage per meter covers the job, especially for long stainless bends. [alekvs]
5. Choose tooling hardness and geometry.
For stainless, prioritize hardened, polished tools with correct radii and robust punch bodies to resist higher loads. [accurl]
6. Program over‑bend and test.
Run short test bends, measure true angle, and adjust CNC programs to compensate springback for each material.
7. Standardize proven setups.
Save programs, tooling combinations, and notes into your CNC database for consistent repeat production.
As a manufacturer of CNC press brakes and integrated sheet metal lines, CNDY‑Press designs systems specifically to balance stainless steel capabilities with day‑to‑day carbon steel productivity.
Typical support we provide for OEM and ODM customers includes:
- Custom tonnage and length configurations for mixed stainless/carbon portfolios.
- Application‑driven tooling packages optimized for stainless hygiene parts vs. structural carbon steel frames.
- Integrated CNC control software with material libraries and force/springback presets for different grades.
- Long‑term collaboration on new product introductions, where we help define tooling and process windows to launch new stainless and carbon steel parts faster.
If your team is planning to move more work from carbon steel to stainless, or you want to consolidate both materials on a single, optimized CNC press brake line, CNDY‑Press can help you define the right tonnage, tooling, and control strategy.
Contact our engineering team with your material grade, thickness range, and part drawings, and we will propose a tailored stainless steel press brake solution that still keeps your standard carbon steel bending efficient and profitable.
1. Why does stainless steel need more press brake tonnage than carbon steel?
Because stainless steel has higher tensile and yield strength, it resists deformation more, typically requiring about 50% more bending force than mild steel for the same geometry and die opening. [serralaser]
2. Can I use the same tooling for stainless and carbon steel?
You can use the same hardened press brake tooling, but for stainless you should prioritize higher hardness, polished working surfaces, and careful load limits to avoid premature wear and surface marking. [accurl]
3. How does springback differ between stainless and carbon steel?
Stainless steel exhibits stronger springback, so you must over‑bend more or rely on CNC angle correction, while carbon steel usually stabilizes with less compensation and fewer trial bends. [alekvs]
4. Do I need a special press brake for stainless steel?
You do not necessarily need a "special" brake, but you do need sufficient tonnage per meter, a stiff frame, and ideally CNC crowning and advanced controls to maintain angle accuracy and minimize deflection when bending stainless. [miharmle-cnc]
5. How should I choose the V‑die opening for stainless vs. carbon steel?
Start from standard rules based on thickness, then adjust V‑opening considering inside radius and tonnage; stainless will often push you toward slightly larger V‑dies or higher‑capacity brakes to keep forces within safe limits. [lzkcnc]
