In modern sheet metal fabrication, tooling choice directly influences part quality, throughput, and operator safety. When bending moves beyond simple straight profiles into box sections, deep channels, short flanges, and collision‑prone geometries, the difference between segmented tooling and solid tooling becomes especially important. As a manufacturer of CNC press brakes and complete sheet metal solutions, we have seen how a well‑planned tooling strategy can transform complex bending from a bottleneck into a strength.

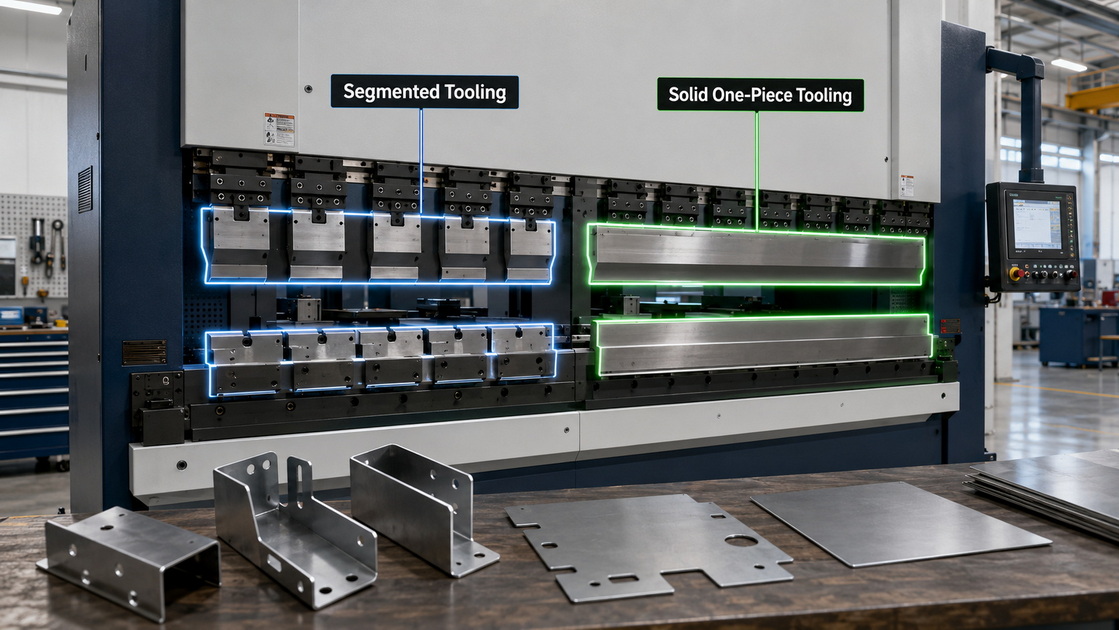

This article looks at segmented tooling and solid tooling through practical shop experience, engineering logic, and real project examples. The goal is to provide a clear, structured comparison and a decision framework that fabrication teams can apply to their own part mix and production environment.
Segmented tooling is built from multiple short punch and die segments that can be combined and rearranged along the press brake length. Typical segment sizes range from 10 to 100 mm, assembled into configurations that match the required bending length. Each segment is precision‑ground, and together they form a continuous working surface for the sheet.
Key features include:
- Modular punches and dies that can be arranged in different lengths
- Consistent height and profile across segments to maintain angle accuracy
- Compatibility with modern clamping systems that support quick changeovers
In practice, this modularity allows operators to "build" a custom tool length for each job instead of relying on a single fixed full‑length tool.
Segmented tooling is common in work involving:
- Electrical cabinets and enclosures
- Machine guards and covers with multiple bends
- Boxes and trays with short flanges and return bends
- Mixed part dimensions running on the same press brake
In these scenarios, operators often face tight clearances, hardware collisions, and changing dimensions. Segmented tooling provides the flexibility to adjust setups and bend sequences without modifying the machine or the part design.
Solid tooling, also called one‑piece tooling, is manufactured as a full‑length punch or die that spans the working area of the press brake. The tool body is continuous, with no joints along the length, which gives it excellent structural rigidity.
Key characteristics include:
- A single, continuous punch or die with a fixed length
- High resistance to deflection across the full bending span
- Predictable wear and maintenance patterns over time
For long straight bends in thicker materials, this structural integrity can be an important advantage, especially when bend angle consistency across several meters is critical.
Solid tooling is typically used for:
- Long structural components and frames
- Large panels with straight flanges and simple profiles
- High‑volume parts with stable geometry and steady demand
Once a setup with solid tooling is tuned, it can run for large batches with minimal adjustment, making it suitable for production lines with a narrow product range and long‑term contracts.
Complex bending jobs share several characteristics:
- Multiple bends per part, often forming boxes or channels
- Short and long flanges on the same component
- Return bends, tabs, and ears that create collision risks
- Variations in material thickness and part length across a job batch
These factors make tooling choice more than a simple matter of tool profile. Operators must consider clearance, bend sequence, tool length, and setup time. The ability to adapt tooling to each part or project is often as important as the geometry itself.
In complex bending work:
- Segmented tooling allows operators to remove or shorten segments to create windows and clearances for deep boxes or return bends.
- Solid tooling provides continuous support but offers limited options to open clearances without tool modification.
Understanding this trade‑off helps fabrication teams decide when flexibility is more valuable than maximum rigidity, and when a stable, dedicated setup is the better choice.

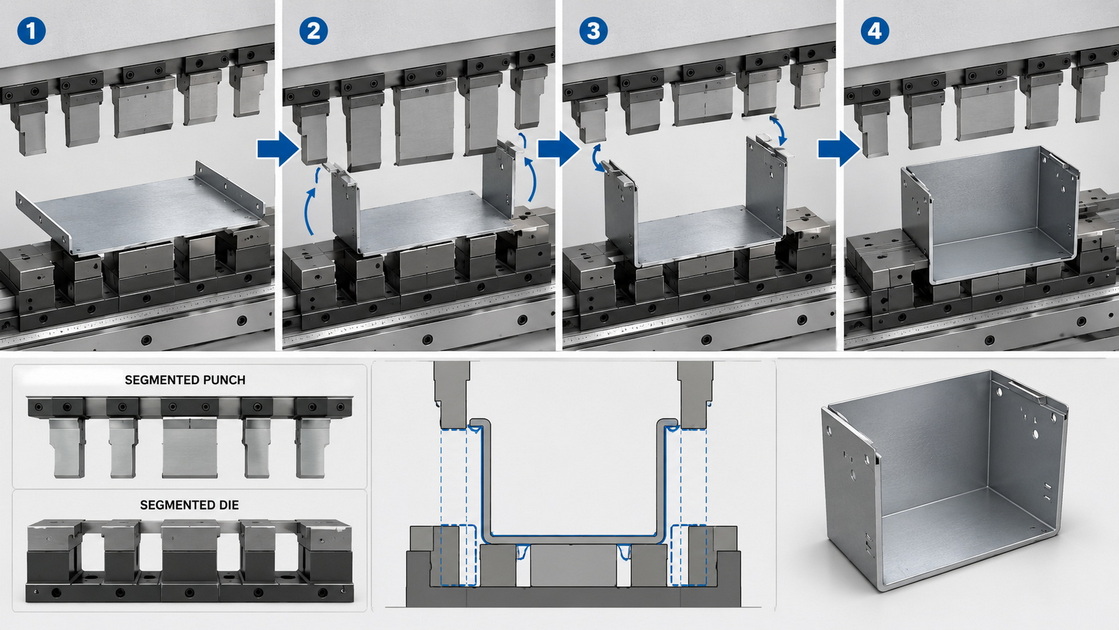

One of the strongest advantages of segmented tooling is the ability to tailor tool length and layout to the part. Operators can combine segments to match the exact bending length, or deliberately leave gaps between segments to create clearance windows.
This provides several practical benefits:
- Avoiding collisions between tool ends and part flanges during box bending
- Adapting to irregular part lengths without ordering custom full‑length tools
- Handling different material thicknesses by mixing segments with various V‑openings in planned setups
For deep electrical enclosures or machine housings, this kind of flexibility can be the difference between a smooth bend sequence and repeated rework.
Segmented tooling also improves ergonomics. Short segments weigh substantially less than full‑length tools, making handling and installation easier.
Key points include:
- Reduced lifting weight per segment, lowering the risk of strain or injury
- Simpler tool changes, especially in environments without overhead cranes
- Faster changeovers when combined with modern clamping and positioning systems
In workshops that rely on frequent tooling changes through a shift, this ergonomic benefit translates directly into higher productivity and reduced fatigue.
Another practical benefit is maintenance flexibility. When a segment is damaged or worn, only that piece needs replacement, not the entire tool set.
Typical lifecycle advantages:
- Segment‑level replacement keeps spare part costs predictable
- Common segment sizes can be reused across different press brakes sharing the same tooling style
- Downtime is reduced because replacing a segment is faster than swapping a full‑length tool
For operations with diverse projects and variable part families, segmented tooling often proves more economical over the lifetime of the equipment.

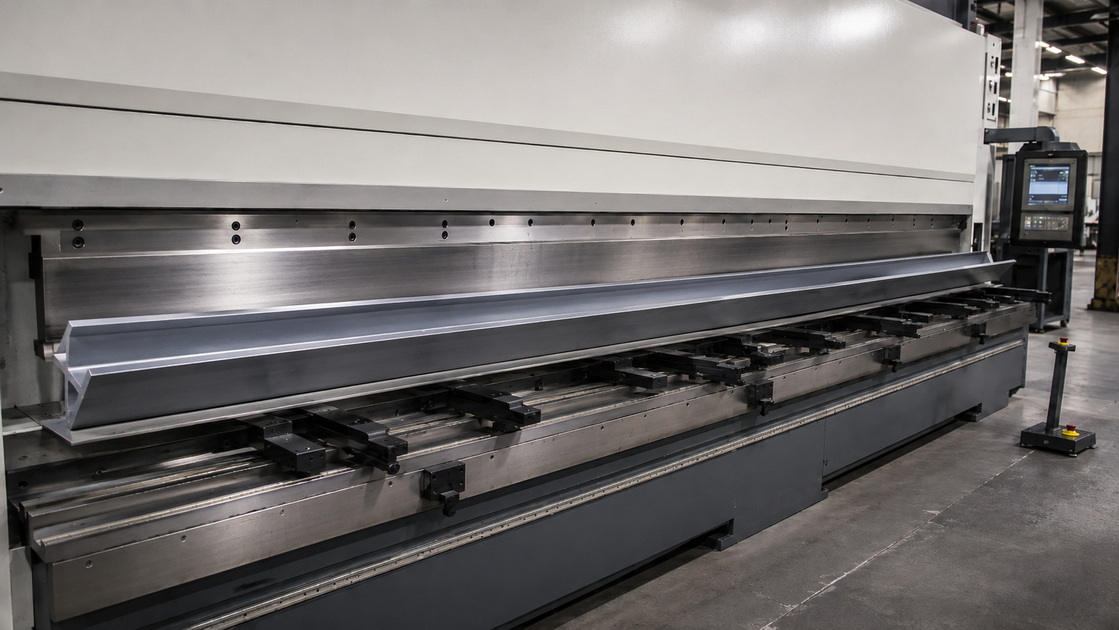

Solid tooling excels where long, straight bends in thick materials are the primary requirement. The continuous tool body supports the workpiece uniformly along its length, resulting in smooth deflection characteristics and consistent angles.
Advantages include:
- High stiffness along the entire bending span
- Predictable crowning and deflection response when tuned for the machine
- Stable angle accuracy for heavy parts across several meters
For large machine frames and structural elements, this stability can be more valuable than the flexibility segmented tools provide.
Solid tooling is also well suited to high‑volume, repeatable production where part geometry is fixed.
Key benefits:
- Once set, tooling parameters remain stable over long runs
- Less risk of tolerance issues caused by segment misalignment or joint positioning
- Easier creation of standardized work instructions and training materials
In such environments, investing in dedicated solid tools for core parts can simplify operations and reduce long‑term variability.
The following table summarizes key differences between segmented and solid tooling for bending work that involves both simple and complex parts.
| Aspect | Segmented Tooling | Solid Tooling |
|---|---|---|
| Tool length configuration | Modular, configurable with segments | Fixed full length |
| Collision avoidance | High, through windows and adjustable setups | Limited, requires tool modification or part redesign |
| Ergonomics and handling | Lighter segments, easier manual handling | Heavier tools, often require mechanical assistance |
| Long straight bend accuracy | High, with attention to segment joints | Very high, continuous support |
| Maintenance and replacement | Segment‑level replacement | Replacement of whole tool |
| Ideal production environment | High‑mix, low to medium volume | Low‑mix, high‑volume, stable part range |
Understanding this comparison helps fabrication managers decide whether to prioritize flexibility or stability in each production area, and how to combine both approaches in a balanced tooling strategy.

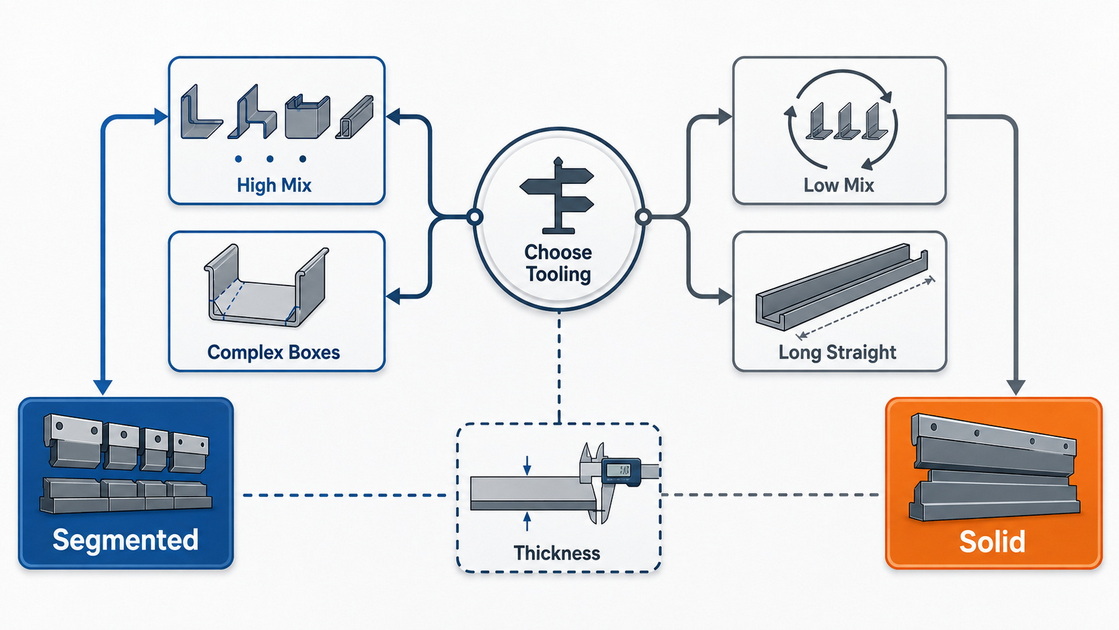

A structured evaluation method ensures that tooling selection aligns with actual production needs rather than assumptions or short‑term preferences. A practical framework includes:
1. Analyze part mix and volumes
Identify whether your workflow is high‑mix with frequent new projects, or low‑mix with a few recurring parts produced in large batches.
2. Review material and bend geometry
Consider thickness, strength, required bend radius, flange lengths, presence of return bends, and potential collisions.
3. Assess machine capabilities
Look at machine tonnage, working length, daylight, backgauge capacity, crowning system, and clamping style.
4. Determine flexibility requirements
Clarify whether you need frequent changeovers, prototype support, and the ability to run diverse parts on the same machine.
5. Estimate lifecycle cost and productivity impact
Compare initial tooling cost with expected utilization, maintenance needs, and the value of reduced changeover time.
Following these steps helps ensure that tooling decisions are based on measurable criteria rather than on tradition or isolated anecdotes.
In many workshops, the most effective approach is not to choose between segmented and solid tooling, but to combine them:
- Use segmented tooling for box work, short flanges, variable lengths, and collision‑prone components.
- Reserve solid tooling for long straight bends in heavy materials and high‑volume signature parts.
This combination allows each tool type to be used where it performs best, while giving planners the flexibility to allocate machines and tools according to project demands.
A medium‑sized enclosure producer needed to bend deep boxes with multiple return flanges and custom dimensions. With solid tooling, operators repeatedly faced tool‑to‑flange collisions and prolonged changeovers when shifting between box sizes.
By adopting segmented tooling:
- Operators arranged segments to match each box length and created windows to clear return bends.
- Tool change times decreased, and fewer special tool modifications were required.
- Variants of the enclosure could be produced in small batches without new full‑length tools.
This change improved throughput and reduced lead time for custom projects.
Another fabricator produced long steel frames with straight bends in thick material for a single recurring design. Here, the primary challenge was angle consistency across several meters rather than bend complexity.
By using solid tooling:
- Continuous tools delivered uniform support along the entire bend.
- Once crowning was tuned, angle variations remained narrow across the full length.
- Changeovers were infrequent, making a dedicated setup feasible.
In this case, the stability of solid tooling matched the production profile more effectively than segmented tools would have.
Regardless of tooling type, good bending results depend on sound part design:
- Balanced flange lengths that consider tool access and backgauge positioning
- Adequate clearance around holes and cutouts next to bend lines
- Appropriate bend relief to prevent tearing or distortion
- Thoughtful placement of hardware that avoids interference during bending
Design teams that understand how tooling interacts with their parts can prevent many downstream problems at the press brake.
Careful bend sequence planning helps operators fully utilize both segmented and solid tooling:
- Bending from inside to outside and from smaller to larger angles can reduce cumulative error.
- Planning sequences to minimize part handling and repositioning improves consistency.
- For complex boxes, pre‑visualizing collision zones and sequencing bends accordingly avoids lost time and rework.
Segmented tooling offers more options for rearranging setups to match different sequences, while solid tooling benefits from stable, well‑documented procedures for repeat jobs.
To make segmented tooling effective in daily work, operators can apply several practical habits:
- Use segments of consistent height and profile to maintain uniform bending angles along the length.
- Avoid placing segment joints at critical bend locations on parts with tight tolerance requirements.
- Keep a record of proven segment layouts for recurring product families to shorten setup times.
- Check alignment regularly to ensure that segments form a continuous working surface without steps or gaps.
These practices reduce the risk of angle variations and help segmented tooling deliver precise results even on demanding parts.
When using solid tooling, operators can focus on:
- Ensuring proper crowning and deflection compensation for long bends.
- Monitoring tool wear, especially in areas of repeated high stress.
- Keeping bend parameters and setup notes standardized across shifts to maintain consistency.
- Scheduling tool inspections and maintenance at regular intervals instead of waiting for visible defects in parts.
With disciplined procedures, solid tools can produce thousands of parts with stable quality and predictable performance.
Segmented tooling and solid tooling each offer distinct advantages in CNC press brake operations. Segmented tooling provides modularity, easier collision management, improved ergonomics, and flexible maintenance options, making it ideal for complex bending jobs, box fabrication, and high‑mix environments. Solid tooling delivers superior rigidity and repeatability for long straight bends and high‑volume, stable production runs.
For fabrication teams, the most effective strategy is often to view tooling as an integrated system rather than a single choice. By aligning tooling type with part mix, material range, and production goals, workshops can achieve both flexibility and consistency. With a clear understanding of how segmented and solid tools behave in real bending scenarios, planners and operators are better equipped to design processes that support precision, reliability, and long‑term productivity.
1. Can I use segmented tooling for all bending jobs?
Segmented tooling can handle most light‑ to medium‑gauge bending jobs, especially complex geometries, but for very long, heavy‑gauge parts, a solid die still offers better rigidity and predictable deflection.
2. Does segmented tooling reduce bending accuracy?
Not necessarily. Precision‑ground segmented tools on CNC press brakes can achieve excellent accuracy, though you must align segments correctly and avoid placing joints at critical bend locations.
3. How do I decide V‑opening size for complex bends?
Select V‑openings based on material thickness, hardness, and desired inside radius; typically 5–6 times material thickness for standard bends, with adjustments for high‑strength steels and special radius requirements.
4. Is segmented tooling more expensive than solid tooling?
Initial investment per set may be higher, but segmented tooling often reduces lifecycle costs by allowing segment‑level replacement and serving multiple product families with fewer dedicated tools.
5. Can I mix segmented and solid tooling on the same press brake?
Yes, as long as tool heights, styles, and clamp systems are compatible. Many shops use segmented tools for complex box work and solid tools for long, straight production parts on the same CNC press brake.
