Choosing between a swing beam shear and a guillotine shear is an important long-term decision for sheet metal fabrication companies. Both machine types can cut carbon steel, stainless steel, galvanized steel, aluminum, and other metal sheets. However, their blade movement, structural design, adjustment methods, cutting accuracy, and suitable applications are different.
For workshops cutting stable ranges of standard sheet metal, a swing beam shear can offer a reliable and economical solution. For manufacturers processing thicker plate, stainless steel, high-strength materials, mixed thicknesses, or precision blanks for CNC press brakes, a guillotine shear can provide stronger process control.
This guide explains the main differences between CNC swing beam shearing machines and CNC guillotine shearing machines. It also provides practical guidance for selecting the right configuration based on material, thickness, production volume, and downstream processing needs.
| Feature | Swing Beam Shear | Guillotine Shear |
|---|---|---|
| Upper Blade Movement | Pivoting Arc Movement | Straight Vertical Movement |
| Machine Structure | Pivoting Upper Beam | Guided Vertical Ram |
| Rake Angle | Usually Fixed | Usually Adjustable |
| Blade Clearance | Often Manual | Often Motorized or CNC Controlled |
| Blade Edges | Commonly Two Upper Cutting Edges | Commonly Four Cutting Edges |
| Suitable Materials | Thin to Medium Sheet | Medium to Thick Sheet and Plate |
| Cutting Accuracy | Standard Production Accuracy | Higher and More Consistent Accuracy |
| Edge Quality on Thick Plate | Good | Generally Better |
| Initial Investment | Usually Lower | Usually Higher |
| Maintenance Complexity | Usually Simpler | More Complex Control and Guide System |
| Typical Application | General Sheet Metal Cutting | Precision and Heavy-Duty Fabrication |
The correct choice depends on your material thickness range, required edge quality, production volume, downstream process, and future expansion plan.

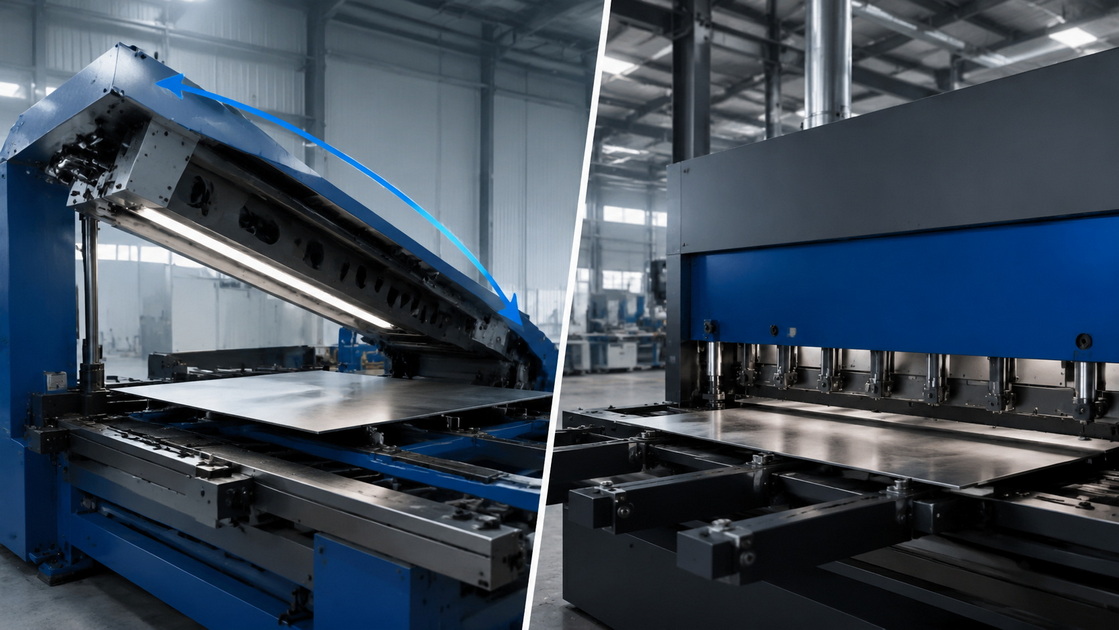

A swing beam shear, also known as a hydraulic swing beam shearing machine, uses an upper blade beam that pivots around fixed points near the rear of the machine frame.
During cutting, the upper blade moves in an arc-shaped path instead of moving directly downward. The blade approaches the lower blade, cuts through the material, and then returns to its original position.
This design is mechanically straightforward and widely used for everyday sheet metal cutting.
The cutting cycle usually follows these steps:
1. The operator places the sheet against the backgauge.
2. The hold-down system secures the material.
3. The hydraulic system drives the upper swing beam downward.
4. The upper blade follows its pivoting arc.
5. The sheet is cut against the lower blade.
6. The upper beam returns to its original position.
The defining feature is the pivoting blade path. It supports a simpler machine structure, but it also provides less adjustment flexibility than a guillotine shear.
Swing beam shears are often selected by buyers who need reliable cutting performance with controlled investment cost.
Key advantages include:
- Lower initial investment than many comparable guillotine shears
- Simple mechanical structure
- Straightforward operation
- Lower maintenance complexity for standard applications
- Fast cycle performance for repeated sheet cutting
- Suitable for common mild steel sheet
- Useful for workshops with stable material thickness ranges
- Practical for brackets, welded parts, ducting, machine covers, and standard sheet metal blanks
For many small and medium-sized fabrication businesses, a swing beam shear offers a balanced combination of capability, simplicity, and cost control.
A swing beam shear is not the ideal choice for every production environment.
Its rake angle is fixed on many machine models. This can reduce flexibility when a workshop frequently changes material thickness, material type, or tensile strength.
The arc-shaped blade movement also changes the cutting relationship between the upper and lower blade during the cutting stroke.
Potential limitations include:
- Fixed rake angle on many configurations
- Less flexibility for mixed thickness production
- Greater dependence on correct manual blade-gap adjustment
- Less process control than a guillotine shear
- More limited suitability for demanding thick-plate applications
- Fewer usable upper blade cutting edges on many models
- Possible twist or bowing on thin, wide, or sensitive sheet if settings are unsuitable
These factors do not make a swing beam shear unsuitable. They simply mean it should be selected for the right production conditions.

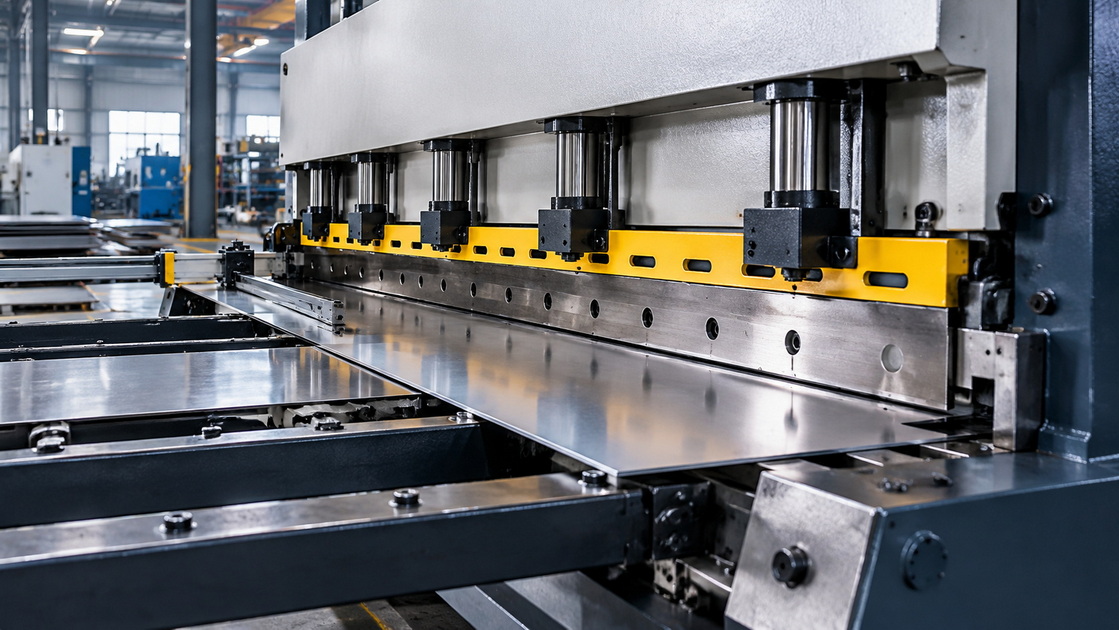

A guillotine shear, also called a hydraulic guillotine shearing machine or variable-rake shear, uses an upper blade ram that moves in a straight vertical path.
The upper blade is guided by systems on both sides of the machine frame. This creates a more controlled blade movement and can support more consistent cutting performance across the working width.
Guillotine shears are widely used for precision fabrication, thicker plate processing, mixed-material production, and CNC-integrated sheet metal lines.
The basic cutting cycle is similar to a swing beam shear, but the upper blade movement is different.
1. The operator or automatic feeder positions the sheet.
2. The CNC backgauge controls the required cut length.
3. The hold-down cylinders clamp the material.
4. The upper blade ram moves vertically downward.
5. The upper blade cuts the material against the lower blade.
6. The ram returns along the guided vertical path.
The straight vertical movement allows more predictable cutting behavior, especially when working with thicker materials or parts requiring controlled blank dimensions.
Guillotine shears are often selected by companies that require stronger precision, greater flexibility, and reliable results across different materials.
Key advantages include:
- Straight vertical blade movement
- Adjustable rake angle on many models
- More controlled blade clearance
- Better performance for mixed material thicknesses
- Improved edge quality on medium and thick plate
- CNC-controlled blade-gap adjustment options
- Four usable blade edges on many upper and lower blade designs
- Stronger suitability for stainless steel and high-strength materials
- Better compatibility with CNC press brakes and automated fabrication lines
- More flexibility for long sheets and demanding production tasks
For companies cutting blanks that move directly into CNC bending, controlled cutting accuracy can help reduce fit-up issues during later production stages.
The most important difference between a swing beam shear and a guillotine shear is the path of the upper blade.
A swing beam shear uses pivoting arc motion. A guillotine shear uses straight vertical motion.
This difference influences blade clearance, cutting force, material distortion, edge quality, and setup flexibility.
| Mechanical Factor | Swing Beam Shear | Guillotine Shear |
|---|---|---|
| Blade Movement | Arc-Shaped Pivot | Straight Vertical Travel |
| Upper Blade Position | Changes During the Cutting Stroke | Controlled by Vertical Guides |
| Blade Clearance Control | Often Manual | Often Motorized or CNC Programmable |
| Rake Angle | Usually Fixed | Commonly Adjustable |
| Thick Plate Capability | Moderate | Stronger |
| Precision Blank Capability | Suitable for Standard Work | Better for Demanding Work |
| Cutting Force Management | Fixed Geometry | Adjustable Through Rake Angle |
For thin material, a lower rake angle can help reduce distortion. For thicker material, a higher rake angle can lower the cutting force required at each point along the blade.
This is why adjustable rake angle is valuable for workshops processing various material types and thicknesses.
Rake angle is the angle between the upper blade and lower blade during cutting.
It affects cutting force, sheet deformation, edge quality, noise level, blade load, and overall machine performance.
A lower rake angle means that a larger section of the upper blade contacts the material at the same time. This can help create a straighter cut and reduce twisting on thin sheet, but it requires greater cutting force.
A higher rake angle reduces the amount of material being cut at one time. This lowers peak cutting force but can increase the risk of sheet twist or bowing if the angle is too high for thin material.
- Thin sheet: Use a lower rake angle to reduce distortion.
- Medium sheet: Use a balanced rake angle based on thickness and strength.
- Thick plate: Use a higher rake angle to manage cutting force.
- Stainless steel: Consider material grade and tensile strength before setting the angle.
- Long narrow strips: Test for twist and camber before batch production.
- Decorative sheet: Use trial cuts to protect appearance and reduce rework.
A guillotine shear with programmable rake-angle adjustment allows the operator to change settings based on material conditions. This is particularly useful for high-mix fabrication operations.

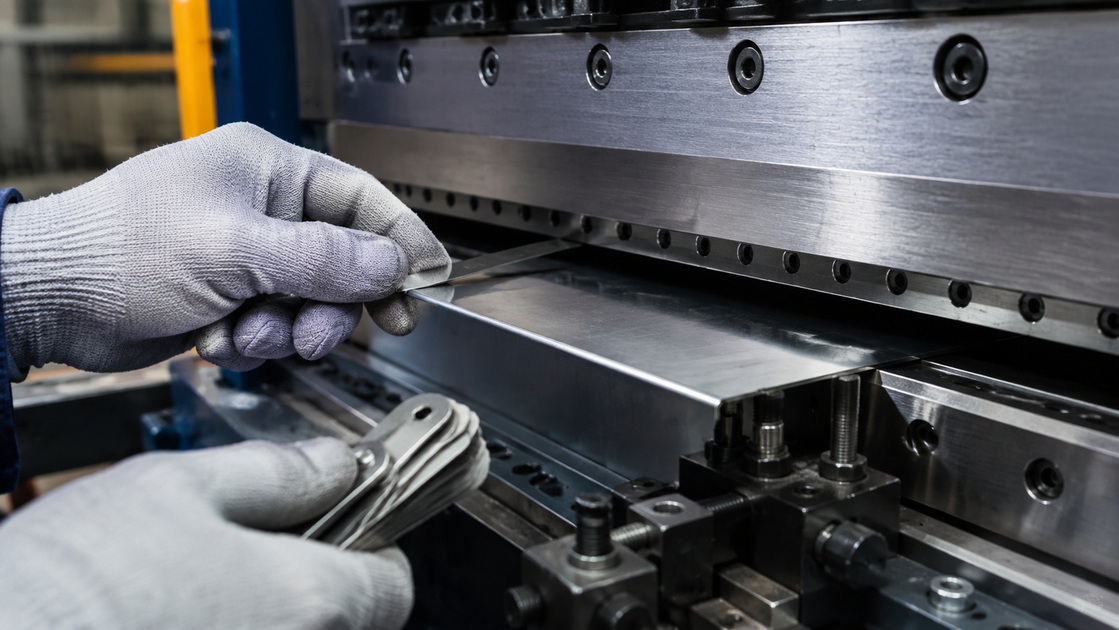

Blade clearance is the gap between the upper and lower blades.
If blade clearance is incorrect, the machine may create burrs, rough edges, sheet deformation, high noise, premature blade wear, and unnecessary stress on the mechanical structure.
The correct blade clearance depends on material thickness, material hardness, tensile strength, and required edge quality.
Stainless steel and high-strength steel often require different blade-clearance settings than mild carbon steel of the same thickness.
| Cutting Problem | Possible Cause |
|---|---|
| Large Burrs | Blade Clearance May Be Too Large |
| Excessive Edge Deformation | Blade Clearance or Rake Angle May Be Incorrect |
| Rough or Cracked Edge | Clearance May Not Match Material Strength |
| Excessive Blade Wear | Blade Gap, Alignment, or Blade Condition May Be Poor |
| High Cutting Noise | Blade Gap, Blade Condition, or Material Setup May Need Adjustment |
| Uneven Cut Edge | Blade Alignment or Machine Setup May Require Inspection |
Swing beam shears commonly use manual blade-gap adjustment. This can work well when the workshop cuts similar materials every day.
Guillotine shears are often equipped with motorized or CNC-controlled blade clearance. The operator can enter the material thickness and select material parameters, allowing the machine to adjust the gap more consistently.
For workshops with frequent material changes, automated blade-gap adjustment can reduce setup time and limit operator error.
Blade design affects maintenance planning and cutting cost.
Many swing beam shear designs use an upper blade with two usable cutting edges and a lower blade with four usable edges. Many guillotine shear designs use rectangular blades with four usable cutting edges on both upper and lower blades.
When an edge becomes dull, the blade can be rotated to use a new edge. This can extend blade life and reduce replacement frequency.
Blade life also depends on:
- Material type and thickness
- Material tensile strength
- Cutting frequency
- Blade clearance setting
- Rake angle
- Blade alignment
- Sheet cleanliness
- Scale, contamination, or foreign material
- Operator practice
- Regular blade inspection and rotation
A lower-priced machine can create higher long-term cost if blade alignment and adjustment are unstable. A machine with reliable blade settings can reduce downtime, blade consumption, and rework.
The word "accuracy" can mean different things depending on the product being made.
For shearing operations, buyers should measure:
- Cut length
- Squareness
- Straightness
- Edge burr level
- Edge fracture pattern
- Sheet bow
- Strip twist
- Repeatability
- Backgauge positioning accuracy
- Cut edge condition after bending
- Cut edge condition after welding
A guillotine shear is generally better suited to high-accuracy work because its vertical blade movement and adjustable settings provide greater process control.
A well-maintained swing beam shear can still deliver reliable results for general fabrication work.
The most useful question is not "Which machine is more accurate?" It is "What blank accuracy and edge condition does the next production process require?"
Consider a fabrication company producing electrical enclosures from 1.5 mm to 3 mm stainless steel.
The production process may include:
- Cutting sheet blanks
- Laser cutting or punching openings
- CNC bending
- Welding
- Surface finishing
- Final assembly
If the shear creates burrs, bowing, twist, or inconsistent blank dimensions, each later stage becomes more difficult. Operators may spend extra time deburring, adjusting bending positions, correcting fit-up, or reworking finished panels.
For this production type, a CNC guillotine shear with programmable blade clearance, adjustable rake angle, and accurate backgauge control may provide stronger long-term value.
Now consider another workshop that cuts 2 mm to 6 mm mild steel for brackets, support frames, welded structures, and general fabrication parts. The workshop mainly processes stable material thicknesses and does not require a decorative or highly controlled cut edge.
For this production environment, a swing beam shear may provide a better balance of investment cost, simple operation, and daily cutting capacity.
Use the following guidance before selecting a swing beam shear or guillotine shear.
A swing beam shear is often a suitable choice when:
- You mainly cut thin to medium carbon steel sheet.
- Your material thickness range is stable.
- Standard production tolerances are acceptable.
- You want a lower initial machine investment.
- Your workshop needs straightforward operation.
- You produce brackets, welded parts, ducting, machine covers, and standard blanks.
- You do not need frequent rake-angle adjustment.
- You want a practical machine for routine sheet cutting.
A guillotine shear is often the stronger option when:
- You regularly cut medium or thick plate.
- You process stainless steel, high-strength steel, or mixed grades.
- You need more consistent edge quality and blank precision.
- You require adjustable rake angle.
- You operate a high-mix production environment.
- You feed sheet blanks into CNC press brakes or automated lines.
- You need CNC-controlled blade clearance.
- You plan to expand into more demanding fabrication work.
- You process long sheets or high-value material.
Prepare a material list that includes:
- Material type
- Material grade
- Thickness range
- Maximum sheet width
- Tensile strength
- Annual production volume
- Typical part geometry
- Required cut quality
- Downstream processing method
Avoid selecting equipment based only on the maximum thickness you may cut once or twice a year.
A clear quotation should identify:
- Machine model
- Maximum cutting thickness
- Maximum cutting width
- Frame construction
- Blade material and blade arrangement
- Blade-clearance system
- Rake-angle system
- Backgauge travel and positioning capability
- Controller model
- Hydraulic system
- Main motor
- Electrical components
- Front support arms
- Squaring arm
- Safety guards
- Conveyor or sheet-return system
- Electrical voltage and frequency
- Available automation options
The most valuable test is based on real material and real production requirements.
Send actual material samples when you process:
- Stainless steel
- High-strength steel
- Protective-film sheet
- Aluminum
- Long narrow strips
- Large-format sheet
- Material with strict edge requirements
Request production videos and measured results for cut length, squareness, burr level, sheet bow, and strip twist.
A hydraulic shearing machine is powerful industrial equipment. Installation, guarding, electrical design, operator training, and maintenance procedures should be reviewed before delivery.
Confirm:
- Emergency-stop system
- Front finger protection
- Rear safety guard
- Foot-pedal protection
- Electrical cabinet protection
- Machine grounding
- Hydraulic system protection
- Operator manual
- Maintenance schedule
- Installation layout
- Foundation and floor-load requirements
- Local electrical standards
- Recommended operator training
A safe operating environment depends on proper machine design, correct installation, regular inspection, and trained operators.
CNDY-Press manufactures sheet metal processing equipment including CNC shearing machines, CNC press brakes, fiber laser cutting machines, plate rolling machines, and CNC V-grooving machines.
The company supports OEM and ODM manufacturing projects and can provide customized production based on customer requirements.
For CNC shearing machine projects, CNDY-Press can support configuration discussions covering:
- Swing beam shear or guillotine shear selection
- Cutting thickness and cutting length
- Material type and tensile strength
- CNC controller selection
- Backgauge configuration
- Blade-clearance adjustment method
- Rake-angle adjustment
- Front support arms
- Squaring arms
- Safety guard options
- Conveyor and sheet-return systems
- Electrical voltage and frequency
- Private-label branding
- Machine color and appearance
- Operating manuals and language requirements
- Integration with CNC press brakes
- Integration with fiber laser cutting machines
This flexibility can support distributors, equipment brands, and fabrication businesses that require machine configurations aligned with local production needs.
The choice between a swing beam shear and a guillotine shear should be based on production requirements, not machine price alone.
A swing beam shear is a practical and economical solution for many general sheet-metal workshops. It is well suited to stable material thicknesses, routine cutting tasks, and cost-conscious production.
A guillotine shear provides stronger flexibility for companies that need adjustable rake angle, controlled blade clearance, improved performance on thicker materials, and more consistent blanks for CNC bending or automated fabrication lines.
CNDY-Press supports global buyers with CNC shearing machines, complete sheet metal processing equipment, customized production, and OEM or ODM manufacturing cooperation. Clearly defining your material type, thickness range, working width, required tolerance, and production target can help ensure that the selected machine supports stable output and long-term manufacturing development.
Neither machine is always better. A swing beam shear is often more economical and suitable for standard thin-to-medium sheet cutting. A guillotine shear is generally better for mixed materials, thicker plate, more precise blanks, programmable adjustment, and demanding fabrication requirements.
A guillotine shear is often preferred for stainless steel because it can provide adjustable rake angle, controlled blade clearance, and better flexibility for different thicknesses and tensile strengths. A swing beam shear can still be suitable for stable stainless steel applications with standard requirements.
A swing beam shear uses a pivoting upper blade that moves in an arc. A guillotine shear uses an upper blade that moves in a straight vertical path. This affects machine rigidity, blade-clearance control, rake-angle adjustment, material distortion, and application range.
Blade clearance affects edge quality, burr level, blade wear, machine load, and material deformation. The correct gap depends on material thickness, material strength, and required finished-part quality.
A CNC guillotine shear can cover a broad range of cutting applications and may provide greater flexibility. However, it normally requires a higher initial investment. A swing beam shear can remain the better option for stable, standard, cost-sensitive production.
1. [MYT CNC Swing Beam vs. Guillotine Shear Comparison Guide]
2. [Press and Shear Swing Beam and Guillotine Shear Guide]
3. [MC Machinery Hydraulic Swing Beam Shears]
4. [Eaton Machine Safety Standards Guide]
5. [IEC 60204 1 Machinery Electrical Safety Overview]
6. [CNDY-Press About Us]
