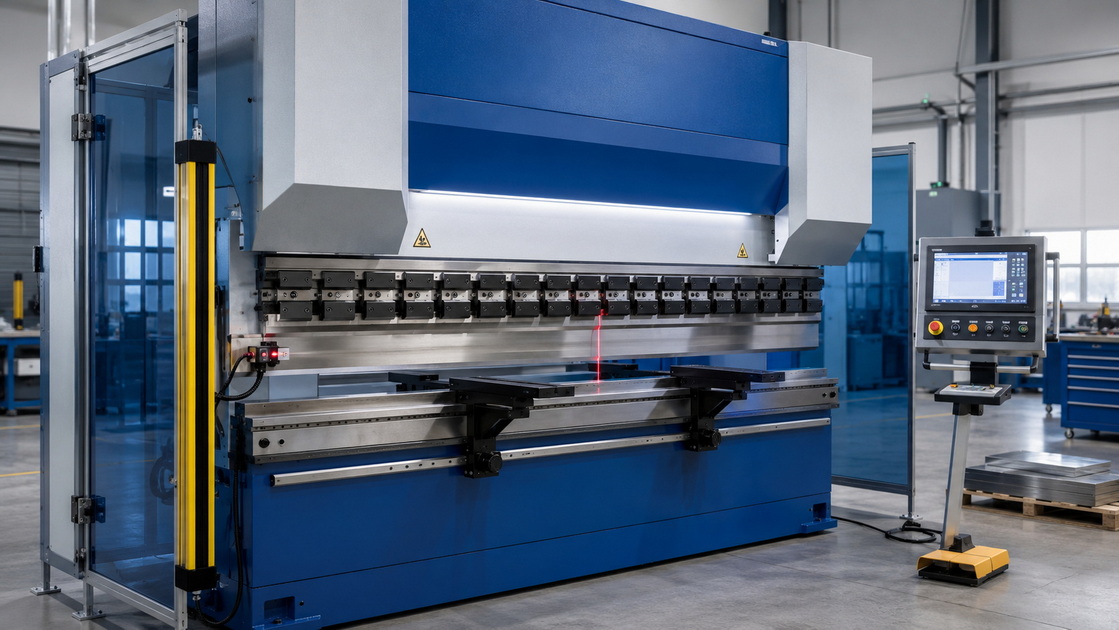

A CNC press brake creates one of the most dangerous pinch points in metal fabrication. The point where the punch and die close can create serious injury risk if the operator is exposed at the wrong time. For this reason, guarding is not optional. It is a core part of machine design.
Modern sheet metal shops need safety systems that do two things at the same time. They must protect the operator and support efficient production. If a safety system is too restrictive, operators may lose speed and flexibility. If it is too loose, it may not provide enough protection. That balance is the real challenge.
Light curtains and laser protection systems both belong to the family of optoelectronic safety devices. They use sensing technology to prevent the machine from creating a dangerous condition when the operator enters a protected zone. However, they are not the same in how they work or where they perform best.
A light curtain is best understood as a protective barrier across the front access area. If something interrupts the beam field, the machine stops or prevents motion. Laser protection is designed to work much closer to the tooling and is often used when the operator needs to work near the bend point with more flexibility.
A light curtain uses a transmitter and receiver placed opposite each other. They create an invisible protective field. When an object breaks the beams, the system responds immediately. This makes it one of the most familiar and widely used safeguarding solutions in industrial equipment.
Light curtains are often chosen when the production process is straightforward and access is mostly from the front. They are useful in repetitive jobs where the operator loads and unloads parts in a predictable pattern. They are also common in machines where simple access control is the main priority.
Still, light curtains can limit how close the operator can work to the tooling. In some bending applications, that can reduce flexibility or slow down certain part types. For that reason, they are not always the best fit for every press brake environment.

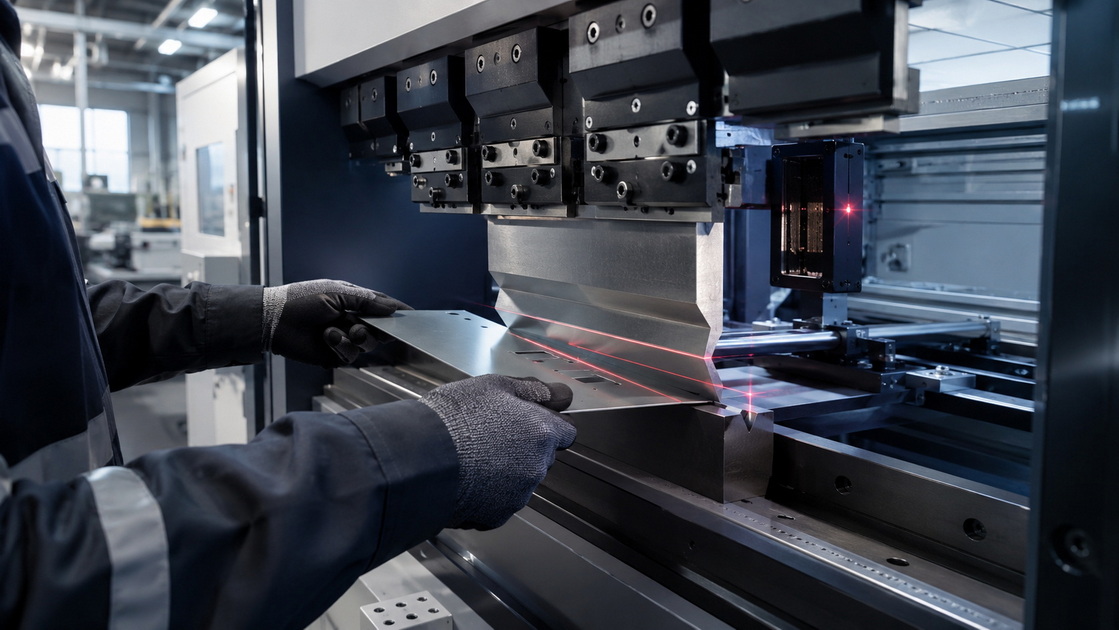

Laser protection systems are designed for closer guarding around the working area of the press brake. They monitor the space near the tooling and can support high-speed movement while maintaining protective control. This makes them especially useful in applications that need both safety and close operator involvement.
These systems are often favored in high-mix and high-flexibility environments. They work well when operators handle small parts, repeated repositioning, or complex geometries. In many cases, the safety zone can move dynamically with the machine's motion, which helps reduce unnecessary interruptions.
Laser protection is also attractive for modern machine builders because it can support a cleaner operator experience. It allows the machine to feel more open and responsive while still maintaining a strong level of control.

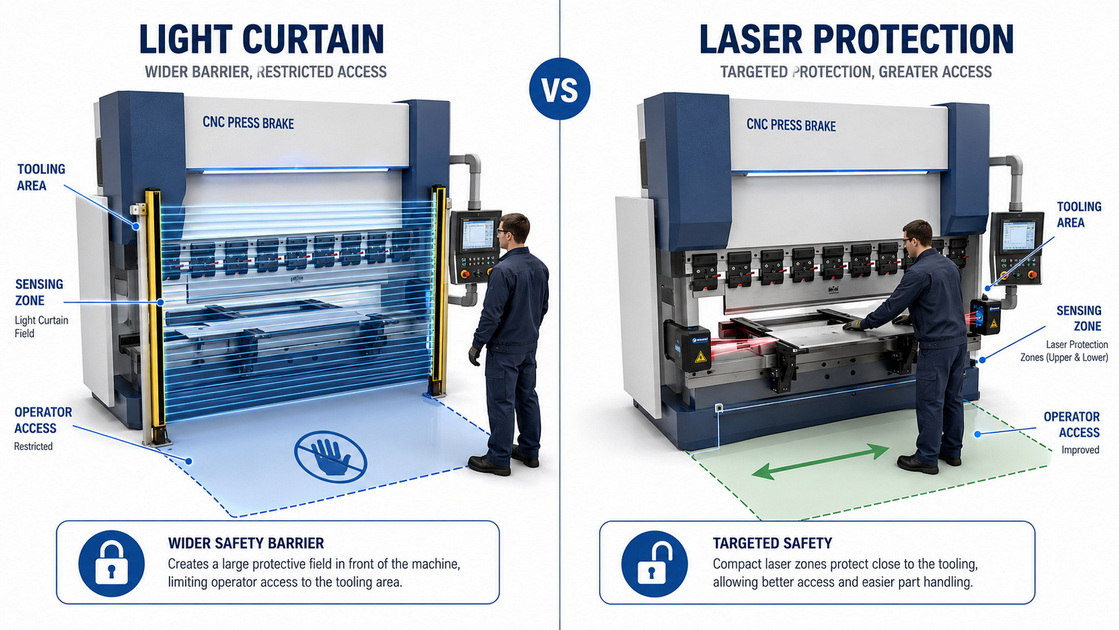

| Factor | Light Curtain | Laser Protection |
|---|---|---|
| Main protection style | Front-zone access guarding | Close-proximity tooling guarding |
| Best suited for | Standard operations and simpler workflows | Complex bending and high-mix production |
| Operator access | More restrictive | More flexible |
| Effect on workflow | Can interrupt access more often | Usually smoother for close work |
| Setup sensitivity | Generally easier to understand | Requires precise alignment and integration |
| Typical use case | Repetitive production with clear front access | Custom parts, short runs, and detailed bends |
The right choice depends on the real production environment. A system that looks good on paper may not perform well in daily use if it does not match the way the machine is actually operated.
Press brake safety should always be evaluated together with machine stopping performance, control reliability, and inspection procedures. A safety device is only effective if it is matched to the machine's motion, response time, and operating method. This is why system design matters as much as the device itself.
Relevant standards and expectations commonly considered in this field include ISO 16092-2, ISO 13849, and OSHA machine-guarding requirements. These frameworks help define how press brake safety should be designed, implemented, and maintained. They also remind manufacturers that safeguarding is part of the complete machine system, not a separate accessory.
For buyers, this means the decision should never be based only on product type. It should also consider the machine's control logic, stopping distance, maintenance needs, and operator training structure.
In many factories, the better answer depends on the part type and production style. A light curtain may be enough for standardized bending jobs with predictable handling and minimal close-tool interaction. It is often a practical choice when simplicity and broad front-side protection are the main goals.
Laser protection is often stronger when the job involves:
- Complex bends.
- Small flanges.
- Frequent repositioning.
- High-mix production.
- Operators working closer to the tooling.
For OEM and ODM press brake projects, this distinction is especially important. Export customers often want a machine that is not only safe, but also easy to use and efficient in real production. That is where the safety system becomes part of the product value itself.

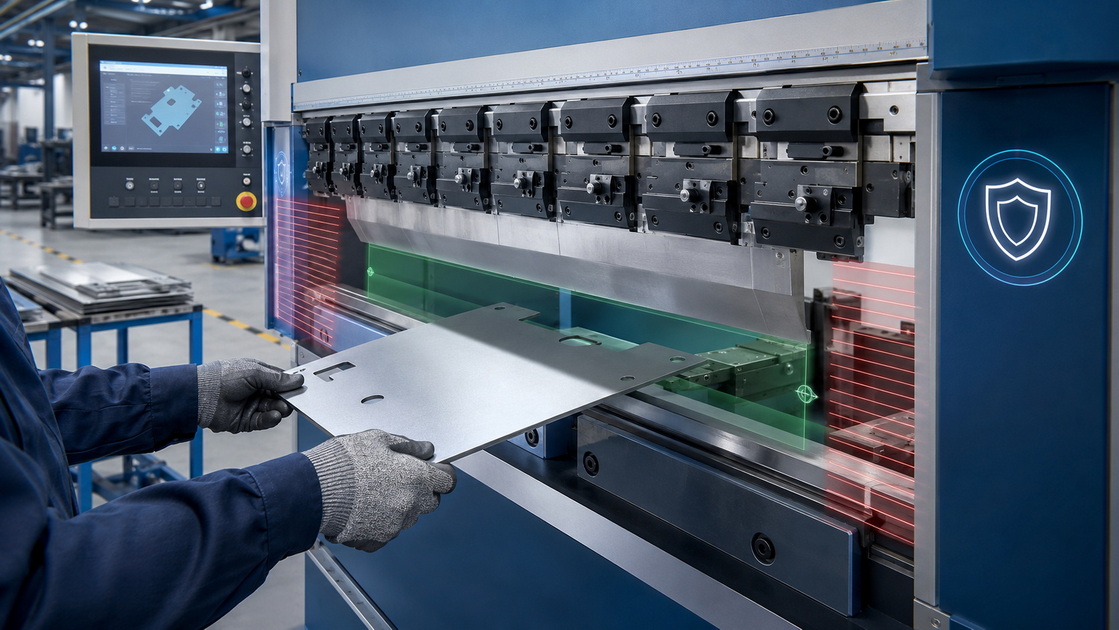

One of the most overlooked issues in press brake safety is usability. If a safety system slows the operator too much, the machine may become frustrating to use. Over time, that frustration can create bad habits or reduce process discipline.
A good safety system should feel natural in the workflow. The operator should be able to load, position, and bend parts without constant unnecessary interruption. When the guarding solution fits the job properly, safety and productivity support each other instead of competing.
This is especially important in modern sheet metal production, where many shops work with short runs, custom designs, and changing order patterns. In that type of environment, flexibility is a major advantage.
Another important decision is whether to retrofit an existing press brake or integrate safety into a new machine from the start. Retrofit is often the faster choice when the machine platform is already stable and the goal is to improve protection quickly.
New machine integration usually delivers a cleaner result. It allows the safety system, control logic, mechanical motion, and operator workflow to be designed together. That often leads to better performance, easier troubleshooting, and a more polished user experience.
A simple way to think about it is this:
- Retrofit is suitable when the machine is already in service and needs an upgrade.
- New integration is better when the machine is being built for long-term performance and export readiness.
Before choosing between light curtain and laser protection, manufacturers should review the real production conditions carefully. A structured evaluation helps avoid choosing a system that looks good in a brochure but performs poorly in daily use.
A practical selection process can include the following steps:
1. Measure stopping time and stopping consistency.
2. Review the full motion path of the operator.
3. Identify part families that need close access to the tooling.
4. Check whether the control system supports safe integration.
5. Test the machine with actual production parts.
6. Confirm how the system behaves with reflective or irregular materials.
This kind of review helps the buyer focus on real operating conditions instead of general assumptions. It also makes it easier to justify the final decision internally.
From a manufacturer's point of view, press brake safety is not only a technical topic. It is also a product positioning issue. A machine that combines strong safety with smooth usability will usually stand out more in the market than one that simply meets basic requirements.
For CNC press brake builders, the best safeguard is the one that supports stable production, clear operation, and customer confidence. That is especially true in OEM and ODM projects, where the machine must fit different brands, factories, and export markets. In that context, safety is part of the machine's identity.
Light curtain and laser protection are both valuable safety systems for CNC press brakes, but they serve different needs. Light curtains are often better for straightforward front-access guarding, while laser protection is usually stronger for close-tool, high-flexibility production.
For manufacturers, the smartest choice is the one that fits the machine's real workflow, part mix, and performance requirements. When safety is matched correctly to the application, it improves both protection and production.
Not always. Light curtains are better for some standard workflows, while laser protection is better for close-access and complex bending applications.
Laser protection is often more suitable because it supports closer operator interaction and more flexible bending work.
Yes. It is commonly used on press brakes when properly designed and integrated into the machine system.
Light curtains are usually easier to understand because the protected zone is more straightforward.
Retrofit is better for upgrading existing equipment, while new machine design is better for full integration and long-term performance.
Stopping time, part complexity, operator movement, control integration, and maintenance requirements should all be reviewed.
