A fiber laser cutting machine is a CNC-controlled industrial system that uses a high‑intensity fiber laser beam to cut metals and other materials with extreme precision. The beam is generated in a fiber laser source, transmitted through optical fiber, focused by a cutting head, and guided by motion axes over a rigid bed frame or worktable. [leapion]
Compared with CO₂ and plasma systems, modern fiber lasers offer:
- Higher electrical–optical conversion efficiency.
- Faster cutting speeds on thin and medium sheet metal.
- Cleaner edges and smaller kerf width.
- Lower maintenance and operating cost for most metals. [morntech]
For OEM/ODM customers, this architecture is highly modular, which means each core component can be selected, upgraded, or customized for specific industries such as automotive, construction, or precision sheet metal fabrication. [fortunelaser]
From an end‑user and integrator perspective, the performance of your fiber laser cutting machine is only as strong as its weakest component. In daily production, most issues trace back to a small number of parts: [morntech]
- Laser source instability causing inconsistent cutting.
- Lens or nozzle contamination degrading edge quality.
- Improper cooling shortening source lifetime.
- Weak frames or tables reducing accuracy at high speed. [stylecnc]
Understanding each subsystem helps you:
1. Choose the right configuration (power, bed size, options) before purchase.
2. Design better OEM/ODM machines around your application.
3. Maintain high uptime and predictable cutting quality over years of operation. [tigertecus]

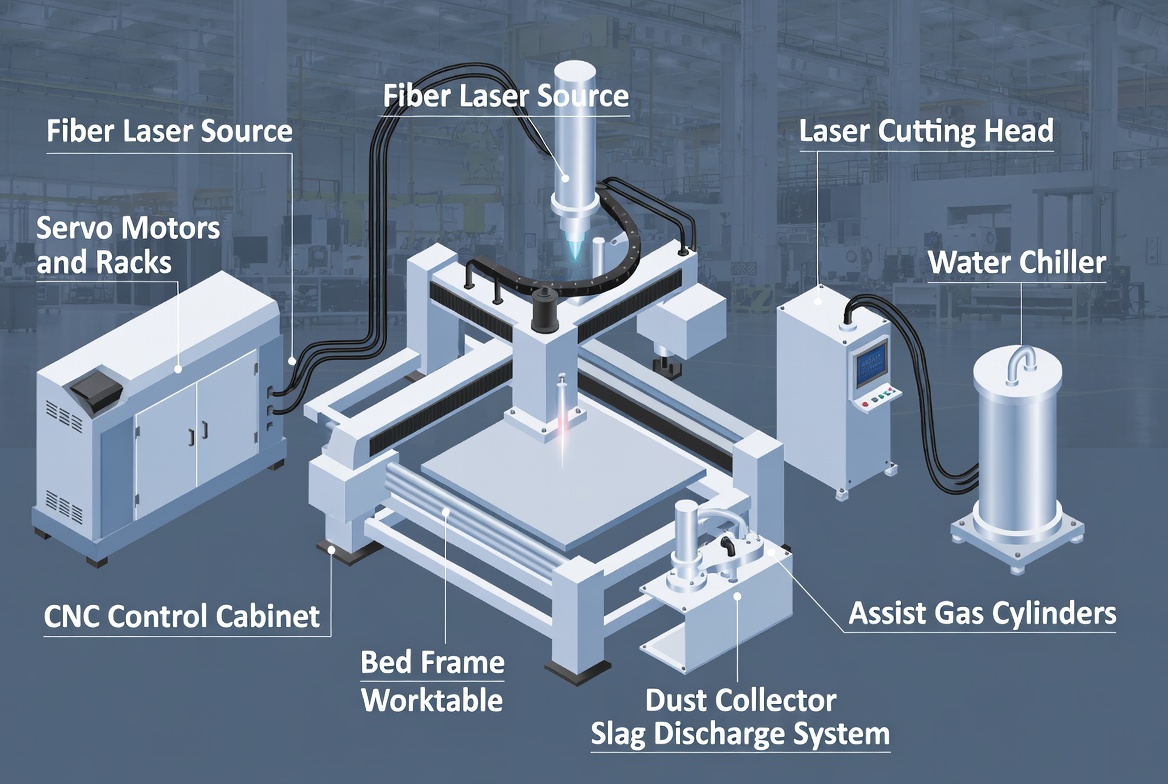

Below is a concise overview of the key subsystems you should evaluate when selecting or designing a fiber laser cutting machine. [leapion]
| Core Area | Critical Components | Primary Impact |
|---|---|---|
| Laser generation | Fiber laser generator/source, power supply, stabilizer | Cutting speed, thickness capability, energy efficiency (leapion) |
| Beam delivery & cutting | Cutting head, focusing lens, nozzle, focus tracking, beam transmission optics | Edge quality, kerf width, piercing speed (leapion) |
| Motion & mechanics | Servo/stepper motors, racks, bed frame, worktable | Accuracy, repeatability, vibration resistance (stylecnc) |
| Control & automation | CNC control system, host/PLC, sensor systems | Usability, consistency, automation level (leapion) |
| Cooling & utilities | Water chiller, cooling system, air dryer filter, gas cylinders, air cutting system | Reliability, component lifetime, operating cost (leapion) |
| Safety & environment | Dust collector, slag discharge machine, protective covers | Workplace safety, maintenance workload, environmental compliance (morntech) |

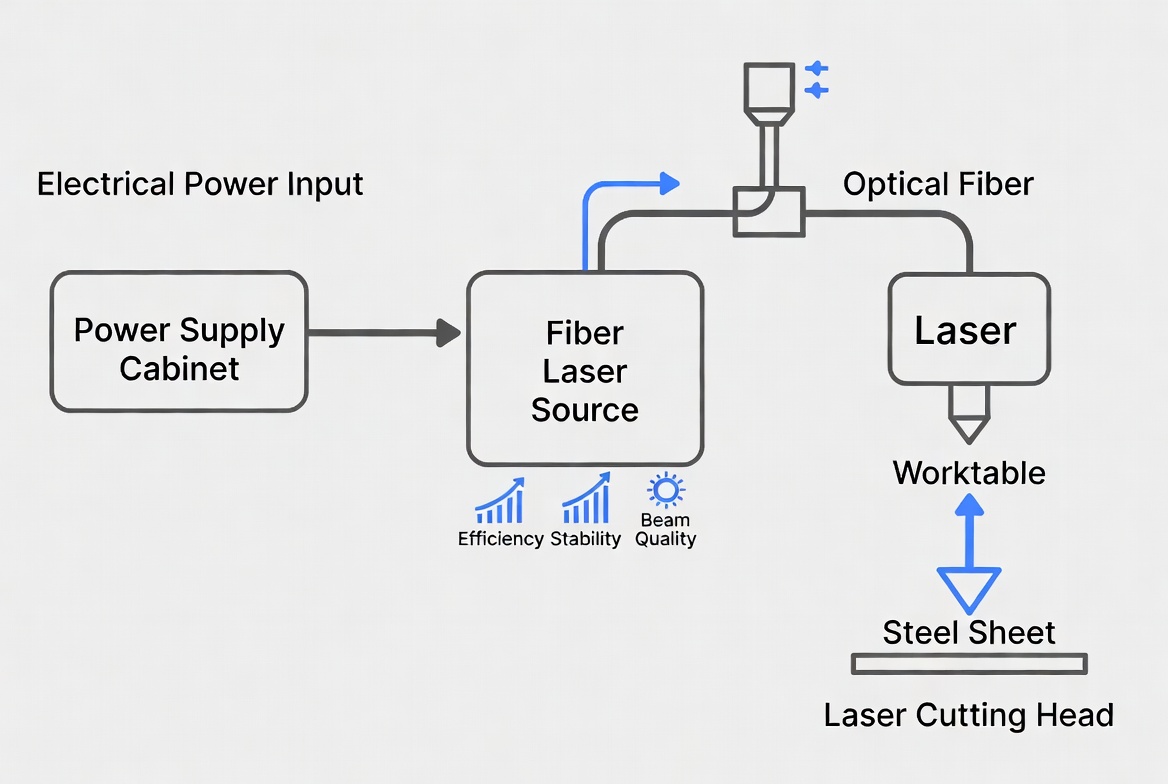

The fiber laser generator (source) is the heart of the system and largely defines your cutting capacity and throughput. It converts electrical input into a coherent, high‑power laser beam through diode pumping and fiber amplification. [intelmarketresearch]
Key considerations from an engineering perspective:
- Output power range: Entry‑level machines start around 1–3 kW, while heavy‑duty systems exceed 20–30 kW for thick plates and high‑speed production. [fortunelaser]
- Conversion efficiency: Modern active laser fibers are designed for higher power density and improved efficiency, reducing energy cost per part. [intelmarketresearch]
- Beam quality (BPP, M²): Better beam quality allows finer focus spots and higher cutting speed, especially on thin stainless and aluminum. [leapion]
- Stability and lifetime: Stable output over long shifts is essential for automotive, construction and contract cutting shops. [yimingims]
For OEM/ODM projects, choosing globally recognized laser sources and designing the electrical and cooling infrastructure correctly is one of the most important strategic decisions. [tigertecus]

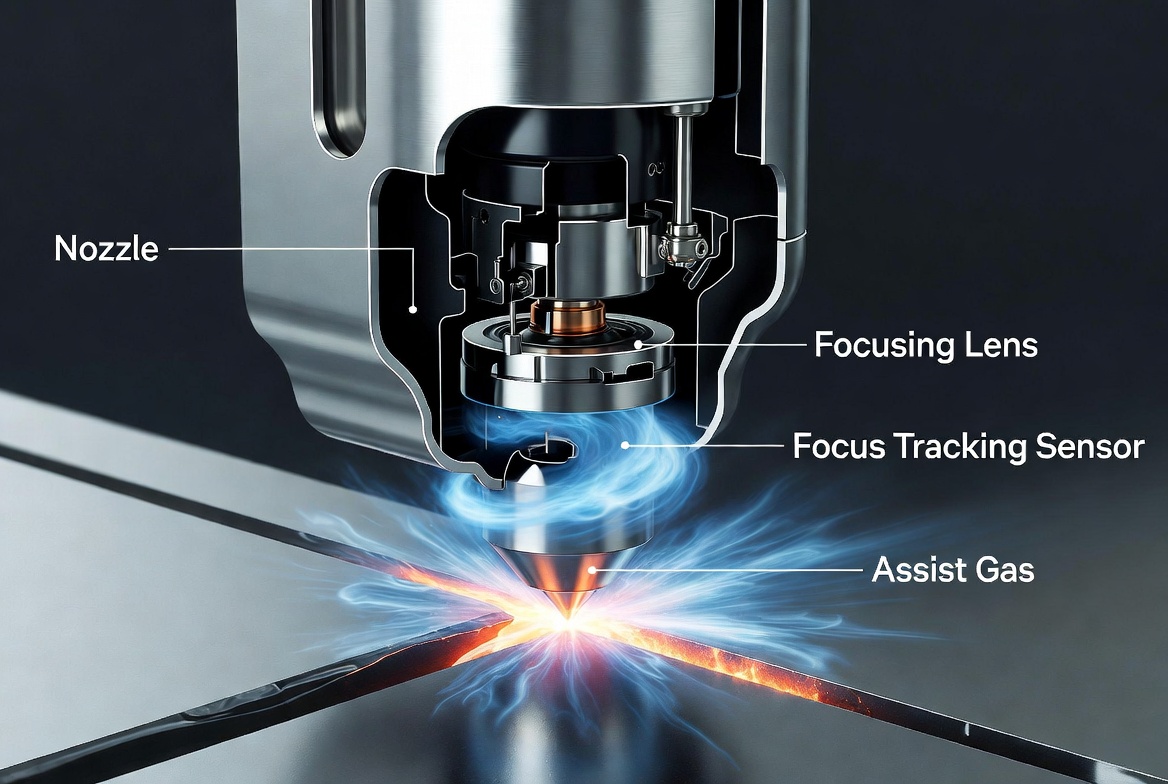

The laser cutting head is a highly engineered assembly that focuses and delivers the beam onto the workpiece. What happens inside this head directly determines edge quality and process robustness. [leapion]
The nozzle shapes the gas flow and defines the interaction zone between beam, material, and assist gas. [leapion]
- Different diameters and geometries are used for thin vs thick plate, high‑speed nitrogen cutting vs oxygen cutting. [morntech]
- Worn or contaminated nozzles lead to inconsistent cuts, dross, and more spatter. [morntech]
The focusing lens condenses the beam to a fine, high‑energy spot. [leapion]
- High‑quality lenses with appropriate focal length and coating maintain stable focus and minimize power loss. [leapion]
- Scratches, dust, or condensation on lenses are a common cause of sudden quality drop or head damage. [morntech]
Modern machines use an automatic focus tracking system to maintain the optimum distance between nozzle and sheet surface in real time.
This delivers:
- Consistent edge quality on warped sheets or patterned surfaces.
- Faster processing when switching between different thicknesses or materials.
- Reduced operator dependency, which is important for multi‑shift factories. [yimingims]
The motion system converts CNC code into controlled, high‑speed movement of the cutting head and table. [stylecnc]
Servo motors with closed‑loop feedback are widely used for X/Y axes in high‑end fiber lasers.
- Provide high acceleration, smooth speed profiles and micron‑level positioning accuracy. [stylecnc]
- Essential for high‑volume sectors like automotive, appliance, and general sheet metal fabrication where repeatability is non‑negotiable. [morntech]
In some configurations or auxiliary axes, stepping motors are still used for cost‑effective, incremental movements. [leapion]
- Good for less demanding axes and specific OEM designs.
- Require proper tuning to avoid resonance and missed steps in fast motion.
The bed frame and worktable provide the mechanical foundation that supports the material and absorbs dynamic loads. [stylecnc]
- Frames are typically built from high‑strength steel and undergo stress relief (annealing) at >600 °C to minimize deformation.
- Design features such as semi‑hollow sections and welded structures help distribute heat and maintain rigidity.
- Worktables use grids or pins to support the sheet while minimizing contact, reducing back‑reflection and heat accumulation. [morntech]
From a user perspective, a well‑engineered frame and table mean:
- Higher positioning accuracy at high acceleration.
- Better cut consistency over years of operation.
- Less re‑alignment after transport or heavy production. [stylecnc]
The CNC control system and the machine host/PLC form the digital brain coordinating all components. [leapion]
Core responsibilities:
- Interpret CAD/CAM design files and generate toolpaths.
- Synchronize motion axes, laser firing, piercing, and gas changes.
- Adjust parameters (power, speed, focus height, gas pressure) in real time.
Advanced control systems integrate:
- Tracking sensor systems to adjust to sheet deviation.
- Process libraries for different materials and thicknesses.
- Interfaces for automation cells such as loading/unloading, storage towers, and MES/ERP systems. [yimingims]
A user‑friendly interface with logical parameter groups, clear alarms, and remote diagnostics is a major UX advantage, especially for factories with varying operator skill levels. [morntech]

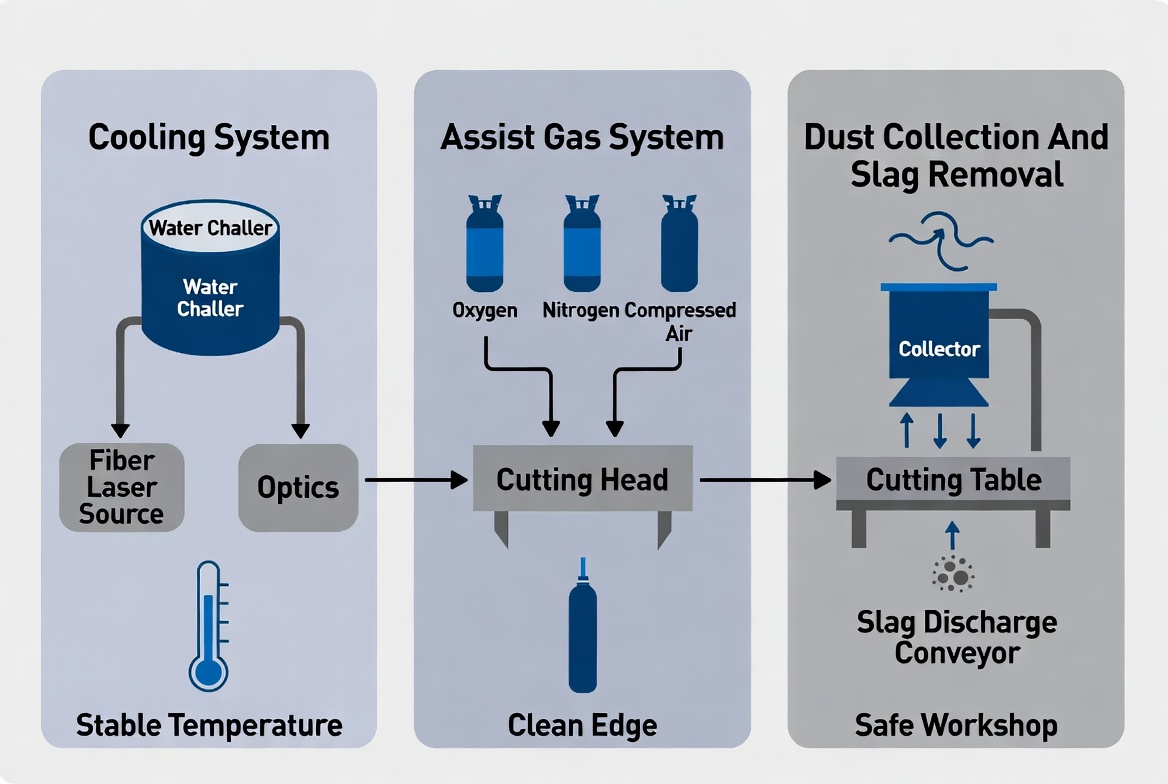

Fiber lasers generate significant heat in the laser source, optics, and power electronics, which must be removed efficiently. [leapion]
The water chiller circulates temperature‑controlled coolant through the laser source and critical optics.
- Maintains a stable operating temperature to avoid power drift.
- Extends lifetime of diodes and active fibers.
- Prevents thermal lensing and focus shift during long runs. [intelmarketresearch]
The air cooling dryer filter treats compressed air used in the laser head and other pneumatics.
- Removes moisture, oil, and particles, preventing corrosion and contamination.
- Protects lenses, valves, and sensors from premature failure.
In high‑power machines (up to 20–30 kW), proper dimensioning of chiller capacity and air treatment is critical for long‑term reliability. [tigertecus]
Assist gas is an often underestimated part of the cutting process. [morntech]
Common gases in fiber laser cutting include:
- Oxygen – boosts oxidation and cutting speed on mild steel. [morntech]
- Nitrogen – delivers oxide‑free edges, ideal for stainless steel and aluminum. [morntech]
- Compressed air – cost‑effective option for thin sheets and general fabrication. [morntech]
Stable, high‑purity gas from suitable cylinders or central supply ensures consistent piercing and cutting quality.
The air cutting system uses high‑pressure air or gas to:
- Blow molten material out of the kerf.
- Cool the cutting zone and prolong nozzle life.
- Reduce secondary operations by producing cleaner cuts. [morntech]
Correct gas selection and pressure settings can significantly reduce processing cost and dross formation. [morntech]
Laser cutting produces smoke, fumes and slag that must be handled for both machine health and operator safety. [morntech]
The dust collector and removal system pulls fumes and particles away from the cutting area through filters and ducting. [morntech]
- Prevents contamination of lenses, mirrors and electronics.
- Improves air quality in the workshop and supports regulatory compliance.
- Reduces component wear, lowering overall maintenance cost. [morntech]
A slag discharge machine automatically removes slag and scrap from beneath the worktable.
- Keeps the support grid clean and effective.
- Limits manual cleaning, improving safety and uptime.
- Is especially important in high‑volume production or thicker plate cutting.
Although fiber lasers largely use optical fiber delivery, external beam transmission components are still vital in many designs.
These include:
- Refractive mirrors and lenses to guide and refine the beam.
- Protective covers to shield optics from dust and spatter.
- Positive‑pressure protective gas to keep optics clean.
The goal is to maintain a high‑quality, low‑divergence beam all the way from source to workpiece. [leapion]
Between 2024 and 2026, fiber laser technology has continued to evolve rapidly. For buyers and OEM partners, three component‑level trends are especially relevant: [intelmarketresearch]
1. Higher Power and Power Density
- Market demand for thick‑plate cutting and higher throughput is pushing sources into the 20–30 kW range and beyond. [yimingims]
- Active laser fibers are engineered for larger mode areas and improved power handling, enabling higher brightness with stable beam quality. [intelmarketresearch]
2. Smarter, AI‑Driven Control Systems
- New CNC systems combine sensor feedback with AI algorithms to auto‑optimize cutting parameters for different materials and thicknesses. [yimingims]
- This reduces operator dependency and makes "self‑optimizing" fiber laser cells realistic even for smaller shops. [yimingims]
3. Focus on Energy Efficiency and Sustainability
- Fiber laser cutting machines are part of broader ESG and energy‑efficiency programs in many factories. [yimingims]
- Efficient sources, optimized gas consumption and better dust collection help reduce total environmental footprint while lowering operating costs. [intelmarketresearch]
For OEM/ODM machine builders, designing around these trends—especially in laser sources, CNC platforms and environmental systems—can create a clear competitive advantage. [tigertecus]
When I walk a customer through a new fiber laser investment, I use a component‑based checklist rather than focusing only on headline power. [morntech]
Step‑by‑step checklist:
1. Define your real cutting mix
- List main materials and thicknesses (e.g., 80% mild steel 3–12 mm, 20% stainless 2–6 mm).
- Match laser power and gas options to this mix. [yimingims]
2. Check mechanical and motion design
- Ask about frame stress‑relief process, rack quality, and maximum acceleration.
- Evaluate if the worktable design supports your plate sizes and loading style. [stylecnc]
3. Review CNC and user interface
- Confirm support for your CAD/CAM workflow and nesting software.
- Look for process libraries, remote diagnostics, and training resources. [yimingims]
4. Inspect cooling, gas and dust systems
- Verify chiller capacity for the specified laser power.
- Review dust collection and slag handling solutions—especially for multi‑shift operations. [morntech]
5. Clarify OEM/ODM capabilities
- If you require custom bed sizes, automation or integration, confirm the manufacturer's engineering capacity and project experience in similar solutions. [fortunelaser]
This structured approach reduces risk and ensures that each component is aligned with actual production needs, not just catalog specifications. [morntech]
As an OEM/ODM‑oriented manufacturer, CNDY‑Press can design and build complete fiber laser cutting solutions around the specific requirements of your industry and brand. [fortunelaser]
Typical collaboration models include:
- Private‑label fiber laser machines based on proven core platforms.
- Custom bed sizes, automation modules, or tool changers for integrated production lines.
- Tailored control interfaces and process libraries for niche materials or markets.
- Co‑developed systems optimized for regional standards and energy profiles. [fortunelaser]
By taking control at the component and system design level, OEM partners can offer differentiated machines without needing to build an internal laser engineering team from scratch. [tigertecus]
If you are planning a new production line, upgrading from CO₂ or plasma, or exploring your own branded fiber laser machines, the component‑level decisions you make today will shape your productivity for the next decade. [yimingims]
As a dedicated manufacturer of fiber laser cutting machines and full sheet‑metal processing lines, CNDY‑Press offers:
- Deep experience in fiber laser components and integration.
- Flexible OEM and ODM services with global export capability.
- Engineering support from concept to commissioning and after‑sales. [fortunelaser]
Talk to our engineering team today to discuss your materials, throughput targets and customization needs, and we will help you configure a fiber laser solution that aligns with your technical and commercial goals. [tigertecus]
1. Which component has the biggest impact on cutting speed?
The fiber laser source and its output power are the primary drivers of cutting speed, especially on thicker materials, though motion system acceleration and gas configuration also play important roles. [leapion]
2. How often should I replace nozzles and lenses?
Replacement frequency depends on material, power level and maintenance habits, but in high‑volume shops it is common to change nozzles weekly and inspect/clean lenses daily, replacing them as soon as contamination or damage appears. [morntech]
3. Is a more powerful chiller always better?
Oversizing can waste energy, but undersizing a chiller shortens component life and causes quality issues; capacity should be correctly matched to laser power and ambient conditions. [leapion]
4. Can I cut everything with compressed air to save gas cost?
Compressed air works well for many thin sheets, but for critical stainless or thicker mild steel you usually need nitrogen or oxygen to achieve the required edge quality and cutting speed. [morntech]
5. What should OEM customers focus on first when specifying a custom fiber laser?
Start with the target cutting mix and throughput, then define laser power, frame size, motion system and automation level; only afterwards fine‑tune options such as control platform and accessories. [fortunelaser]
