In modern sheet metal fabrication, fiber laser cutting machines have become the benchmark for precision, speed, and flexible customization, especially for OEM and ODM projects. As a manufacturer deeply involved in complete sheet metal processing solutions, we see every day how the right laser cutting technology can transform production quality, delivery time, and profitability. [xlmchainbuild]
Laser cutting is a non‑contact machining process that uses a high‑energy, highly focused laser beam to melt, vaporize, or burn material along a programmed path. The beam is guided by a CNC motion control system, so complex geometries, tight tolerances, and repeatable cuts can be achieved even on difficult materials. [xlmchainbuild]
In sheet metal fabrication, laser cutting is now preferred over traditional mechanical cutting for:
- Higher dimensional accuracy and tighter tolerances (often around ±0.01″). [xlmchainbuild]
- Clean edges with minimal burrs and post‑processing. [metalcraftspinning]
- Rapid changeover between different parts by simply loading a new program. [xlmchainbuild]
At CNDY‑Press, we focus on fiber laser cutting machines, which are especially well‑suited for metals such as carbon steel, stainless steel, aluminum, and copper alloys. [junyi-laser]

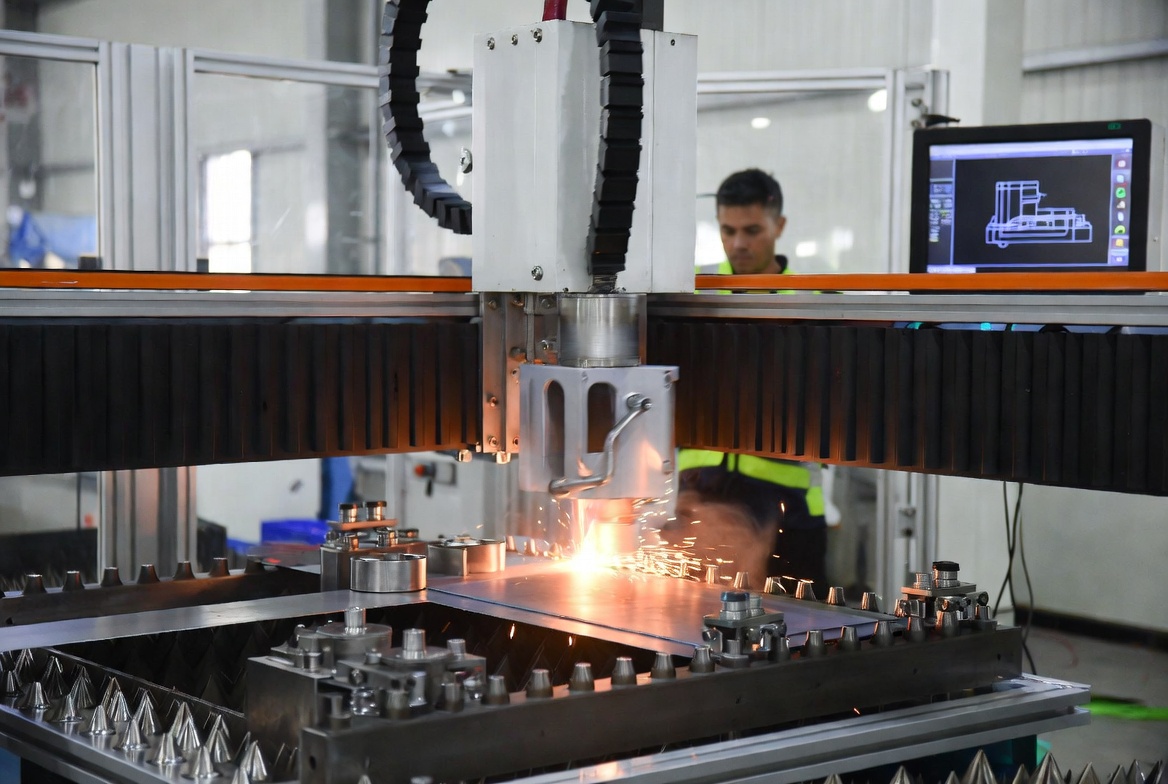

Although there are several laser technologies, the workflow of a CNC fiber laser cutting machine typically follows the same steps. [xlmchainbuild]
A modern industrial machine includes: [xlmchainbuild]
- Power supply – Provides energy to the laser source. [xlmchainbuild]
- Fiber laser resonator – Uses doped optical fiber (e.g., ytterbium) to amplify light into a high‑power laser beam. [xlmchainbuild]
- Cutting head and optics – Focuses the beam to a tiny spot, often assisted by a protective lens and height‑sensing system. [xlmchainbuild]
- CNC motion system – Motors, rails, and drives that move the cutting head over the sheet metal with high precision. [xlmchainbuild]
- Control and nesting software – Interprets CAD/CAM data or G‑code and optimizes cutting paths. [atlasmfg]
- Assist gas system – Supplies oxygen, nitrogen, or air to blow away molten material and influence edge quality. [xlmchainbuild]
- Cooling and extraction – Chillers and dust/fume extractors for stable performance and operator safety. [xlmchainbuild]
1. Importing CAD data and generating G‑code
The operator imports a CAD drawing and uses CAM software to define cutting parameters and tool paths, converting them into G‑code. [atlasmfg]
2. Laser generation in the resonator
Diodes pump energy into doped fiber, which amplifies light into a coherent, high‑power beam suitable for metal cutting. [xlmchainbuild]
3. Beam delivery and focusing
The beam travels through fiber, passes through collimating and focusing optics, and exits the cutting head through a nozzle. [xlmchainbuild]
4. Material interaction and assist gas
The focused beam heats the metal to melting or vaporization temperature, while assist gas removes molten material and stabilizes the cut. [xlmchainbuild]
5. CNC‑controlled cutting movement
The machine moves the head along programmed paths, controlling speed, acceleration, and path strategy for quality and throughput. [metalcraftspinning]

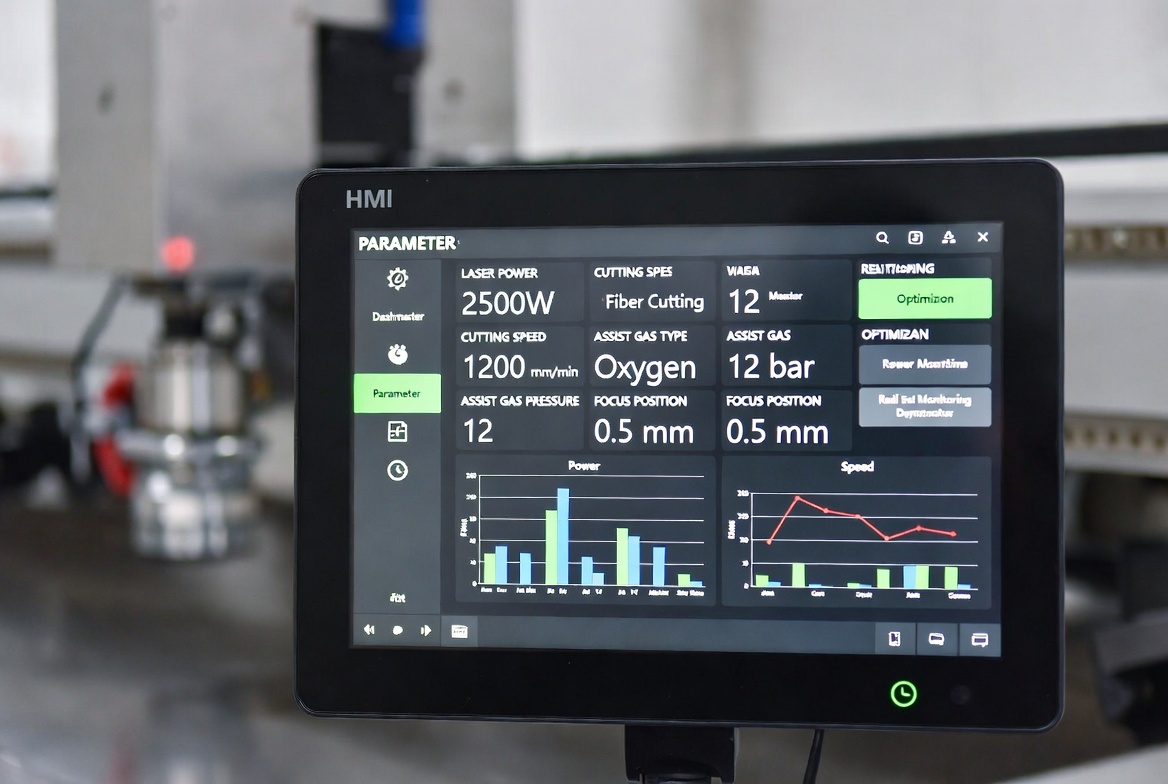

To consistently achieve high‑precision parts, you must control several parameters rather than relying on default settings. [metalcraftspinning]
- Laser power (kW) – Determines maximum cutting thickness and speed. Too low and the beam cannot fully penetrate; too high and edges overburn. [xlmchainbuild]
- Cutting speed (m/min) – Must be balanced with power; excessive speed leads to incomplete cuts, while overly slow speed causes excessive heat input. [metalcraftspinning]
- Pulse frequency and duration – In pulsed modes, frequency (Hz) and pulse width influence edge roughness and heat‑affected zone size. [xlmchainbuild]
- Focus position (Z‑offset) – Ideally placed near the mid‑thickness for through‑cutting; focus shift can fine‑tune kerf width and edge quality. [xlmchainbuild]
- Assist gas type and pressure
- Oxygen: fast cutting of thick carbon steel but with an oxidized edge. [xlmchainbuild]
- Nitrogen: bright, oxidation‑free edges for stainless steel and aluminum. [xlmchainbuild]
- Air: economical option for thin sheet and general fabrication. [xlmchainbuild]
- Nozzle diameter and stand‑off distance – Affect gas flow, kerf stability, and cut consistency. [metalcraftspinning]
Experienced operators treat these parameters as a tunable system, adjusting them according to material grade, thickness, and surface condition. [metalcraftspinning]

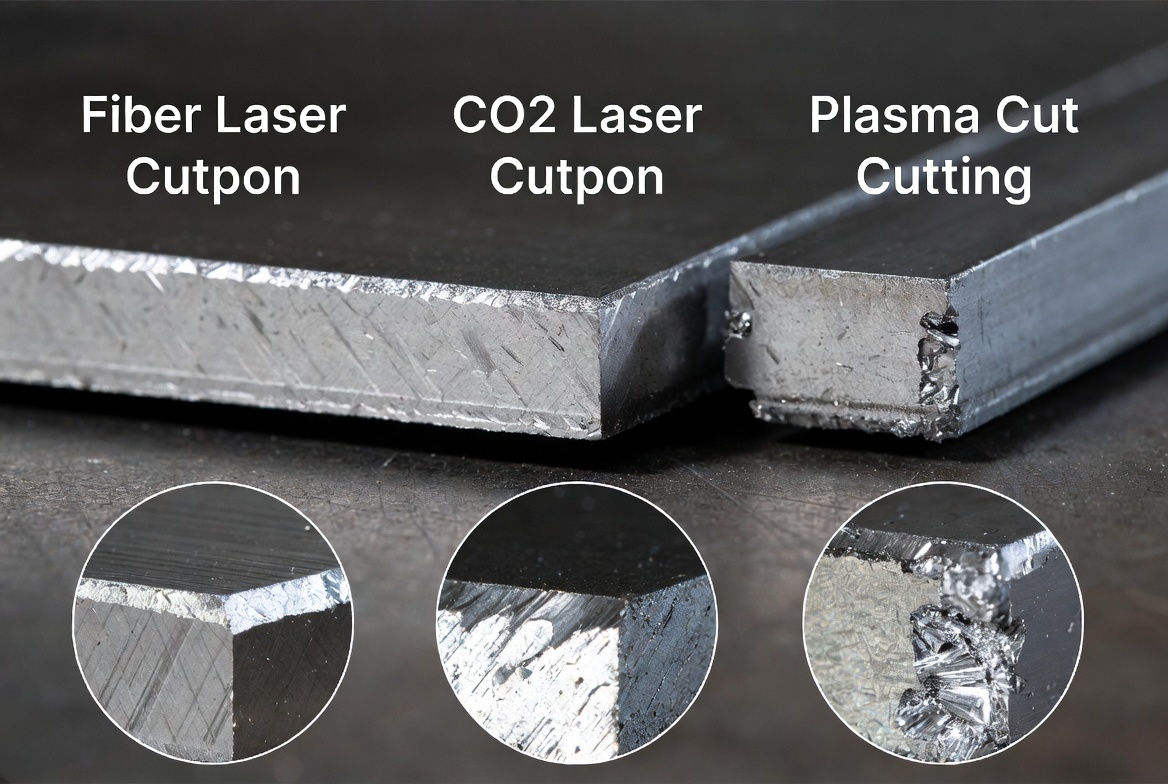

Different laser sources behave differently with metals and non‑metals. [xlmchainbuild]
| Laser Type | Typical Wavelength | Best For | Limitations in Metal Fabrication |
|---|---|---|---|
| Fiber laser | ~1 µm | Carbon steel, stainless, Al, Cu | Less suited for some non‑metals |
| CO₂ laser | 10.6 µm | Wood, plastics, acrylics | Lower efficiency on reflective metals and higher maintenance (xlmchainbuild) |
| Nd:YAG | 1.064 µm | Precision metal processing | More complex, often used in niche high‑precision fields (xlmchainbuild) |
| Excimer | UV range | Micro‑machining, semiconductors | Not a typical choice for sheet metal (xlmchainbuild) |
For sheet metal fabrication, the industry trend is clear: fiber lasers are taking over the market, thanks to higher cutting speeds, better efficiency, and lower operating costs on metals. [junyi-laser]
"Laser cutting" covers several distinct material removal mechanisms. [xlmchainbuild]
- Fusion cutting (melt and blow) – The most common in metal fabrication; the laser melts the metal and assist gas blows out the melt. [xlmchainbuild]
- Vaporization cutting – The beam instantly heats thin metal to boiling, creating very narrow kerfs with minimal heat conduction. [xlmchainbuild]
- Laser flame cutting (reactive cutting) – Laser plus oxygen create an exothermic reaction to cut thick carbon steel quickly. [xlmchainbuild]
- Fracture‑controlled cutting – Uses thermal stress to guide a crack, applied mostly for brittle materials such as glass and ceramics. [xlmchainbuild]
- Vector scoring / engraving – Shallow material removal or marking, widely used for part identification and decorative features. [xlmchainbuild]
In practice, OEM and ODM customers usually work with fusion and reactive cutting on metals, adding engraving where identification or branding is important. [xlmchainbuild]
Fiber laser cutting machines come in several mechanical configurations. [xlmchainbuild]
- Moving material (fixed head) – Table moves under a stationary head; simpler optics, but limited speed for large sheets. [xlmchainbuild]
- Hybrid – Sheet moves in one axis, head moves in the other, balancing speed and optical complexity. [xlmchainbuild]
- Flying optics – Sheet stays fixed while the head moves in both X and Y; offers the highest cutting speeds, ideal for high‑volume production. [xlmchainbuild]
For high‑mix, high‑volume OEM work in thin to medium‑thick sheet metal, flying optics fiber laser machines are usually the most efficient choice. [atlasmfg]
- Metals – Carbon steel, mild steel, stainless steel, aluminum, copper, brass, nickel, tungsten, and more. [xlmchainbuild]
- Non‑metals (on other laser types) – Plastics such as acrylic and PMMA, wood, fabrics, paper, foam, glass, and ceramics under the right conditions. [xlmchainbuild]
In a sheet metal workshop, the primary focus is on:
- Structural steels and stainless steels – For frames, enclosures, and structural parts. [xlmchainbuild]
- Aluminum and its alloys – For lightweight structures, transportation, and electronics. [xlmchainbuild]
Some materials pose safety or quality risks when laser cut: [xlmchainbuild]
- Fiberglass (epoxy fumes). [xlmchainbuild]
- ABS (flammable, toxic cyanide gas release). [xlmchainbuild]
- PVC and vinyl (corrosive chlorine gas). [xlmchainbuild]
- Thick polycarbonate, HDPE, and certain foams (fire risk and poor edge quality). [xlmchainbuild]
A professional OEM/ODM supplier should pre‑screen customer material specifications and clearly flag any incompatible materials before production. [xlmchainbuild]
- High precision and tight tolerance – Typical tolerances can be around ±0.01″, supporting precise assemblies and complex interlocking features. [metalcraftspinning]
- Fast cutting speeds – Thin sheet cutting speeds can exceed 3 m/min, enabling high throughput. [shoes-machine]
- Excellent repeatability – CNC control ensures consistency across large production runs. [xlmchainbuild]
- Design flexibility – Changing from one part to another is as simple as switching the program, with no physical tooling. [xlmchainbuild]
- Lower material waste – Narrow kerfs and smart nesting minimize off‑cuts, especially valuable for stainless and aluminum. [atlasmfg]
- Good automation potential – Compatible with loading/unloading systems, pallet changers, and smart factories. [shoes-machine]
- Initial investment and maintenance costs – Industrial fiber lasers remain capital equipment, though cost per part is often low when utilized properly. [xlmchainbuild]
- Thickness constraints – Very thick blocks of steel may be better suited to waterjet, plasma, or mechanical processes. [xlmchainbuild]
- Material safety restrictions – Some plastics and composites are unsafe to cut and require alternative methods. [xlmchainbuild]
Understanding these trade‑offs helps you select the right process or mix of processes in your fabrication workflow. [xlmchainbuild]
Well‑designed parts cut faster, assemble better, and cost less. [atlasmfg]
- Use proper CAD formats for laser cutting – DXF, EPS, STEP, and AI vector files are standard; avoid raster images like JPG. [xlmchainbuild]
- Convert text to outlines – Laser machines do not read fonts; convert text to vector shapes so labeling and logos cut cleanly. [xlmchainbuild]
- Simplify geometry where possible – Overly complex shapes increase cutting time and risk fragile features. [proleantech]
- Account for kerf width – Design clearances and slots with the expected kerf in mind to ensure proper fit‑up. [metalcraftspinning]
- Avoid extremely sharp internal corners – Slight radii improve cut stability and reduce stress concentrations. [sattlermanufacturing]
- Plan tabs, slots, and locating features – Well‑designed tabs and slots enable self‑locating assemblies and reduce welding fixtures. [metalcraftspinning]
When we work with OEM and ODM clients, we typically review their drawings and offer DFM (Design for Manufacturability) suggestions that can reduce cost and lead time without compromising function. [atlasmfg]

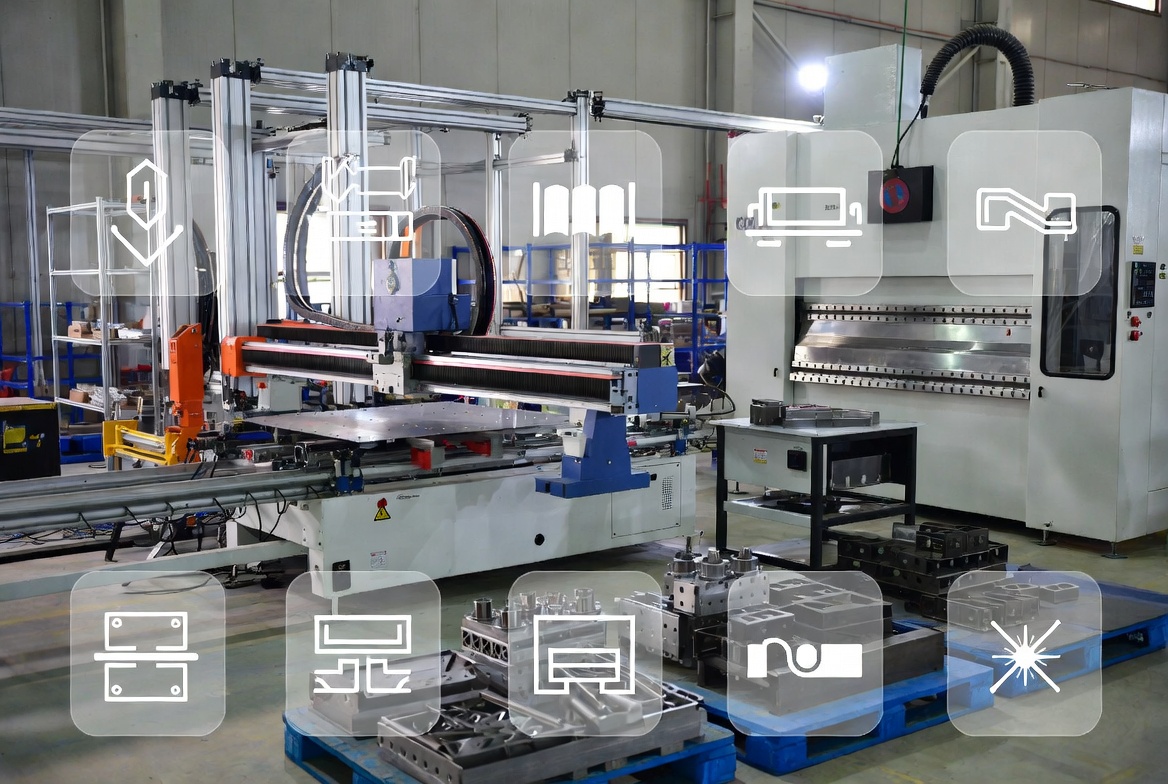

Laser cutting is often the first step in a process chain that includes bending, welding, surface treatment, and assembly. [xlmchainbuild]
- Accurate bend lines and reliefs – Precise cutouts and bend reliefs reduce cracking and distortion during forming. [xlmchainbuild]
- Consistent edge quality – Clean edges fit better in bending tools and fixtures, improving repeatability. [xlmchainbuild]
- Integrated reference marks – Shallow etched marks can indicate bend lines or assembly locations without weakening the part. [sattlermanufacturing]
By optimizing cutting for subsequent bending and forming, you can significantly improve overall throughput and assembly quality. [atlasmfg]
Industrial laser cutting equipment ranges roughly from entry‑level to high‑power automated lines, with machine prices starting from several thousand dollars and going up to several hundred thousand dollars depending on power, format, and automation level. [junyi-laser]
Operating costs remain highly competitive because:
- Energy consumption for laser cutting is typically in the 0.1–15 kW range, depending on power class and peripherals. [xlmchainbuild]
- Cutting is fast, and nesting reduces scrap, lowering material cost per part. [atlasmfg]
- There are no consumable cutting tools that wear out like in mechanical machining. [xlmchainbuild]
- Fiber laser sources often reach around 100,000 hours of lifetime, which can equate to decades in normal industrial usage. [xlmchainbuild]
- CO₂ lasers, by comparison, may last around 30,000 hours and require more frequent maintenance for optics and gas systems. [xlmchainbuild]
For OEM/ODM buyers, this long lifespan translates into more predictable ROI and lower life‑cycle cost. [xlmchainbuild]
The fiber laser cutting market continues to grow rapidly, driven by automation and smart manufacturing. [shoes-machine]
- Market studies estimate solid growth (often above 8% CAGR) for fiber laser cutting systems through the mid‑2020s. [junyi-laser]
- Precision expectations have risen dramatically, with some high‑end systems targeting micron‑level positioning on complex geometries. [shoes-machine]
- Integrated AI and digital monitoring help optimize cutting parameters in real time, reduce scrap, and schedule predictive maintenance. [junyi-laser]
- Sustainability initiatives push manufacturers to adopt energy‑efficient laser sources and optimize nesting to reduce material waste. [shoes-machine]
Staying aligned with these trends helps OEM customers secure a more competitive and future‑proof supply chain. [shoes-machine]
When evaluating fiber laser cutting machines or selecting an OEM/ODM partner, consider these factors. [atlasmfg]
- Laser power and thickness range – Match power to your typical material thickness; very thin sheet does not necessarily require ultra‑high power. [xlmchainbuild]
- Working area (bed size) – Ensure the machine can accommodate your maximum sheet size and part nesting patterns. [xlmchainbuild]
- Positioning accuracy and repeatability – Critical for tight‑tolerance assemblies and repeat orders. [metalcraftspinning]
- Automation level – Loading/unloading systems, pallet changers, and integration with bending cells or welding robots. [junyi-laser]
- Budget and ROI – Assess total cost of ownership, not only purchase price: energy, maintenance, and consumables. [xlmchainbuild]
- Service and support – Spares availability, remote diagnostics, and on‑site service determine your real uptime. [xlmchainbuild]
- OEM/ODM customization capability – For many customers, the ability to design custom fixtures, part revisions, and private‑label equipment is more valuable than hardware alone. [atlasmfg]
Selecting a machine and partner that align with your product mix and growth plans is more important than chasing the highest power rating on paper. [junyi-laser]
From our perspective as a sheet metal equipment and fabrication provider, the most successful OEM/ODM projects usually follow a similar pattern. [atlasmfg]
1. Clarify technical requirements early
Share drawings, tolerance requirements, annual volume, and any critical surface or cosmetic expectations before quoting. [atlasmfg]
2. Align on material specifications
Confirm metal grades, thicknesses, coatings, and any restricted materials that may not be laser‑friendly. [xlmchainbuild]
3. Co‑develop manufacturable designs
Involve the fabrication partner to adjust corner radii, hole sizes, and tab/slot features for faster cutting and assembly. [metalcraftspinning]
4. Pilot run and feedback loop
Start with a small batch, evaluate fit and function, and refine designs and parameters before scaling to full production. [atlasmfg]
5. Plan for long‑term support
For custom equipment or assemblies, ensure you have clear agreements on spare parts, documentation, and revision control. [xlmchainbuild]
This collaborative approach maximizes quality, speed, and total cost performance over the life of the project. [bristolcreativeindustries]
If you are exploring fiber laser cutting machines or looking for a reliable OEM/ODM partner for sheet metal components, now is the time to benchmark your options against modern fiber laser technology. [junyi-laser]
- Validate whether your current cutting process is limiting quality, lead time, or flexibility. [atlasmfg]
- Identify parts where tighter tolerances or cleaner edges would improve downstream assembly. [metalcraftspinning]
- Consider a pilot project with a specialized fiber laser fabrication partner to test new designs or material combinations. [atlasmfg]
With the right fiber laser solution and a responsive engineering team, you can shorten product development cycles, reduce waste, and deliver more competitive products to your own customers. [shoes-machine]
Q1. What is the maximum thickness a fiber laser can cut?
A1. Maximum thickness depends on laser power and material, but mild steel of around 25 mm (1 inch) and other metals in the 20 mm range are typical for high‑power systems. [xlmchainbuild]
Q2. How accurate is fiber laser cutting compared with other methods?
A2. Fiber laser cutting can achieve tolerances around ±0.01″, which is significantly better than many mechanical cutting technologies and competitive with other precision processes. [xlmchainbuild]
Q3. Is laser cutting safe for plastics and composites?
A3. Some plastics are suitable, but many materials such as PVC, ABS, and fiberglass are unsafe due to toxic fumes or fire risks, so material selection must be checked carefully. [xlmchainbuild]
Q4. How long does a fiber laser source last?
A4. Fiber laser sources can reach around 100,000 operating hours, giving a very long service life in typical industrial environments. [xlmchainbuild]
Q5. Is fiber laser cutting environmentally friendly?
A5. While no industrial process is impact‑free, fiber laser cutting is energy‑efficient, generates minimal consumable waste, and allows highly efficient material usage through nesting. [atlasmfg]
