Energy consumption is one of the biggest hidden cost drivers when choosing between a hydraulic CNC press brake and a full electric servo press brake, and in real-world shops the difference can easily reach 40–70% in favor of electric models. For manufacturers running multi-shift operations, that gap translates directly into lower operating costs, more stable bending quality, and a faster payback period on new equipment. [apexcncmachine]
In this article, I will compare hydraulic CNC press brakes and full electric servo models from the perspective of a manufacturing-focused energy audit, and from my experience working with sheet metal OEM/ODM customers like those served by CNDY-Press. We will look at real energy numbers, cost per shift, maintenance implications, and how to choose the right drive system based on your parts mix and utilization rate. [cnhawe]

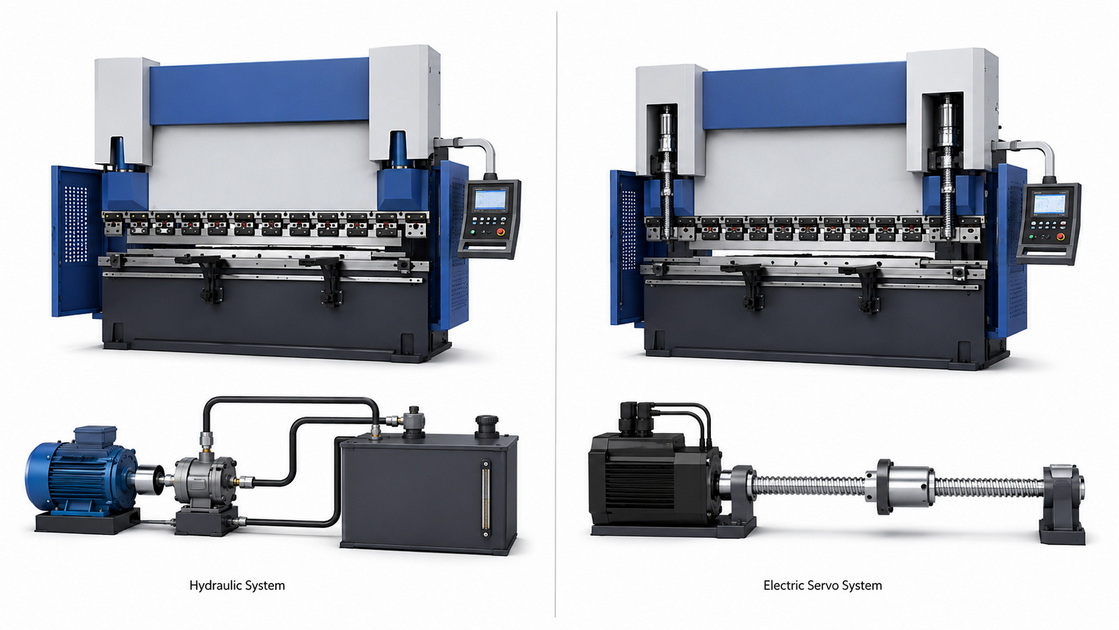

A traditional or CNC-controlled hydraulic press brake uses a hydraulic pump driven by an electric motor to generate oil pressure for the ram movement. In many designs, the pump runs continuously to maintain system pressure, which means it consumes power even when no bending is taking place. [yihailasers]
Key points:
- The main motor and hydraulic pump typically run whenever the machine is powered on, including during idle time. [ruchengmachinery]
- A basic hydraulic system keeps the pump at a constant speed, leading to higher idle losses and heat generation. [yihailasers]
- CNC or servo-hydraulic variants can improve this with variable-speed pumps, but they still retain the hydraulic circuit and oil-related losses. [cnhawe]
A typical 10 hp (7.5 kW) hydraulic pump can draw 5–7 kW even at idle because it must keep the accumulator charged and overcome internal friction in the hydraulic system. Over 800 idle hours per year (for example, 40% idle time in a 2,000-hour schedule), that idle consumption alone can reach 4,000–5,600 kWh, representing hundreds of dollars in wasted electricity at standard industrial tariffs. [yihailasers]
A full electric servo CNC press brake uses servo motors and mechanical transmission systems (ball screws, belt drives) to move the ram without any hydraulic oil. Power is drawn only when the ram is actually moving, and energy consumption in standby is extremely low. [linkedin]
Key points:
- Servo motors consume near-zero power (on the order of 50–100 W) when stationary. [yihailasers]
- During bending, motor power can approach hydraulic levels, but the active time is much shorter per cycle. [weiyamt]
- When the slider stops, power consumption is almost zero, so idle energy loss is nearly eliminated. [eminacademy]
Some manufacturers report that pure electric servo press brakes can save 60–80% energy versus comparable electro-hydraulic models under similar workloads. This aligns with field data showing that electric systems use 30–70% less energy than conventional hydraulics in typical production environments. [genuocnc]

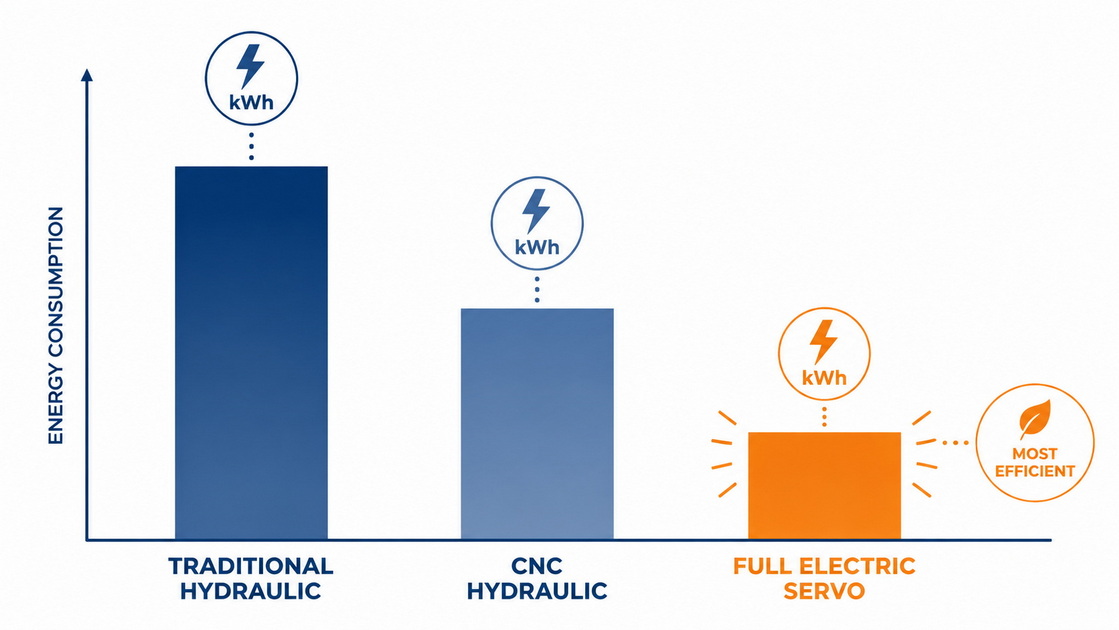

Industry data from multiple machine builders and fabrication shops provides useful benchmarks: [weiyamt]
- A conventional 150-ton hydraulic press brake can consume around 42 kWh per shift, with a significant portion attributable to idle conditions. [apexcncmachine]
- Hybrid or CNC servo-hydraulic press brakes often reduce this to approximately 25–30 kWh per shift by running the pump only on demand. [weiyamt]
- An all-electric servo press brake can operate at roughly 18 kWh per shift, thanks to its low idle draw and high conversion efficiency. [cnhawe]
One example analysis shows electric press brakes cutting annual energy usage to about 12,500 kWh compared with 18,000 kWh for CNC hydraulics and 25,000 kWh for traditional hydraulics, while also lowering associated CO₂ emissions. Across various machine sizes and workloads, modern electric press brakes consistently show 30–70% lower energy consumption than purely hydraulic systems. [durmapress]
A published case for a 100-ton press brake highlights the contrast between machine types: [linkedin]
- A full electric servo bending machine is reported to consume around 12 kWh per day for typical 8-hour work when used efficiently. [linkedin]
- A comparable hydraulic system can consume about 60 kWh per day for the same workload. [linkedin]
- This translates into energy savings approaching 80% in that specific scenario. [linkedin]
While actual results will vary by duty cycle, thickness, and part geometry, multiple data sets confirm that electric models frequently deliver 50–70% energy cost reductions for shops running standard production shifts. [weiyamt]
Consider a shop operating a press brake for 2,000 hours per year, with about 40% idle time (a common pattern in job-shop and batch production). Using typical consumption figures, an electric press brake can reduce total annual energy usage by 60–70% compared to a hydraulic equivalent. [ruchengmachinery]
One recent analysis estimated the following: [weiyamt]
- Hydraulic press brake: idle consumption alone can reach 4,000–5,600 kWh/year, generating 480–672 USD in wasted costs at 0.12 USD/kWh, not counting active bending energy. [yihailasers]
- Electric press brake: total annual energy consumption can be roughly 5,000 kWh, combining active bending and negligible standby usage. [yihailasers]
- For many duty cycles, electric press brakes can realistially save 3,000–8,000 USD per year in electricity compared to hydraulic machines. [weiyamt]
For OEM and ODM manufacturers doing multi-shift production, those savings can shorten the payback time on the higher initial purchase price of an electric servo press brake to just a few years, especially when local power tariffs are high. [weiyamt]

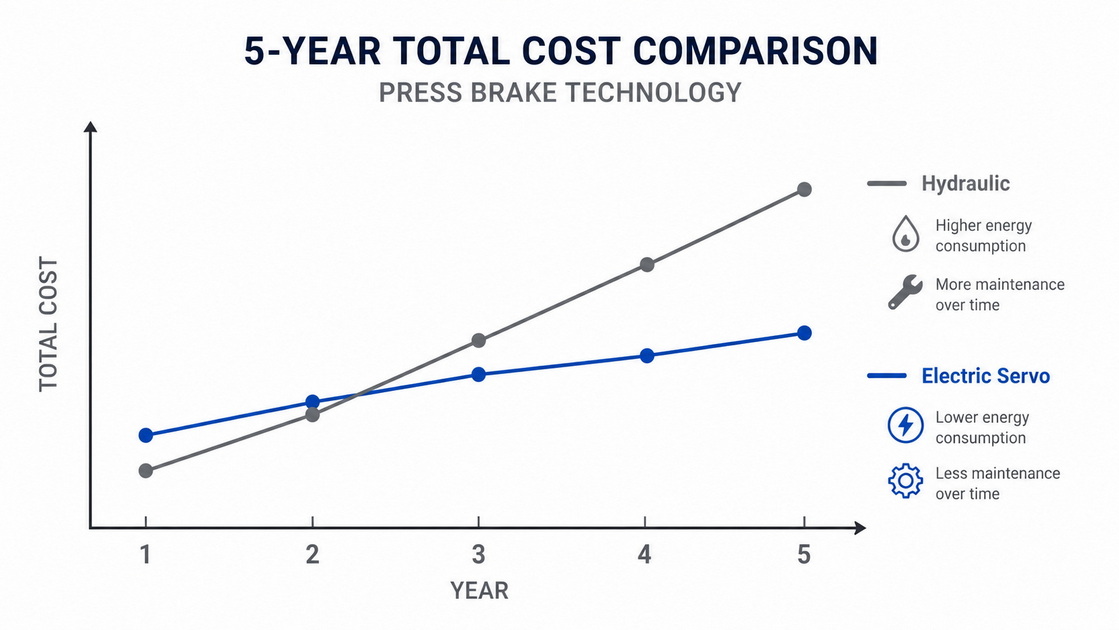

When you look at total cost of ownership (TCO), energy is just one dimension. Electric press brakes also reduce costs through: [cnhawe]
- Lower maintenance spending: No hydraulic oil, filters, or leak repairs, fewer components exposed to heat and contamination.
- Less unplanned downtime: Eliminating hydraulic failures reduces stoppages and avoids scrap from out-of-tolerance bends after oil temperature changes. [cnhawe]
- More stable precision: Electric systems often maintain repeatability in the ±0.01 mm range over long service intervals, safeguarding quality-critical OEM parts. [cnhawe]
From an energy perspective, these advantages reinforce the higher efficiency of electric systems, because each kilowatt-hour you do use is converted more predictably into productive output rather than heat and idle loss. [ruchengmachinery]
Despite their higher energy consumption, hydraulic CNC press brakes remain highly relevant in certain segments: [carlsonfab]
- Very high tonnage applications: For extremely thick plate or large-format bending, hydraulic systems still dominate in cost-effective raw power.
- Lower initial investment: Traditional hydraulics often have a lower upfront price, which can be attractive for shops with low utilization or limited capital. [carlsonfab]
- Harsh environments: Hydraulics can be more tolerant of dust and temperature swings in certain heavy industries, depending on design and protection. [carlsonfab]
In these cases, the energy penalty of hydraulic systems may be acceptable if machine utilization is low, power costs are modest, or the key requirement is maximum tonnage at minimum CapEx. [weiyamt]
For many modern sheet metal operations, full electric servo press brakes offer a stronger long-term business case: [eminacademy]
- High mix, medium volume OEM/ODM work: Fast setup, precise positioning, and low idle losses all favor electric systems.
- Continuous or multi-shift production: The longer the machine runs, the more compelling the energy savings become.
- Sustainability targets: Reduced kWh consumption and lower CO₂ emissions help meet corporate ESG goals. [cnhawe]
- Quality-focused industries: Electric press brakes offer high repeatability and stable bending angles, reducing rework and scrap on complex parts. [cnhawe]
For a manufacturer like CNDY-Press that supports global OEM and ODM customers, offering both advanced hydraulic CNC press brakes and full electric servo models lets end users optimize energy and performance around their specific applications, rather than forcing a one-size-fits-all choice. [ruchengmachinery]
Below is a concise comparison from an energy and operations perspective, based on typical market data and published benchmarks. [durmapress]
| Factor | Hydraulic CNC Press Brake | Full Electric Servo Press Brake |
|---|---|---|
| Energy consumption pattern | Motor and pump often run continuously; significant idle losses. (yihailasers) | Power drawn mainly during ram movement; near‑zero at idle. (linkedin) |
| Typical energy savings vs traditional hydraulic | Baseline; CNC servo‑hydraulic can save 30–50% vs basic hydraulics. (apexcncmachine) | Commonly 50–70% lower energy use than conventional hydraulics. (apexcncmachine) |
| Example daily consumption (100 t, 8 h) | Around 60 kWh per day in one reported case. (linkedin) | Around 12 kWh per day in the same case. (linkedin) |
| Idle power draw | Often 5–7 kW for a 10 hp pump motor. (yihailasers) | Approximately 50–100 W per servo motor when stationary. (yihailasers) |
| Annual idle energy waste | 4,000–5,600 kWh with 800 idle hours per year. (yihailasers) | Negligible, since motors consume almost no power at rest. (yihailasers) |
| Maintenance and consumables | Requires oil changes, filters, leak checks; heat affects oil life. (cnhawe) | No hydraulic oil; fewer fluid‑related maintenance tasks. (linkedin) |
| Precision and stability | Good precision; can drift as oil temperature and viscosity change. (cnhawe) | Very stable repeatability, often around ±0.01 mm over long periods. (yihailasers) |
| Best suited for | Very thick plate, very high tonnage, lower CapEx projects. (weiyamt) | High‑mix production, energy‑sensitive plants, ESG‑driven operations. (cnhawe) |

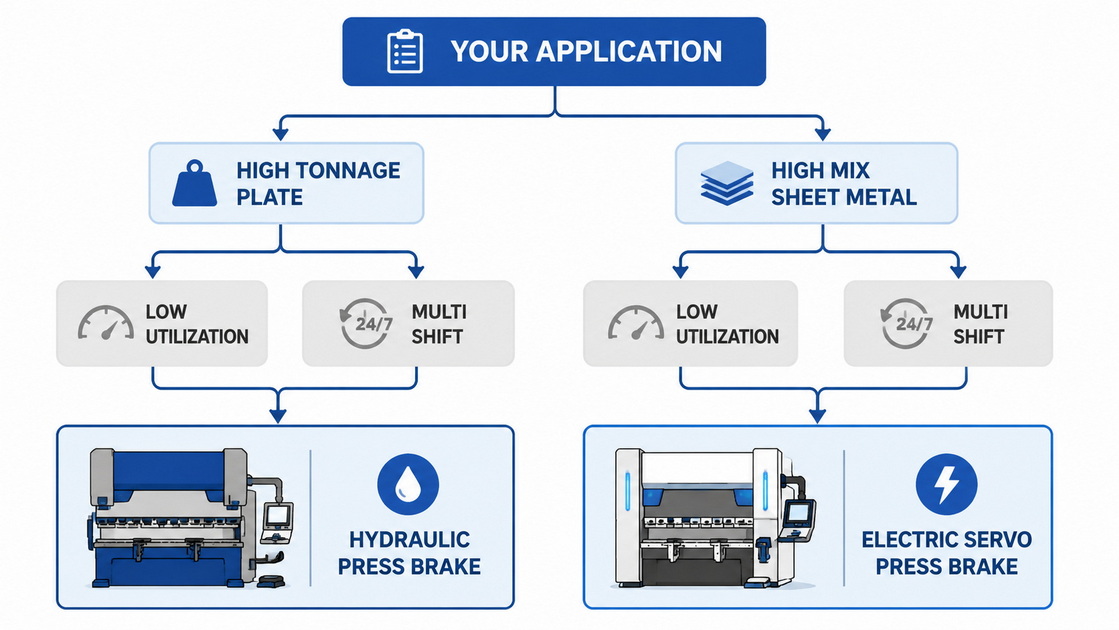

From an OEM/ODM engineering and cost-control perspective, I typically recommend evaluating energy consumption across three dimensions: utilization, thickness/tonnage, and local energy cost. [weiyamt]
1. Utilization rate
- If your press brake runs one shift or less with long idle gaps, energy is still important but may not dominate the business case.
- If you run two or three shifts, or if the machine is integrated in an automated bending cell, electric energy savings scale dramatically. [weiyamt]
2. Material thickness and required tonnage
- For medium tonnage jobs (e.g., typical sheet metal thicknesses), full electric servo models often provide more than enough force with greater efficiency. [eminacademy]
- For very thick plate or extreme tonnage requirements, a hydraulic CNC press brake may still be the most practical and cost-effective option, even with higher energy use. [durmapress]
3. Electricity price and ESG requirements
- In regions with high electricity prices or strict environmental standards, the cumulative savings from an electric press brake are substantial. [cnhawe]
- Reduced CO₂ emissions per part support OEM customers' sustainability reporting, which is increasingly part of RFQ and supplier qualification processes. [cnhawe]
For a manufacturer like CNDY-Press, positioning both technologies clearly around these dimensions allows you to guide buyers not just on machine specs, but on lifetime energy and cost performance.
From a process engineering standpoint, energy efficiency is not just a utility line item—it directly affects bending stability and quality: [ruchengmachinery]
- In hydraulic systems, energy losses show up as heat in the oil, which in turn changes viscosity and system response; this can slightly shift bending angles over long runs, especially on tight-tolerance parts. [ruchengmachinery]
- Electric servo systems maintain more stable motion profiles across long production runs, since they are less affected by fluid temperature and pressure fluctuations. [cnhawe]
- Shops often report fewer angle corrections and re-calibrations during the shift with electric machines, which indirectly reduces scrap and rework energy per good part. [cnhawe]
When you add up electricity for the machine, rework, scrap, and quality checks, the per-part energy efficiency gap between hydraulic and electric solutions can be even larger than basic kWh benchmarks suggest. [cnhawe]
If you are evaluating your next press brake investment and want to quantify real energy savings in your plant, it makes sense to work with a supplier that can simulate your actual parts mix and duty cycle. For manufacturers looking to balance tonnage, precision, and long-term energy costs, CNDY-Press can help you model annual kWh usage and payback scenarios for both hydraulic CNC press brakes and full electric servo models based on your real production data.
1. How much energy can a full electric servo press brake actually save compared to a hydraulic CNC press brake?
Published case studies and manufacturer data show that full electric press brakes can reduce energy consumption by 50–70% compared to conventional hydraulic systems, with some scenarios reporting savings up to 80%. [apexcncmachine]
2. Does an electric press brake always have lower total cost of ownership?
In multi-shift or high-utilization environments with moderate to high electricity prices, electric press brakes usually achieve a lower total cost of ownership due to reduced kWh usage and maintenance. For low utilization or extreme tonnage applications, the math can favor hydraulic solutions despite their higher energy footprint. [carlsonfab]
3. Are hybrid or servo-hydraulic press brakes a good compromise?
Yes, hybrid or servo-hydraulic designs use variable-speed pumps controlled by servos so the pump only runs when needed, cutting energy consumption by 30–50% versus basic hydraulic machines. They still require hydraulic oil and related maintenance, but they narrow the energy gap if a full electric solution is not feasible. [apexcncmachine]
4. How does energy efficiency affect bending accuracy and repeatability?
Hydraulic systems can experience drift as oil temperature increases, affecting viscosity and pressure and potentially requiring angle adjustments in long runs. Electric servo press brakes, by contrast, maintain high repeatability (often around ±0.01 mm) over extended operating periods, partly because they are less sensitive to thermal fluctuations in the drive system. [yihailasers]
5. What information should I prepare to compare energy consumption for my own plant?
You should gather your typical material thickness range, average tonnage, daily operating hours, idle time percentage, and local electricity rate, along with any planned production growth. With these inputs, an equipment supplier such as CNDY-Press can model realistic energy and cost scenarios for both hydraulic and electric press brake options. [weiyamt]
