If you ask any fabrication plant manager what keeps production on schedule, a well‑maintained press brake will be near the top of the list. A single unplanned breakdown can halt an entire bending line, delay deliveries, and quietly erode profit margins. As someone who has spent years inside sheet metal shops and OEM facilities, I've seen that structured press brake maintenance is one of the simplest ways to protect both your throughput and your capital investment. [shenchong]
In this guide, we'll walk through a practical, experience‑driven framework for CNC press brake maintenance, combining field‑tested routines with manufacturer best practices so you can extend machine life, stabilize bending accuracy, and avoid the cost of reactive repairs. [cnhawe]
The press brake is often the bottleneck in a bending cell: if it stops, downstream welding, assembly, and finishing all wait. Neglected maintenance quickly shows up as hydraulic leaks, drifting angles, cracked tooling, and emergency service calls. [shenchong]
Industry data and manufacturer case studies consistently point to four main impact areas: [durmapress]
- Increased unplanned downtime and expensive emergency interventions.
- Loss of bending accuracy, generating scrap and rework.
- Shorter component lifespans (tooling, hydraulic elements, backgauge).
- Declining operator confidence and higher safety risk.
The original Moore Machine Tools guide rightly emphasizes cleaning and lubrication as the starting point for press brake care, and this is exactly what operators should focus on every single shift. [aclpress]
- Daily cleaning: Wipe down the ram, bed, guides, and surrounding area to remove dust, debris, and swarf. This reduces abrasive wear and prevents contaminants from entering the hydraulic system. [aclpress]
- Targeted lubrication: Apply manufacturer‑specified lubricants to moving components such as guide rails, backgauge slides, and ball screws at defined intervals. Over‑lubrication attracts dust; under‑lubrication accelerates wear. [cnhawe]
From an operator's perspective, a 5‑minute cleaning and lubrication routine at the start of each shift is often enough to prevent most minor faults from escalating into serious issues. [cnhawe]

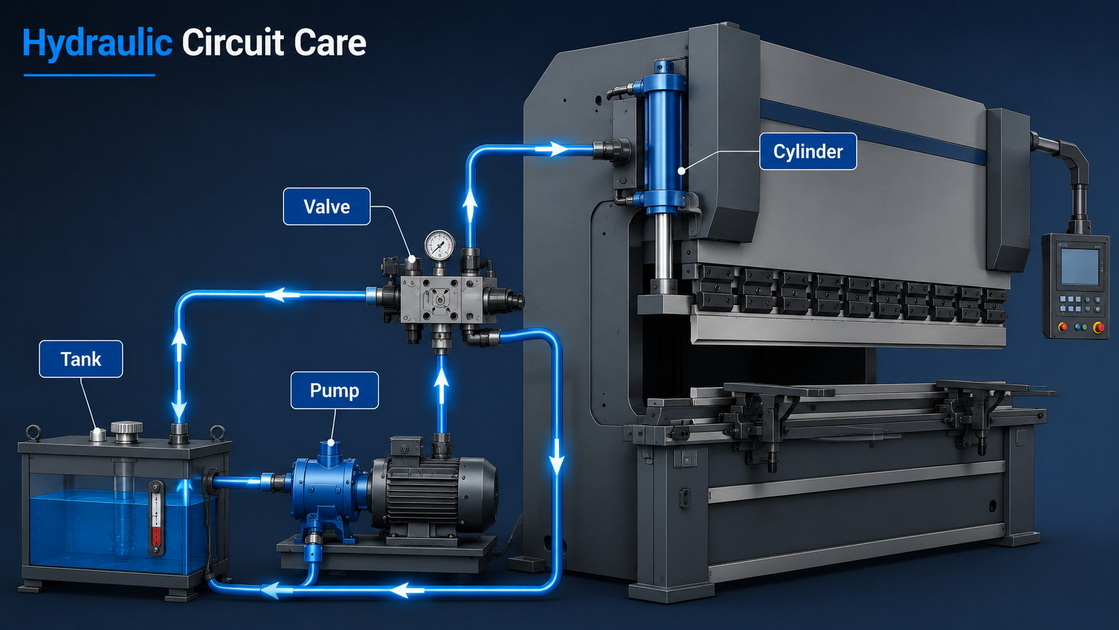

The hydraulic system is the central power source for a hydraulic or servo‑hydraulic press brake, and its condition directly controls ram movement, tonnage delivery, and cycle stability. [nite.go]
Core hydraulic tasks outlined in the original article and industry references include: [thefabricator]
- Leak inspection: Regularly check lines, hoses, seals, and fittings for signs of leakage or sweating. Small leaks often indicate seal aging and can lead to pressure loss and contamination.
- Fluid replacement: Change the hydraulic oil at manufacturer‑recommended intervals, checking for discoloration, milky appearance (water contamination), or burnt odor. Fresh oil with correct viscosity stabilizes response and reduces internal wear. [nite.go]
- Filter changes: Replace filters according to the maintenance schedule to keep oil circulation clean and reduce particle‑induced damage. [shenchong]
Many modern machines, including servo‑hydraulic press brakes like those referenced by Moore Machine Tools, use advanced valves and optimized hydraulic circuits to improve speed and lower energy consumption. These systems are more efficient but still rely on consistent oil quality and proper filtration. [nite.go]
Tooling is where machine forces meet your workpiece, and poor tooling condition will show up as surface defects, angle variation, and inconsistent bend lines long before the machine itself fails. [shenchong]
Effective tooling maintenance focuses on three points: [aclpress]
- Wear checks: Inspect punches and dies for chipping, rounding of edges, and any deformation. Replace tools that show significant wear to maintain bending quality. [nite.go]
- Alignment: Ensure punches and dies are correctly aligned and seated. Misalignment creates uneven pressure distribution and can damage both tooling and the machine bed. [nite.go]
- Cleaning: Remove material buildup and embedded particles before they transfer defects onto the workpiece. This is especially important when switching materials or surface finishes. [aclpress]
In high‑mix environments with frequent tool changes, a simple visual inspection before each setup can prevent many surface quality issues. [ruchengmachinery]
The backgauge and positioning system determine where the sheet is placed for each bend, and therefore whether flanges and part geometries meet tolerance. [nite.go]
The original article highlights several common tasks that remain critical on modern CNC press brakes: [aclpress]
- Regularly inspecting backgauge fingers, linear guides, and screws for wear or damage.
- Verifying alignment and recalibrating position where necessary.
- Lubricating mechanical guides and screws to maintain smooth motion and repeatable positioning.
In practice, drifting backgauge positions are one of the most frequent causes of dimensional non‑conformities in bending operations. A structured weekly check can minimize this risk. [durmapress]
The press brake's electrical and control systems govern everything from axis synchronization and crowning to safety light curtains and emergency stops. [aclpress]
Key maintenance actions include: [thefabricator]
- Wiring inspection: Look for loose terminals, damaged insulation, or signs of overheating. Tighten connections and replace compromised cables promptly. [nite.go]
- Software updates: Keep CNC control firmware and software current to benefit from bug fixes, stability improvements, and new features from the manufacturer. [nite.go]
- Diagnostics: Monitor error logs and cooling fan operation, and perform quick system checks before long production shifts. [aclpress]
Electrical issues may be less visible than hydraulic leaks, but they often lead to control errors, axis misbehavior, and unpredictable performance if left unaddressed. [thefabricator]
From a safety standpoint, every maintenance routine should include verification of guards, interlocks, light curtains, and emergency stop functions. [nite.go]
The original content emphasizes: [nite.go]
- Confirming that guards and safety devices operate correctly.
- Ensuring operators are trained to recognize malfunctions and respect safety protocols.
Adding a short toolbox talk or safety checklist to the beginning of each shift helps build a culture of proactive risk management rather than reactive accident response. [ruchengmachinery]

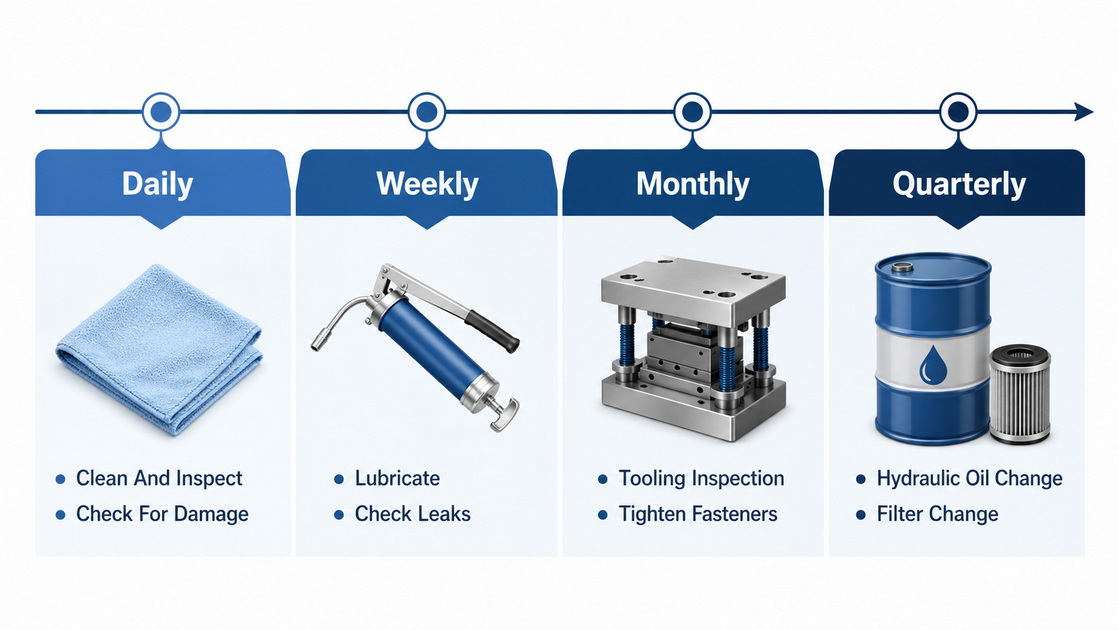

One of the strengths of the Moore Machine Tools article is its practical breakdown of maintenance frequency, which aligns well with other industry checklists. [durmapress]
- Clean the machine and surrounding area to remove dust, debris, and swarf. [nite.go]
- Check for loose or damaged parts and tighten or replace them.
- Verify that guards, light curtains, and emergency stops function correctly. [aclpress]
- Lubricate moving parts such as guides and ball screws. [shenchong]
- Inspect hydraulic hoses, fittings, and connections for leaks or damage.
- Check backgauge alignment and positioning system calibration. [nite.go]
- Inspect dies and punches for wear; replace if necessary. [nite.go]
- Listen for abnormal hydraulic noises and check for contamination.
- Confirm overall alignment of critical machine components. [nite.go]
- Change hydraulic fluid and filters according to manufacturer guidance. [shenchong]
- Inspect electrical components and connections for emerging issues.
- Review and adjust hydraulic pressure to match typical materials. [nite.go]
- Conduct a full machine audit: frame, ram parallelism, crowning, and backgauge accuracy. [nite.go]
- Perform deep calibration and necessary alignments, ideally with support from qualified technicians.
- Review control software and apply any recommended updates. [nite.go]
For high‑utilization CNC press brakes running multiple shifts, many plants choose to tighten this schedule or combine it with predictive maintenance based on logged operating hours and tool change data. [ruchengmachinery]
From an industry expert's perspective, the biggest difference between plants that enjoy long press brake lifespans and those that struggle is cultural, not technical. They: [mac-tech]
- Treat maintenance routines as non‑negotiable production steps, not "nice‑to‑have" tasks.

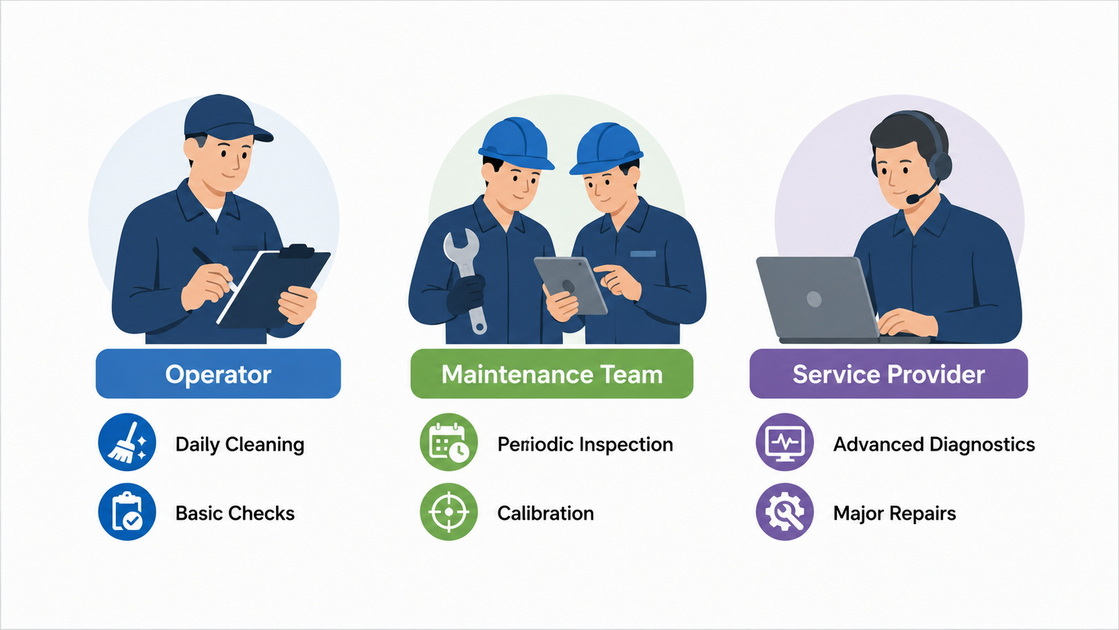

- Assign clear ownership—operators handle daily tasks, maintenance teams manage periodic inspection, and management supports scheduled downtime.
- Track maintenance actions and link them to performance metrics such as scrap rate, unplanned downtime, and average repair cost.
Service providers like Moore Machine Tools illustrate how external technicians can complement internal maintenance when issues exceed on‑site capabilities, especially across multiple brands such as Trumpf, Amada, Accurpress, Bystronic, and Cincinnati. The most effective plants combine robust internal routines with strategic external support. [nite.go]
Several press brake manufacturers and service organizations report that consistent preventive maintenance can reduce total cost of ownership by tens of percent over the machine's lifetime. [cnhawe]
A typical scenario: [mac-tech]
- A plant implements daily cleaning, weekly hydraulic checks, and quarterly oil and filter changes on a 200‑ton CNC press brake.
- Over three years, unplanned breakdowns drop significantly, and angle variation stays within acceptable tolerance.
- Emergency on‑site service calls become rare, replaced by scheduled interventions at lower cost.
Compared with a similar machine under minimal maintenance, the well‑maintained press brake often experiences less wear, fewer leaks, and lower total repair costs—even when accounting for the time spent on preventive routines. [mac-tech]
Even with strong in‑house practices, some issues require specialist diagnostics or major repairs:
- Persistent hydraulic pressure loss or ram misalignment.
- Complex electrical or CNC control faults that generate recurring error codes.
- Structural concerns, such as frame distortion or severe crowning anomalies.
In these cases, partnering with experienced service technicians—like the U.S.‑based team highlighted by Moore Machine Tools—helps minimize downtime and ensures repairs follow OEM‑aligned standards rather than improvised fixes. [mac-tech]
Reading about press brake maintenance is useful; putting it into a structured plan is where you see real savings. Define your schedule, assign responsibilities, and document each action. If your current machine already shows signs of wear, leaks, or drifting accuracy, consider scheduling a professional inspection.
Whether you work with internal technicians or external service providers, the goal is the same: keep your press brake bending accurately, safely, and profitably—for many years, not just a few production cycles. [shenchong]
1. How often should hydraulic oil be changed in a CNC press brake?
Most manufacturers recommend changing hydraulic oil and filters on a quarterly or annual basis, depending on operating hours and environmental conditions. Always follow your machine's manual and check oil condition regularly. [shenchong]
2. What are the first signs that my press brake needs maintenance?
Common early warning signs include inconsistent bend angles, slower ram movement, unusual hydraulic noise, minor leaks, and backgauge position errors. Addressing these symptoms early reduces repair costs and downtime. [thefabricator]
3. Can operators handle all daily maintenance tasks alone?
Operators can manage cleaning, visual checks, basic lubrication, and simple safety verifications. More complex work—such as hydraulic pressure adjustment, electrical diagnostics, and deep calibration—should be handled by maintenance engineers or qualified service technicians. [aclpress]
4. Does preventive maintenance really reduce long‑term costs?
Yes. Industry experience and manufacturer case studies show that plants with structured maintenance routines experience fewer breakdowns, lower emergency service costs, and more stable bending quality over the machine's life. [cnhawe]
5. When should I involve an external press brake service company?
If you face repeated hydraulic issues, complex CNC errors, structural problems, or lack in‑house expertise, it's wise to bring in a specialist service team. They can perform advanced diagnostics, OEM‑aligned repairs, and full machine audits. [mac-tech]
