● What Is a Hybrid Press Brake?
>> Three Questions That Clarify the Architecture
● Hybrid vs Conventional Hydraulic vs All-Electric Press Brakes
● Five Hybrid Press Brake Solutions Worth Evaluating
>> Salvagnini B3: Integrated Adaptive Bending and Automation
>> AMADA HRB: On-Demand Hydraulic Operation
>> CNHAWE HPA: A Configuration-Led Candidate
>> Accurpress Accell H: A Distinct Hybrid Arrangement
>> Cincinnati XFORMe: Servo-Pump Power on Demand
● How the Five Solutions Differ
● Energy Savings: Measure the Whole Production Window
>> Use Energy per Accepted Part
● Tonnage and Geometry: Avoid Oversimplified Selection
>> Check More Than Bending Length
● A Perfect Demonstration Part Can Hide Production Problems
>> Build a Representative Factory Acceptance Test
● Precision Comes From the Complete Bending Process
● Maintenance, Safety, and Service
>> Safeguarding Must Be Evaluated in Context
● Building an OEM or ODM Brief for CNDY-Press
>> 1. Is every electro-hydraulic CNC press brake a hybrid machine?
>> 2. How much electricity can a hybrid press brake save?
>> 3. Does hybrid technology improve bending accuracy automatically?
>> 4. Are hybrid press brakes maintenance-free?
>> 5. What should a factory acceptance test include?

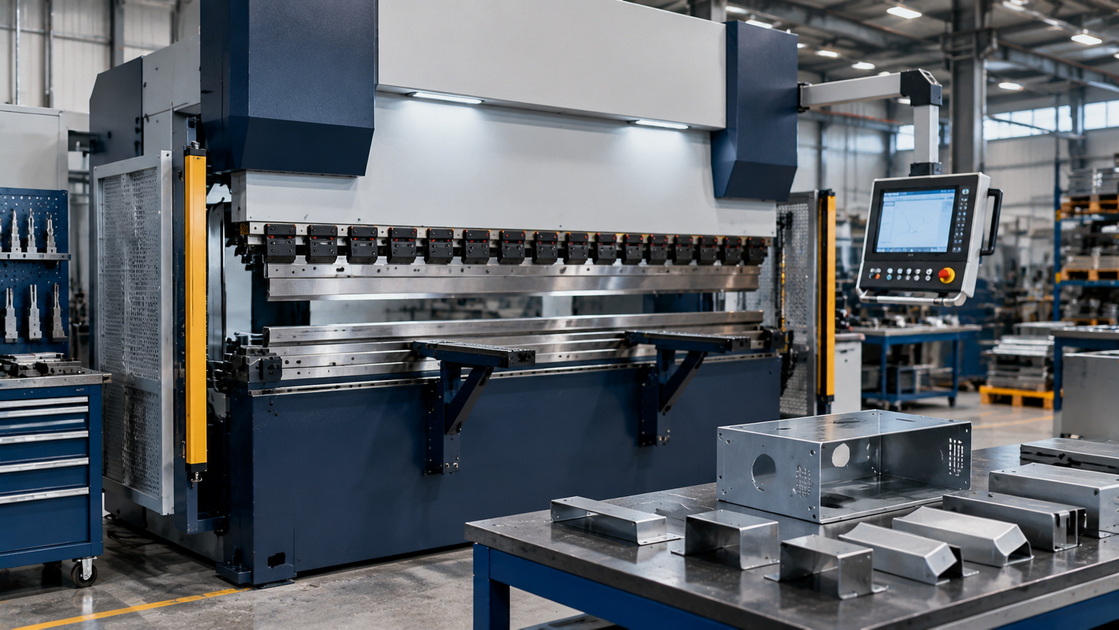

A hybrid press brake combines electric drive technology with hydraulic forming functions, but the term does not describe one standardized machine architecture. Different manufacturers use different arrangements to control ram movement, generate force, and reduce unnecessary energy consumption.
For buyers comparing top hybrid press brake solutions, the important question is not which machine carries the strongest marketing claim. It is which configuration produces your parts consistently, safely, and economically.
My recommendation is to evaluate accepted parts per shift and energy per accepted part—not headline speed, installed motor power, or an isolated savings percentage.
CNDY-Press develops, manufactures, sells, and services CNC press brakes and other sheet metal processing equipment, according to the company information supplied for this article. Its OEM/ODM positioning makes a clear technical brief especially important: customization should begin with production requirements rather than a requested controller brand.
Many hybrid CNC press brakes use electric motors to supply hydraulic power according to demand, reducing losses associated with continuously running conventional systems.
Other machines combine electric and hydraulic functions differently. Some use specialized drive arrangements rather than a conventional motor-pump-reservoir package.
Consequently, buyers should request a functional explanation of the proposed machine.
Ask the supplier:
1. What drives approach, forming, and return movement?
2. Which hydraulic components remain?
3. What continues consuming electricity while the machine is idle?
An electro-hydraulic servo synchronization description alone does not establish an energy-saving servo-pump architecture.
Likewise, a hybrid machine is not automatically oil-free. Fluid capacity, filtration, inspection, and maintenance depend on the actual design.
| Selection factor | Conventional hydraulic | Hybrid | All-electric |
|---|---|---|---|
| Force generation | Hydraulic | Architecture-dependent electric/hydraulic combination | Electromechanical |
| Idle consumption | Depends on pump and control arrangement | Can reduce unnecessary pump operation | Depends on drive and standby functions |
| Hydraulic maintenance | Applicable | Remains where hydraulic circuits are used | No hydraulic forming circuit |
| Capacity | Model-dependent | Model-dependent | Model-dependent |
| Best comparison basis | Representative production duty | Representative production duty | Representative production duty |
| Main purchasing risk | Accepting unnecessary operating losses | Assuming all hybrid designs perform alike | Assuming the drive type alone guarantees suitability |
Avoid universal claims that hybrid machines are always faster, more accurate, or better for thick material.
Compare actual force capacity, usable geometry, tooling limits, duty cycle, and support arrangements.
The following comparison reviews the five solutions discussed in the supplied article. It is not an independently tested ranking.
Salvagnini describes the B3 as combining electric and hydraulic advantages with scalable automation.
Its published Direct Drive description identifies two independent brushless motors and approach and return speeds reaching 250 mm/s on applicable configurations.
Its procurement relevance extends beyond ram movement. Adaptive bending functions, software, and automation can matter when a shop handles changing part mixes.
Evaluate:
- Representative bend sequences.
- Adaptive correction performance.
- Tool setup and part handling.
- Automation compatibility.
- Programming and service requirements.
The maximum approach speed should not be interpreted as forming speed or guaranteed production throughput.
AMADA's European HRB documentation describes a hydraulic system managed by an inverter, with operation adjusted to demand.
Its published claim of at least 20% lower power consumption is explicitly compared with conventional press brakes without an inverter. That baseline matters.
AMADA's American materials also use hybrid terminology, illustrating why regional specifications should be checked rather than combined.
Evaluate:
- The exact regional model.
- Standard and optional crowning.
- Backgauge configuration.
- Tool-changing arrangements.
- Energy performance under your job mix.
Do not assume every HRB configuration has the same options or production origin.
The supplied article describes the CNHAWE HPA series with controller choices, synchronization features, crowning, and alternative motor configurations.
It also makes productivity and energy-saving claims. Those figures are supplier-published assertions without a test report provided in the source article.
Before using them in a purchasing calculation, request:
- The exact machine configuration.
- Baseline comparison machine.
- Materials and part drawings.
- Production and idle durations.
- Metered electricity results.
- Accepted-part quantities.
Controller choice is useful, but a controller brand does not establish the complete machine's accuracy, reliability, or service quality.
Accurpress describes the Accell H as combining hydraulic and servo-drive systems while eliminating a conventional hydraulic pump and large oil reservoir arrangement.
That distinction matters: it should not be assumed to operate identically to every servo-pump hybrid press brake.
Its published range includes machines from 60 to 500 tons, with configuration availability requiring confirmation.
Evaluate:
- How force and ram movement are produced.
- Applicable fluid and maintenance requirements.
- Crowning and material compensation.
- Off-center loading restrictions.
- Regional parts and service coverage.
A "hybrid" label is less informative than an architecture diagram and maintenance schedule.
Cincinnati identifies the XFORMe as the hybrid version of its XFORM platform.
Its official documentation describes dual servo-motor bidirectional pumps operating during the working portion of the stroke, reducing consumption when the ram is idle.
It also describes a low-capacity hydraulic system using a specified alternative fluid—not the elimination of hydraulic maintenance.
Evaluate:
- Expected energy consumption by operating state.
- Fluid specifications and maintenance.
- Actual forming speed.
- Backgauge and programming requirements.
- Support for your production region.
Ask the supplier to distinguish reduced fluid inventory from reduced fluid consumption over time.
| Solution | Published emphasis | What buyers should verify |
|---|---|---|
| Salvagnini B3 | Adaptive bending and scalable automation | Complete cycle time and correction performance |
| AMADA HRB | Inverter-managed hydraulic demand | Regional configuration and comparison baseline |
| CNHAWE HPA | Configurable controls and hydraulic features | Architecture and evidence behind performance claims |
| Accurpress Accell H | Alternative hybrid ram-drive arrangement | Exact mechanism and maintenance responsibilities |
| Cincinnati XFORMe | Bidirectional servo-pump operation | Duty-cycle energy use and fluid requirements |
The most suitable machine may not have the lowest purchase price or highest rapid speed. It should match the shop's actual production constraints.

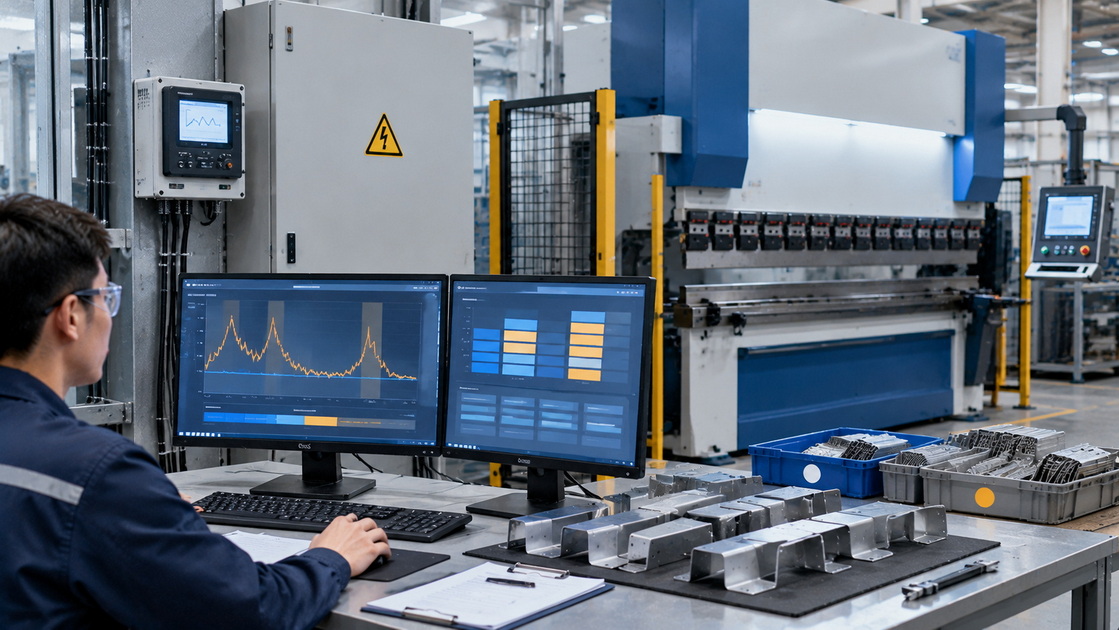

An energy-saving hybrid press brake can reduce unnecessary consumption, especially when the comparison includes substantial idle time.
However, savings depend on the reference machine, workload, settings, and measurement boundary.
A useful metric is:
Energy per accepted part=Metered electricity over the agreed test window/Accepted finished parts
Define whether the measurement includes:
- Warm-up.
- Programming and setup.
- Tool changes.
- Idle periods.
- Cooling equipment.
- Material-handling accessories.
If robot power or compressed air is excluded, state that separately.
Measure representative production rather than repeating one simple bend continuously and treating the result as a factory-wide forecast.
For a given material and air-bending arrangement, required force approximately scales with bend length and the square of thickness, and inversely with die opening.
This relationship can be expressed as:
F∝σLt2/V
Here, σ represents material tensile strength, L bend length, t thickness, and V die opening.
This is a scaling relationship, not a complete purchasing calculation.
Use validated supplier or tooling charts with consistent units and the actual bending method. Check machine, punch, die, clamping, and localized loading limits independently.
Review:
- Distance between uprights.
- Daylight and stroke.
- Throat depth.
- Tool stack height.
- Part rotation and extraction clearance.
- Backgauge travel.
- Flange accessibility.
Throat depth does not, by itself, define maximum flange height or guarantee that a box-shaped part can be completed.

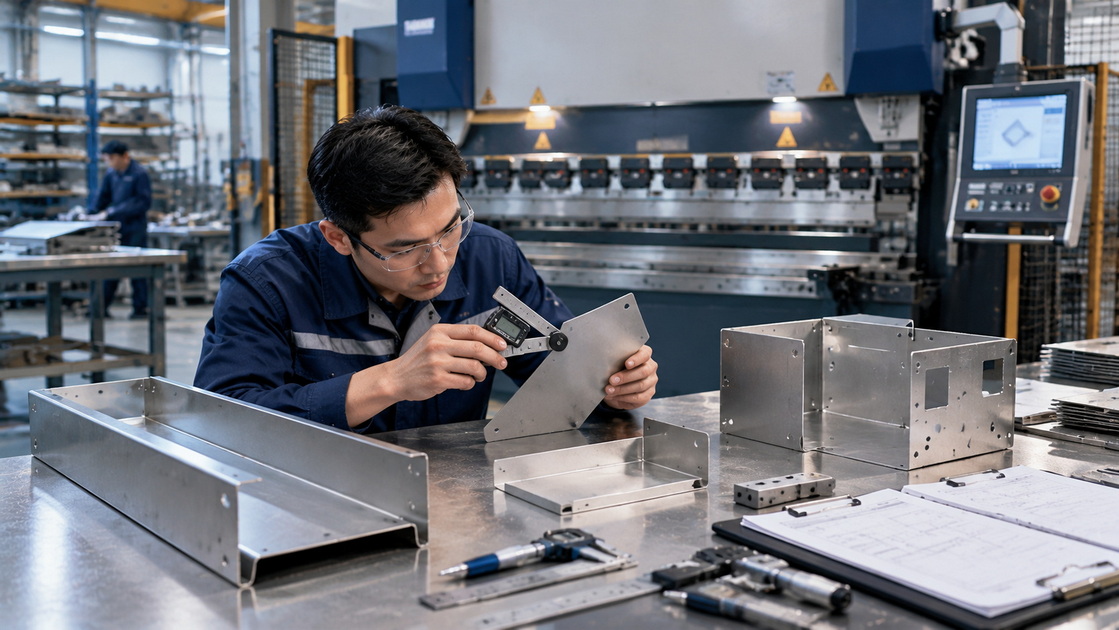

A demonstration using one material batch, one tool setup, and one simple profile may look impressive while revealing little about your work.
The machine may still struggle with mixed materials, short flanges, long parts, or frequent changeovers.
Include:
1. A long part that challenges straightness.
2. A short-flange part.
3. A multi-bend part requiring repositioning.
4. A relevant material or thickness variation.
5. A changeover between different jobs.
Agree on angle, dimensions, appearance, sampling, measurement equipment, and correction rules before testing.
Record setup time separately from automatic cycle time. Also distinguish first-piece acceptance from repeat production.
Ram-position repeatability is not identical to finished-angle accuracy.
Material thickness, tensile strength, springback, tooling condition, alignment, crowning, and handling all affect the result.
Automatic angle measurement can help compensate for variation, but buyers should assess when it operates, which geometries it supports, and whether it affects cycle time.
A claim of "no scrap" or "no corrections" should not replace a written acceptance procedure.
For OEM projects, preserve the tested material specification, tooling, software settings, and machine configuration.
Hybrid technology can reduce some conventional maintenance requirements. It does not remove responsibility for lubrication, electrical inspection, tooling condition, safety devices, and applicable hydraulic systems.
Request a model-specific schedule and recommended spare-parts list.
Press brakes create point-of-operation and other machine hazards.
A laser guarding system or light curtain must be selected, installed, used, and inspected so that it effectively protects personnel. Its presence on a quotation is not sufficient evidence of a safe installation.
Have qualified personnel assess the complete machine, tooling, tasks, access points, and applicable destination requirements.
Never accept productivity demonstrations that depend on bypassed safeguards.
CNDY-Press's supplied background identifies custom manufacturing and OEM/ODM services. It does not establish a particular hybrid model, energy-saving percentage, certification, or guaranteed tolerance.
A useful inquiry should include:
- Material grades and thickness range.
- Representative drawings.
- Maximum bend length.
- Monthly volumes and batch sizes.
- Required part tolerances.
- Existing tooling standards.
- Automation plans.
- Electrical supply and destination.
- Training and service expectations.
Request a configuration-specific proposal covering drive architecture, CNC functions, guarding, tooling, acceptance testing, delivery, installation, and support.
Top hybrid press brake solutions offer different routes to reducing unnecessary energy consumption and improving bending operations.
Their value depends on the complete configuration and its fit with your production—not the hybrid label alone.
Compare representative parts, metered energy, setup time, maintenance, safeguarding, and local support.
No. Synchronization terminology does not fully describe the power architecture. Ask how the pump, motors, cylinders, and idle functions operate.
There is no universal percentage. Savings depend on the baseline machine, duty cycle, configuration, and measurement boundary. Request a representative metered comparison.
No. It can support controlled movement, but tooling, material variation, crowning, measurement, and handling remain important.
No. Maintenance depends on the design and remaining hydraulic components, alongside electrical, mechanical, tooling, and safeguarding requirements.
Use representative production parts, agreed tolerances, documented measurement methods, changeover checks, and a clearly defined energy test where relevant.
1. CNHAWE. [Top Hybrid Press Brake Solutions]. Original article reviewed and restructured. Its rankings, performance percentages, and supplier assertions were not treated as independently verified results. [cnhawe]
2. Salvagnini. [B3 Scalable-Automation Press Brake]. Primary source for Direct Drive descriptions, published movement speeds, adaptive functions, and automation positioning. [salvagninigroup]
3. AMADA Europe. [HRB Press Brake]. Primary source for inverter-managed hydraulic operation and configuration information. [amada]
4. AMADA Europe. [HRB Series]. Source for the manufacturer's power-consumption comparison against conventional machines without an inverter. The claim is not generalized to all hybrid machines. [amada]
5. AMADA America. [Press Brakes]. Source demonstrating regional use of hybrid and servo-hydraulic product terminology. [amada]
6. Accurpress. [Accell H Overview] and [90–500 Ton Models]. Sources for the manufacturer-described architecture, product range, options, and maintenance claims. [accurpress]
7. Cincinnati Incorporated. [XFORM Series Press Brake]. Primary source for XFORMe servo-pump operation, low-capacity hydraulic system, and specified fluid arrangement. [e-ci]
8. Occupational Safety and Health Administration. [Powered Press Brakes]. Official background on machine hazards and safeguarding. [osha]
9. Occupational Safety and Health Administration. [Use of Laser Guarding Systems With Hydraulic Press Brakes]. Supports the requirement to evaluate effective design, installation, use, and inspection rather than assuming a listed device establishes adequate protection. [osha]
