For any modern sheet metal shop, press brake tooling selection often makes the difference between profitable, repeatable bending and frustrating scrap rates. As someone who has spent years working with CNC press brakes on OEM and ODM projects, I've seen that most bending problems are not "machine problems" at all—they're tooling and setup problems. [redcrowmarketing]
In this guide, I'll walk through press brake tooling from an industrial practitioner's perspective: what it is, how it works inside CNC press brakes, how to choose the right punches and dies, and what rules you should never ignore if you want consistent results. Whether you run a high‑mix job shop or a dedicated production line, these principles apply across automotive, construction, HVAC, enclosure fabrication, and many other sectors. [bigmarketing]
Press brake tooling refers to the punches and dies that actually contact the sheet metal to create the bend. Tooling is not built into the press brake; it is a swappable interface that lets one machine handle many different jobs, materials, and bend geometries. [bigmarketing]
From a CNC operator's point of view, good tooling turns your press brake into a flexible forming cell:
- It defines the maximum and minimum bend angles and radii you can achieve. [bigmarketing]
- It decides how close you can bend to holes, cutouts, and edges without deformation. [bigmarketing]
- It largely determines your achievable tolerances and long‑term repeatability. [bigmarketing]
When we design CNC press brakes and full bending lines at CNDY‑Press, we always treat tooling as part of the system—not as an afterthought accessory. [gushwork]
A modern CNC press brake is more than a ram and table. A complete tooling system includes several coordinated components. [bigmarketing]
The punch mounts on the ram and applies force to the sheet. Choosing the wrong punch is one of the fastest ways to cause poor bends, marking, or even tool failure. [bigmarketing]

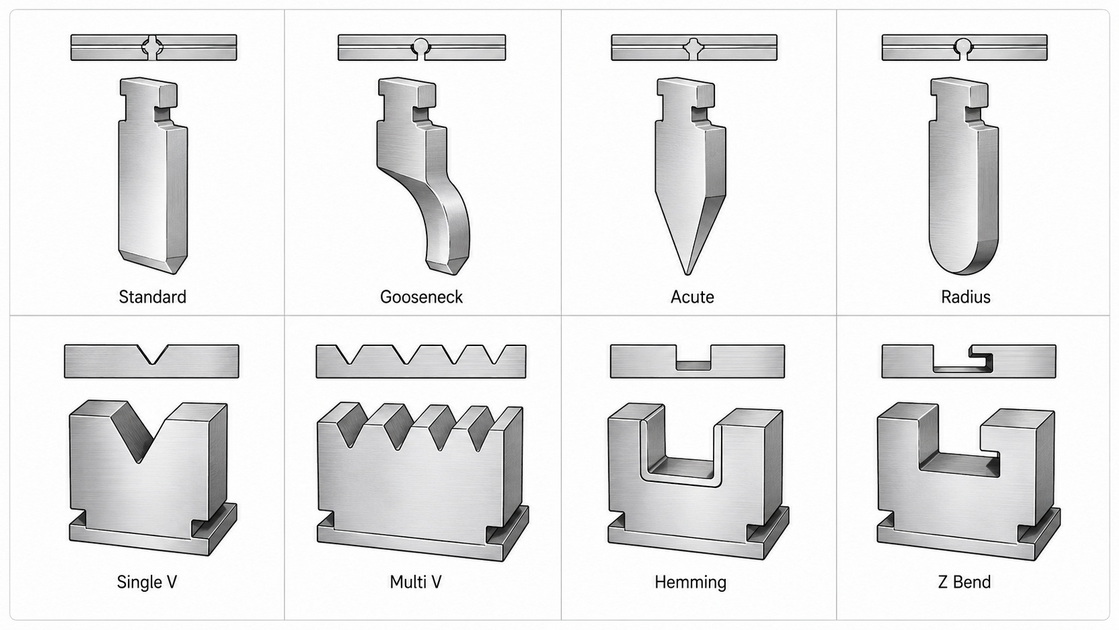

Common punch types include: [bigmarketing]
- Standard punch – Thick body, narrow tip, suitable for high tonnage and bending thicker materials. Its geometry allows shorter flanges while keeping strength. [bigmarketing]
- Acute angle punch – Designed for very sharp angles, typically 30° or below, but can also handle larger angles like 60° in air bending. [bigmarketing]
- Narrow (sword) punch – Slim profile used in tight clearances, for example completing box profiles or closing channels where larger punches collide with the part. [bigmarketing]
- Sash punch – Very narrow body with a tip angled toward the inside of the press brake; often used for door jambs and window sashes where you must bend around profiles. [bigmarketing]
- Swan neck / gooseneck punch – Special profile that avoids collision with already‑formed flanges when creating U profiles or return bends. Because of the unsupported geometry, these punches tolerate lower tonnage compared with standard punches. [bigmarketing]
- Joggle punch – Niche tool used to create offset S‑shaped bends in one sequence, common in doors, panels, and overlapping joints. [bigmarketing]
- Radius top punch – Rounded tip for U‑shaped bends and larger radii, often paired with U‑shaped dies to prevent cracking on brittle or high‑strength materials. [bigmarketing]
The die supports the sheet and absorbs the majority of the forming force. It defines the V opening, bend radius, and the line of force. [bigmarketing]
Key die types: [bigmarketing]
- Single V die – The workhorse of press brake tooling. Selection typically follows the "rule of 8": V opening ≈ 8 × material thickness in many mild‑steel applications. [bigmarketing]
- Two‑way self‑centring V dies – Two parallel V openings in one body, allowing fast change between sizes without retooling. [bigmarketing]
- Multi V die – Several V openings around the die body. Operators can rotate the die to switch between V sizes, useful for high‑mix production. [bigmarketing]
- Corrugating dies – Dies with corrugated bottoms to imprint patterns on the outer surface, used for specific architectural or functional designs. [bigmarketing]
- Flattening and hemming dies – Used to first create an acute bend, then flatten it for hems in a two‑step sequence. [bigmarketing]
- Channel forming dies – Produce U channels in a single stroke that might otherwise demand two or more passes with standard V tooling. [bigmarketing]
Beyond punches and dies, several other elements heavily influence bending quality: [bigmarketing]
- Tool holder / clamping system – Aligns and locks punches and dies. Modern quick‑change holders cut setup time and reduce vibration, which improves accuracy. [gushwork]
- Backgauge – Positions the sheet precisely along the X‑axis using fingers and stops; essential for repeatable flange lengths. [bigmarketing]
- Crowning system – Mechanical or hydraulic system that compensates for ram and bed deflection, especially on long bends. Without proper crowning, you'll see "smiling" bends with inconsistent angles along the length. [bigmarketing]
Safety is a critical part of any CNC press brake tooling system: [bigmarketing]
- Laser sentry systems create a laser field around the die and immediately stop motion if interrupted. [bigmarketing]
- Light curtains provide presence detection without complex setups and are widely used in production environments. [bigmarketing]
- Side and rear guards block uncontrolled access to the tooling area and moving backgauge components. [bigmarketing]
- Two‑hand control forces the operator to start the cycle with both hands away from the die opening, trading a bit of speed for safety. [bigmarketing]
Press brake tooling is typically made from special‑grade steels such as Yasuki steel, molybdenum tool steel, or alloy grades like T8, T10, 42CrMo, and Cr12MoV. High strength and toughness are essential because the punch and die endure repeated high tonnage loads. [bigmarketing]
- A common hardness for quality tooling is around 45 HRC on the Rockwell scale. [bigmarketing]
- This is significantly harder than typical stainless steels used in fabrication, which are often closer to 28 HRC. [bigmarketing]
Chromium‑molybdenum steel (Chromoly) is widely considered an optimal choice thanks to its strength and corrosion resistance. Tungsten carbide inserts or carbide tooling can deliver a very long service life in high‑volume environments, though at a higher upfront cost. [bigmarketing]
The key point: hardness is about wear resistance, not tonnage capacity. A harder tool surface resists dents and scratches, which would otherwise cause surface defects and premature failure, but you still must respect the rated load of the tool. [bigmarketing]
In CNC press brake projects—especially for global OEM/ODM work—you'll encounter several tooling styles that are not interchangeable. [bigmarketing]
- Traditional style popular in North America. [bigmarketing]
- Characterized by a tang around 0.50 inch wide and a relatively simple clamping interface. [bigmarketing]
- Generally lower cost but more sensitive to precision loss over repeated re‑clamping and swapping. [bigmarketing]
- Uses a 13 mm wide tang and a rectangular side groove that allows higher clamping pressure and safer seating. [bigmarketing]
- Frequently used on CNC press brakes where fast setup, precision, and modularity are priorities. [bigmarketing]
- Better suited for high‑mix, high‑precision industrial fabrication where repeatability is essential. [bigmarketing]
- Broad 20 mm tang with grooves on both front and rear surfaces. [bigmarketing]
- Supports automatic or hydraulic clamping, self‑seating, and very fast changeovers. [bigmarketing]
- Often used in advanced bending cells and automated lines, especially when pairing with robotic loading systems for lights‑out production. [gushwork]
From an equipment selection perspective, the style you choose will lock you into a tooling ecosystem, so it's important to consider long‑term availability, OEM support, and compatibility with global suppliers. [redcrowmarketing]
To match your bending tasks to the right tools, it helps to think in terms of bend shape, angle, and production volume. [bigmarketing]
Typical tooling combinations include: [bigmarketing]
- Standard punch and V die – General‑purpose solution for air bending, covering a wide range of angles and thicknesses. [bigmarketing]
- Radius tooling sets – Rounded punches (and sometimes dies) to achieve larger bend radii, protecting coated or high‑strength materials from cracking. [bigmarketing]
- Gooseneck punches – For channels and return bends where straight punches would collide with an existing flange. [bigmarketing]
- Sharp bend tooling (knife punches) – Punch/die combinations with tip angles of 30° or less for tight inside angles. [bigmarketing]
- Flattening and hemming sets – Two‑step tooling for hems, common in enclosures, doors, and panels. [bigmarketing]
- Z‑bend tooling – Specialized punch/die sets that create a Z bend in a single pass, dramatically improving cycle times on high‑volume runs. [bigmarketing]
From a manufacturing engineer's standpoint, tooling is a high‑leverage decision. The wrong tool can cause: [redcrowmarketing]
- Cracked or inconsistent bends
- Over‑tonnage and premature tool breakage
- Damage to the press brake itself
- Higher scrap rates and rework
Tooling selection directly impacts part accuracy, especially in air bending where the punch angle and die opening define the final bend angle. A properly selected backgauge, crowning, and tooling combination is often the fastest path to tighter tolerances without upgrading the entire machine. [gushwork]
When we advise customers or configure CNC press brake packages, we use a structured, application‑driven approach. [redcrowmarketing]
Different materials behave very differently under bending load: [bigmarketing]
- High‑strength steels and hard stainless grades require larger bend radii and higher‑quality tooling to avoid cracking. [bigmarketing]
- Softer materials allow tighter radii but can mark more easily if the tooling surfaces are not properly finished. [bigmarketing]
For demanding materials, it's often worth investing in premium tool steel or carbide‑tipped tools because they resist wear and maintain edge integrity longer. [bigmarketing]
Thickness defines several key parameters: [bigmarketing]

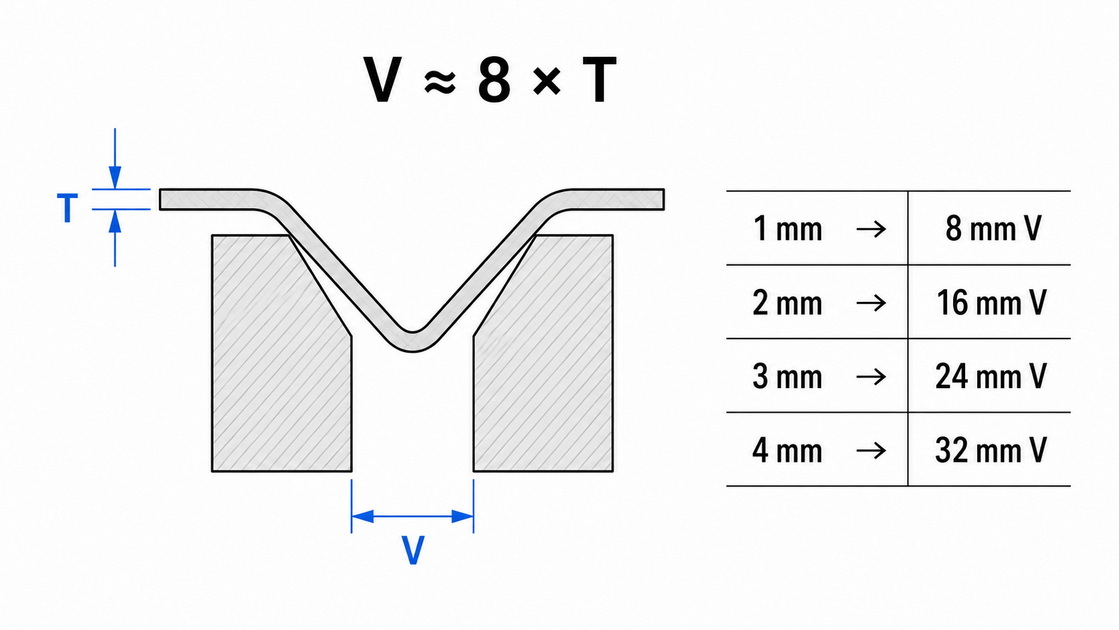

- Recommended V opening, often approximated by the rule of 8 (V ≈ 8 × T) for mild steel. [bigmarketing]
- Achievable bend radius and angle; thicker materials favor larger radii and shallower angles. [bigmarketing]
Using an overly small die for thick material will force you to apply more tonnage, increasing both risk and wear. [bigmarketing]
The minimum flange length is typically around 8 × material thickness when using standard tooling. If the flange is shorter than this, it may drop into the V opening and distort. Long flanges may require specialized punches and dies to avoid collision with the ram or guards. [bigmarketing]
Ask three questions for every bend: [bigmarketing]
1. What angle do I need (sharp, obtuse, or variable)?
2. What inside radius is acceptable or required for strength/appearance?
3. What bend shape (U, Z, channel, hem, offset) is needed?
With clear answers, you can narrow down to the correct punch geometry and die profile rather than trying to force a standard punch/die into a job they are not designed for. [bigmarketing]
Different tools suit different bending methods: [bigmarketing]
- Air bending – Most flexible and commonly used; standard V dies and punches are sufficient in many cases. [bigmarketing]
- Bottoming – Requires carefully matched punch and die angles to ensure consistent angle under the material thickness and springback conditions. [bigmarketing]
- Coining – Highest tonnage and tightest radii; only use tooling specifically rated and designed for coining operations. [bigmarketing]
When you balance tooling cost versus performance, look beyond list price: [redcrowmarketing]
- Production volume – High‑volume parts justify special tools like Z‑bend or channel dies that cut passes and setups. [bigmarketing]
- Tool life and maintenance – Higher‑grade tools often reduce downtime and quality issues over the machine's life. [bigmarketing]
- Brand and support – Reputable tooling brands typically provide better engineering data, tighter tolerances, and more consistent heat treatment. [bigmarketing]
For engineers and programmers, a few basic calculations guide safe and efficient bending: [bigmarketing]
- K‑factor – A material property representing how the neutral axis shifts during bending; typically found in reference charts and used in flat‑pattern development. [bigmarketing]
- Bending force – Approximate required force: F=K×W×T×UTS, where W is bend width, T is thickness, and UTS is ultimate tensile strength. [bigmarketing]
- Minimum flange length – Often approximated as 8 × T for standard V dies in many applications. [bigmarketing]
- Inside bend radius – Can be estimated as: Internal radius ≈ Die width – (T / 2) for certain setups. [bigmarketing]
These formulas give a solid starting point, but real‑world fine‑tuning should be guided by test bends and your CNC press brake's specific characteristics. [bigmarketing]

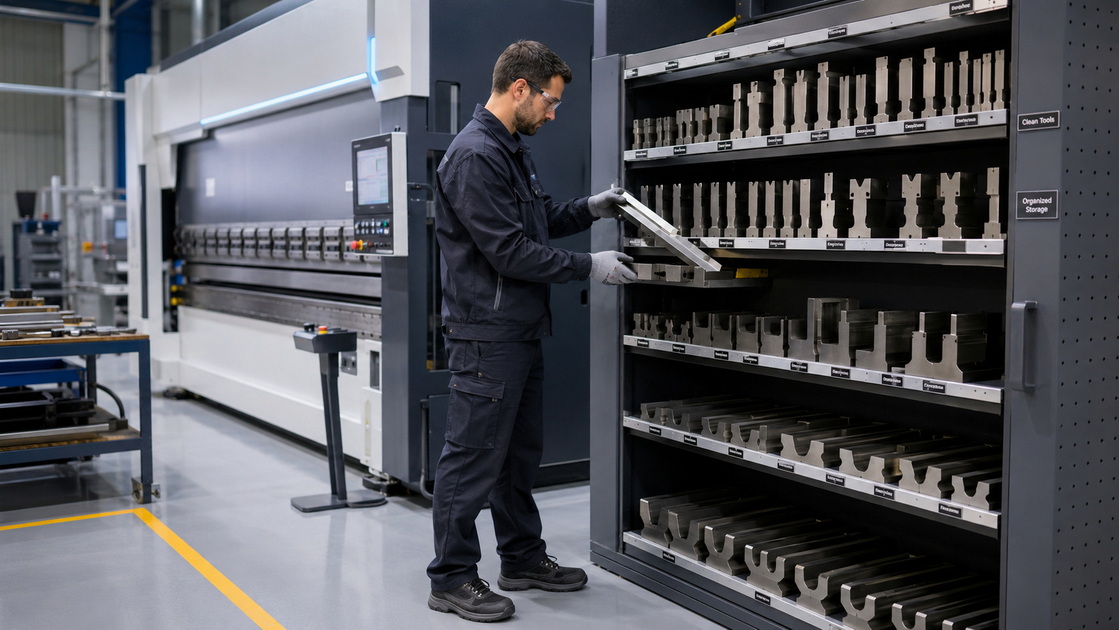

In field audits, we often see expensive tooling underperforming simply because of poor maintenance practices. [bigmarketing]
Best practices include: [bigmarketing]
- Daily cleaning – Remove grease, chips, and debris from punches and dies at the end of each shift to prevent accelerated wear and corrosion. [bigmarketing]
- Regular sharpening and reconditioning – Dull edges increase forming force and degrade precision; follow the manufacturer's recommended resharpening intervals. [bigmarketing]
- Correct lubrication – Use recommended lubricants to reduce friction and galling between workpiece and tooling. [bigmarketing]
- Operating within rated limits – Never exceed the tool's specified tonnage per meter; ignoring this can cause catastrophic failure that may also damage the press brake. [bigmarketing]
- Controlled storage environment – Store tooling in dry, clean environments, ideally in a dedicated tooling cabinet near the machine to maintain order and protect edges. [bigmarketing]
For customers building new bending cells with us, we almost always recommend investing in organized, illuminated tool cabinets because they shorten setup times and reduce handling damage. [gushwork]
Global manufacturers today often need more than a single tool—they need complete press brake solutions tailored to their products. As a CNC press brake and sheet‑metal equipment manufacturer, CNDY‑Press works with customers in OEM and ODM projects to specify: [redcrowmarketing]
- Compatible tooling styles (American, European, Wila/Trumpf)
- Punch/die packages aligned with standard product families
- Custom punches and dies for difficult or proprietary profiles
- Integrated tool storage and quick‑change systems
Platforms such as Accurl provide a useful reference for the breadth of press brake tooling options and storage solutions available in the market. If you're planning a new CNC press brake line or upgrading tooling packages, working with a machine builder that understands both equipment and tooling in one system can significantly reduce trial‑and‑error on the shop floor. [chinese.alibaba]
To illustrate how these principles work in practice, consider a fabrication shop handling mild steel, stainless, and aluminum parts for equipment housings and structural brackets. [redcrowmarketing]
A robust starter tooling package might include: [bigmarketing]
- Standard punches and a range of single V dies sized with the rule of 8 for core bending work.
- A gooseneck punch to form channels and parts with return flanges without collisions.
- A radius punch and matching die for aluminum and high‑strength stainless components requiring larger radii.
- A flattening/hemming set for door panels and enclosures requiring closed hems.
- A multi V die to speed changeovers across 2–3 common thicknesses.
Combined with a CNC backgauge and hydraulic crowning, this setup can cover a large percentage of daily work while keeping setups and tool changes manageable. [gushwork]
If you are planning a new CNC press brake installation or optimizing an existing line, now is the time to standardize your tooling strategy. Define your key materials, thickness ranges, bend geometries, and production volumes, then work backward to a tooling set and clamping system that matches your reality—not just a general catalog list. [gushwork]
For OEM and ODM customers, CNDY‑Press can help evaluate your parts, recommend a complete press brake tooling package, and configure compatible CNC press brakes, backgauges, and crowning systems around your real production needs. Reach out with a few representative drawings and material specs to start a practical, data‑driven tooling proposal. [redcrowmarketing]
1. How do I know if my existing press brake tooling is still safe to use?
Inspect tools for visible cracks, chipping, or heavy indentation, and compare actual tonnage per meter against the manufacturer's rating. If you see rapid wear, increasing burrs, or inconsistent angles, it's time to resharpen or replace. [bigmarketing]
2. Can I mix American‑style tooling with European precision tooling on the same press brake?
Generally no—each style uses different tangs and clamping interfaces. Some machines accept adapters, but you must confirm compatibility and respect each tool's load rating. [bigmarketing]
3. Why are my bends inconsistent across the length of the part?
Common causes include insufficient crowning, worn tooling, and uneven material thickness. Proper crowning and a checked backgauge often resolve "smiling" or "saddled" bends along long parts. [bigmarketing]
4. How often should press brake tooling be resharpened?
Intervals depend on material type, tonnage, and production volume, but regular inspection and measurement of edge condition are key. Many manufacturers provide recommended cycles or wear limits for resharpening. [redcrowmarketing]
5. What's the advantage of Z‑bend tooling compared with standard V tooling?
Dedicated Z‑bend tools form a Z profile in a single pass, reducing handling and setup time. In high‑volume production, this can significantly cut cycle times and improve consistency. [bigmarketing]
