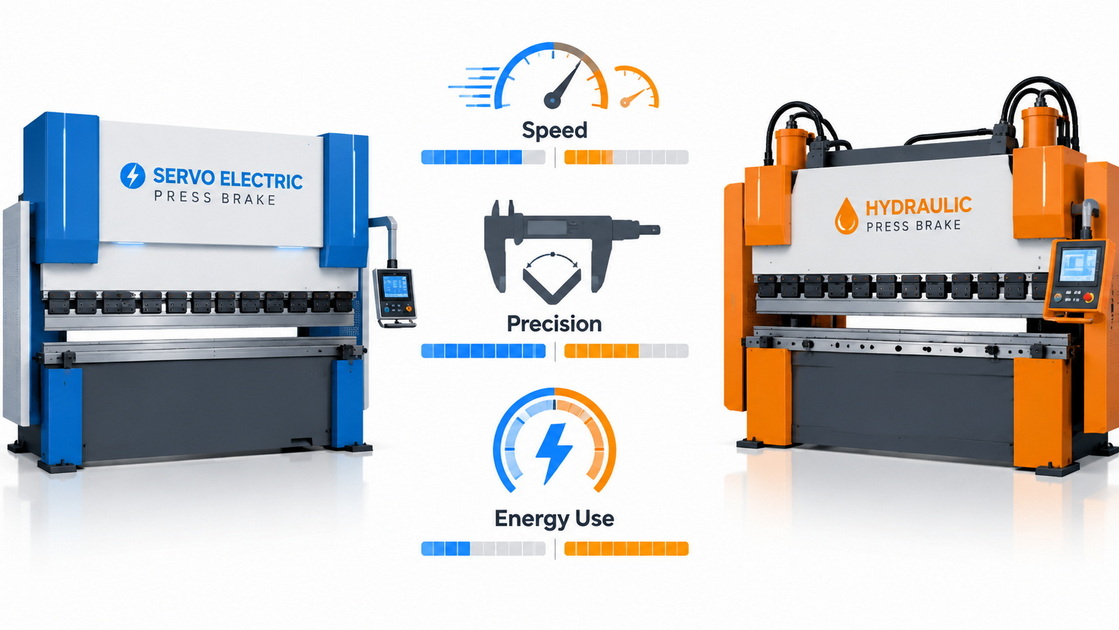

● Servo Press Brake vs Hydraulic Press Brake: Quick Comparison
● Speed Comparison: Where Servo Press Brakes Gain an Advantage
>> Why Faster Motion Does Not Always Mean Faster Production
● Precision and Repeatability: The Full Bending System Matters
>> Accuracy Depends on More Than the Drive Type
>> Expert Insight: Measure the Part, Not Just the Ram
● Energy Use: Why Servo Electric Press Brakes Often Consume Less Power
>> A Better Way to Compare Electricity Cost
>> Hybrid Servo-Hydraulic Press Brakes
● Hydraulic Press Brake Advantages That Still Matter
● Which Press Brake Is Right for Your Application?
● A Practical OEM and ODM Selection Checklist
● Choose the Machine That Matches Your Parts
>> 1. Is a servo press brake more accurate than a hydraulic press brake?
>> 2. Is a servo electric press brake faster than a hydraulic press brake?
>> 3. How much energy can a servo press brake save?
>> 4. Are hydraulic press brakes still worth buying?
>> 5. What is a hybrid servo-hydraulic press brake?

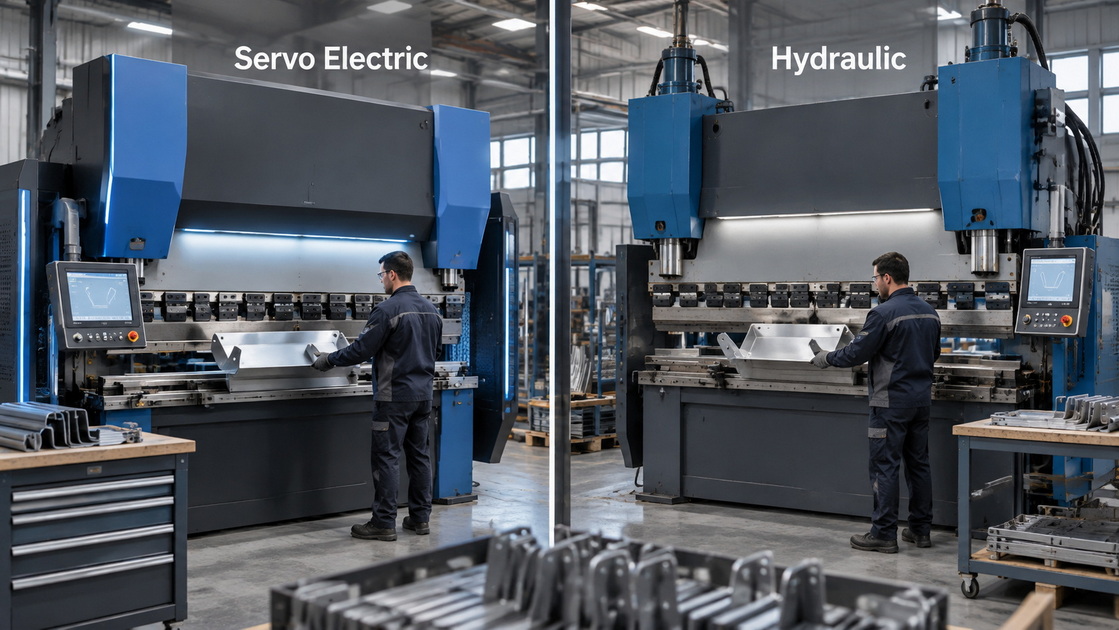

Choosing between a servo press brake and a hydraulic press brake is no longer just a question of machine price or maximum tonnage. For today's sheet-metal fabricators, the decision affects throughput, bend consistency, electricity cost, maintenance planning, operator experience, and the ability to win precision OEM and ODM projects.
At CNDY-Press, we work with manufacturers that process everything from thin, high-value stainless-steel enclosures to heavy structural plate components. In real production environments, the "best" press brake is rarely the machine with the most impressive single specification. It is the machine whose force, stroke, control system, speed, energy profile, tooling compatibility, and automation options fit the parts you produce most often.
This guide compares servo electric press brakes and hydraulic CNC press brakes across the three factors buyers ask about most: speed, precision, and energy use. It also explains where hydraulic systems remain the stronger commercial choice, how to evaluate total cost of ownership, and how to select the right architecture for an OEM or customized sheet-metal production line.
A hydraulic press brake drives its ram with hydraulic cylinders. An electric motor powers a pump, which pressurizes hydraulic oil and moves the ram through the bending cycle. This architecture has been a core technology in metal fabrication for decades because it provides high force, stable performance, and broad suitability for thick plate and long-bed bending.
A servo press brake, often called a servo electric press brake, uses servo motors and mechanical transmission systems—such as belt, pulley, ball screw, or direct-drive mechanisms—to control ram movement. Instead of relying primarily on continuously pressurized hydraulic oil, it converts electrical energy into tightly controlled mechanical motion.
The core difference is simple:
- A hydraulic press brake generates bending motion through fluid pressure
- A servo electric press brake generates bending motion through electronically controlled motor movement
- A servo-hydraulic or hybrid press brake combines elements of both systems, using servo-controlled pumps to improve the efficiency of a hydraulic circuit
This article focuses on the comparison between fully servo-driven electric machines and conventional hydraulic press brakes. However, hybrid servo-hydraulic systems can be a practical middle option for factories that need hydraulic force capability with lower energy consumption.
| Comparison Factor | Servo Electric Press Brake | Hydraulic Press Brake | What It Means for Buyers |
|---|---|---|---|
| Drive system | Servo motors and mechanical transmission | Hydraulic pump, oil circuit, cylinders | Different force generation and maintenance requirements |
| Response speed | Fast start, stop, and direction changes | Dependent on fluid flow and pressure response | Servo systems often benefit short-stroke and frequent-repositioning work |
| Position control | Direct electronic motion control | CNC-controlled hydraulic ram movement | Both can be accurate; servo systems typically offer stronger motion responsiveness |
| Repeatability | Excellent for high-volume, precision bends | Strong with high-quality CNC, feedback, and maintenance | Setup, tooling, material variation, and crowning still matter |
| Energy use | Power is primarily consumed during motion | Traditional systems may consume energy while maintaining hydraulic readiness | Servo systems can reduce idle-energy losses |
| Noise and heat | Generally lower noise and less heat generation | Higher heat and noise potential from pump operation | Affects shop comfort and cooling demand |
| Tonnage suitability | Commonly best for light to medium-duty applications | Especially suitable for high-tonnage and long-bed applications | Hydraulic remains highly competitive for thick plate |
| Oil and leakage risk | No main hydraulic oil system in a fully electric design | Requires hydraulic oil, filters, seals, and leak management | Important for clean manufacturing environments |
| Initial investment | Often higher for comparable capability | Often more economical at high tonnage | Evaluate lifecycle cost, not purchase price alone |
| Maintenance focus | Motors, transmission components, controls | Oil, seals, valves, filters, pumps, cylinders, and controls | Match maintenance resources to the machine architecture |
The exact result will vary by model, tooling, material, operator practice, workpiece geometry, and production schedule. Buyers should compare equivalent tonnage, bending length, tooling package, backgauge configuration, and actual part cycle—not only brochure specifications.
Speed is often misunderstood in press brake selection. A machine's stated ram speed does not automatically equal higher completed-part output. True productivity depends on the full cycle:
Total part time=loading+backgauge positioning+ram movement+bending+unloading+setup
A servo electric press brake can be highly productive because servo motors accelerate, decelerate, and reverse quickly. They do not need to wait for hydraulic oil to build pressure in the same way as a conventional hydraulic system. This can make a meaningful difference when parts require:
- Short bending strokes
- Frequent ram reversals
- Many small bends per component
- High-volume thin-sheet production
- Repeated backgauge repositioning
- Tight synchronization with robotic or automated material handling
Industry reporting notes that servo-driven systems use closed-loop control to monitor and manage position and speed in real time. This allows parameters such as approach speed, bending speed, dwell time, and return movement to be programmed precisely for each job.
A hydraulic CNC press brake can still be extremely productive, especially when the job requires high force, long strokes, deep-box forming, large sheet handling, or complex multi-stage forming. For heavy fabrication, the ability to apply stable tonnage across the required stroke can matter more than rapid acceleration.
In our experience supporting customized production projects, the biggest productivity gains often come from optimizing the full workflow rather than simply selecting the fastest ram:
1. Use tooling that reduces repositioning and part handling.
2. Select a backgauge system with enough axes for the part family.
3. Use offline programming for repeat jobs and complex parts.
4. Apply crowning correctly to control bend-angle consistency over long parts.
5. Evaluate automation when loading and unloading, not bending, is the actual bottleneck.
High-speed electric and servo-hydraulic systems can substantially improve bends per hour in appropriate applications, but the gain depends on the part mix and surrounding production process.

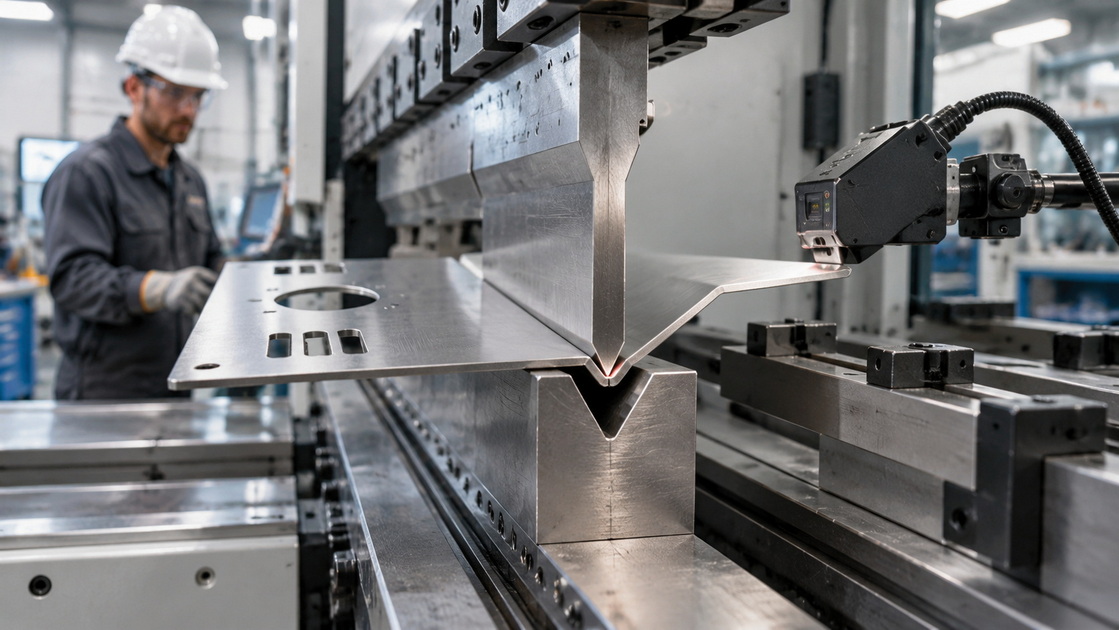

For precision sheet-metal work, buyers often ask, "Which machine is more accurate?" The professional answer is: machine architecture matters, but it is only one part of bend accuracy.
Servo electric press brakes have a natural advantage in highly responsive position control. Their closed-loop motor architecture can precisely manage ram movement, speed transitions, and programmed bend sequences. This is especially valuable for thin stainless steel, aluminum, galvanized sheet, electrical enclosures, HVAC parts, appliance components, medical equipment panels, and other products where cosmetic quality and dimensional consistency are important.
Hydraulic CNC press brakes can also deliver excellent results. Modern machines use CNC controls, linear encoders, synchronized cylinders, calibrated backgauges, and crowning systems to maintain bending performance. However, hydraulic behavior can be influenced by oil temperature, seal condition, fluid quality, pressure stability, and valve response. These variables make preventive maintenance and calibration especially important over long production runs.
A servo press brake does not automatically guarantee a perfect bend angle. Likewise, a hydraulic machine is not automatically inaccurate. The final result depends on the complete bending system:
| Accuracy Factor | Why It Matters |
|---|---|
| Material thickness | A small thickness change affects bend angle and required force |
| Tensile strength | Different steel batches may spring back differently |
| Grain direction | Bending parallel or perpendicular to grain can change results |
| Tooling condition | Worn punches or dies reduce repeatability |
| V-die opening | Incorrect die selection can cause angle variation, marking, or cracking |
| Ram synchronization | Essential for stable bending across the full length |
| Crowning | Compensates for frame and ram deflection during long bends |
| Backgauge quality | Directly affects flange dimensions and repeat positioning |
| Operator setup | Tool alignment, part support, programming, and inspection remain critical |
| Angle measurement | Laser or in-process angle systems can reduce first-part correction time |
A useful practical standard is to separate machine positioning accuracy from finished-part bend-angle accuracy. A machine may position very precisely, but the finished angle can still vary when material properties change.
For OEM buyers, the most reliable evaluation method is to provide representative material samples and request a bending trial. Do not assess a press brake solely by its nominal positioning specification.
Ask the supplier to demonstrate:
- A repeated bend test using your production material
- Flange-dimension consistency across a batch
- Long-part bending with crowning enabled
- Angle repeatability after machine warm-up
- Results with your intended punch and die configuration
- Performance for the smallest and largest parts in your product family
This approach produces more meaningful purchasing data than comparing isolated catalog numbers.
Energy use is one of the clearest differences between servo electric and traditional hydraulic press brakes.
A conventional hydraulic press brake may keep the hydraulic pump operating to maintain system readiness, even when the ram is not actively bending. During loading, unloading, inspection, programming, or operator pauses, this can create idle-energy consumption and heat generation.
A servo electric press brake primarily draws substantial power when the motor is moving the ram. When the ram is stationary, power demand can drop significantly. This "power on demand" behavior is particularly beneficial in job-shop and mixed-production environments where operators handle parts between bends.
TRUMPF states that its on-demand servo-drive technology can save up to 42% in energy compared with traditional hydraulics, while Bystronic reports energy reductions of up to 60% for certain servo-equipped configurations compared with conventional hydraulic press brakes. These are manufacturer-specific claims, not universal results; actual savings depend on machine configuration, part geometry, tonnage demand, idle time, and shift utilization.
Avoid comparing machines only by motor nameplate power. Instead, measure energy in relation to production output.
Use this calculation:
For a more useful comparison, track:
- kWh per accepted part
- kWh per bend
- kWh per production shift
- Idle-time power draw
- Reject and rework rates
- Heat generated near the machine
- Maintenance-related downtime
- Total parts produced per labor hour
For example, a hydraulic machine may show a higher hourly electricity load, but it may still be the better economic choice if it completes heavy, high-tonnage parts that a smaller servo electric press brake cannot produce. Conversely, an electric machine may cost more initially but lower operating cost for a high-volume thin-sheet enclosure program with significant idle and handling time.
A hybrid servo-hydraulic press brake is worth considering when you need hydraulic force characteristics but want lower energy use than a conventional hydraulic design. In these systems, servo motors control the hydraulic pump according to demand instead of running continuously at full output.
This architecture can reduce energy consumption, noise, and heat while maintaining hydraulic forming capability. It is often a strong option for manufacturers that process a mixture of medium-thickness material, variable part sizes, and recurring high-precision work.
Despite the growing interest in electric technology, hydraulic press brakes remain essential for many fabricators. They should not be viewed as outdated by default.
A hydraulic press brake can be the better choice when your operation needs:
- High tonnage for thick plate or high-strength material
- Long bending length for large panels, structural components, and fabricated frames
- Deep stroke capability for tall boxes, channels, and complex formed parts
- Broad material flexibility across varied thicknesses and job types
- Competitive initial investment for high-force capacity
- Proven serviceability with technicians experienced in hydraulic systems
- Custom configurations for demanding production environments
Hydraulic press brakes are especially effective in heavy machinery, construction equipment, transportation structures, agricultural equipment, power cabinets, large HVAC components, and industrial fabrication projects.
The right conclusion is not "servo is always better." The right conclusion is that servo electric and hydraulic press brakes serve different production priorities.
Use the following decision guide as a starting point.
| Your Main Requirement | Recommended Direction | Reason |
|---|---|---|
| Thin sheet, small precision parts, high quantities | Servo electric press brake | Fast response, low idle energy use, strong repeatability potential |
| Cosmetic stainless steel or aluminum enclosures | Servo electric press brake | Responsive positioning and clean, oil-free main drive architecture |
| Heavy plate, high force, long bending length | Hydraulic press brake | Strong tonnage capability and suitability for demanding forming work |
| Mixed materials and varied job sizes | Hydraulic or hybrid servo-hydraulic | Flexible force capability with potential efficiency improvements |
| Energy-cost reduction with hydraulic performance | Hybrid servo-hydraulic press brake | Demand-based pump control can reduce power and heat |
| Large OEM production line with automation | Application-specific engineering review | Automation, tooling, material flow, and cycle balance may matter more than drive type |
| Limited maintenance capability for oil systems | Servo electric press brake | Eliminates much of the hydraulic oil, filter, and leakage management workload |
Before purchasing a CNC press brake, define your actual production requirement in detail. For CNDY-Press OEM and ODM projects, we recommend buyers prepare the following information before machine configuration:
1. Material type and maximum thickness
Include mild steel, stainless steel, aluminum, copper, galvanized steel, and high-strength materials.
2. Maximum sheet length and part geometry
Identify the longest bend, deepest box, narrowest flange, and most complex profile.
3. Required tonnage and tooling plan
Calculate force using the real material and V-die opening, then include an appropriate engineering safety margin.
4. Tolerance requirements
Clarify bend-angle tolerance, flange-dimension tolerance, cosmetic requirements, and repeatability expectations.
5. Daily production volume
Separate prototype, low-volume, mixed-batch, and high-volume production requirements.
6. Required backgauge axes and crowning
Complex parts may need multi-axis backgauges, CNC crowning, sheet followers, front supports, or robotic integration.
7. Available factory utilities
Confirm electrical supply, floor space, foundation requirements, logistics access, and environmental conditions.
8. Operator and service resources
Consider training, preventive maintenance capability, spare-parts planning, and remote technical support needs.
A servo press brake is usually the stronger choice when your priority is fast response, thin-sheet precision, low idle-energy consumption, lower noise, and efficient production of repeatable parts. It is especially attractive for enclosure manufacturing, electrical cabinets, appliance components, electronics housings, and other high-value sheet-metal products.
A hydraulic press brake remains the practical choice when your production depends on high tonnage, long-bed capacity, deeper strokes, thick materials, and broad forming flexibility. For heavy fabrication, its force capability and established service model can outweigh its higher potential energy use.
For manufacturers with mixed production requirements, a hybrid servo-hydraulic press brake may provide the most balanced solution: hydraulic power where needed, plus more responsive and energy-conscious pump control.
The most reliable decision comes from a real sample test. Send your drawings, material specifications, thickness range, tolerance requirements, and target output to CNDY-Press. Our engineering team can help evaluate whether a servo electric, hydraulic, or customized hybrid press brake configuration is the better fit for your OEM or ODM production goals.
A servo electric press brake often provides highly responsive position control and strong repeatability potential, especially for thin-sheet precision work. However, finished bend accuracy also depends on material variation, tooling, crowning, backgauge quality, machine calibration, and operator setup. A well-configured hydraulic CNC press brake can also produce highly accurate parts.
Often, yes. Servo systems can accelerate and reverse quickly because they use electronically controlled motors rather than relying primarily on hydraulic fluid flow and pressure changes. The greatest advantage is commonly seen in short-stroke, high-volume, and frequent-repositioning work.
There is no single universal percentage. Manufacturer claims vary by configuration and comparison basis. TRUMPF cites up to 42% energy savings for its on-demand servo drive versus traditional hydraulics, while Bystronic cites up to 60% for certain servo configurations. Real savings depend heavily on idle time, production volume, part design, tonnage demand, and machine utilization.
Yes. Hydraulic press brakes remain highly suitable for high-tonnage, long-bed, thick-plate, and heavy-duty bending applications. They can also offer attractive initial cost and strong flexibility for factories that process a wide range of materials and part sizes.
A hybrid servo-hydraulic press brake uses servo motors to control the hydraulic pump based on demand. It retains hydraulic force transmission while reducing unnecessary pump operation, which can lower energy use, heat, and noise compared with traditional hydraulic systems.
1. [Power & Motion, "Servo-Driven vs. Hydraulic Press Brakes: Comparing Their Capabilities and Use Cases"] — Used for the discussion of closed-loop servo control, hydraulic operating variables, idle-energy behavior, and response speed. [powermotiontech]
2. [TRUMPF, "TruBend: Think Ahead. Bend Better" brochure] — Used for the manufacturer-specific claim that its On-Demand Servo Drive can save up to 42% in energy compared with traditional hydraulics. [trumpf]
3. [Bystronic, "ByBend Smart Flexible, High-Speed Press Brake Machine"] — Used for information on demand-based drive activation, reduced heat and noise, and hybrid/servo energy-saving principles. [bystronic]
4. [Bystronic, "Press Brake Solutions: Precision Bending for Optimal Fabrication"] — Used for manufacturer-specific statements on servo-hydraulic performance, energy reduction, speed, and dynamic crowning. [bystronic]
5. [Bystronic Sustainability Report 2021] — Used for manufacturer-specific figures related to hybrid and servo energy-saving configurations. [sustainability.bystronic]
6. [Prima Power, "Hybrid vs Servo-Hydraulic Press Brakes: What's the Best Choice for You?"] — Used for the overview of hybrid and servo-hydraulic press brake operation and selection considerations. [prima-press]
7. [Bystronic, "Chasing the Bottlenecks in Metal Fabrication"] — Used for context on how higher-speed bending equipment can improve bend throughput, subject to full workflow conditions. [bystronic]
