Choosing the right CNC press brake tooling determines whether a metal fabrication shop hits tight tolerances consistently or fights part rejects and machine downtime. This guide breaks down punch and die selection, material grades, tonnage compatibility, and the practical steps procurement and shop floor teams need to select tooling that matches both the workpiece and the press brake itself.
Press brake tooling refers to the interchangeable punches and dies mounted on a CNC press brake that make direct contact with sheet metal during bending. Unlike the machine frame or control system, tooling is swappable, which is what allows a single press brake to handle dozens of different bend profiles without buying a new machine for each job. Without properly matched tooling, even a high-tonnage press brake is limited to a narrow range of bend shapes, thicknesses, and angles.

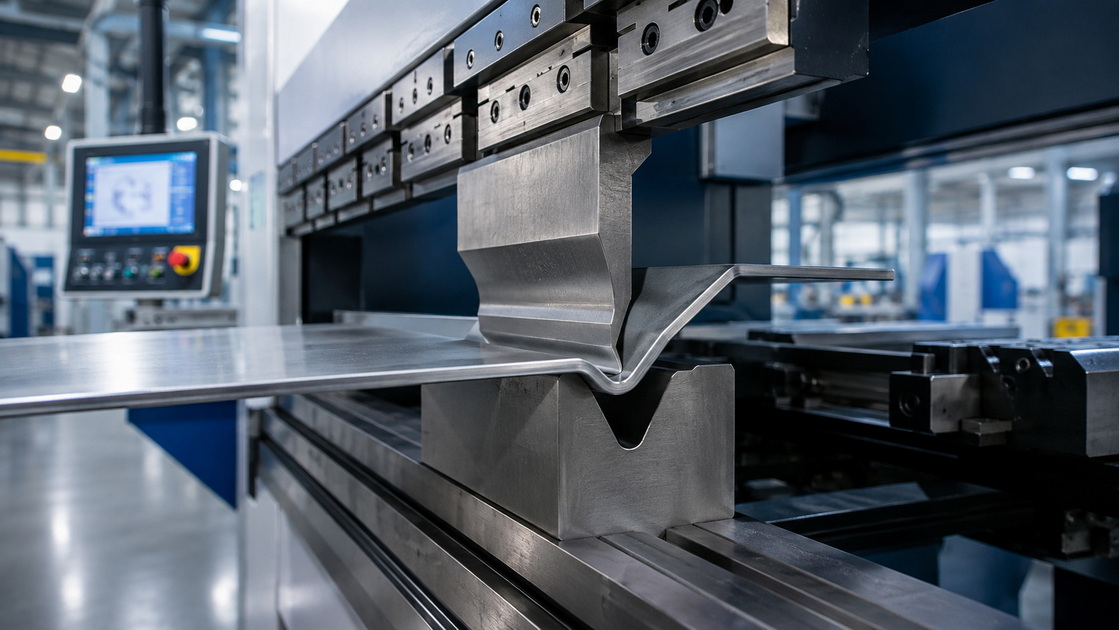

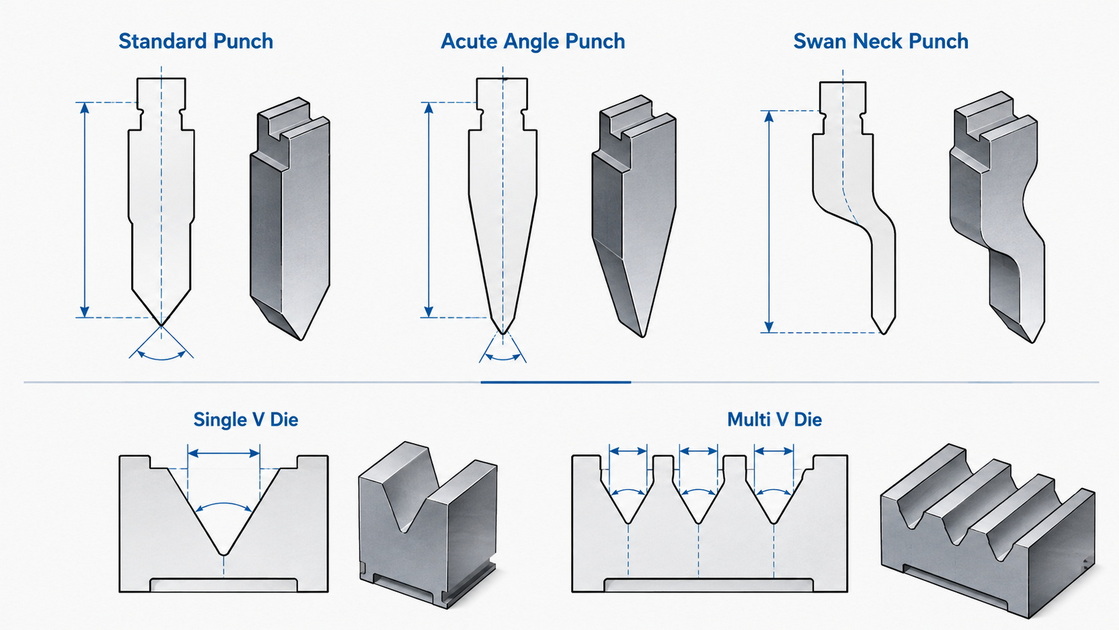

The punch sits above the workpiece and delivers the force that creates the bend. Selecting the wrong punch type is one of the fastest ways to produce inconsistent bend angles or damage material.
- Standard punch: thicker body, narrow tip, high tonnage capacity, best for thicker material and shorter flanges
- Acute angle punch: sharp tip and bulky body, designed for bending angles sharper than 90 degrees
- Narrow (sword) punch: uniform profile along its length, used in tight-clearance applications such as closing box profiles
- Sash punch: narrow body with an angled tip, commonly used for door jamb manufacturing and corner work
- Swan neck and gooseneck punch: specialized geometry for U-profile bends where the bent leg would otherwise collide with the tooling, typically run at lower tonnage
- Joggle punch: thin profile suited to S-shape and offset bends, used in niche applications
- Radius top punch: rounded tip that produces a U-shape bend rather than a sharp V, generally paired with a matching U-shape die
The die sits beneath the workpiece and absorbs the force the punch exerts. Die selection is where most bend-angle and springback problems originate if the geometry doesn't match the material.
- Single V die: the most common configuration, generally sized using the rule of eight (die opening equals roughly eight times material thickness)
- Two-way self-centering V die: two parallel V cavities that speed up production and avoid retooling when a second bend angle is needed
- Multi V die: three or more V cuts on one tool body, allowing an operator to switch bend angle or thickness by rotating the die rather than swapping tools
- Corrugating die: produces a corrugated pattern on the outer bend surface for specialized panel work
Tooling selection doesn't stop at punches and dies. Three supporting systems directly affect bending accuracy and are frequently overlooked in tooling discussions.

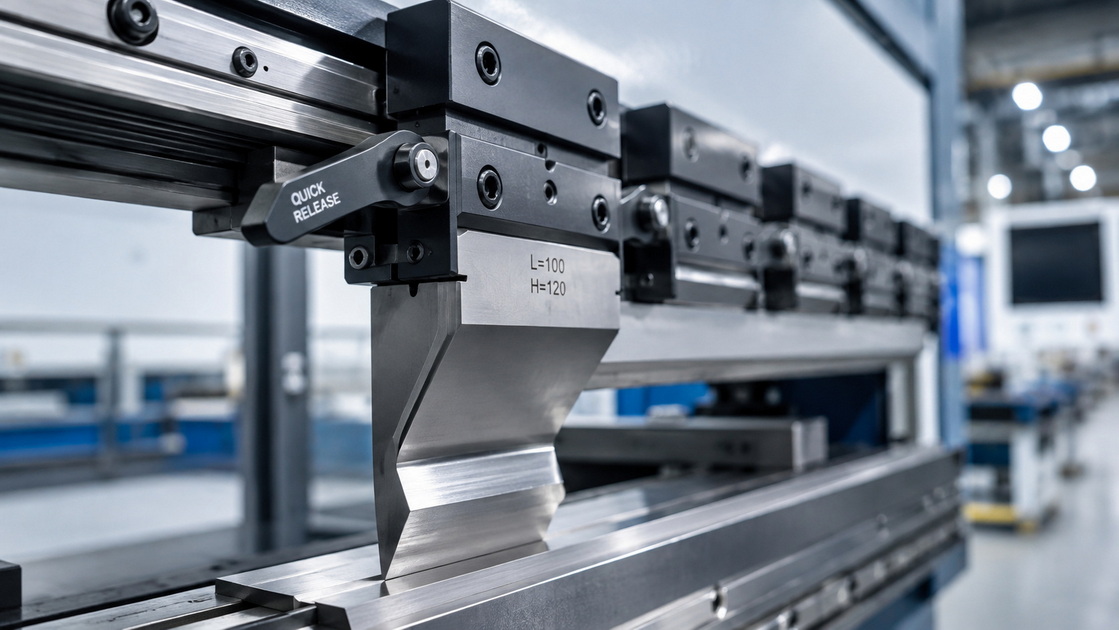

Tool holders mount the tooling to the press brake and, in modern systems, include quick-release clamping and vertical loading features that reduce changeover time and limit tool vibration. Backgauges move along the machine's X-axis to position the workpiece consistently, using finger stops that halt the feed once the correct length is reached. Crowning systems compensate for the deflection that occurs in the ram and bed during bending, a factor that becomes critical on longer bending lengths where uncompensated deflection produces a visibly bowed part.
Press brake tooling is manufactured from hardened, high-strength steel capable of repeatedly absorbing tonnage without deforming. The most common grades are T8, T10, 42CrMo, and Cr12MoV. Among these, chromium molybdenum steel (42CrMo) is generally regarded as the strongest all-around choice, offering high corrosion resistance and long service life across varied production runs. Tungsten carbide inserts are also used on high-wear tooling faces, delivering longer edge life at a moderate cost premium, particularly valuable for shops running high-volume, repetitive bending jobs.

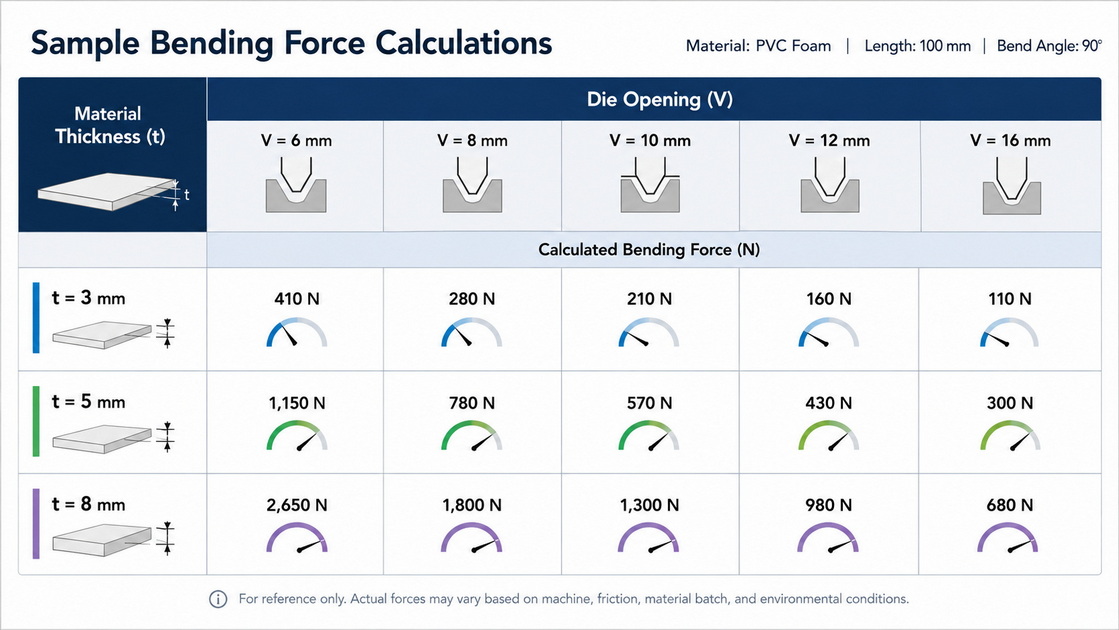

One gap in most tooling guides is the actual math behind matching tooling to machine tonnage, rather than just stating that compatibility "matters." Bending force can be estimated using the formula:
Where F is bending force, S is material tensile strength, T is material thickness, V is die opening width, and K is a coefficient for the bend type (typically around 1.33 for V-die air bending). Running this calculation before ordering tooling prevents two costly outcomes: undersized tooling that fails prematurely under load, and oversized tooling that wastes capital on capacity the shop will never use. Shops bending 3mm mild steel with a 200-ton press brake, for example, are frequently over-tooled if they default to heavy-duty die sets designed for structural steel plate.
High-precision press brake tooling typically holds manufacturing tolerances around 0.0004 inches, a specification that directly affects repeatability across long production runs. This level of tolerance is not universal across all tooling suppliers, and shops running tight-tolerance aerospace or automotive brackets should request tolerance documentation rather than assuming all tooling on the market performs equivalently. Tooling manufactured to looser tolerances may still produce acceptable single parts but will show cumulative angle drift across a batch of several hundred units.
Selecting tooling correctly requires working through a consistent checklist rather than defaulting to whatever tooling shipped with the machine.
1. Identify material type and thickness, since tensile strength directly changes required tonnage
2. Confirm bend angle and inner bend radius, which determine punch tip geometry and die opening width
3. Check workpiece length against tool holder and backgauge travel limits
4. Verify tooling tonnage rating exceeds the calculated bending force with reasonable safety margin
5. Confirm physical compatibility with the press brake's clamping system (European, American, or New Standard style)
6. Factor in production volume, since high-volume runs justify multi-V or self-centering dies that reduce changeover time
Standard catalog tooling covers most common bending jobs, but shops working with unusual profiles, tight production schedules, or specialized panel patterns often need tooling built to a specific job rather than adapted from an existing catalog. Manufacturers offering integrated CNC press brake production alongside custom tooling development, rather than treating tooling as an afterthought, give fabrication shops a shorter path from bend specification to working tool. CNDY-Press, a manufacturer of CNC press brakes and full sheet metal processing equipment, is one example of a supplier structured around this kind of combined machine-and-tooling support, handling OEM and ODM tooling requests alongside standard press brake production rather than requiring customers to source tooling separately from a third party.
Tooling degradation is gradual, and shops that skip routine maintenance typically discover wear only after part quality already suffers. Store punches and dies in dedicated racks rather than stacking them loosely, since edge-to-edge contact during storage is a common source of unnecessary nicks and dulling. Clean tooling surfaces after each production run to remove metal debris and lubricant residue that can accelerate corrosion. Inspect V-die openings periodically for widening caused by repeated impact, since a die opening that has worn beyond specification will start producing bend angles that drift outside tolerance even when the punch itself is in good condition.
Selecting press brake tooling correctly is a calculation-driven process, not a guess based on what fits the machine bed. Shops that document material specifications, calculate bending force before ordering, and maintain tooling on a consistent schedule see fewer rejected parts and longer tooling service life across their production runs.
1. How often should press brake tooling be replaced?
Replacement timing depends on production volume and material hardness, but most shops inspect tooling every few thousand cycles for die opening wear and punch tip dulling, replacing sooner if bend angle drift appears.
2. Can one die handle multiple bend angles?
Multi-V and two-way self-centering dies allow angle changes by rotating or shifting the tool, avoiding a full tooling swap for common angle variations.
3. What happens if tooling tonnage rating is lower than the press brake's capacity?
Running tooling below its rated tonnage limit risks tool deformation or cracking, so the tooling's tonnage rating should always meet or exceed the calculated bending force for the job.
4. Is tungsten carbide tooling worth the extra cost over standard steel tooling?
For high-volume, repetitive bending jobs, tungsten carbide's longer edge life typically offsets the higher upfront cost through reduced tooling replacement frequency.
5. Do all press brake tooling suppliers use the same clamping standard?
No; European, American, and New Standard clamping systems are not interchangeable, so tooling must be selected to match the specific press brake's clamping system rather than assumed to be universal.
