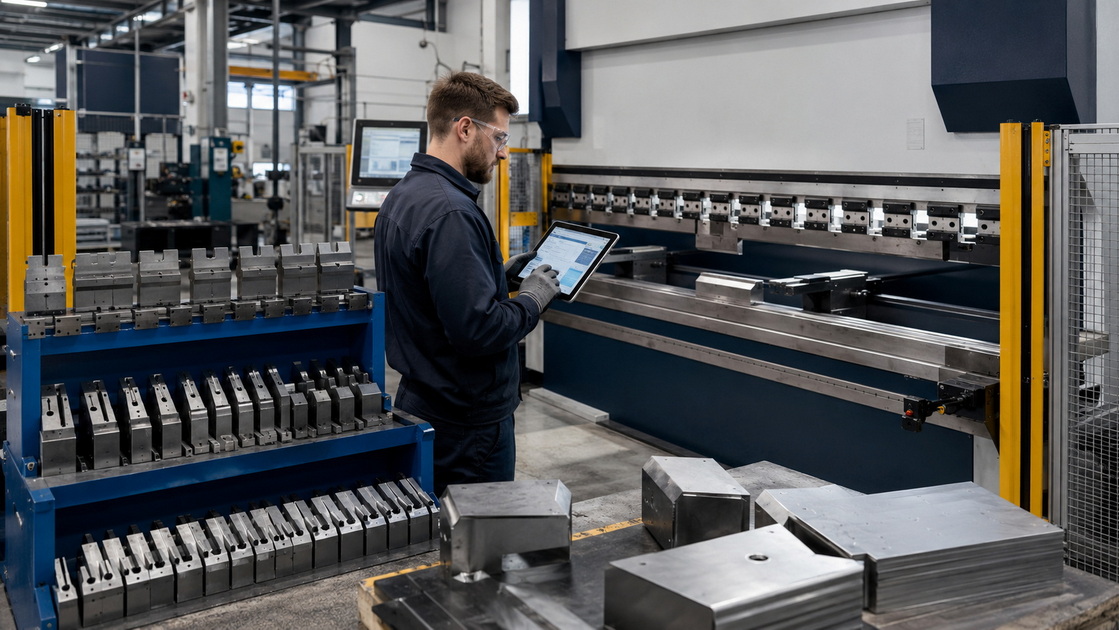

When a CNC press brake produces inconsistent bend angles, many operators first inspect the hydraulic system, CNC controller, backgauge, or crowning setting. These factors matter. However, one of the most underestimated causes of long-term bending variation is the quality of the press brake tooling.
The comparison between precision ground tooling and planed tooling affects setup time, tool alignment, bend repeatability, tool life, operator adjustment, and the total cost of sheet metal production. For fabricators producing tight-tolerance components, the choice of press brake punches and dies is a production-control decision, not a minor purchasing detail.
From a practical sheet metal manufacturing perspective, the machine, material, tooling, and operator must work as one system. A high-performance CNC press brake cannot consistently deliver accurate results if the punch and die surfaces are uneven, tool heights vary, or the tooling does not align correctly across the bending length.
Planed tooling can be practical for basic fabrication and lower-precision work. Precision ground tooling is usually the stronger choice for repeatable bending, fast setup, multi-stage bending, automated operation, and long-term dimensional control.

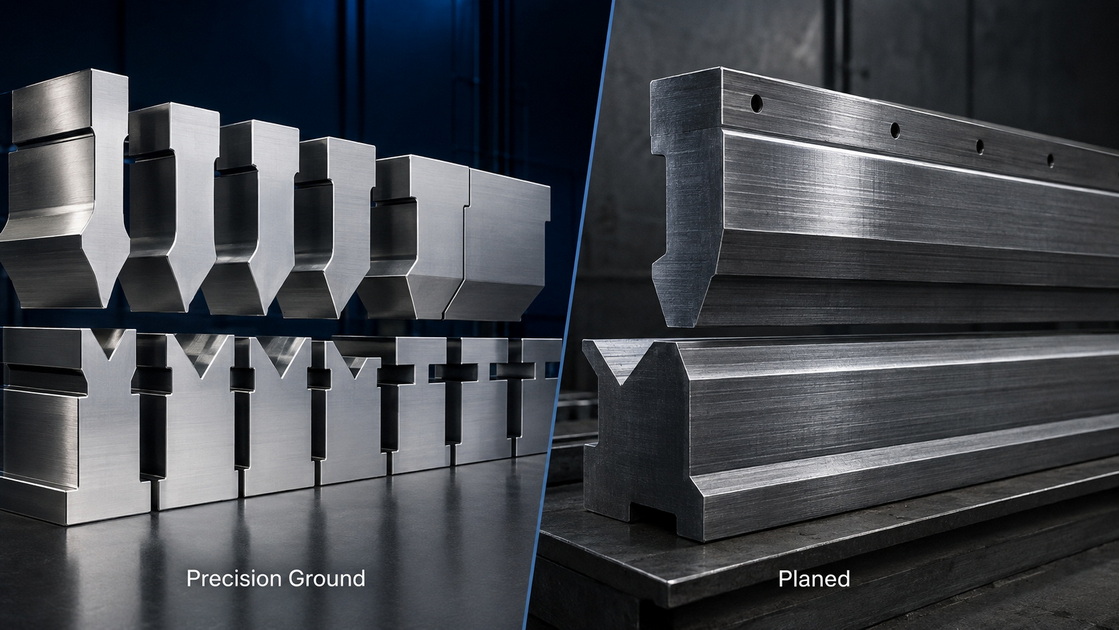

| Feature | Precision Ground Tooling | Planed Tooling |
|---|---|---|
| Main finishing process | Precision grinding after machining and heat treatment | Planing or planer-mill shaping |
| Dimensional consistency | Very high | More variable |
| Profile and height control | Tight and repeatable | Usually less consistent |
| Surface finish | Smooth and controlled | Rougher machining finish |
| Tool alignment | More predictable | May require manual adjustment |
| Setup time | Faster in compatible clamping systems | Often slower |
| Tool interchangeability | High | Lower |
| Segmented-tool suitability | Excellent | More limited for precise work |
| Long-term repeatability | Strong with correct maintenance | Can decline faster |
| Initial investment | Higher | Lower |
| Best application | Precision fabrication and repeat production | Basic, low-volume fabrication |
The most important difference is not whether the tooling looks smoother. The real difference is whether the tool provides a stable, repeatable reference surface every time it is installed in the press brake.
Planed tooling is produced by shaping surfaces with a planer, planer mill, or similar machining process. The process removes material using a cutting action to form the punch or die profile.
This production method has been used for many years because it is practical, relatively economical, and suitable for general bending applications.
Planed tools can work well when:
- Bend tolerances are relatively open.
- Tooling stays installed in fixed positions.
- Setup changes are limited.
- Production volumes are low.
- Operators have time to align and adjust the setup.
- Parts do not require highly consistent bend angles.
- The workshop mainly performs simple air bending.
However, planed tooling usually has more variation in height, profile, straightness, and contact surfaces than precision ground tooling. This difference becomes more visible when multiple tool segments are combined, when long parts are bent, or when the shop requires repeatable bend quality across many production cycles.
- Lower initial purchase cost
- Suitable for general fabrication work
- Practical for simple bending applications
- Available in many traditional tooling styles
- Useful for repair and maintenance work
- Acceptable for low-volume production
- Suitable when part tolerances are not highly demanding
- Surface finish is generally less controlled.
- Tool height may vary between segments.
- Punch and die profiles may not match as consistently.
- Alignment can require more operator time.
- Multi-segment setups can create bend variation.
- Repositioning tools may change the final bending relationship.
- Repeated loading can reveal contact-surface inconsistency.
- Tool wear and minor damage can have a larger production impact.
Planed tooling can be economical at the beginning. However, if operators spend extra time shimming, measuring, aligning, and correcting bends, the true operating cost may become much higher than the original tooling price.
Precision ground tooling is machined and then ground to controlled dimensions and surface quality. Grinding removes small amounts of material with abrasive wheels, allowing manufacturers to achieve tight tolerances on critical working surfaces.
These surfaces may include:
- Punch tip profile
- Die shoulder radius
- Tool height
- Tool centerline
- Tool seating surface
- Tool clamping surface
- Tool alignment surface
- Segment end faces
- Shoulder and radius transitions
Precision ground press brake tools are designed so different punch and die segments can be installed, rearranged, or combined while maintaining a consistent working height and bending centerline.
This is valuable when a fabrication shop changes jobs frequently, uses segmented tooling, performs staged bending, or relies on CNC programs that assume repeatable tool geometry.
- Consistent tool height and centerline
- Faster setup and reduced shimming
- Better punch and die alignment
- Improved bend-angle repeatability
- Strong compatibility with CNC press brakes
- Easier use of segmented tooling
- More predictable results during tool changes
- Better support for automated bending systems
- Smoother contact surfaces
- Longer useful life with correct maintenance
- Reduced dependence on manual operator adjustment
Precision ground tooling is particularly useful when production requires repeatable results across shifts, operators, machines, and work orders.

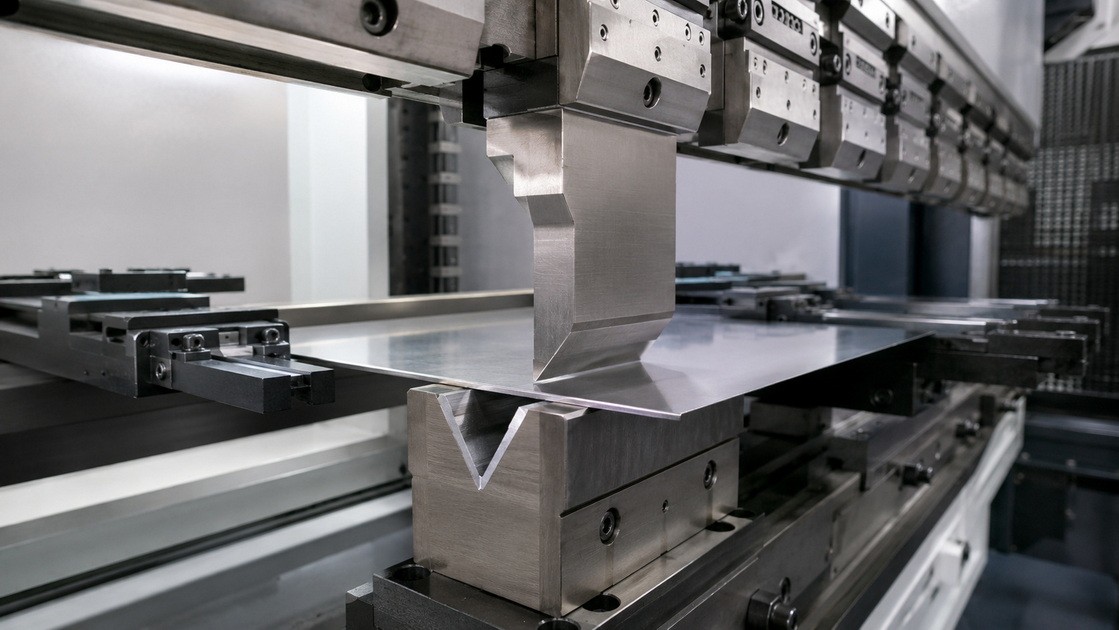

Press brake bending is a controlled deformation process. The punch pushes the sheet into the die opening. The final angle depends on material properties, punch radius, die opening, bending method, ram position, crowning, backgauge position, and tool geometry.
Tooling quality influences several important parts of this process.
If punch segments have different heights, the ram may apply unequal pressure across the bending line. The result may be inconsistent bend angles, uneven loading, or difficulty creating a continuous bend across several tool segments.
Precision ground tools are manufactured to a consistent working height. This helps the press brake maintain a more uniform bending relationship across the complete tool setup.
A consistent punch centerline is essential for reliable alignment with the lower die.
If a punch is slightly off-center, the material can enter the die unevenly. This may affect bend angle, inside radius, flange dimension, and surface marking.
Precision ground tooling provides more reliable seating and alignment surfaces. This helps operators return tools to the same working position after removal, rotation, or segment changes.
The die shoulder and punch radius influence how the sheet contacts the tool during bending.
Small differences in radius can change material flow, springback behavior, and final bend angle. This becomes especially important with stainless steel, aluminum, coated materials, high-strength steel, and thin-gauge sheet.
A smoother and more accurate tool profile reduces uncontrolled variation at the contact point.
A rougher tool surface can increase friction and produce more visible marking on finished parts. It can also make material movement less consistent during bending.
Precision-ground surfaces generally provide more predictable contact conditions. This can improve repeatability and reduce cosmetic damage on visible sheet metal parts.
| Performance Factor | Precision Ground Tooling | Planed Tooling |
|---|---|---|
| Tool height consistency | High | Moderate to variable |
| Punch and die alignment | More reliable | May require manual correction |
| Segment interchangeability | Excellent | Limited |
| Multi-stage bending | Highly suitable | More difficult to control |
| Repeat setup accuracy | Strong | More dependent on operator setup |
| Surface finish | Smooth | Rougher |
| Bending angle stability | Better for tight-tolerance work | Suitable for general work |
| Operator adjustment time | Lower | Often higher |
| Automated-cell compatibility | Strong | Limited |
| Long-term production efficiency | Higher for repeat work | Can decline because of setup correction |
| Purchase price | Higher | Lower |
| Best business case | Precision production and frequent changeovers | Simple, low-volume fabrication |
A precision ground tooling set often costs more at the time of purchase. Its long-term value comes from lower setup time, fewer rejected parts, easier tool changes, better repeatability, and more stable output.
For a job shop that changes setups many times each day, these savings can become substantial.
The cost of less accurate tooling is not limited to the purchase price.
It often appears in less visible areas:
- Extra operator time for alignment
- More trial bends and sample material
- Frequent shimming
- Repeated CNC-program adjustments
- Higher scrap rates
- Rework after final inspection
- Inconsistent bend angles between shifts
- Difficulty reproducing old jobs
- Longer machine downtime during setup
- Greater dependence on highly experienced operators
- Customer complaints caused by fit-up problems
A tool set that saves money at the beginning can create an ongoing production penalty.
For example, if an operator spends 15 extra minutes on every setup correcting tool-height variation, and the press brake changes over four times per day, that equals one hour of lost machine time daily. Over a year, this can exceed the initial cost difference between standard planed tooling and precision ground tooling.
Precision ground tooling is not required for every bending application.
Planed tooling can remain suitable when the operation has low complexity and tolerance requirements are relatively open.
Consider planed tooling when:
- The work is occasional or low volume.
- The parts have generous bend-angle tolerances.
- The same tools remain installed for long periods.
- The shop performs basic maintenance or repair work.
- The budget is limited and setup time is not critical.
- The application does not require segmented-tool interchangeability.
- The material is relatively forgiving.
- The machine is older and does not use high-precision clamping or advanced CNC control.
The important point is to match the tooling to the production requirement. Lower-cost tooling is not automatically poor tooling. It becomes unsuitable when the required part accuracy, setup speed, or repeatability exceeds what the tooling system can reliably provide.
Precision ground press brake tooling is strongly recommended when a fabrication operation requires:
- Tight bend-angle tolerances
- Repeat production across multiple shifts
- Frequent tool changes
- Multi-segment punch and die setups
- Complex box bending
- Staged bending operations
- Consistent flange dimensions
- Automated bending systems
- Robot-assisted loading and unloading
- Fast setup in high-mix production
- Reliable part interchangeability
- Reduced operator-dependent variation
- High-value materials where scrap is expensive
It is also a strong choice for manufacturers producing:
- Electrical enclosures
- Elevator components
- Server cabinets
- Automotive components
- Medical equipment
- HVAC systems
- Commercial furniture
- Kitchen equipment
- Architectural metalwork
- Industrial machinery
- Telecommunications cabinets
- Energy-storage systems
Before purchasing new press brake tooling, use a structured selection process.
Document the following:
- Material grade
- Material thickness range
- Maximum bending length
- Required bend angles
- Inside bend radius
- Flange dimensions
- Surface-finish requirements
- Annual production volume
- Tolerance requirements
- Existing tooling system
- Planned press brake model
Identify whether the operation uses:
- Air bending
- Bottom bending
- Coining
- Hemming
- Radius bending
- Offset bending
- Box bending
- Multi-stage forming
Air bending is flexible, but it depends heavily on consistent tool geometry and material behavior. Bottom bending and coining require even closer attention to tool load capacity, material grade, and punch-die alignment.
Check:
- Punch and die style
- Tool height
- Clamping system
- Tool centerline
- Load capacity
- Segmentation requirements
- Tool-change safety
- Existing-tool compatibility
- Quick-clamping compatibility
- Tool-storage compatibility
Do not approve tooling only from a catalog drawing.
Request a sample bend using:
1. Your material grade or an agreed equivalent
2. Your material thickness
3. Your planned V-die opening
4. Your intended punch angle and radius
5. A part length close to actual production
6. Angle measurements at several locations
7. A report on tool load and setup method
A real test reveals springback behavior, surface marking, alignment quality, and actual bend repeatability.

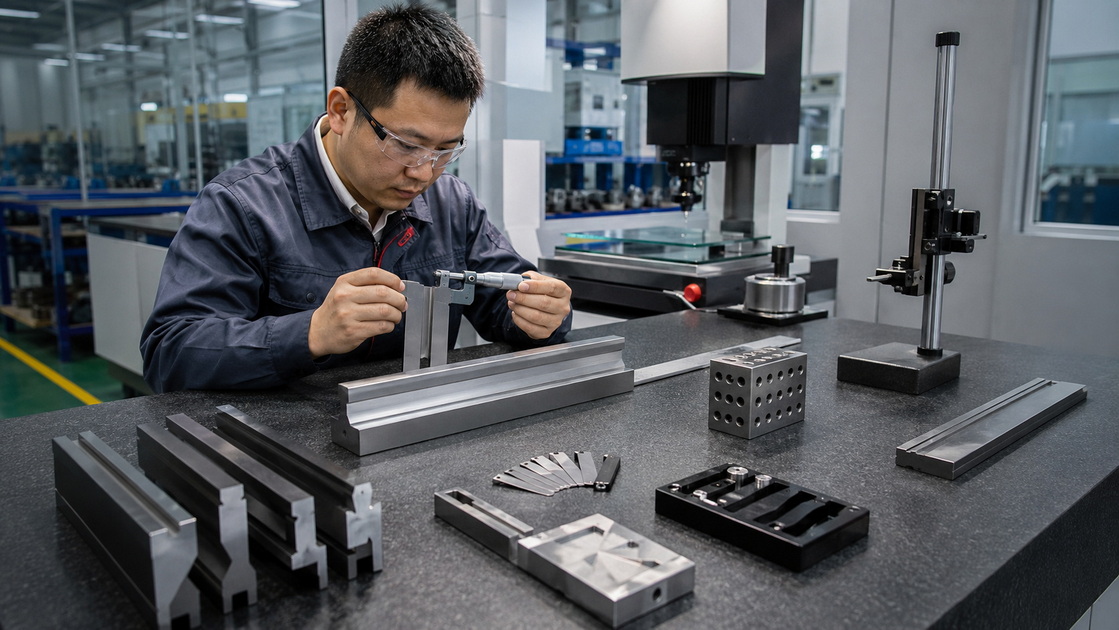

Even precision ground tooling will lose accuracy if it is poorly maintained.
A simple maintenance system protects the investment and reduces unexpected production variation.
- Remove dust, metal chips, tape residue, and oil.
- Inspect punch tips and die shoulders for dents or chipped edges.
- Check for rust or surface discoloration.
- Confirm that clamping surfaces are clean.
- Look for signs of overload or tool deformation.
- Store tools correctly after use.
- Inspect segmented-tool ends for damage.
- Check tool seating surfaces.
- Confirm that die shoulders remain smooth.
- Examine locking surfaces and clamps.
- Apply suitable rust-prevention protection when needed.
- Review frequently used tools for unusual wear patterns.
- Measure critical tool heights.
- Inspect for bending or twist.
- Review tool-load history.
- Check tool-storage conditions.
- Inspect frequently used punches and dies with a straightedge or measurement system.
- Separate damaged tools from production-ready tools.
If operators repeatedly correct the same bend angle with shims, ram-depth changes, or manual adjustment, inspect the tooling before changing the CNC program again.
Many tooling quotations mention hardened steel. This is important, but hardness alone does not guarantee long-term accuracy.
A tool can have a hard working surface and still create inconsistent bends if:
- Tool height is not controlled
- The centerline is inconsistent
- Contact surfaces are not precision ground
- The tool profile is inaccurate
- The punch tip radius varies
- The die shoulder has uneven wear
- Tool segments do not match correctly
- The tool is not properly supported during bending
For long-term accuracy, evaluate the complete tooling system:
- Material grade
- Heat-treatment method
- Hardening depth
- Surface grinding
- Tool-height tolerance
- Centerline tolerance
- Profile tolerance
- Segment matching
- Clamping compatibility
- Storage and handling method
Precision ground tooling should be evaluated as a complete system component, not simply as an upgraded punch or die.
At CNDY-Press, bending accuracy is treated as the result of a complete production system. The press brake, tooling, control system, backgauge, crowning function, material condition, operator process, and maintenance routine all influence the final part.
Maanshan Deyan Precision Machinery Technology Co., Ltd. supports CNC press brake selection, machine configuration, tooling compatibility review, customized equipment development, OEM projects, and ODM manufacturing requirements.
A properly matched CNC press brake and tooling package can reduce setup uncertainty, improve first-piece approval, and create a more reliable foundation for long-term sheet metal production.
Choose planed tooling when your work is simple, low volume, and tolerant of manual adjustment. It can be a practical option for general fabrication and basic repair work.
Choose precision ground tooling when bend accuracy, setup speed, repeatability, segmented tooling, automation, and scrap reduction are important.
For most modern CNC press brake applications, precision ground tooling offers stronger long-term value. It helps operators complete setups faster, align tools more reliably, reproduce existing programs, and maintain consistent part quality across repeated jobs.
If your bending operation struggles with unexplained angle variation, frequent shimming, inconsistent tool height, or difficult setup changes, review the tooling before assuming the press brake is the problem. A careful tooling and machine-configuration review can identify the most practical path to stable bending performance.
Precision ground tooling is finished by grinding critical surfaces to tighter tolerances. Planed tooling is shaped mainly through planing or similar machining processes. Ground tools generally offer more consistent height, profile accuracy, surface finish, and segment interchangeability.
For repeat production, tight-tolerance parts, frequent setup changes, and automated operations, it is often worth the investment. The value comes from reduced setup time, lower scrap, fewer adjustments, better repeatability, and longer useful tool life.
Yes. Planed tooling can produce acceptable results for general fabrication, low-volume work, and parts with open tolerances. However, it may require more careful alignment and more operator adjustment than precision ground tooling.
Different tool heights can create uneven ram loading and inconsistent material contact. This can cause bend-angle variation, especially when using several punch or die segments across a long bending length.
No. Springback is mainly influenced by material type, thickness, tensile strength, grain direction, punch radius, die opening, and bending method. Precision ground tooling helps make the bending process more repeatable, allowing springback compensation to be applied more consistently.
1. [WILA — High Precision Bending]
2. [WILA — Press Brake Tooling]
3. [Canadian Metalworking — An Overview of Precision Ground Tooling]
4. [Fabricating and Metalworking — Why the Right Tooling Matters for an Old Press Brake]
5. [Southern Fab Sales — The Value of Using Precision Press Brake Tooling]
6. [Accurl — Press Brake Accuracy: Tolerances and How to Improve]
7. [CNDY-Press — About Maanshan Deyan Precision Machinery Technology Co., Ltd.]
