Large-format sheet metal bending is rarely limited by press brake tonnage alone. When a workpiece is long, heavy, thin, surface-sensitive, or difficult to control, material support becomes part of the forming process. A press brake sheet follower helps manufacturers control sag, reduce counterbending, protect finished surfaces, improve repeatability, and reduce the number of people required to handle demanding parts.
For fabrication companies producing long panels, electrical enclosures, structural components, façade elements, renewable-energy parts, or heavy equipment assemblies, a CNC press brake with a synchronized sheet follower can turn a difficult manual operation into a more predictable, safer, and scalable production process.
At CNDY-Press, we design and manufacture CNC press brakes and complete sheet-metal fabrication solutions, including configurable material-handling options for OEM, ODM, and customized production requirements. This guide explains when a press brake sheet follower is needed, how it works, and how buyers can evaluate the right configuration for their bending application.
A press brake can generate enough force to form a bend, yet the part may still move unpredictably during the bending cycle. This is especially common when the workpiece extends far beyond the lower die or when the material is thin relative to its length and width.
The main issue is not simply weight. It is the interaction between gravity, material stiffness, bend geometry, support position, and operator handling.

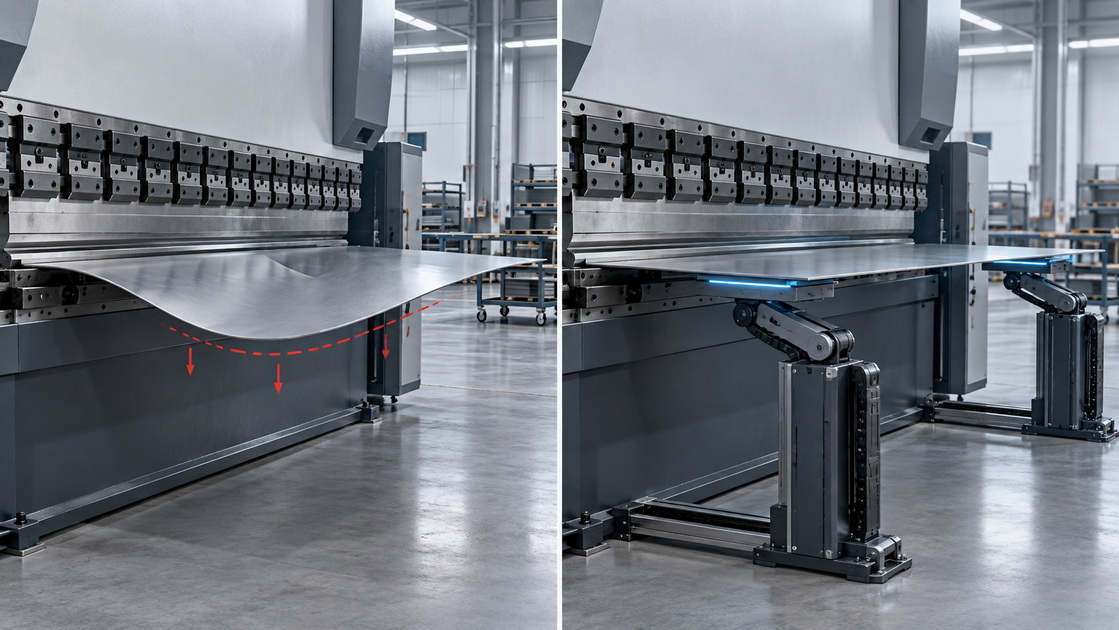

When a large sheet hangs from the front of a press brake, its unsupported mass creates a downward moment. As the ram travels, the sheet may sag, rotate, pull away from the intended position, or place uneven load on the tooling.
This can lead to:
- Inconsistent bend angles across the part length
- Surface scratches from uncontrolled movement
- Flange distortion or localized kinking
- Difficult backgauge positioning
- Higher risk of sheet dropping after the bend
- More trial bends, rework, and scrap

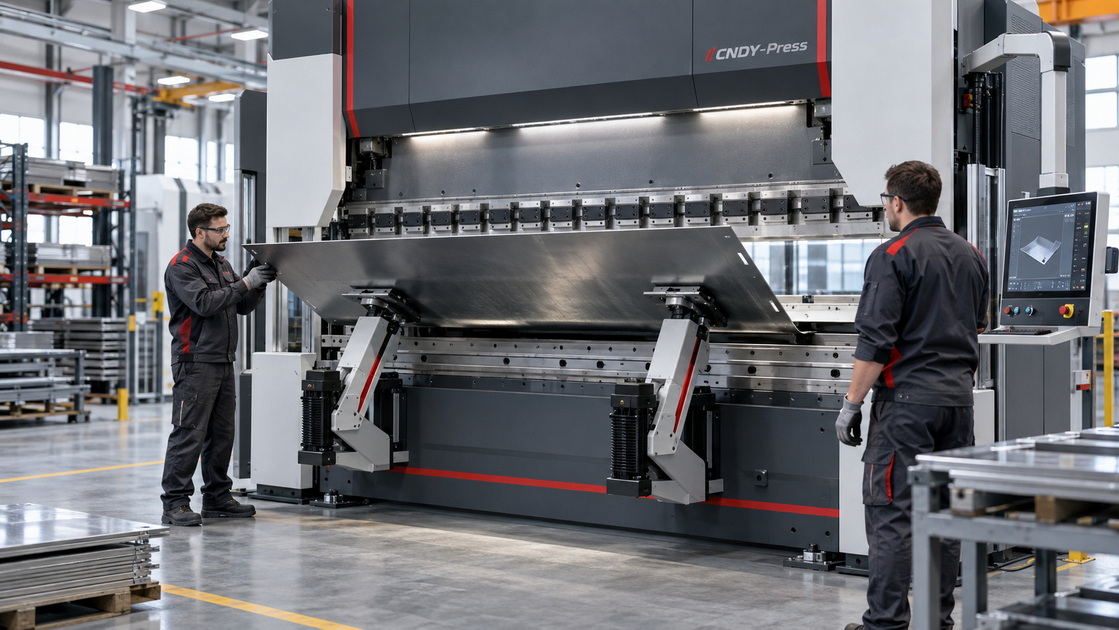

A sheet follower supports the workpiece dynamically as the press brake ram moves. Instead of allowing the sheet to hang freely, the support arms travel in coordination with the bending process and help keep the material stable.
Thin sheet metal may weigh less, but it is not necessarily easier to bend accurately. A thin, wide panel can have low rigidity and can flex significantly during handling. The operator may struggle to keep it level, especially when bending a long flange or working with painted, polished, galvanized, or aluminum sheet.
For example, a large thin enclosure panel can twist during the downward stroke. Even if the press brake program is correct, uncontrolled movement may create small but visible angle variations, scratches, or distortion.
The practical lesson: a low-weight part can still need automated support when its size, finish requirement, or geometry makes manual control unreliable.
One common defect in large-format bending is counterbending. The unsupported portion of the sheet can bend in the opposite direction because of its own weight and leverage around the die area. This secondary deformation may make a part unusable, particularly for architectural panels, cabinet doors, long channels, and visible exterior components.
A properly configured sheet follower reduces this risk by supporting the part as it rotates through the bend. It does not replace good tooling, accurate tonnage calculation, or correct programming—but it helps maintain controlled material behavior through the forming cycle.

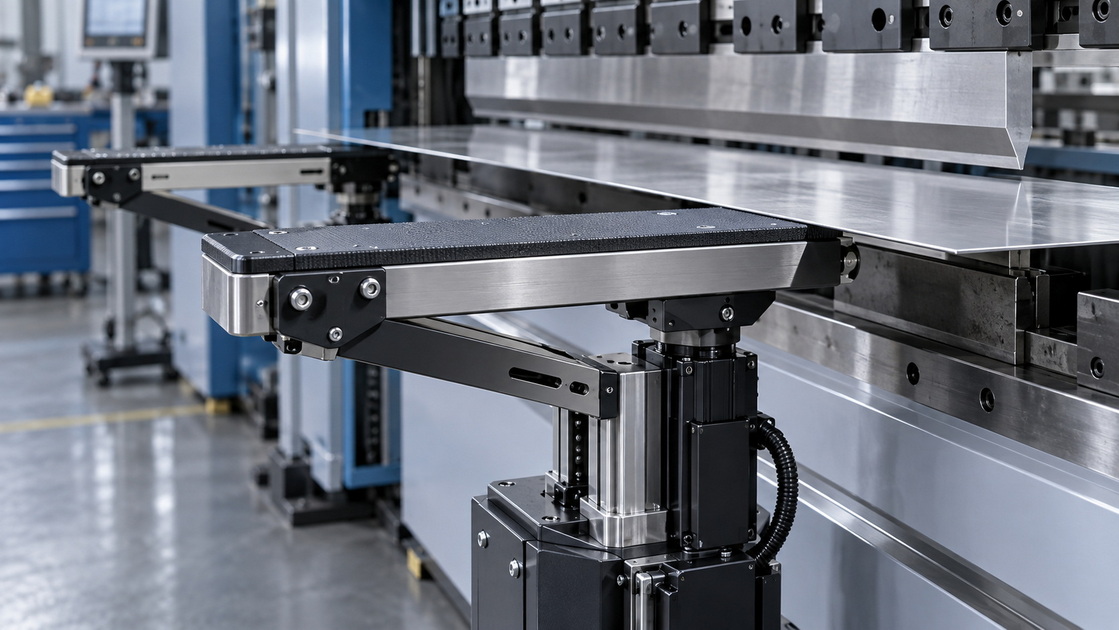

A press brake sheet follower is an automated support system positioned in front of the press brake. It typically uses one or more motorized support arms that follow the motion of the ram and support the sheet during bending.
It may also be called:
- Sheet follower
- Bending follower
- Sheet support system
- Front support follower
- Automatic bending support arm
The system is particularly valuable for large, heavy, long, thin, or surface-sensitive workpieces.
During bending, the press brake ram moves downward and the sheet rotates around the lower die. A sheet follower detects or receives information about ram movement and adjusts its own position so that the workpiece remains supported.
Depending on the design, synchronization may be achieved through:
- CNC integration with the press brake controller
- Linear encoders or displacement sensors
- Servo-controlled axes
- PLC-based independent control
- Position feedback linked to ram travel
The sheet follower usually raises, lowers, and follows the part through the forming movement. Its objective is to minimize uncontrolled deflection while keeping the sheet aligned and supported.
A high-quality system should provide smooth movement, sufficient load capacity, reliable synchronization, and a contact surface suited to the material being processed.
Manufacturers generally choose between integrated and floor-standing configurations.
| Type | Typical Configuration | Key Advantage | Best Fit |
|---|---|---|---|
| Integrated sheet follower | Built into or electrically linked to the CNC press brake | Tight synchronization and streamlined operation | New press brake projects and high-volume production |
| Floor-standing sheet follower | Independent support unit positioned in front of the machine | Potential retrofit flexibility and movement between compatible machines | Shops upgrading existing equipment |
| Multi-arm follower system | Two or more independently controlled support arms | Better support across wide or long workpieces | Long panels, tandem press brakes, heavy sheet fabrication |
| Surface-protection follower | Follower with non-marring contact elements | Reduced risk of finish damage | Stainless steel, aluminum, painted, polished, or coated sheets |
For OEM and ODM projects, the best choice depends on the customer's part range, press brake dimensions, material grades, maximum sheet weight, surface-finish requirements, and expected production volume.
A sheet follower is not simply an accessory. For the right application, it is a production-enabling system that improves consistency, worker safety, and material utilization.
Traditionally, a large workpiece might require multiple operators to hold, lift, guide, and stabilize it throughout the bend. That method is labor-intensive and difficult to standardize. The result often depends on operator strength, coordination, experience, and fatigue level.
With automated support, one trained operator may be able to manage a task that previously required several people, subject to the part, safety assessment, and machine configuration.
This can help manufacturers:
- Reduce dependence on multi-person bending operations
- Reassign skilled workers to welding, assembly, inspection, or setup
- Improve production scheduling flexibility
- Lower handling-related variation between shifts
- Improve operator ergonomics on repetitive jobs
The value is particularly high in regions where experienced fabricators are difficult to recruit or where labor availability is inconsistent.
Accurate bending requires stable material positioning. When a large sheet sags or shifts, the operator may compensate manually, but manual support is inherently variable.
Sheet followers help maintain a more consistent relationship between the material, punch, die, and backgauge. This can improve repeatability across batches, particularly on long bends where unsupported workpiece weight would otherwise affect the final angle.
Springback remains a material and tooling issue. It is the elastic recovery that occurs after bending force is released, and it is influenced by material properties, thickness, bend radius, die opening, and forming method. However, stable part support allows the operator and CNC program to address springback without also having to compensate for uncontrolled sag or handling movement.
Scratches, dents, drag marks, and scuffs can be unacceptable when working with exposed architectural metal, brushed stainless steel, coated aluminum, painted sheet, or premium enclosure components.
A sheet follower can reduce the chance of surface damage by supporting the material in a controlled position rather than allowing it to slide, whip, or contact unsuitable surfaces.
When surface quality matters, buyers should specify:
- Non-marring support surfaces
- Suitable rollers, brush systems, or protected contact pads
- Cleanliness requirements for contact areas
- Compatibility with protective film
- Material-specific handling tests before full production
Important: no handling system automatically guarantees a scratch-free result. Surface protection depends on the follower design, material finish, cleanliness, operator practice, tooling condition, and production environment.
Large sheets are difficult to control. They can have sharp edges, unstable centers of gravity, and sudden movement during or after bending. Press brake work also involves serious crush and pinch-point hazards.
OSHA identifies several safeguarding approaches for powered press brakes, including presence-sensing devices, two-hand control devices, pullback devices, and restraint devices. Safety design must consider the entire machine, tooling, operating method, material flow, and risk assessment—not only the addition of a sheet follower.
For hydraulic presses, ISO 16092-3 specifies technical safety requirements and protective measures for relevant hazards during intended use and reasonably foreseeable misuse.
A sheet follower can support a safer material-handling process, but it is not a substitute for safeguarding, training, safe setup procedures, emergency-stop verification, lockout/tagout requirements, or local regulatory compliance.
Selecting a follower based only on arm capacity is a common mistake. The system must match the entire bending application.
Before requesting a quotation, prepare a clear application profile. This helps the press brake manufacturer recommend a system that is technically suitable rather than simply oversized or underspecified.
Use the following checklist:
1. Define the maximum sheet length, width, thickness, and weight.
2. Identify material grades, including carbon steel, stainless steel, aluminum, galvanized steel, or high-strength steel.
3. Record the longest unsupported front overhang during bending.
4. Specify required bend angles, flange lengths, and part geometry.
5. Identify whether the sheet has paint, film, polishing, coating, or other sensitive finishes.
6. Confirm the press brake model, working length, daylight, stroke, throat depth, and controller type.
7. Determine whether the project involves a single press brake or a tandem press brake system.
8. Define expected production volume, shift pattern, and cycle-time targets.
9. Review local safety requirements and site layout.
10. Request sample-part validation or a video test using comparable material when possible.
The follower capacity must exceed the expected load under actual operating conditions. Buyers should not rely only on the total material weight. The distribution of weight, center of gravity, support-arm spacing, bending angle, and dynamic movement all matter.
Ask the supplier to clarify:
| Selection Question | Why It Matters |
|---|---|
| What is the rated capacity per arm? | Determines safe support limits for the workpiece |
| How is load distributed between arms? | Affects stability for wide or off-center parts |
| What is the maximum supported sheet size? | Confirms practical rather than theoretical suitability |
| What lift angle and travel range are available? | Ensures compatibility with the planned bends |
| How does synchronization work? | Influences support accuracy and ease of integration |
| Can the contact surface be customized? | Helps protect sensitive materials |
| Is the follower suitable for tandem operation? | Critical for ultra-long workpieces |
| What service and commissioning support are offered? | Reduces installation and startup risk |
For a new CNC press brake, an integrated follower can be configured as part of the machine package. For a retrofit, compatibility becomes more important.
The supplier should confirm whether the sheet follower can communicate with the existing machine control system or whether it will operate through an independent controller and sensor-based synchronization method.
For customized projects, CNDY-Press can evaluate requirements such as:
- CNC controller preference
- Machine length and tonnage
- Tandem press brake configuration
- Support-arm quantity and spacing
- Material-specific contact surfaces
- Automation interface requirements
- Site voltage and electrical standards
- OEM branding and documentation needs

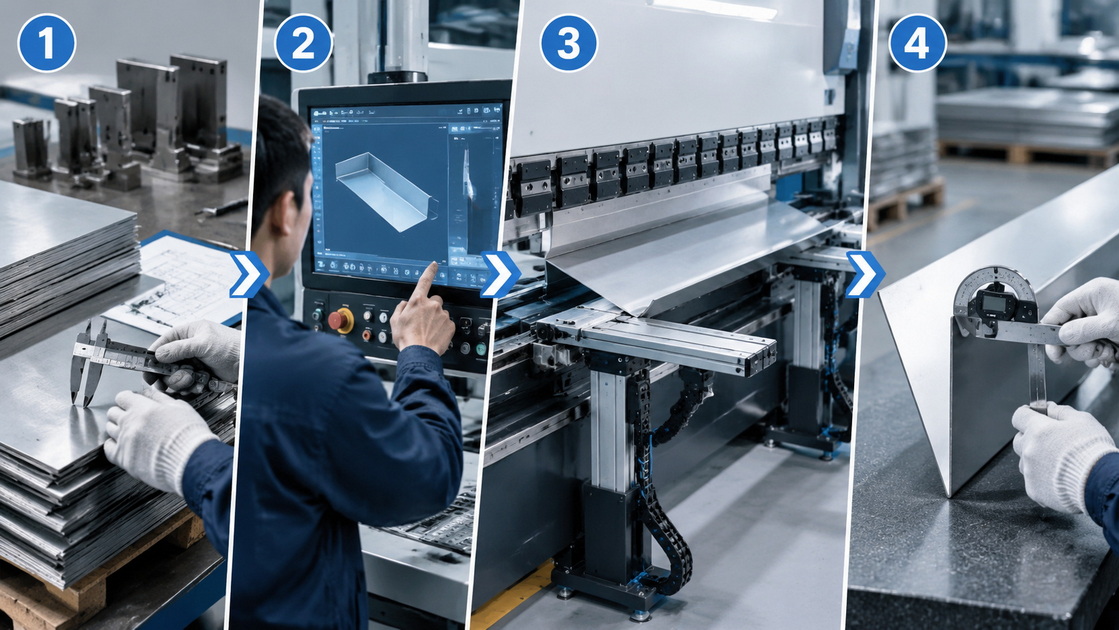

A sheet follower delivers the best result when it is integrated into a controlled process. The following workflow helps operators and production managers reduce avoidable variation.
Confirm material grade, thickness, tensile strength, grain direction, and surface condition. Then verify the punch, V-die opening, bending length, and required tonnage.
The die opening affects force requirements and bend behavior. Changing the die opening can also change the amount of springback and the bending force required.
Set the bending sequence, backgauge positions, ram travel, bending depth, and angle correction. Then verify follower-arm start position, support height, movement range, and synchronization behavior.
Do not assume a follower setting that worked for one material will be correct for another. Different grades, thicknesses, and part shapes can require different support positions.
Perform a first-piece inspection before full production. Check:
- Actual bend angle
- Angle variation along the bend length
- Flange dimensions
- Surface marks or scratches
- Material sag during the cycle
- Follower-arm contact and movement
- Part release after bending
If the angle is open because of springback, adjust the bending depth or CNC angle correction based on measured results. Springback varies with material condition and should be validated rather than assumed.
Once the first part passes inspection, save the validated press brake and follower parameters. Record material batch details, tooling setup, support-arm position, and inspection results.
This creates a reusable process standard and helps maintain consistent quality across shifts and repeat orders.
Press brake sheet followers are most useful when a workpiece is too heavy, too long, too flexible, or too valuable to handle inconsistently.
Typical applications include:
- Long electrical cabinets, server enclosures, and switchgear panels
- Architectural cladding, façade panels, and metal roof components
- Elevator panels and large stainless-steel decorative parts
- Construction equipment frames, booms, buckets, and structural assemblies
- Agricultural machinery components
- Truck bodies, trailers, and transportation equipment
- HVAC duct components and long channels
- Solar mounting systems and renewable-energy structures
- Wind-energy tower-related sheet-metal components
- Large doors, control panels, and industrial housing assemblies
For tandem press brake systems, sheet followers can become even more important because ultra-long workpieces require stable support across the combined bending length. A well-engineered tandem system can support fabrication of long structural parts that are difficult to manage on a single press brake.
There is no universal "best" sheet follower configuration. A system designed for thin stainless-steel façade panels may not be appropriate for thick carbon-steel structural components. Likewise, a floor-standing retrofit unit may suit a job shop, while a fully integrated multi-arm configuration may be better for high-volume OEM production.
The best solution starts with engineering questions:
- What parts are you forming now?
- What parts do you want to produce in the next two to five years?
- Where do defects, handling delays, or labor bottlenecks occur today?
- Which materials require the highest surface protection?
- Do you need a stand-alone press brake, a tandem press brake, or a complete automated bending cell?
CNDY-Press supports customized CNC press brake projects for manufacturers, distributors, and equipment integrators. Our team can help evaluate machine tonnage, bending length, follower configuration, automation needs, controller integration, and OEM/ODM requirements before production begins.
If your shop is bending large, heavy, thin, or surface-sensitive sheet metal, a press brake sheet follower may be the missing link between machine capacity and reliable production.
A press brake sheet follower is an automated material-support system that follows the movement of the bending process. It supports large, heavy, thin, or flexible sheets to reduce sagging, counterbending, material shifting, and manual handling effort.
It can improve practical bend consistency by stabilizing the workpiece during bending. However, final angle accuracy still depends on material properties, tooling, machine condition, tonnage, die selection, CNC programming, and springback compensation.
In many cases, yes. Floor-standing sheet followers can be designed for retrofit applications, but feasibility depends on the press brake model, available space, electrical compatibility, ram-signal access, safety configuration, and target workpiece range.
Not always. Small thin parts may be handled easily without one. However, large thin sheets can flex, sag, twist, and scratch easily, making a sheet follower valuable when dimensional consistency, surface protection, or one-person operation is required.
Yes. Sheet followers are particularly useful with tandem press brakes because long workpieces require controlled support across a large bending length. The number of support arms, travel range, synchronization method, and load capacity should be engineered for the specific tandem setup.
