A full servo press brake vs CNC hydraulic press brake comparison should start with the parts your shop makes, not with a claim that one drive system is always faster or more accurate. A full servo-electric machine moves the ram through an electromechanical drive; a CNC hydraulic machine uses controlled hydraulic cylinders. The former can be attractive for frequent, repetitive bends in suitable sheet-metal work. The latter remains a strong option when jobs demand high force, long bending lengths, or a broad range of material thicknesses.
The purchasing decision affects more than the machine itself. Tooling, operator handling, energy use, maintenance, available service, and the time needed to make an acceptable first part all influence production cost. This article compares those factors and gives buyers a way to test both technologies against their actual part mix. It does not claim that CNDY-Press has performed a head-to-head test or achieved the competitor results cited below.

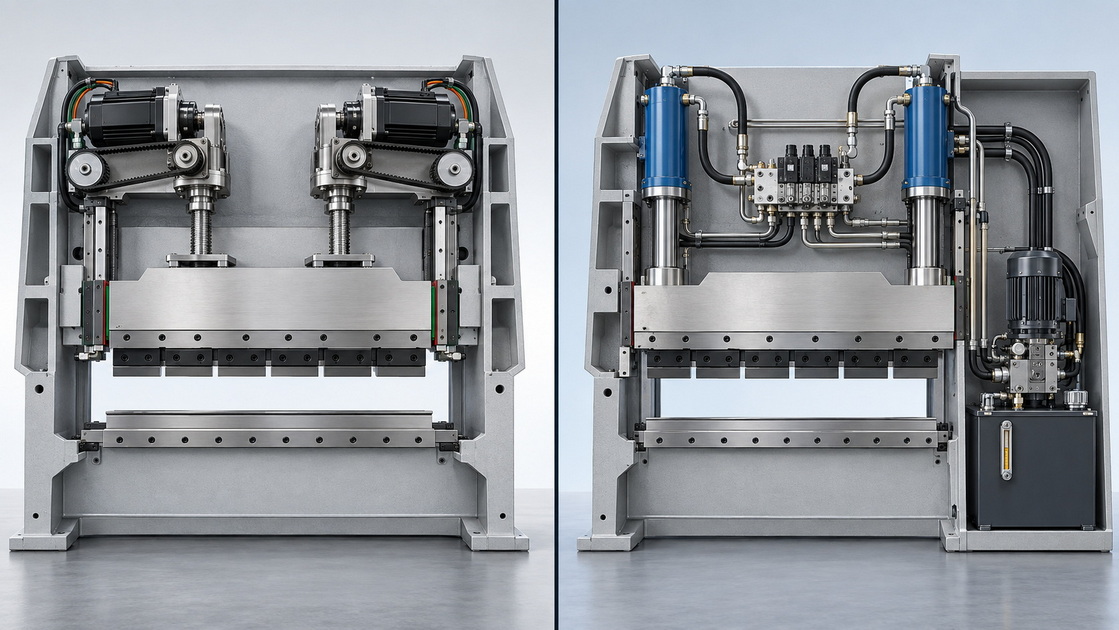

The word servo is not enough to identify a press brake's drive system. In this comparison, full servo press brake means a servo-electric machine whose principal ram force is produced by electric motors through an electromechanical transmission, such as belts, pulleys, or screws. It does not mean a servo motor driving a hydraulic pump.
A CNC hydraulic press brake uses hydraulic pressure and cylinders to move the ram, while its CNC system controls programmed motion and positioning. Modern hydraulic machines can offer sophisticated controls and accurate, repeatable bending. "Hydraulic" should not be treated as shorthand for "manual" or "imprecise."
There is also a servo-hydraulic category: a servo motor controls the hydraulic pump, but hydraulic cylinders still create the bending force. It may have different idle-power behaviour from a conventional constant-speed-pump hydraulic machine. If a quotation says only "servo press brake," ask for a drive schematic and identify what physically moves the ram before comparing prices or energy claims.
Suppose a buyer asks three manufacturers for a "servo CNC press brake." One may quote a fully electric belt-drive machine. Another may quote a hydraulic brake with a servo-controlled pump. A third may describe a CNC-controlled hydraulic axis as "servo." Those offers do not describe the same architecture.
Ask each bidder to state:
- How bending force is generated.
- Whether the ram drive contains hydraulic fluid.
- Which axes are electrically driven.
- The rated force and working length for the proposed model.
- The power draw in the agreed operating and idle conditions.
Without that information, a comparison table can look precise while comparing unlike machines.

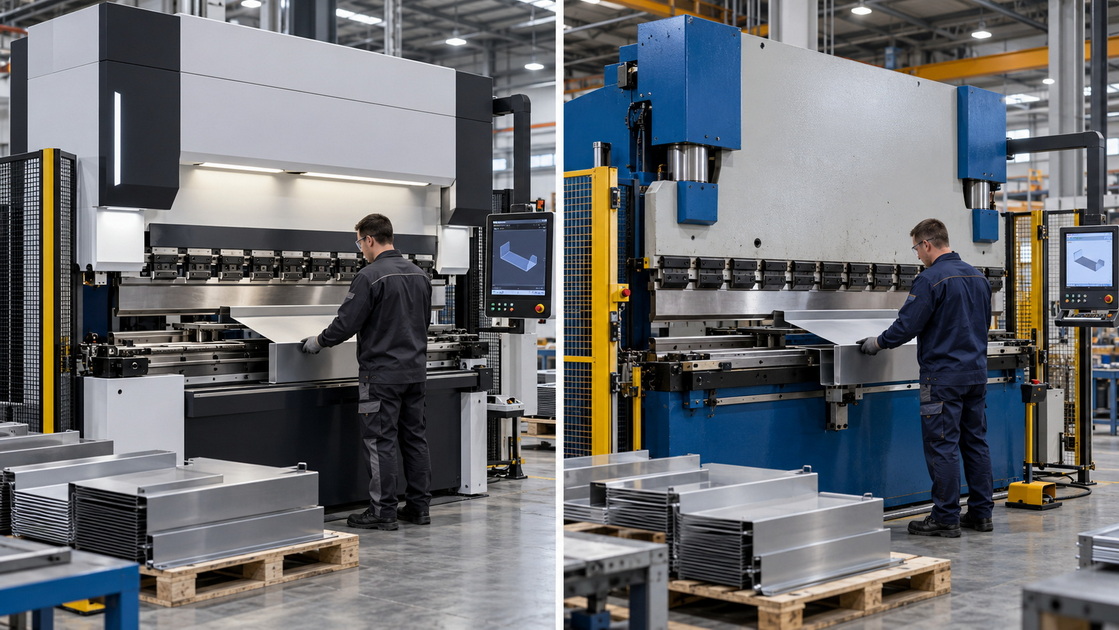

| Decision factor | Full servo-electric press brake | CNC hydraulic press brake |
|---|---|---|
| Ram drive | Electric motor and mechanical transmission | Hydraulic pump, valves, and cylinders |
| Strongest common fit | Repetitive, precision-focused work within the model’s force and length limits | High-force, long-length, or varied heavy forming |
| Idle energy | Often lower when the ram is waiting | Depends strongly on pump and control architecture |
| Routine maintenance | Mechanical drive, electrical components, controls | Hydraulic fluid, seals, hoses, valves, and controls |
| Bend consistency | Precise ram-position control; results still depend on material and tooling | Precise CNC control is possible; hydraulic condition also matters |
| Shop environment | No oil circuit in a fully electric ram drive | Hydraulic-system checks and leak management required |
| Main buying risk | Assuming a small or unsuitable model will handle future heavy jobs | Buying excess force without testing energy and cycle performance |
These are technology tendencies, not guaranteed specifications. SafanDarley publicly lists servo-electric press brakes from 35 to 300 tons, with working lengths from 1,250 to 4,100 mm. That range demonstrates why it is misleading to say all electric brakes are restricted to short, very low-force work. It does not mean every servo-electric model can bend your longest or thickest part.
Tonnage is not a stand-alone purchasing specification. The force needed for a bend changes with material strength, thickness, bend length, die opening, forming method, and specialised tooling. Bystronic's published air-bending explanation makes each of these variables explicit. It also notes that bottom bending and coining can require substantially more force than air bending.
Before comparing machines, select representative work from your production history:
1. The longest bend you regularly make.
2. The thickest and strongest material in the normal mix.
3. The part with the smallest flange or tightest tool access.
4. A complex part with multiple setups or bends.
5. A short, repetitive job where cycle time matters.
Calculate force for the proposed material and tooling, then confirm it with the machine and tooling suppliers. Also check allowable tooling load and how force is distributed along the machine—not only the headline press force. A quotation for sufficient total tonnage may still be unsuitable for an unusually concentrated load or a flange the selected die cannot support.
A full servo-electric brake deserves a close look when much of your work sits comfortably within its rated force, working length, stroke, daylight, and throat capacity. Repetitive parts with frequent ram movements may benefit from responsive motion. Compact electric machines can also be useful where floor space or operator handling matters; TRUMPF, for example, positions its direct-drive TruBend Series 7000 around small and medium-sized parts.
Do not select an electric brake solely because today's average part is small. Check credible future jobs, but separate likely demand from hypothetical projects so that an unlikely heavy bend does not dictate an oversized purchase.
A CNC hydraulic machine is often the more straightforward candidate for high-force or long-stroke forming and shops processing a wide spread of heavier materials. Industry analysis notes that hydraulic machines continue to serve the highest-force requirements, while modern CNC controls help maintain accurate motion and positioning.
That does not make hydraulic the automatic choice for every long bed. Confirm whether the machine's working length, frame stiffness, crowning arrangement, tooling, and available force at the intended bend satisfy the requirement.
A servo-electric machine can position its ram with fine control. A hydraulic machine can also use closed-loop CNC control and precise backgauges. Neither removes variation in material thickness, tensile properties, springback, blank dimensions, tooling condition, or operator setup.
For example, a supplier may advertise ram-position repeatability measured in fractions of a millimetre. Your finished part, however, is judged by its bend angle and flange dimensions. Those are related to ram positioning but are not identical to it. Ask the supplier to demonstrate your specified part tolerance on your material, using the tooling proposed in the quote.
On a long bend, machine deflection can cause the angle at the centre to differ from the angles near the ends. Crowning compensates for that effect. The appropriate solution depends on machine design, part, and tooling; do not assume that every electric press brake needs crowning or that every hydraulic brake includes an effective automatic system.

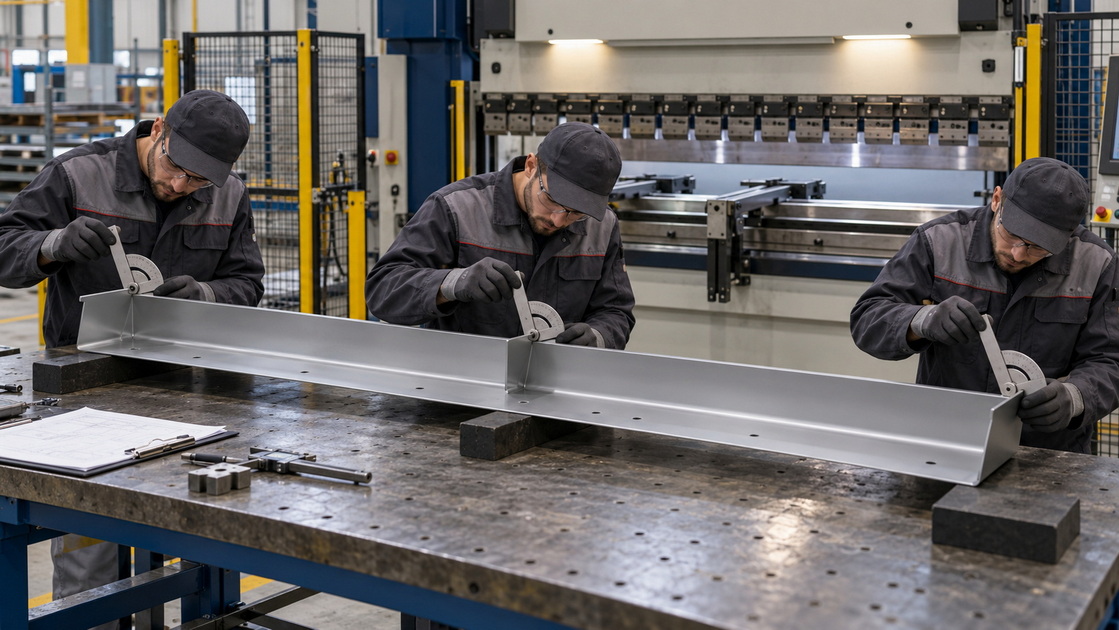

A practical trial should measure the angle at the left, centre, and right of the same part. Then repeat after several bends. This reveals more about production consistency than inspecting a single point on one demonstration piece.
A useful measure of productivity is time to the first accepted part. Programming, tool changes, trial bends, angle measurement, and correction can outweigh a small difference in the ram's rapid-approach speed. TRUMPF describes angle-measurement and software features intended to reduce corrections on its machines; such features should be evaluated as part of the specific quoted configuration, not assumed for a drive type.
For high-mix OEM work, record both the total setup time and the number of trial parts. An apparently fast machine can be the slower business choice if it takes longer to set up your actual jobs.
Servo-electric drives can respond quickly, particularly in short-stroke, repetitive work. SafanDarley reports up to 30% shorter cycle times for its E-Brake in its own comparison tests. That is a manufacturer-specific claim, not a promised gain for another supplier or for every part.
Time the entire sequence: part pickup, positioning, backgauge movement, bending, removal, inspection, and any required reorientation. If an operator spends most of the cycle handling a large panel, a faster ram may have little effect on hourly accepted output.
A full servo-electric drive generally draws less power while waiting than a conventional hydraulic system with a continuously running pump. But not every hydraulic machine uses a constant-speed pump, and electrical controls, lighting, handling devices, and auxiliaries consume power on electric machines too. Servo-hydraulic pump designs further complicate simple "electric versus hydraulic" energy claims.
For a fair purchasing comparison, request metered kilowatt-hours per accepted part under the same part programme, material, tooling, and operator arrangement. Include idle time between jobs if that reflects normal production. Do not apply an advertised percentage saving to your annual bill without checking the test conditions.
Full servo-electric machines avoid hydraulic oil, pumps, and valves in the ram-drive circuit. Maintenance instead centres on their mechanical transmission, electrical drives, alignment, and control system. Hydraulic machines require attention to fluid condition and components such as seals, valves, hoses, and cylinders. Both types need routine checks of tooling, backgauges, guarding, and calibration.
Ask who can repair the machine at your site and how quickly essential components can be supplied. Lower routine maintenance has limited value if one specialist component creates lengthy downtime.
Consider a sheet-metal shop with two recurring job families. Its high-volume work consists of small enclosure parts with many short bends. Its second family comprises fewer, longer parts made from thicker material.
The owner might be tempted to buy one machine based on the largest possible tonnage. A better approach is to test how the work should be assigned. A full servo-electric model could suit the enclosure cell if it meets every bend requirement and meaningfully reduces setup or cycle time. A hydraulic brake could remain the more flexible choice for the heavier, longer jobs. This is an illustrative scenario, not a measured CNDY-Press customer case. Industry commentary likewise notes that some shops use both technologies and assign work according to force, tolerances, and output needs.
The purchasing question becomes: Which machine clears your actual bottleneck? If the shop's enclosure line is waiting for bending capacity every day, rapid repeatable production has high value. If work regularly exceeds an electric model's force or length, a hydraulic machine may protect capability that cannot be replaced by faster short cycles.
An apparently fair equipment comparison can fail because vendors quote different included options. One offer may include a multi-axis backgauge, crowning, quick-change tooling, or angle measurement. Another may price those separately.
Ask for a configuration-matched quotation. Put the required bending length, force, stroke, backgauge axes, crowning method, tooling set, safety system, software, installation, training, and warranty on one checklist. Then identify exclusions line by line.
A second overlooked issue is the acceptance test. "The machine passed factory testing" is not the same as "the machine produced the buyer's representative part within the agreed tolerance." Define the sample parts, material, measurement points, operator conditions, and pass criteria before the factory acceptance test.
1. Share representative drawings. Include material grade, thickness tolerance, bend length, bend sequence, required angle and flange tolerances, and expected monthly volume.
2. Confirm force and access. Review the proposed V-die, tooling limits, stroke, daylight, throat, backgauge travel, and part collision risks.
3. Run the same parts on both machines. Use the same material batch and agreed tooling where feasible. Document any configuration differences that cannot be eliminated.
4. Measure acceptable output. Record setup time, first accepted part, accepted parts per hour, scrap, and angles across long bends.
5. Meter energy and review service. Capture operating and idle energy use, then obtain maintenance schedules, local service arrangements, and spare-parts terms.
6. Review safety in the destination market. Press-brake hazards include the point of operation, moving stock, and accidental activation. Assess guarding and operator training against the rules applicable where the machine will be installed. OSHA describes these hazards and safeguarding approaches for powered press brakes.
This test creates evidence a procurement team can use. It also prevents an impressive machine video from replacing a proper assessment of the parts, people, and production conditions in the buyer's plant.
CNDY-Press's stated business covers the development, manufacture, sale, and service of CNC press brakes and related sheet-metal equipment, including OEM, ODM, and customised projects. The company can use a buyer's part drawings and production targets to discuss a proposed machine configuration. The details of any particular full servo-electric or CNC hydraulic model—force, drive layout, tolerances, certifications, and availability—must be established in its current technical quotation rather than assumed from this article.
Send CNDY-Press your five most representative parts, material specifications, required volumes, plant power supply, available floor space, and destination country. Ask for a configuration-matched full servo-electric versus CNC hydraulic proposal, supported by tonnage calculations, a part-trial plan, metered-energy test conditions, and after-sales service terms.
No. A full servo-electric machine creates the main bending motion through an electromechanical drive. A servo-hydraulic machine uses a servo-controlled pump but retains hydraulic cylinders to create the forming force. Ask for the ram-drive architecture in writing.
Some can. SafanDarley lists electric models up to 300 tons, although suitability still depends on working length, tooling, force distribution, and the exact part. Do not generalise one manufacturer's range to every electric machine.
Not inherently. Modern CNC hydraulic machines can provide accurate control. Finished bend accuracy also depends on material variation, tooling, compensation, setup, and inspection. Test the required finished-part tolerance rather than comparing ram-position figures alone.
A full servo-electric machine will often have lower idle drive consumption than a conventional continuously running hydraulic pump, but the actual difference depends on machine architecture and duty cycle. Compare metered kilowatt-hours per accepted part for your own work.
The tasks differ. An electric ram drive avoids routine hydraulic-circuit work, while its mechanical and electrical systems still need care. A hydraulic brake needs fluid-system checks as well as the common tooling and safety checks required on both machine types.
