Fiber laser cutting machines have moved from "nice-to-have" to core equipment in modern sheet metal fabrication, thanks to their combination of cutting speed, precision, and low operating cost compared with CO2 lasers and plasma. For OEM and ODM manufacturers, a well-configured fiber laser cutting machine is often the backbone of a flexible, high-mix production line. [hpclaser.co]

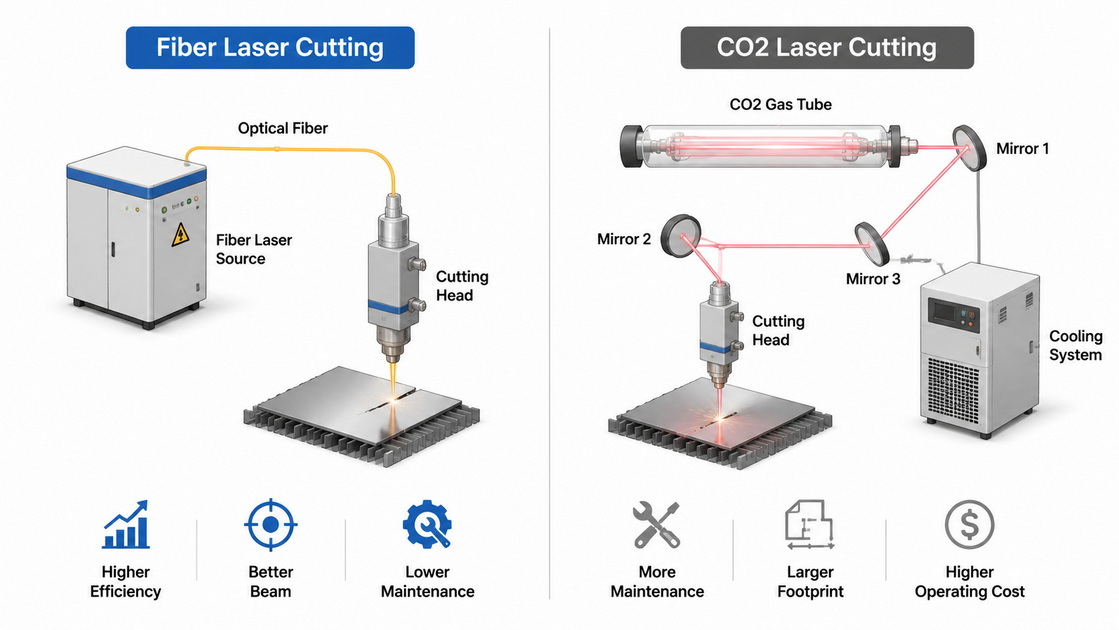

Fiber laser cutting uses a solid-state laser transmitted through a doped optical fiber to cut metals with a highly concentrated, stable beam. Compared with gas-based CO2 lasers, fiber lasers deliver higher electrical efficiency, better beam quality, and lower maintenance needs. [3ds]
For manufacturers, this translates into:
- Faster, more accurate cutting across a wide range of metals
- Lower running costs per part
- Smaller machine footprints and easier integration into automated cells [piranhafab]
Modern fiber laser cutting machines are significantly faster than CO2 lasers, especially in thin and medium-thickness sheet metal. [accurl]
- Fiber lasers can cut some thin metals up to three times faster than comparable CO2 systems. [3ds]
- Typical high-power fiber lasers cut mild steel at very high feed rates (hundreds of inches per minute), dramatically increasing daily output. [piranhafab]
For contract manufacturers and OEMs, this speed gain often means:
- Fewer cutting machines for the same volume
- Shorter lead times and more capacity for rush orders [amerequip]

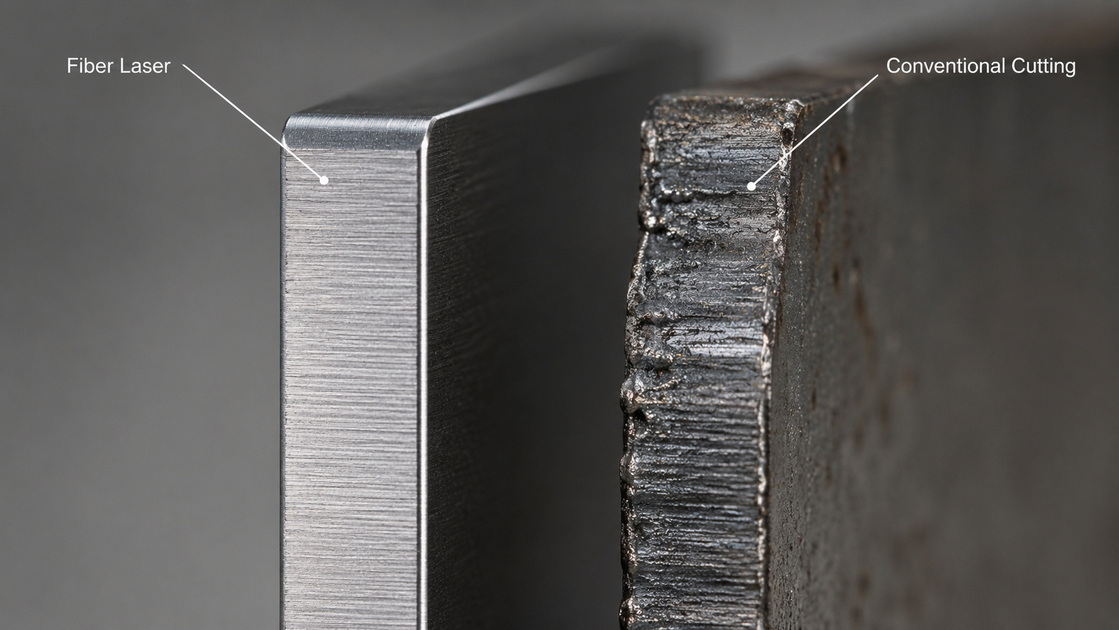

Fiber laser cutting is known for very tight tolerances and clean edges. [hpclaser.co]
- Positioning accuracy can be in the ±0.05 mm range, depending on machine and setup. [accurl]
- The narrow kerf and small heat-affected zone (HAZ) minimize distortion and keep edges smooth enough to reduce or eliminate secondary grinding or deburring. [hpclaser.co]
This is critical in sectors like aerospace, electronics, and precision machinery, where even small dimensional drift can cause assembly or performance issues. [amerequip]
Although a fiber laser cutting machine can require higher upfront investment than older technologies, its lifetime cost per part is typically lower. [3ds]
Drivers include:
- Higher electrical efficiency and lower power consumption per unit of output [trumpf]
- Fewer moving optics and no laser gas, which reduces maintenance and consumables
- Longer source lifetimes, often approaching or exceeding 100,000 hours of operation for quality fiber laser modules [accurl]

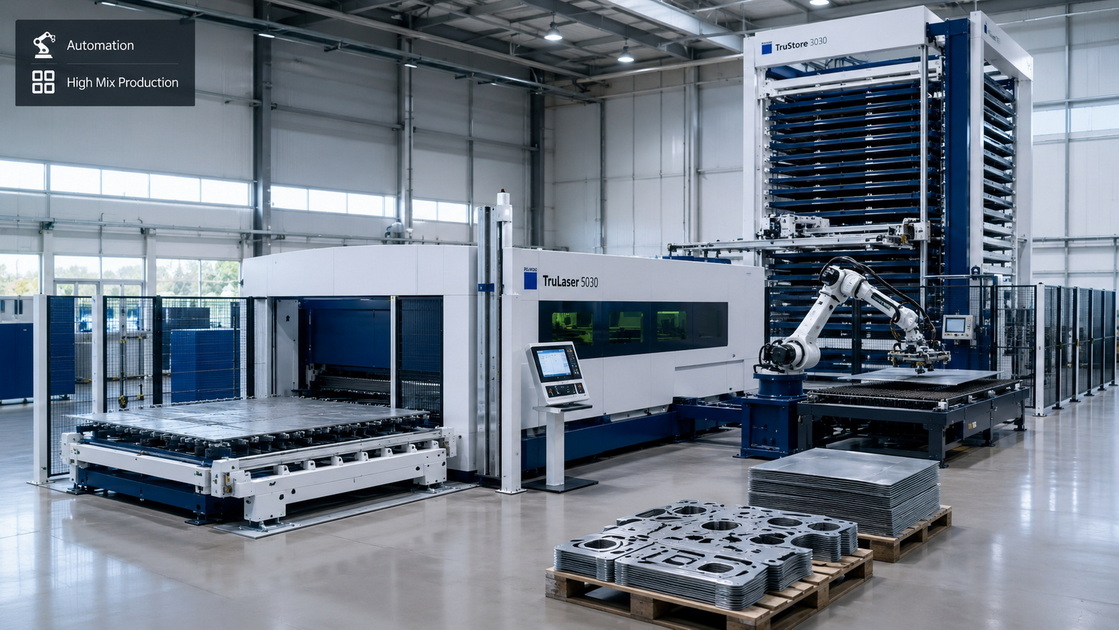

Fiber laser systems are highly CNC-driven and automation-friendly, so they:
- Load cutting programs directly from CAD/CAM
- Require minimal mechanical adjustments between jobs
- Often cut parts to final size with limited post-processing [hpclaser.co]
For high-mix production, these savings in setup time and secondary operations significantly improve overall ROI compared with plasma, punching-only, or older laser technologies. [xtlaser]
Fiber laser cutting machines handle a wide array of metals used in sheet metal fabrication. [trumpf]
Typical materials include:
- Mild and carbon steel
- Stainless steel
- Aluminum and aluminum alloys
- Copper, brass, and other reflective metals [trumpf]
Fiber laser wavelength and beam characteristics make them much better suited to reflective materials than CO2 lasers, which are more prone to back reflection issues. This opens up applications in electrical enclosures, busbars, heat exchangers, and decorative metalwork that mix multiple alloys. [xtlaser]
Fiber laser cutting machines generally have a more compact layout than comparable CO2 installations, saving valuable floor space. Their higher efficiency also reduces the plant's energy footprint per part cut. [3ds]
Laser cutting, especially with modern extraction systems, is:
- Cleaner than many mechanical or flame-based processes
- Quieter than punching and some thermal cutting alternatives [accurl]
This contributes to better working conditions and makes it easier to comply with environmental and occupational health regulations. [3ds]
For companies offering OEM and ODM sheet metal manufacturing, fiber lasers are a strategic tool rather than just a machine. [dwcnclaser]
Typical benefits for OEM/ODM workflows:
- Rapid prototyping: Quickly cut design iterations without changing tooling. [xtlaser]
- Flexible batch sizes: Efficient for both short runs and repeated production.
- Design freedom: Complex shapes, small features, and tight nesting are routine, which supports innovative enclosure and bracket designs. [xtlaser]
When combined with bending, welding, and finishing, a fiber laser cutting machine lets manufacturers offer end-to-end, vertically integrated solutions to their B2B customers. [dwcnclaser]
From an engineering and production-planning perspective, fiber laser cutting stands out in several situations:
- Thin to medium sheet thickness where speed and precision are critical.
- Parts with many holes, slots, and intricate contours, where punch tooling would be expensive or inflexible. [xtlaser]
- Materials that are difficult for CO2, especially bright aluminum and copper alloys. [trumpf]
- High-mix job environments, where setup time and changeovers dominate cost.
However, processes like plasma, oxy-fuel, or waterjet may still make sense for:
- Very thick plate beyond the economic range of fiber lasers
- Specialty materials where different cut edge characteristics are required [accurl]
The best strategy in many plants is a hybrid cutting portfolio, with fiber laser as the primary machine for sheet work and other processes reserved for specific niches.
Consider a fabrication shop serving construction equipment and industrial enclosure OEMs:
- Before fiber laser, it used punching and plasma for most work.
- Complex parts required multiple setups and significant deburring.
- Lead times were under pressure, and small engineering changes were costly.
After introducing a high-power fiber laser cutting machine and integrating it with CAD/CAM and downstream press brakes:
- Many parts moved from multi-process routing to single-step cutting.
- Nesting optimization and higher speeds lifted sheet utilization and capacity.
- Prototype turnaround times dropped from days to same- or next-day in many cases. [amerequip]
For OEM/ODM clients, this translated directly into shorter development cycles and more design freedom, strengthening the manufacturer's B2B value proposition.
As a manufacturer dedicated to fiber laser cutting machines and complete sheet metal processing lines, CNDY-Press designs systems around real production requirements, not just catalog specifications.
For OEM and ODM customers, this typically includes:
- Evaluating your part families, material mix, and thickness ranges
- Matching laser power, table size, and automation options to your actual workload
- Integrating the fiber laser cutting machine with press brakes, loading/unloading, and software for a seamless process
- Providing custom configurations for special applications, from high-precision electronics parts to large structural components [dwcnclaser]
This consultative approach ensures that your fiber laser cutting machine is not only fast and precise, but also properly sized, future-ready, and aligned with your long-term B2B strategy.
When you evaluate a fiber laser cutting system, consider:
1. Power and speed
- Match kW level to your typical thickness range and productivity goals. [piranhafab]
2. Table size and layout
- Ensure sufficient area for your largest parts and efficient nesting.
3. Automation and material handling
- Decide whether you need loading towers, pallet changers, or integration with storage systems. [3ds]
4. Software and connectivity
- Check CAD/CAM compatibility, nesting capabilities, and Industry 4.0 integration options. [accurl]
5. Service, training, and lifecycle support
- Look for a supplier who can support operator training, preventive maintenance, and spare parts over many years.
CNDY-Press can walk through this checklist with your team, using sample drawings and production data to propose a balanced and realistic configuration.
CNDY-Press can help you specify a fiber laser cutting machine that aligns with your parts, your operators, and your growth plan. Share a set of representative drawings, material data, and volume estimates, and our engineering team will recommend a tailored fiber laser solution—from standalone machines to fully integrated cutting and bending cells.
1. What is the main advantage of fiber laser cutting over CO2?
Fiber laser cutting offers higher electrical efficiency, faster cutting speeds on thin to medium materials, better performance on reflective metals, and lower maintenance requirements than CO2 lasers. [hpclaser.co]
2. Which materials can fiber laser cutting machines process?
Fiber lasers can cut mild steel, stainless steel, aluminum, brass, copper, and other common engineering metals, making them suitable for a wide range of industrial applications. [trumpf]
3. Are fiber laser cutting machines suitable for OEM and ODM projects?
Yes. Their speed, precision, and design flexibility make fiber lasers ideal for OEM/ODM projects that require frequent design changes, high quality, and consistent repeatability. [amerequip]
4. How do fiber laser cutting machines support Industry 4.0 and automation?
Fiber lasers integrate well with CAD/CAM, MES, and automation systems, enabling real-time monitoring, predictive maintenance, and automated material handling in smart factories. [trumpf]
5. What should I look at besides laser power when buying a fiber laser?
Evaluate table size, automation options, software ecosystem, service and training capability, and how the machine will integrate with existing bending, welding, and finishing processes. [piranhafab]
