Views: 222 Author: CNDY-Press Publish Time: 2026-04-22 Origin: Site
As someone who has spent years working with OEM and ODM projects in sheet metal fabrication, I've seen fiber laser cutting evolve from a niche technology into the backbone of modern smart factories. Today, it is the preferred process for high‑precision, high‑speed cutting of metal sheets and components across automotive, machinery, electronics, construction, and custom fabrication. [intelmarketresearch]
In this guide, we will walk through what fiber laser cutting is, how it works in real production, key process parameters, machine selection tips, and how manufacturers like CNDY‑Press support custom OEM/ODM projects with complete sheet‑metal solutions. [kaast-usa]
Fiber laser cutting is an industrial cutting process that uses a highly focused, high‑energy fiber laser beam to melt and expel material from a workpiece, producing a narrow, precise cut (kerf) without mechanical contact. The laser beam is generated inside a rare‑earth‑doped optical fiber (often ytterbium‑doped), then guided through fiber optics and focusing lenses to the cutting head. [hncnclaser]
Compared with mechanical cutting, punching, or CO₂ laser cutting, fiber laser cutting offers higher efficiency, better edge quality on metals, and significantly lower maintenance on optical components. This is why it has become the dominant technology in metal laser cutting machines worldwide. [linkedin]
From an operator's and production engineer's perspective, the cutting process can be broken down into several stages that must all work together reliably. [hncnclaser]
1. Laser Generation
Semiconductor laser diodes create "pump light," which is injected into a doped fiber optic cable. Inside this active fiber, rare earth elements like ytterbium are excited and emit photons, creating a coherent, high‑intensity laser beam. [hncnclaser]
2. Beam Delivery Through Fiber Optics
The laser beam travels through a fiber core surrounded by cladding, which acts as a mirror to keep the beam confined using total internal reflection. This design allows long‑distance, flexible routing of the beam from source to cutting head with minimal loss. [hncnclaser]

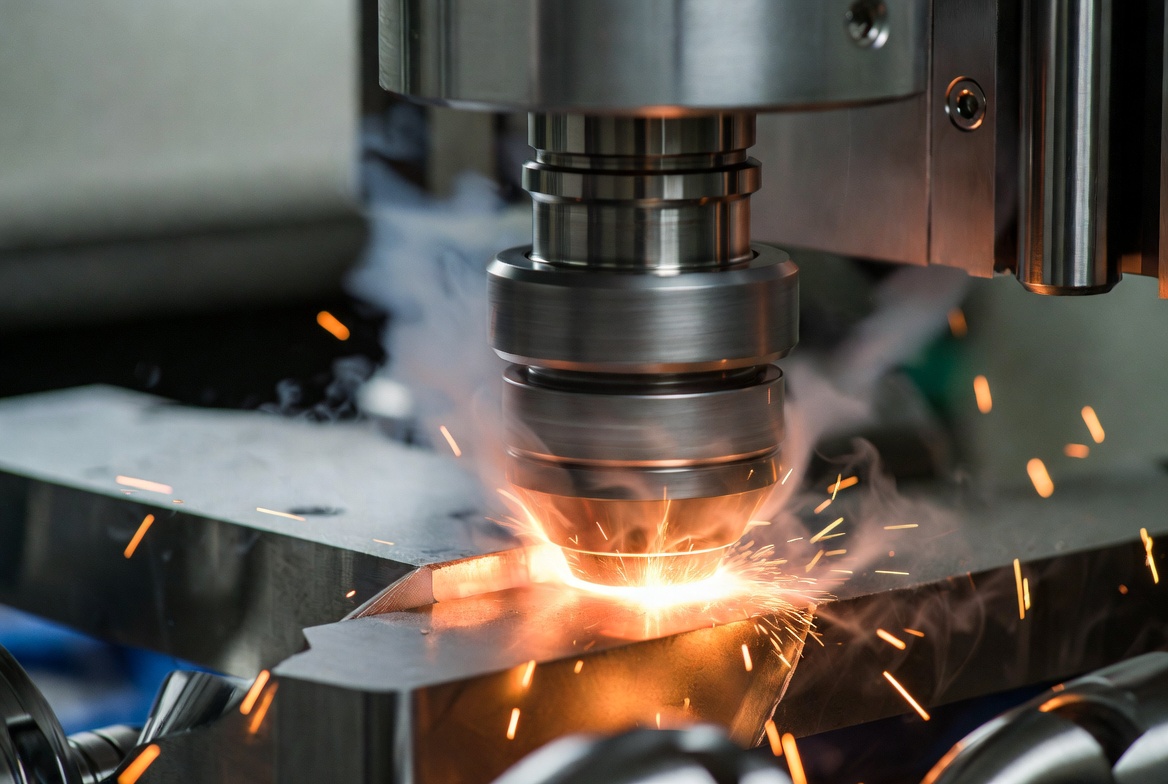

3. Laser Focusing at the Cutting Head
The cutting head contains collimating optics, a focusing lens, and a nozzle. The beam is focused to a very small diameter, concentrating the energy at the focal point on the material surface or slightly below it. [hncnclaser]
4. Material Interaction and Melting
When the focused beam hits the workpiece, its energy is absorbed and converted into heat, rapidly melting or partially vaporizing the material at the cutting front. [hncnclaser]
5. Assist Gas Ejection of Molten Material
Simultaneously, an assist gas system (oxygen, nitrogen, or air) blows molten metal out of the kerf. This prevents re‑solidification and weld‑back, and strongly influences edge quality, oxidation, and cutting speed. [shop.adhmt]
6. CNC‑Controlled Motion
A CNC controller coordinates servo motors on the X, Y, and Z axes to move the cutting head (or worktable) along the programmed cutting path. The result is automated, repeatable cutting of complex geometries, from simple brackets to intricate decorative panels. [hncnclaser]

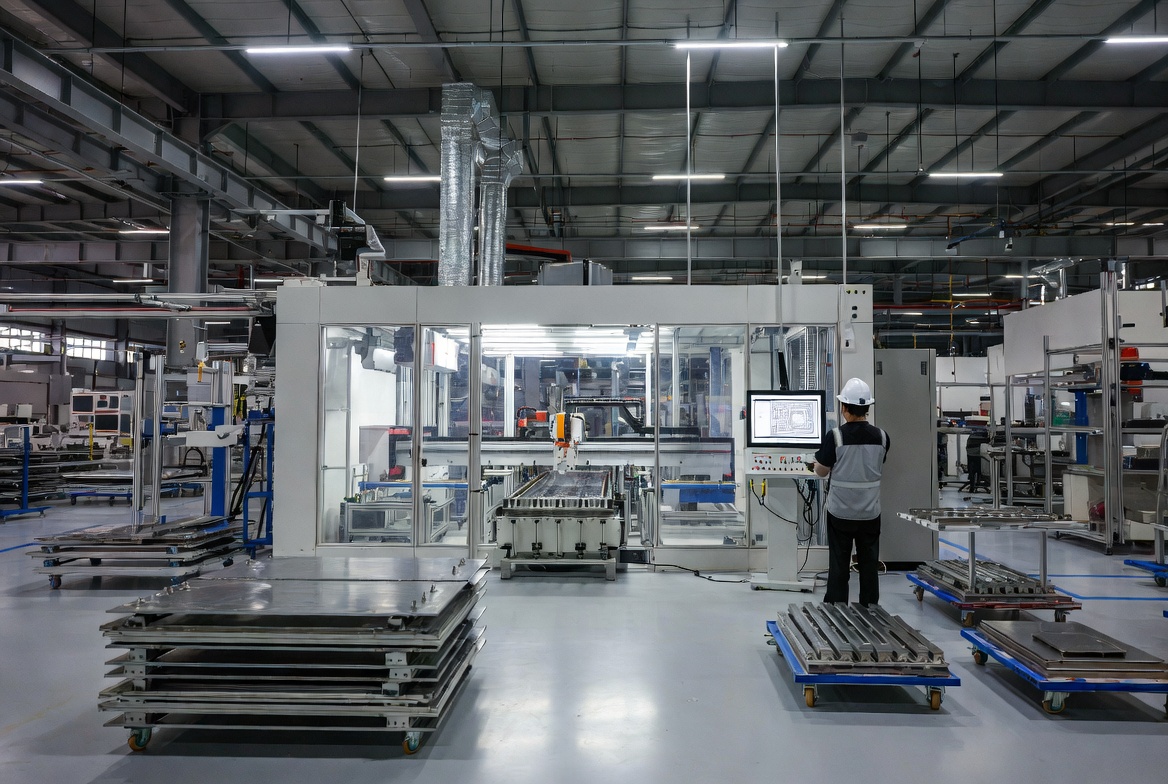

From a plant investment and maintenance standpoint, it is important to understand the main subsystems that determine performance, uptime, and operating cost. [hncnclaser]
- Fiber Laser Source
Uses rare‑earth‑doped optical fiber (commonly ytterbium‑doped) to generate high‑power laser light at wavelengths suitable for metals. [hncnclaser]
- Cutting Head and Nozzle
Houses focusing optics and the nozzle for assist gas. This is a critical wear component that directly affects cut quality and operating cost. [hncnclaser]
- Servo Motors and Drives
High‑precision servo motors provide accurate motion control, especially important for tight tolerances, fine features, and high‑speed contouring. [hncnclaser]
- Cooling System (Water Chiller)
Laser sources and optics generate heat; industrial chillers maintain stable temperatures to protect sensitive components and ensure consistent beam quality. [hncnclaser]
- Worktable and Machine Bed
Often called the host, this includes the bed, gantry, and support structure. Good machine design minimizes vibration and thermal distortion for accurate cutting. [hncnclaser]
- CNC Controller and Control Panel
The CNC unit interprets part programs (e.g., from CAD/CAM) and controls motion and process parameters, while the control panel gives operators real‑time feedback and emergency controls. [hncnclaser]
- Assist Gas System
Supplies and regulates oxygen, nitrogen, or air at specific pressures to optimize kerf removal, edge quality, and oxidation level. [shop.adhmt]

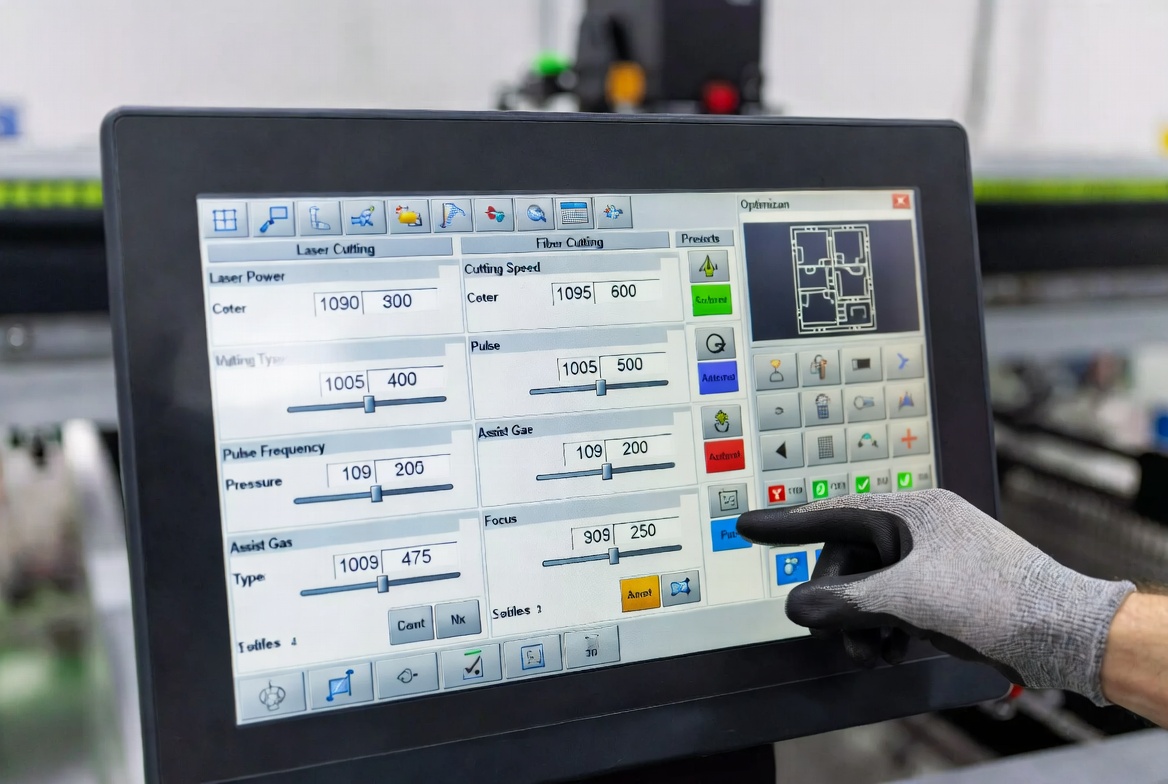

Whether you are an OEM customer auditing a supplier or a workshop engineer fine‑tuning production, understanding the key parameters is essential. [kaast-usa]
- Laser Mode: CW vs PW
- Continuous Wave (CW): Constant output, ideal for high‑speed cutting and welding. [hncnclaser]
- Pulsed Wave (PW): High‑peak power pulses; useful for fine features, engraving, and minimizing heat input. [hncnclaser]
- Laser Power (W)
Higher power allows cutting thicker or more reflective materials, but must be matched with material type and thickness. [hncnclaser]
- Pulse Frequency (Hz or kHz)
A higher pulse frequency can improve edge smoothness and cutting speed within an optimal range. Fiber laser cutting commonly operates between 20 kHz and 200 kHz, with many applications around 50–100 kHz depending on power. [hncnclaser]
- Beam Diameter and Focus Spot Size
A smaller spot results in narrower kerf and higher precision, but requires more precise focus and machine stability. [hncnclaser]
- Focal Position
Adjusting the focus above, on, or below the material surface changes the energy distribution, which directly affects pierce time, edge quality, and maximum thickness. [hncnclaser]
- Assist Gas Type and Pressure
- Oxygen: Increases cutting speed on carbon steel but causes oxidized edges. [shop.adhmt]
- Nitrogen: Produces bright, oxidation‑free edges on stainless and aluminum at higher gas costs. [kaast-usa]
- Air: Low‑cost option for certain applications where slight discoloration is acceptable. [kaast-usa]
- Cutting Speed (mm/min or IPM)
Must be balanced with power, thickness, and gas type. Excessive speed leads to slag and burrs; too slow increases heat‑affected zone (HAZ). [kaast-usa]
- Material Thickness and Type
Fiber lasers excel at sheet metal up to a few centimeters, but are not ideal for very thick blocks. Material reflectivity and thermal conductivity also matter. [hncnclaser]
- Optics Condition (Lens and Mirrors)
Dirty or damaged optics cause focus shift, power loss, and inconsistent cutting quality, and should be checked regularly. [hncnclaser]

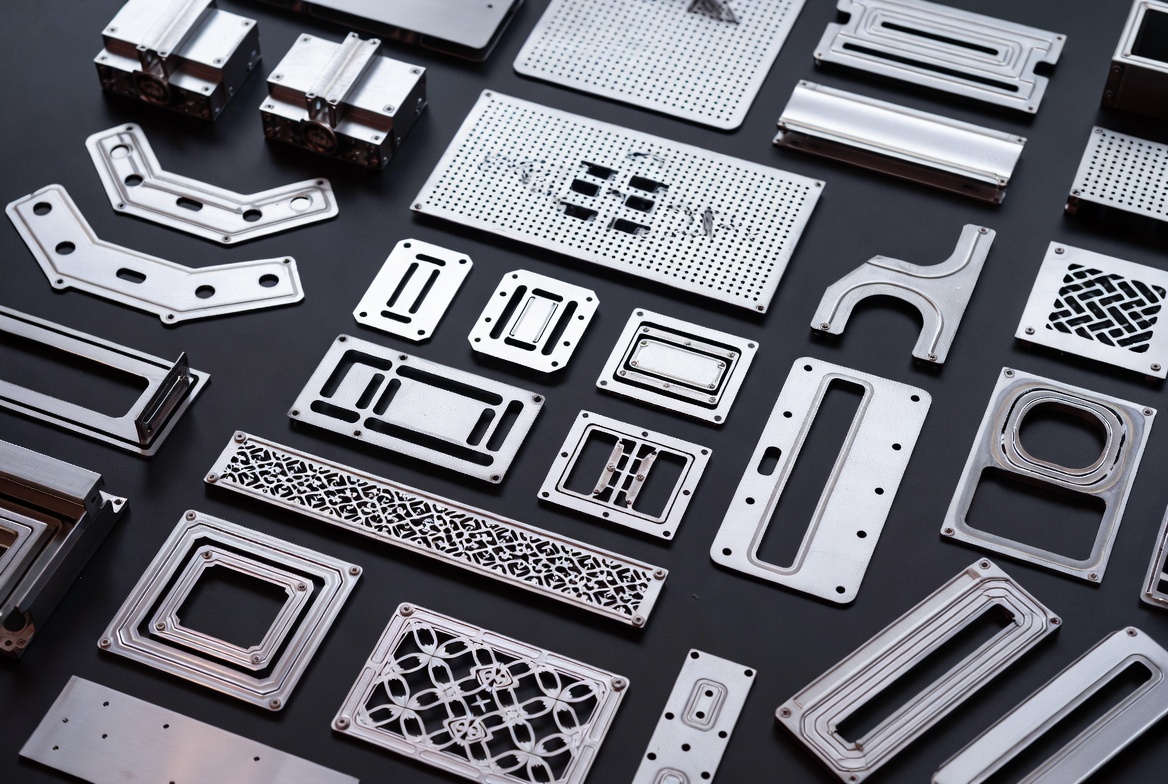

Fiber laser cutting is especially powerful in metal processing, but is capable of handling many materials when used with the correct safety measures. [hncnclaser]
Metals and Alloys (Core Application) [hncnclaser]
- Carbon steel
- Stainless steel
- Aluminum and aluminum alloys
- Copper and brass
- Titanium and high‑strength alloys
Non‑metals and Special Materials (with process control and safety) [hncnclaser]
- Wood (hardwood, softwood, MDF)
- Paper, cardboard, and specialty paper products
- Some composites (e.g., carbon fiber)
- Ceramics, graphite, silicon, and even diamond in specific applications
Certain plastics, particularly those emitting toxic or corrosive fumes such as PVC, ABS, polycarbonate, and HDPE, are not suitable for fiber laser cutting due to environmental and equipment damage risks. [hncnclaser]
Fiber laser cutting machines are now standard equipment in: [kaast-usa]
- Automotive and transportation – body parts, brackets, structural components
- General metal fabrication – cabinets, frames, enclosures, custom machinery parts
- Aerospace – high‑strength alloy components and precision brackets
- Electronics and electrical – enclosures, busbars, heat sinks
- Construction and infrastructure – architectural metalwork, handrails, panels
- Lighting and kitchenware – fixtures, stainless kitchen equipment
- Advertising and decor – signs, logos, screens, perforated panels
From a manufacturing and cost‑of‑ownership viewpoint, the main advantages are: [intelmarketresearch]
- Exceptional precision and repeatability
Ultra‑narrow kerf and small heat‑affected zone enable tight tolerances and smooth edges. [kaast-usa]
- High cutting speeds and productivity
Fiber lasers can cut metals at several meters per minute, especially thin‑to‑medium thickness sheets. [kaast-usa]
- No physical cutting tool
No blade wear or mechanical tool changes; reduced downtime and consumable costs. [hncnclaser]
- Low operating and energy costs
Fiber lasers are significantly more energy‑efficient than many legacy cutting technologies. [hncnclaser]
- Excellent automation compatibility
Easily integrated with CNC, robots, loading/unloading systems, and smart factory software. [hncnclaser]
- Clean workspace
Material is melted and expelled rather than chipped, resulting in virtually no cutting dust. [hncnclaser]
However, decision‑makers should also be aware of practical constraints: [hncnclaser]
- Material thickness limit
Fiber laser cutting is best for sheet and plate, not very thick blocks. Maximum thickness depends on power and material.
- Initial capital investment
While operating costs are low, high‑quality systems still require a significant upfront investment. [hncnclaser]
- Material restrictions
Some plastics and coated materials cannot be cut due to toxic fumes and risk to optics. [hncnclaser]
- Maintenance requirements
Regular checks of cooling system, filters, lenses, and protective windows are essential to maintain cut quality and extend system life. [hncnclaser]
When we guide customers as an OEM/ODM partner, we focus less on "spec sheet noise" and more on aligning machine configuration with real workloads and ROI expectations. [ferricmachinery]
1. Define Your Core Materials and Thickness Range
- What percentage of your workload is carbon steel, stainless steel, aluminum, or copper?
- What is your typical thickness, and what is the maximum thickness you truly need?
2. Set Performance Targets
- Required throughput (parts per day / per shift)
- Tolerance requirements and surface finish expectations
- Single‑shift vs multi‑shift operation
3. Choose Laser Power and Work Area Appropriately
- Avoid over‑ or under‑sizing laser power; both can hurt ROI.
- Ensure the worktable size matches your most common sheet formats.
4. Evaluate Automation and Integration Needs
- Manual loading may be sufficient for small batches.
- For continuous production, consider automatic loading/unloading, sorting, and integration with bending, welding, or storage systems.
5. Examine Brand, Service, and Lifecycle Support
- Check the quality of optics, motion components, and safety features. [hncnclaser]
- Evaluate local service response time and availability of spare parts.
Drawing on industry best practices, the following tips consistently improve cut quality and reduce scrap and rework. [ferricmachinery]
1. Know Your Material
Material composition, batch quality, and surface condition all affect cutting behavior; standardize suppliers and incoming inspection.
2. Optimize Cutting Parameters, Not Just Power
Fine‑tune power, speed, gas type/pressure, and focal position for each material and thickness instead of copying one "universal" setting. [ferricmachinery]
3. Maintain Clean Optics and Nozzles
Regularly inspect and clean focusing lenses, protective windows, and nozzles; even minor contamination can degrade edge quality and pierce performance. [kaast-usa]
4. Use Proper Ventilation and Fume Extraction
Effective dust and fume extraction protects both the operator and machine optics, and is increasingly important for regulatory compliance. [kaast-usa]
5. Monitor Cut Quality Continuously
Train operators to recognize signs of sub‑optimal cutting (burrs, slag, excessive heat tint, wide kerf) and adjust parameters before problems escalate. [ferricmachinery]
For many overseas customers, the real value is not just the machine—it is the ability to outsource entire metal fabrication workflows with a partner who runs fiber laser cutting as part of a full production cell. [prnewswire]

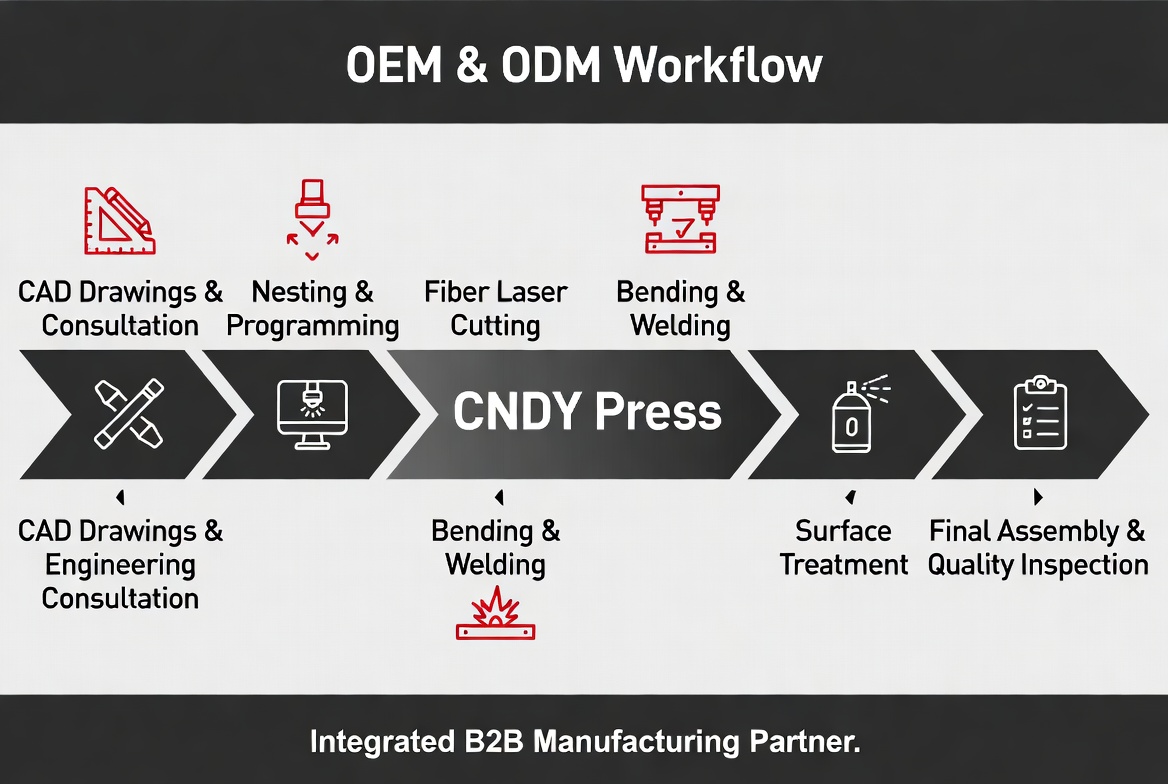

A mature OEM/ODM partner in sheet metal processing will typically offer:
- End‑to‑end engineering support – from drawings and 3D models to manufacturability optimization and nesting strategy.
- Integrated processes – fiber laser cutting combined with bending, forming, welding, surface treatment, and assembly.
- Flexible batch sizes – from prototypes and small batches to long‑term volume orders with stable quality and traceability.
- Custom fixtures and jigs – to ensure high repeatability and lower unit costs on recurring orders.
Manufacturers like CNDY‑Press, dedicated to R&D, manufacturing, sales, and service of fiber laser cutting machines and full sheet‑metal processing lines, can support both OEM and ODM projects and provide customized production according to customer requirements, helping buyers reduce CAPEX while gaining access to advanced laser technology. [cn.laser-cutter-machine]
When evaluating fiber laser technology, decision‑makers usually focus on three figures: initial investment, lifetime, and total cost per part.
- Machine Cost Range
Industrial fiber laser cutting machines typically range from about 30,000 USD to over 500,000 USD, depending on power, size, automation level, and brand. [hncnclaser]
- System Lifespan
With proper maintenance, a fiber laser system can run for approximately 100,000 working hours, which can correspond to several decades in normal industrial use. This is significantly longer than many CO₂ laser systems. [hncnclaser]
- Operating Cost Structure
Main cost contributors include electricity, assist gas consumption, optics/nozzle consumables, routine maintenance, and labor. Due to high energy efficiency and the absence of consumable laser tubes, fiber lasers often offer favorable cost‑per‑part in medium‑to‑high volume production. [intelmarketresearch]
When comparing fiber laser technology with CO₂ lasers, the main difference lies in how the laser light is generated and how efficiently it couples into metal materials. [hncnclaser]
- Laser Source
- Fiber laser: Uses rare‑earth‑doped optical fiber as the gain medium. [hncnclaser]
- CO₂ laser: Uses a gas discharge tube filled with CO₂ and other gases. [hncnclaser]
- Efficiency and Maintenance
Fiber lasers generally offer higher electrical‑to‑optical efficiency, simpler cooling, and lower routine maintenance, while CO₂ lasers require more frequent component replacement. [hncnclaser]
- Cutting Performance
Fiber lasers excel in cutting metals, especially thin to medium thickness; CO₂ lasers historically had an advantage on thicker non‑metals, but this gap is narrowing with modern fiber and process innovations. [hncnclaser]
Fiber laser cutting has changed how we design and manufacture metal parts, enabling high‑precision, high‑speed, and cost‑effective production across a wide range of industries. For OEM and ODM buyers, partnering with an experienced sheet‑metal manufacturer that runs advanced fiber laser cutting machines and integrated forming/welding processes is often the fastest way to bring new products to market while controlling quality and cost. [intelmarketresearch]
If you are exploring new projects, process upgrades, or customized sheet‑metal solutions, consider collaborating with a specialist like CNDY‑Press that can design, manufacture, and optimize fiber‑laser‑based fabrication workflows tailored to your requirements. [cn.accurlpressbrake]
If you need to develop a new metal part, upgrade your current fabrication process, or evaluate whether fiber laser cutting is suitable for your project, contact our engineering team with your drawings or samples for a free manufacturability and cost evaluation.
1. What frequency range is used in fiber laser cutting?
Fiber laser cutting systems commonly operate with pulse frequencies from about 20 kHz to 200 kHz, with many cutting applications optimized in the 50–100 kHz range depending on power and material. [hncnclaser]
2. How thick can a 1 kW fiber laser cut?
A 1 kW fiber laser can typically cut up to around 20 mm carbon steel, while the maximum thickness for stainless steel is usually closer to 10 mm, assuming optimized parameters and quality material. [hncnclaser]
3. How long does a fiber laser cutter last in production?
With proper maintenance and stable operating conditions, a fiber laser system can reach around 100,000 working hours, which is significantly longer than many CO₂ laser machines. [hncnclaser]
4. What are the main maintenance tasks for a fiber laser machine?
Key tasks include monitoring and servicing the cooling system, replacing filters, checking coolant levels, and cleaning lenses, protective windows, and mirrors to maintain beam quality. [hncnclaser]
5. Are there environmental or regulatory concerns with fiber laser cutting?
Yes. Fiber laser cutting generates smoke, gases, and aerosols, especially when processing coated or oiled materials. Local regulations may require proper fume extraction, filtration, and safe disposal of collected dust and sludge. [hncnclaser]
