Views: 222 Author: CNDY-Press Publish Time: 2026-05-24 Origin: Site
Fiber laser cutting has transformed sheet metal fabrication by combining high precision with high productivity, but the real business value depends on how you select, deploy, and operate the technology in your factory. [fractory]
Laser cutting is a non‑contact subtractive manufacturing process where a high‑energy laser beam is focused onto a small spot to melt or vaporize material, while assist gas removes the molten metal. It is controlled by a CNC system that follows 2D or 3D paths generated by CAD/CAM software. [xometry]

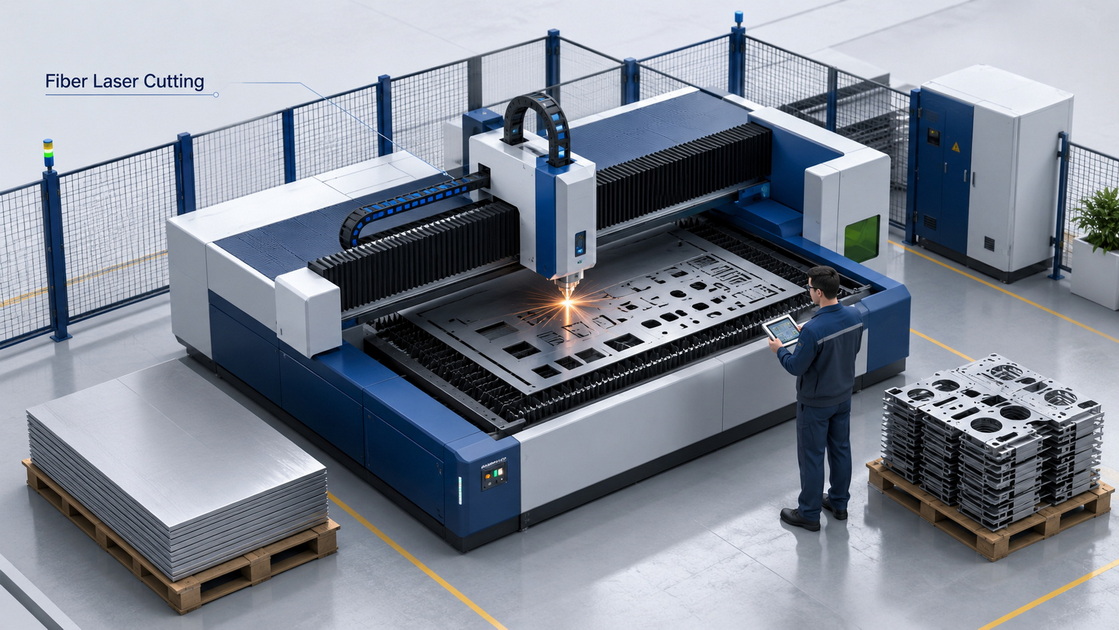

In sheet metal fabrication, fiber laser cutting machines have become the dominant technology for mild steel, stainless steel, and aluminum because they deliver high cutting speeds, excellent edge quality, and low per‑part cost for thin and medium‑thickness materials. [unitedprecisionservices]

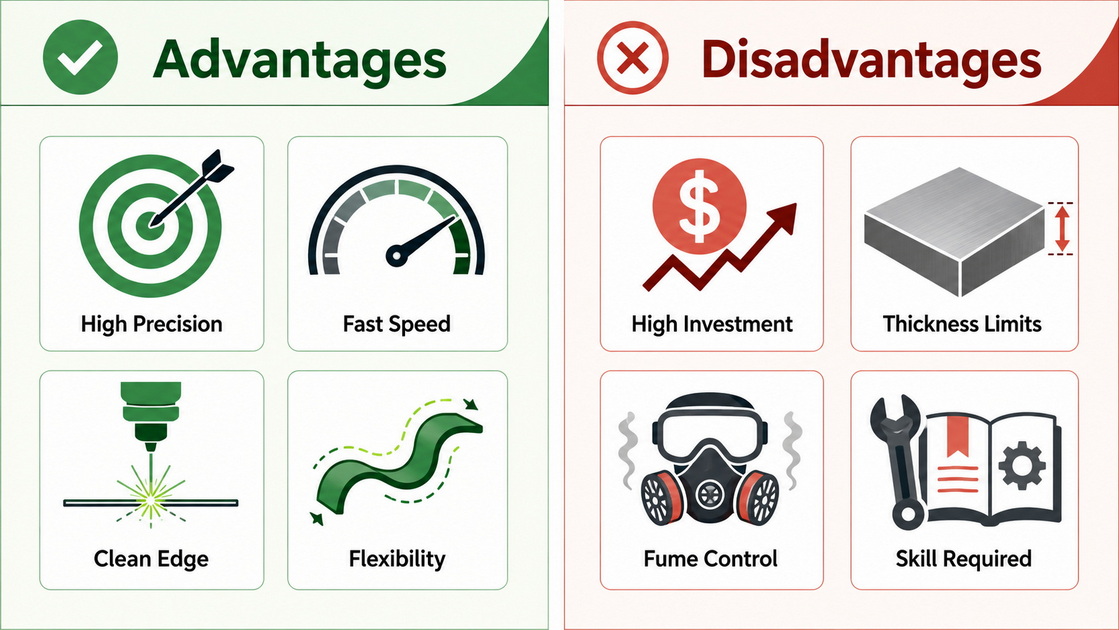

Laser cutting offers a long list of benefits compared with mechanical shearing, punching, or plasma cutting. [fractory]
Laser cutting is known for high dimensional accuracy and excellent repeatability, often achieving tight tolerances and sharp, burr‑free edges. [xometry]
Key implications for your shop:
- Fine features and tight geometries are achievable without secondary machining on many parts. [xometry]
- Repeat runs of the same job produce nearly identical parts, reducing inspection and scrap. [fractory]
- Critical fit‑up for welding or assembly is easier to maintain across batches. [fractory]
This level of precision is especially valuable in industries like automotive, machinery, and precision enclosures, where tight tolerances directly impact downstream assembly costs. [zintilon]
Unlike mechanical tools that require specific punches or dies, a laser cutter can switch between different geometries simply by changing the program. [xometry]
This flexibility enables:
- Quick prototyping and design changes with no tooling lead time
- Complex 2D patterns, internal cutouts, and intricate contours in one operation [3ds]
- Small batch or mixed‑lot production without expensive dedicated tooling [fractory]
For OEM and ODM projects, this gives you the agility to respond to customer design iterations while keeping tooling costs near zero. [risetekmachinery]
For thin to medium sheet thickness, fiber lasers can cut significantly faster than many traditional methods. [xometry]
From a production standpoint, this means:
- Faster throughput per shift on mild steel, stainless, and aluminum sheets [xometry]
- Shorter lead times for repeat orders or urgent jobs
- More capacity to take on high‑mix, low‑volume work without bottlenecks [fractory]
When combined with automation (loaders, unloaders, and sorting systems), laser cutting supports lights‑out manufacturing for suitable job mixes. [fractory]
Because laser cutting is a non‑contact process that melts rather than mechanically deforms the material, it typically produces smooth, narrow kerfs with minimal burrs. [xometry]
Benefits to downstream operations include:
- Less deburring and grinding, saving labor and time
- Reduced risk of micro‑cracks or deformation at the edge
- Better weld quality and coating adhesion thanks to cleaner edges [zintilon]
For industries where surface finish and appearance are critical, such as architectural metalwork or signage, this is a major advantage. [zintilon]
Modern laser cutters can process a wide range of materials, including carbon steel, stainless steel, aluminum, some non‑ferrous metals, and certain non‑metals, depending on configuration. [3ds]
This versatility supports:
- Multi‑industry contract manufacturing (automotive, HVAC, construction, machinery) [fractory]
- Short‑run specialty products (custom enclosures, machine guards, frames)
- Integration with bending, welding, and assembly for full sheet‑metal solutions [zintilon]
For a manufacturer like CNDY‑Press, this breadth makes fiber laser cutting a central capability that can serve diverse OEM/ODM customers.
Despite its strengths, laser cutting is not a universal solution. Understanding its limitations helps you design the right process mix. [3ds]
Industrial laser cutting machines can represent one of the largest capital expenditures in a sheet metal shop. [xometry]
Typical challenges:
- Machine prices can reach the high six to seven figures when you include automation and ancillary systems. [fractory]
- Additional costs for chillers, extraction systems, gas supply, and safety infrastructure add to the total budget. [xometry]
- ROI depends on capacity utilization, job mix, and ability to consolidate or replace other cutting processes. [unitedprecisionservices]
This is why building a clear business case—cost per part, throughput, and payback period—is essential before investing. [risetekmachinery]
Lasers are particularly strong on thin to medium gauge sheet, but cutting very thick plate is more challenging. [3ds]
Practical limitations:
- There is a maximum thickness each system can cut efficiently and safely, depending on laser power and optics. [3ds]
- Very thick sections may require multiple passes or slow feed rates, reducing productivity. [xometry]
- For heavy plate, plasma or oxy‑fuel may still offer better economics in some use cases. [3ds]
When evaluating laser power, you should carefully match your material range and thickness envelope to avoid under‑ or over‑sizing the system. [unitedprecisionservices]
Laser cutting produces fumes and particulate that can be harmful if not properly controlled. [3ds]
Key safety considerations:
- Proper fume extraction and filtration are essential to meet environmental and workplace health regulations. [xometry]
- Certain materials can release toxic gases when cut, requiring special precautions or alternative processes. [3ds]
- Operators must follow laser safety standards, including guarding, interlocks, and PPE. [3ds]
Investing in proper safety infrastructure is non‑negotiable for long‑term operation and regulatory compliance.
While laser cutting systems can be highly automated, they still require skilled technicians to program, maintain, and troubleshoot. [unitedprecisionservices]
In practice:
- Operators need expertise in CAD/CAM nesting, parameter tuning, and material handling. [risetekmachinery]
- Preventive maintenance on optics, nozzles, filters, and motion systems is critical to maintaining performance. [fractory]
- Poorly maintained systems lead to inconsistent cut quality, increased downtime, and higher operating costs. [xometry]
Building a training and maintenance plan around your laser investment helps protect uptime and part quality.
To evaluate laser cutting objectively, it helps to compare it against common alternatives. [3ds]
| Aspect | Fiber Laser Cutting | Plasma Cutting | Mechanical Shearing / Punching |
|---|---|---|---|
| Edge quality | Very high, minimal burrs (fractory) | Rougher edges, more dross (fractory) | Clean for straight cuts, limited shapes (fractory) |
| Precision | High precision and repeatability (fractory) | Moderate precision (fractory) | High for straight lines (fractory) |
| Complexity of shapes | Unlimited 2D complexity (xometry) | Limited by kerf and process (3ds) | Limited; tooling dependent (fractory) |
| Thickness capability | Best for thin–medium sheet (xometry) | Strong on thicker plate (3ds) | Typically thin–medium sheet (fractory) |
| Speed | Very fast on thin sheet (fractory) | Fast on thick materials (3ds) | Very fast for simple cuts (fractory) |
| Upfront cost | High investment (fractory) | Moderate investment (fractory) | Lower equipment cost (fractory) |
This comparison shows why many modern sheet‑metal shops adopt hybrid process strategies, using fiber laser cutting for high‑precision sheet parts while retaining other methods for thick plates or simple straight cuts. [fractory]
From a practical factory perspective, a fiber laser cutting machine becomes the front‑end engine of a sheet‑metal cell. [zintilon]

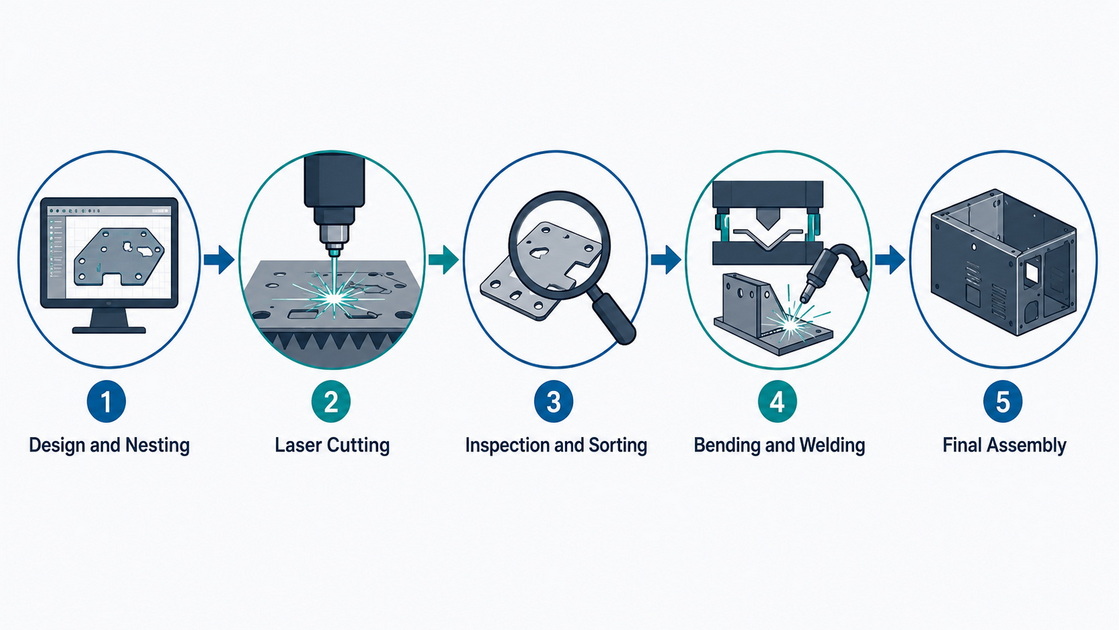

Typical workflow:
1. Job analysis and nesting: Identify material, thickness, and batch size; nest parts for optimal material utilization. [risetekmachinery]
2. Laser cutting: Process mixed jobs in sequence, using parameter libraries tuned for each material. [fractory]
3. Post‑processing: Limited deburring, inspection, and sorting of parts. [zintilon]
4. Downstream operations: Bending, welding, surface treatment, and assembly as required. [zintilon]
For OEM and ODM contracts, this integrated approach allows you to provide end‑to‑end sheet‑metal solutions, not just cut parts, which strengthens long‑term customer relationships. [risetekmachinery]
Selecting the right fiber laser cutting machine is not just about power rating; it is about matching technology to your job mix, material range, and business model. [unitedprecisionservices]
Before investing, define:
- Typical materials (mild steel, stainless, aluminum, alloys) and their thickness ranges [risetekmachinery]
- Average and peak batch sizes (prototyping, small series, mass production)
- Required tolerances and edge quality for critical parts [unitedprecisionservices]
This information guides decisions on laser power, bed size, and automation, ensuring the system can handle your core work efficiently. [unitedprecisionservices]
Higher laser power increases cutting speed and maximum thickness, but also raises cost and energy consumption. [3ds]
Consider:
- If most work is thin sheet, an extremely high‑power laser may be unnecessary, adding cost without significant gain. [risetekmachinery]
- If you regularly cut thicker materials, higher power or dual‑process solutions might be required. [3ds]
- Evaluate cost per part rather than just machine price, accounting for energy, gas, and maintenance. [risetekmachinery]
Aligning power to your real‑world jobs helps achieve faster payback.

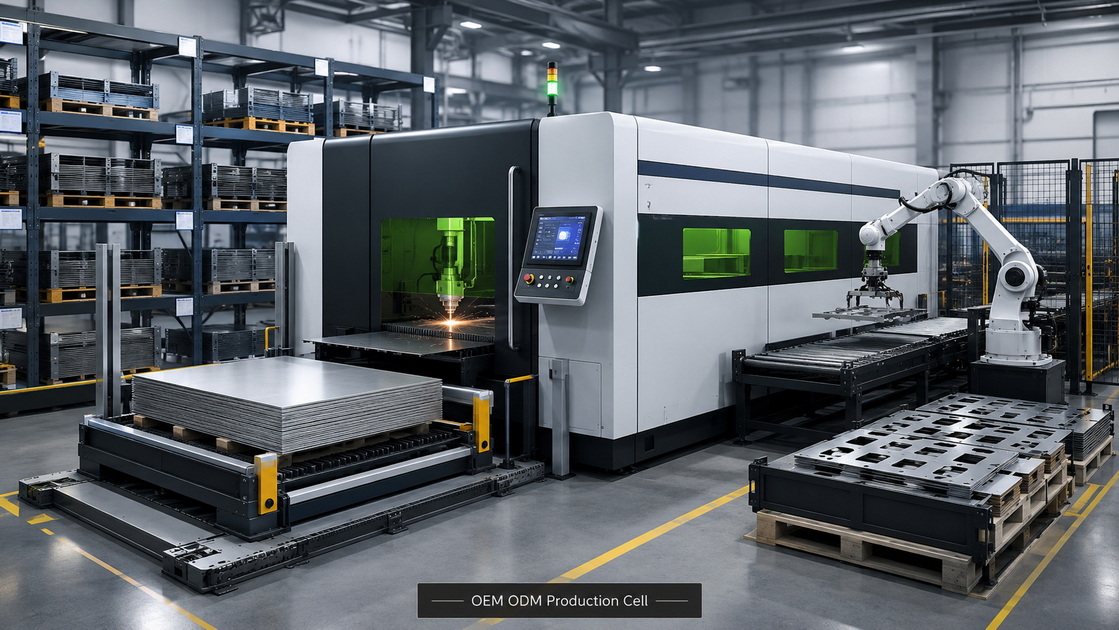

Automation can transform a standalone laser into a high‑throughput cell. [risetekmachinery]
Key aspects:
- Loading/unloading systems reduce manual handling and idle time. [fractory]
- Integrated sorting and stacking ensures parts move efficiently to downstream operations. [zintilon]
- Seamless CAD/CAM integration and ERP connectivity support Industry 4.0 workflows. [risetekmachinery]
For high‑volume OEM/ODM work, investing in automation can be the difference between a profitable and an overloaded operation.
Based on typical user feedback and field experience, successful laser shops share a few consistent habits. [risetekmachinery]
Maintain detailed parameter libraries for each material and thickness:
- Standardize cutting speed, gas pressure, and focus position by material. [xometry]
- Record proven recipes for repeat jobs to reduce trial‑and‑error. [risetekmachinery]
- Periodically validate parameters against sample cuts to maintain quality. [xometry]
This approach keeps quality consistent across shifts and operators.
A well‑trained operator can significantly improve uptime and quality. [unitedprecisionservices]
Focus training on:
- Reading technical drawings and understanding tolerances and GD&T
- Efficient nesting and material utilization techniques [risetekmachinery]
- Routine maintenance tasks and basic troubleshooting [fractory]
Training improves safety and reduces costly mistakes, especially in high‑mix production environments.
Proactive maintenance prevents unexpected downtime. [fractory]
Best practices:
- Implement a scheduled maintenance plan for optics, filters, and motion systems. [fractory]
- Monitor nozzle condition and lens cleanliness to protect cut quality. [xometry]
- Track consumable usage and critical spare parts to avoid urgent shortages. [xometry]
Treat your laser like a core production asset, not just another machine.
Not every application requires laser cutting; however, certain scenarios consistently deliver strong returns. [fractory]
Ideal use cases include:
- High‑mix, medium‑volume sheet‑metal parts with complex contours and tight tolerances [xometry]
- OEM/ODM projects where designs evolve frequently and tooling costs must be minimized [risetekmachinery]
- Industries demanding clean edges and high aesthetics, such as enclosures, architectural components, and machinery panels [zintilon]
In these contexts, fiber laser cutting can reduce per‑part costs, compress lead times, and improve overall product quality compared to traditional cutting methods. [fractory]
If you are currently evaluating fiber laser cutting machines or considering upgrading your existing equipment, now is the time to align your technology roadmap with your OEM and ODM growth strategy. [unitedprecisionservices]
By partnering with an experienced sheet‑metal equipment manufacturer, you can:
- Select a fiber laser cutting platform tailored to your material mix and production volumes [unitedprecisionservices]
- Integrate automation, bending, and welding systems into a cohesive sheet‑metal processing cell [zintilon]
- Build a long‑term service and training program that protects your investment [fractory]
Reach out to discuss your current job mix, capacity challenges, and future plans so we can help you define a fiber laser cutting solution that delivers measurable performance and ROI.
1. Is laser cutting always better than plasma cutting?
Not necessarily; laser cutting offers better precision and edge quality on thin to medium sheet, while plasma can be more economical for very thick plate and structural applications. [3ds]
2. How do I know if my parts are suitable for laser cutting?
If your parts require tight tolerances, fine features, clean edges, or frequent design changes, they are strong candidates for laser cutting; extremely thick or simple straight cuts may be better served by alternative processes. [3ds]
3. What is the typical payback period for a fiber laser cutter?
Payback depends on utilization, job mix, and replacement of existing processes, but many shops target a 3–5 year payback by consolidating cutting operations and increasing throughput. [unitedprecisionservices]
4. Can one fiber laser cutter handle all my materials?
Most fiber laser cutters handle carbon steel, stainless, and aluminum; however, specific alloys and non‑metals may require special configurations or alternative cutting methods. [3ds]
5. How important is automation for laser cutting?
For high‑volume or multi‑shift operations, automation significantly improves throughput and consistency; for smaller shops, manual operation can still be effective if job scheduling is well managed. [zintilon]
