Electric CNC press brakes generally offer higher energy efficiency than hydraulic models in 2026, especially in high-volume and precision-focused sheet metal operations. However, hydraulic CNC press brakes still play a crucial role where very high tonnage, heavy plate bending, and upfront budget limits dominate the decision. [northsouthmachinery]
In 2026, rising electricity prices, ESG reporting, and competitive global sourcing make energy efficiency a strategic KPI for every fabrication shop. As a manufacturer of CNC press brakes and complete sheet metal solutions, CNDY-Press (CNDY-Press Brakes) sees this shift directly in RFQs and OEM/ODM inquiries, where energy use per part is now a purchasing criterion, not just a technical detail. [persistencemarketresearch]
The question "Electric vs. Hydraulic CNC Press Brake: Which Offers Higher Energy Efficiency in 2026?" is therefore not academic—it impacts your operating cost, sustainability score, and ability to win long-term contracts. [weiyamt]
Electric CNC press brakes use servo motors and ball screws instead of hydraulic pumps and valves to generate bending force. The ram movement is controlled electronically, allowing highly precise positioning with minimal idle power consumption. [accurl]
Key characteristics:
- On-demand power draw: Significant energy is consumed only during actual bending, not while the machine sits idle. [northsouthmachinery]
- High positioning accuracy: Typical repeatability can reach around ±0.0004″, supporting complex OEM components and tight-tolerance bending. [weiyamt]
- Cleaner system: No hydraulic oil, valves, or seals, which reduces maintenance and environmental risk. [weiyamt]
For CNDY-Press, electric CNC press brakes are especially suitable for high-volume, precision parts such as automotive brackets, enclosure panels, and aerospace components where repeatability and per-part energy cost are critical. [weiyamt]
Hydraulic CNC press brakes rely on hydraulic pumps, cylinders, and valves to provide force, with continuous pressure maintained in the hydraulic circuit during operation. In most conventional designs, the pump runs to keep the system pressurized even when the operator is aligning parts or checking dimensions. [adhmt]
Key characteristics:
- Continuous pump operation: Power is consumed to maintain pressure, leading to idle energy use and heat generation. [adhmt]
- High tonnage capacity: Hydraulic machines generally handle heavier plate, thicker materials, and large-format bending more cost-effectively. [durmapress]
- Mature technology: Widely understood by maintenance teams, with spare parts and service networks established in most markets. [adhmt]
Hydraulic CNC press brakes remain an excellent choice for heavy structural components, thick plate parts, and lower-volume jobs where peak force and machine robustness matter more than energy optimization. [durmapress]

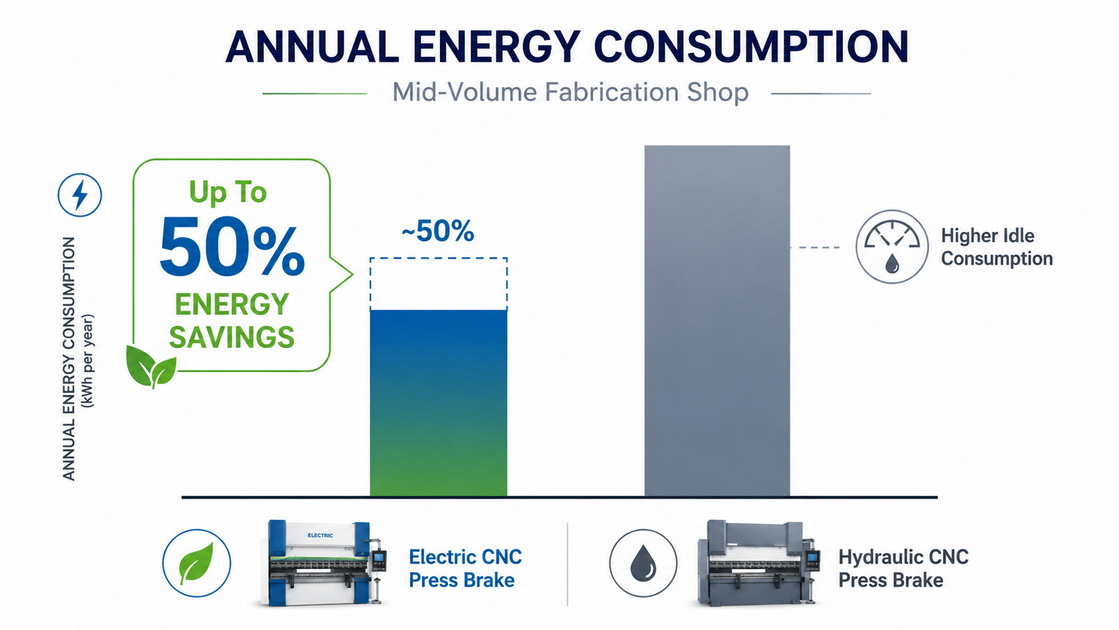

From an energy-efficiency standpoint, the gap between electric and hydraulic CNC press brakes has become striking in recent years. Industry data and independent guides show that modern electric machines can deliver 30–50% energy savings compared with conventional hydraulic press brakes in typical production scenarios. [northsouthmachinery]
Some 2026 expert guides even note energy savings up to about 70% when switching from older hydraulic units to all-electric CNC press brakes with optimized drive systems. This difference emerges because hydraulic pumps draw power continuously, whereas electric systems ramp up energy use only during the actual bending cycle. [durmapress]
A simple mental example:
- Hydraulic CNC press brake: 40 hp pump idling while the operator measures the first part, still consuming kilowatts and producing heat. [adhmt]
- Electric CNC press brake: drives effectively idle until the control system commands a bend, keeping non-productive energy use minimal. [northsouthmachinery]
In pure energy-efficiency terms for 2026, electric CNC press brakes are the clear winner for most light-to-medium gauge applications. [durmapress]
Multiple market analyses show sustained growth in the global press brake machine market through 2033, driven by automation, energy optimization, and precision manufacturing. Within this market, electric CNC press brakes are repeatedly highlighted as a core technology shaping the future of metal forming. [linkedin]
Key industry trends:
- Market growth: Press brake machine market value is projected to grow from around US$800.2 million in 2026 to about US$1,211.2 million by 2033, at a 6.1% CAGR. [persistencemarketresearch]
- Technology shift: Electric press brakes are expanding from niche to mainstream in automotive, aerospace, and general sheet metal fabrication as shops seek lower total cost of ownership. [ahpowerful]
- Precision and automation: Advanced CNC controls and electric drives support tighter tolerances, automated workflows, and integration into smart manufacturing environments. [accurl]
For a manufacturer like CNDY-Press offering OEM and ODM services, aligning product lines and production cells with these trends is critical to staying competitive in global sourcing projects. [weiyamt]

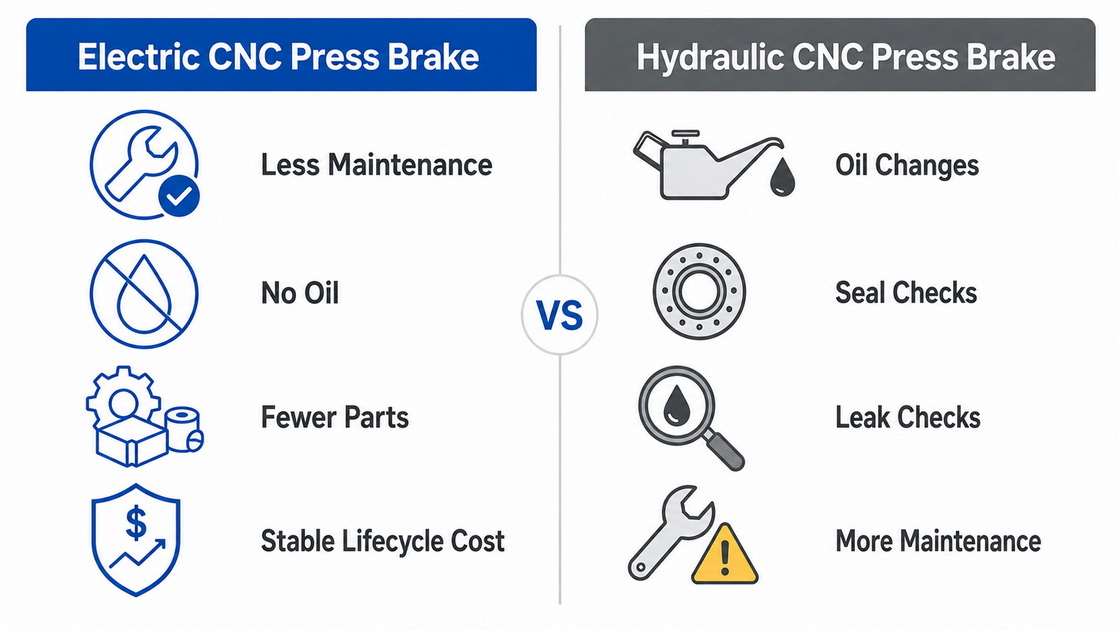

Energy efficiency is only one piece of the decision. From a lifecycle perspective, electric and hydraulic CNC press brakes differ in maintenance, precision, and overall cost structure. [durmapress]
- Maintenance intensity
- Electric: Removing pumps, valves, seals, and hydraulic oil eliminates around 70% of routine maintenance tasks. [weiyamt]
- Hydraulic: Requires monitoring oil quality, checking hoses and seals, and managing leaks and contamination. [adhmt]
- Precision and quality
- Electric: Higher repeatability and faster response support parts where small deviations cause downstream assembly issues. [weiyamt]
- Hydraulic: Adequate for standard structural work but typically not as precise as high-end electric systems. [durmapress]
- Initial investment
- Electric: Often carries a premium—typical reports suggest electric CNC press brakes can cost roughly US$20,000–US$50,000 more than comparable hydraulic units. [weiyamt]
- Hydraulic: Lower upfront price, making it appealing where budget is constrained and energy costs are moderate. [adhmt]
Some 2026 buying guidance suggests a rule-of-thumb: if budget is under about US$150,000 and ultra-high precision or energy optimization is not mandatory, hydraulic remains a valid choice. If precision below 0.01 mm or ESG-driven energy reduction is a priority, electric becomes more attractive. [durmapress]

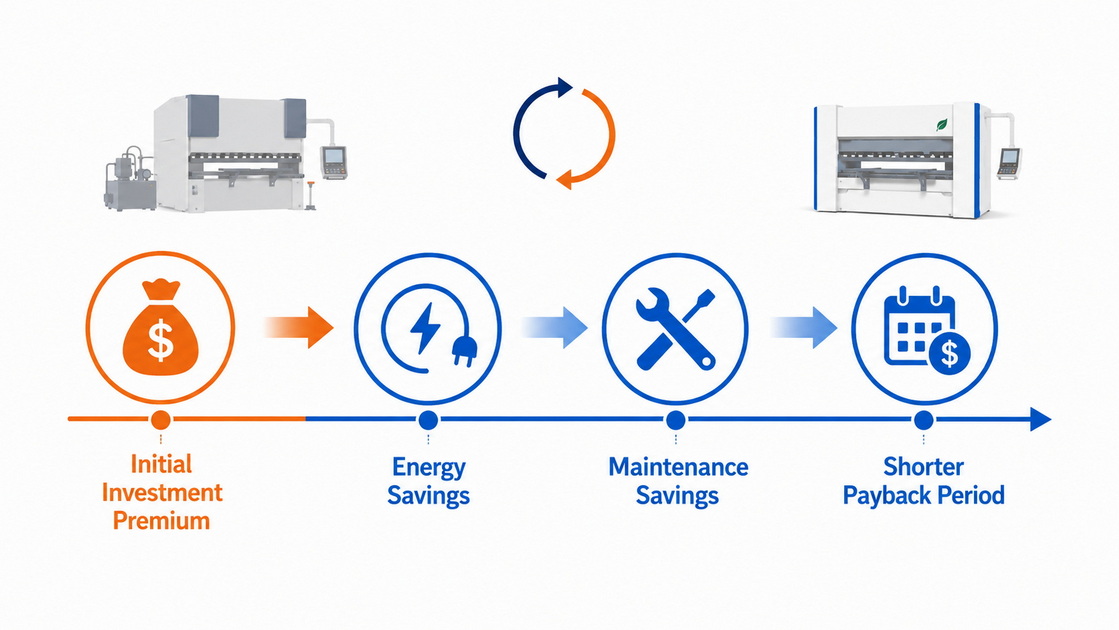

To move from theory to decision, manufacturers should evaluate Annual ROI for an electric CNC press brake versus a hydraulic alternative. One expert formula references energy savings and maintenance cost differences relative to the initial investment. [durmapress]
A simplified framework:
1. Estimate annual energy savings
- Calculate current kWh consumption of your hydraulic press brake per year.
- Apply an expected energy reduction (for example, 30–50% based on typical electric performance in your tonnage range). [northsouthmachinery]
2. Estimate maintenance cost differences
- Sum annual maintenance and unplanned downtime costs for hydraulic systems (oil, seals, leak fixes, pump overhauls). [adhmt]
- Compare with anticipated lower maintenance for electric drives and controls. [weiyamt]
3. Calculate payback period
- Divide the electric press brake's price premium (for instance, US$20,000–US$50,000) by the annual combined savings from energy and maintenance. [durmapress]
- This provides an approximate payback time; many shops find the payback period surprisingly short when energy tariffs are high. [adhmt]
From an expert's perspective, any serious 2026 investment decision should include this ROI model in the purchasing process, not just a comparison of catalog prices.
Below is a concise table summarizing the key differences important for energy efficiency and typical applications in 2026. [northsouthmachinery]
| Factor | Electric CNC Press Brake | Hydraulic CNC Press Brake |
|---|---|---|
| Energy efficiency (2026) | 30–50% lower energy use, sometimes up to ~70% savings vs older hydraulic units. (northsouthmachinery) | Continuous pump operation leads to higher idle and peak energy consumption. (northsouthmachinery) |
| Precision | High precision, around ±0.0004″ repeatability in modern systems. (weiyamt) | Typically around ±0.001″ in many applications. (weiyamt) |
| Maintenance | Fewer moving parts; no oil, seals, valves—around 70% less routine maintenance. (weiyamt) | Regular oil changes, seal replacement, leak management, pump service. (adhmt) |
| Initial investment | Higher upfront cost, often US$20,000–US$50,000 more than hydraulic alternatives. (weiyamt) | Lower purchase price for similar tonnage. (adhmt) |
| Best material range | Thin to medium sheet, high-volume, tight tolerances. (weiyamt) | Thick plate, very high tonnage, heavy structural parts. (adhmt) |
| ESG and sustainability | Strong fit for energy reduction and carbon footprint goals. (weiyamt) | Less efficient; may require additional measures to meet ESG targets. (adhmt) |
From a shop-floor and OEM/ODM perspective, a clear selection checklist helps translate energy-efficiency theory into real purchasing decisions. [adhmt]
Consider:
- Maximum tonnage needs:
- If you regularly bend very thick or high-strength plate, hydraulic is still the primary choice. [adhmt]
- Annual production volume:
- High-volume, repetitive bending favors electric systems, where faster cycles and energy savings compound. [weiyamt]
- Local energy tariffs:
- In regions with high electricity rates or demand charges, idle hydraulic pump consumption becomes a significant hidden cost per part. [adhmt]
- Precision and quality requirements:
- Tight tolerances, complex OEM parts, and integration into automated cells underscore the value of electric drives. [accurl]
- Budget and payback appetite:
- If upfront capex is limited, hydraulic may be the interim solution; if you can justify a 2–5 year payback, electric often wins overall. [durmapress]
For CNDY-Press, these parameters are routinely discussed with customers during OEM/ODM project scoping, ensuring that the selected CNC press brake drive system aligns with both technical and financial goals. [weiyamt]
From a 2026 industry expert viewpoint, electric CNC press brakes deliver their strongest energy-efficiency advantage in the following situations: [northsouthmachinery]
- High-volume production of light-to-medium gauge sheet metal, such as appliance panels, racks, or telecom enclosures. [weiyamt]
- Shops operating multiple shifts, where hours of idle pump time in hydraulic systems can create substantial wasted energy. [northsouthmachinery]
- Facilities under ESG or carbon reduction targets, where documented energy savings from electric drives support corporate reporting. [durmapress]
- Automation-heavy environments, where cycle speed, precision, and reduced maintenance downtime affect the entire line efficiency. [ahpowerful]
In these contexts, energy efficiency is not just a technical benefit—it becomes a strategic differentiator in quotations, especially for international buyers comparing suppliers across different energy markets. [linkedin]
If you are evaluating electric vs. hydraulic CNC press brakes for your 2026 projects, CNDY-Press can help you model real energy use, maintenance costs, and payback scenarios based on your actual parts and production schedule. Our OEM and ODM engineering team can configure drive systems, tonnage, and automation options to balance energy efficiency, precision, and budget for your global sourcing requirements. [durmapress]
Action step: Share your material thickness range, annual output, and local energy tariff data with CNDY-Press so we can provide a tailored configuration and ROI estimate for the most suitable CNC press brake solution in 2026. [adhmt]
1. Are electric CNC press brakes always more energy efficient than hydraulic ones?
Electric CNC press brakes generally consume less energy because they draw significant power only during bending, while hydraulic pumps often run continuously. However, in very low-volume or intermittent use cases, the energy difference may be less pronounced. [northsouthmachinery]
2. Can electric CNC press brakes handle heavy plate work?
Electric systems excel in light-to-medium sheet metal, but extremely high tonnage and very thick plate often remain the domain of hydraulic machines, which are structurally optimized for such loads. For mixed workloads, hybrid solutions or multiple machines may be considered. [adhmt]
3. How quickly can an electric CNC press brake pay back its higher upfront cost?
Payback depends on local kWh rates, production hours, and maintenance practices, but with a typical US$20,000–US$50,000 investment premium and substantial energy and maintenance savings, many shops see attractive payback horizons when operating multiple shifts. [weiyamt]
4. Is precision really better with electric CNC press brakes?
Modern electric CNC press brakes can achieve repeatability around ±0.0004″, which is a noticeable improvement over many hydraulic systems and directly reduces rework and scrap in tight-tolerance parts. This precision is especially valuable in automotive and aerospace OEM projects. [weiyamt]
5. How do ESG and sustainability targets influence the choice between electric and hydraulic?
Companies facing stricter ESG requirements find that the documented energy savings and reduced environmental risk (no hydraulic oil) of electric press brakes support their sustainability metrics more directly than conventional hydraulic systems. [durmapress]
