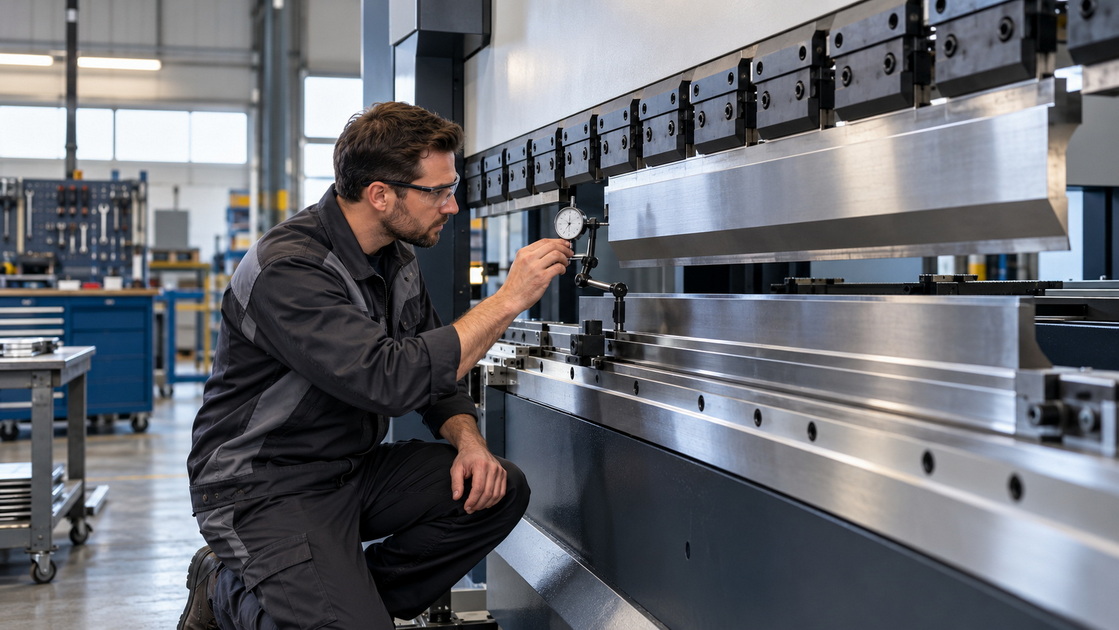

CNC press brake calibration starts with a simple question: is the machine producing the same result at the left, center, and right of the working area? If a long bend opens in the middle, a flange misses its dimension, or the first part differs from the tenth, changing the bend program may hide the symptom without finding the cause. This guide shows operators and maintenance teams how to check machine geometry, backgauge positioning, tooling, crowning, and production results in a controlled order.
This is a verification workflow, not a substitute for the machine-specific service manual. Only authorized personnel should make mechanical, hydraulic, electrical, or safety-system adjustments. Set acceptance limits from the part drawing, inspection plan, machine specifications, and measuring equipment—not from a universal number in an online guide.
In a production shop, "calibration" is often used to describe several different tasks. Separating them prevents unnecessary adjustments.
- Machine verification: Check that the ram, bed, axes, and positioning system behave as the manufacturer specifies.
- Measurement verification: Confirm that angle gauges, indicators, calipers, and reference standards are suitable for the required tolerance.
- Tooling setup: Check punch and die identification, seating, condition, and the programmed tool data.
- Process compensation: Adjust bend depth or angle correction for a particular material and tooling combination.
- Production acceptance: Confirm that representative parts meet the drawing and remain consistent during a defined trial run.
A machine can pass a geometry check and still produce a wrong angle because the material batch springs back differently. Likewise, a perfect 90° test bend at the center does not prove that a long part will bend uniformly across the bed.
Record the machine model, serial number, controller version, tooling, target part, material grade, thickness, and required dimensions. Decide which readings will be compared and what counts as a pass.
Do not treat a test coupon tolerance as a machine specification. A customer drawing may require tighter results than a general-purpose job. Your inspection method must be capable of distinguishing a real error from normal measurement variation.
Begin with the machine documentation and your facility's safety procedure. Identify electrical, hydraulic, pneumatic, and gravity-related hazards. Inspecting a stationary tool seat is not the same activity as running a guarded test bend.
1. Plan the work. Identify who will inspect, adjust, operate, and approve the machine.
2. Isolate hazardous energy where required. Follow the site's lockout/tagout procedure before servicing or reaching into a danger zone. Control stored energy and secure the ram as the procedure requires.
3. Check the machine condition. Look for damaged clamps, loose backgauge fingers, leaks, debris, unusual wear, and visible damage.
4. Clean the references. Remove chips and dirt from accessible bed, tool-seat, and gauge-contact surfaces using approved methods.
5. Check measuring instruments. Confirm identification, calibration status, resolution, and suitability for the planned measurements.
Never defeat a guard to speed up a calibration check. If a test requires the machine to be energized after servicing, use the prescribed testing sequence: clear the area, position personnel safely, energize for the test, then isolate it again before continuing service work.
For hydraulic machines, follow the manufacturer's warm-up procedure before judging repeatability. Record whether readings were taken cold or at normal operating condition. For electric machines, check the specified homing and axis-status indications rather than assuming that a stationary ram proves synchronization.
A worn die shoulder can look like a machine geometry problem. A loose magnetic indicator base can create an apparent change that disappears when the instrument is repositioned. Before acting on a reading, ask: What surface am I measuring, and can I repeat the result?
Use the reference surfaces and measurement locations stated in the machine manual. If tooling must be removed for a geometry check, do so under the applicable energy-control procedure. Avoid forcing the ram against a straightedge, gauge block, or other instrument.
Ram-to-bed alignment is the starting point for diagnosing left-to-right angle variation. It should be evaluated separately from the deflection that occurs during a loaded bend.

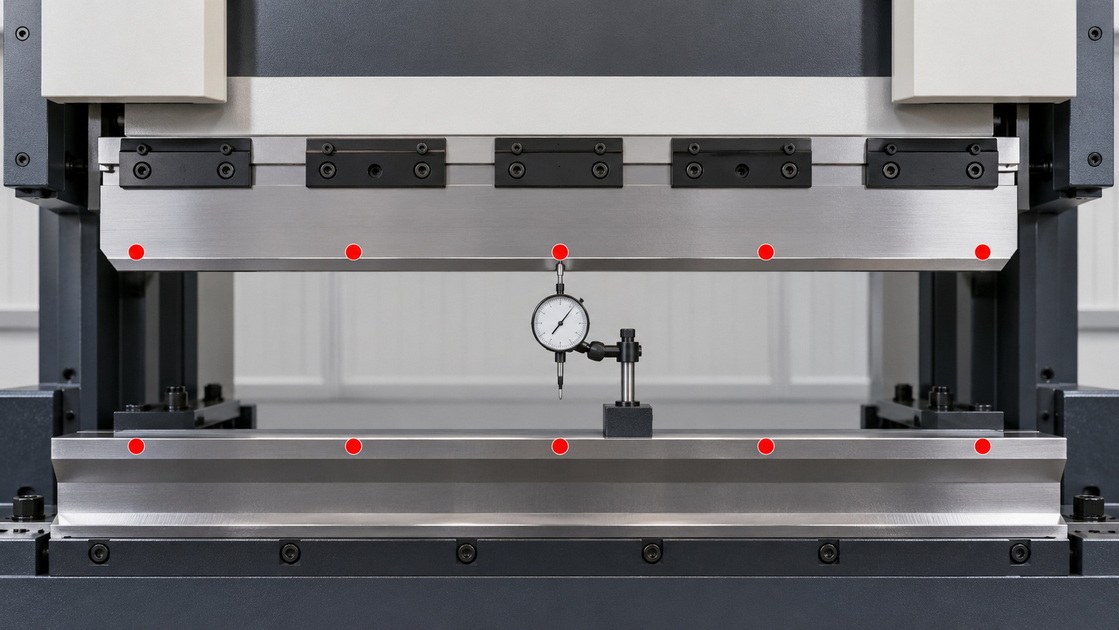

With the machine in its specified measurement condition, take readings near the left side, left-quarter position, center, right-quarter position, and right side. Use a suitable indicator or approved gauging method. Record the measurement position, ram position, and whether crowning was at its documented reference state.
Repeat the sequence. If the pattern changes between passes, investigate the measuring setup, axis referencing, guides, or mechanical condition before changing any setting. A consistent slope from left to right suggests a different issue from a reading that dips only at the center.
| Reading pattern | First items to investigate |
|---|---|
| Consistent left-to-right slope | Y-axis synchronization, reference condition, tooling seating, and manufacturer-defined alignment checks |
| Center differs from both ends | Bed or ram profile, crowning reference, and loaded versus unloaded measurement condition |
| Readings change on repetition | Indicator setup, contamination, loose parts, or inconsistent axis positioning |
| Geometry passes but bends vary | Material, tooling, workpiece support, and loaded crowning performance |
Do not loosen cylinder mounts, move encoder references, or edit service parameters based on a generic tolerance. Escalate any out-of-spec result through the equipment manufacturer's procedure or a qualified service technician. Keep the original readings; they are often more useful than a description such as "the machine bends unevenly."
A backgauge can move smoothly and still position parts incorrectly. Check its physical position against a defined reference at more than one commanded X-axis location. Where the machine has multiple fingers, compare them at equivalent locations and inspect for damage or looseness.
Approach each test position using the method specified for the controller. If readings differ depending on the direction of travel, document the effect and investigate the positioning system. Do not correct a wrong flange length by changing ram depth unless the bend geometry investigation shows that depth is actually the cause.
Next, verify the tool setup:
- Match the installed punch and die to the program's tool IDs and dimensions.
- Check clamping, seating, alignment, and segmented-tool joints.
- Inspect working surfaces for damage or contamination.
- Check the proposed bend against the rated capacity of the machine and tooling.
- Confirm that the chosen V-opening, flange length, and expected radius suit the material and part drawing.
For air bending ordinary steel, a V-opening around 6–8 times sheet thickness is a useful initial selection rule, not a fixed calibration setting. The V-opening affects the formed radius, force, minimum flange length, and potential marking. For example, a 2 mm sheet might prompt an initial review of 12–16 mm openings; the final choice still depends on the actual steel, tool ratings, and part requirements.
The original article describes punch-to-die "clearance" as a fraction of material thickness. That wording is not a reliable general setup rule for air bending. Select and verify tooling by the intended bending method and the tool manufacturer's specifications instead.
Make a representative test bend using material from a known batch. Record its measured thickness, grade, grain orientation where relevant, tooling, program, and bend length. Measure the resulting angle at several positions along the bend—typically near both ends and at the center, adding intermediate points for long parts.
Interpret the pattern before changing the controller:
- All positions miss the target similarly: Review material properties, springback, tool data, and global angle or depth correction.
- The center differs from the ends: Investigate loaded deflection and the crowning setting.
- Left and right differ: Recheck alignment, tooling seating, workpiece support, and the appropriate Y-axis diagnostics.
- Angles pass but flanges miss dimension: Check backgauge position, blank size, and the measurement datum.
Crowning compensates for the way the machine and tooling deflect under bending load. It does not replace a geometry check. First establish a trustworthy baseline; then adjust crowning according to the machine's instructions and compare the same bend after each documented change.
Change one variable at a time. If the team simultaneously changes crowning, bend depth, V-die, and material batch, the next coupon cannot show which correction helped.

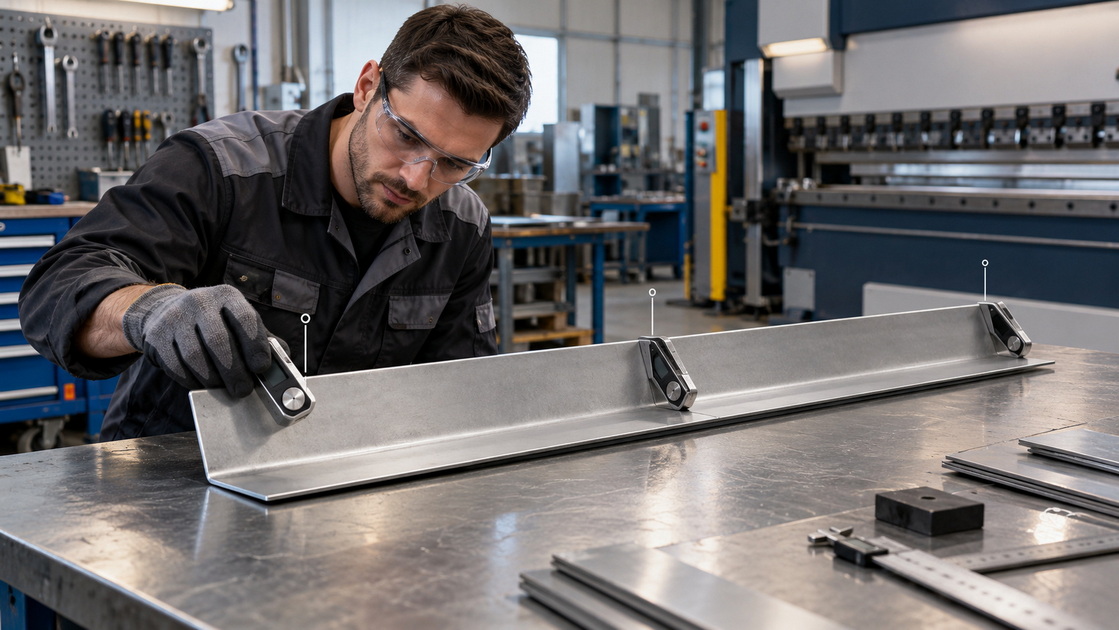

Suppose a long test piece measures 90.0° near the left end, 91.0° at the center, and 90.1° near the right end. The pattern points the investigation toward center-versus-end behavior, including crowning and loaded deflection. It does not establish a crowning fault by itself. Confirm that the sheet thickness, tooling condition, measuring method, and material are consistent before applying a correction.
If all three readings were 91.0°, the first investigation would instead focus on a common angle error, such as the bend program's compensation for that material and tool combination. These figures illustrate diagnosis; they are not CNDY-Press test results.
An unloaded check establishes a baseline. A representative production trial shows whether that baseline delivers acceptable parts.
1. Select a relevant trial part. Use the actual material specification, tooling, bend length, and support arrangement.
2. Inspect the first acceptable part. Measure the angle, flange dimensions, and any critical features on the drawing.
3. Run a documented trial quantity. Choose the number of parts according to production risk and the inspection plan, rather than assuming a fixed cycle count suits every job.
4. Measure at planned intervals. Look for a trend after warm-up or continued operation, not just a single passing result.
5. Approve and preserve the setup. Record authorized corrections, final measurements, operator, date, and the applicable program revision.
When measurements drift, stop and identify what changed. Possibilities include material variation, debris in a clamp, a shifting support method, or an axis issue. Repeatedly adding offsets without recording them makes the next diagnosis harder.
A useful record contains both the as-found and as-left condition. Include the instrument ID, measurement locations, reference condition, acceptance criteria, adjustments, test material, inspection results, and the person who approved the release.
| Record field | Example entry |
|---|---|
| Machine and program | Model/serial number; controller and program revision |
| Test material | Grade, batch, measured thickness, and grain direction |
| Tooling | Punch/die IDs, V-opening, and setup position |
| Measurement | Instrument ID, five-position readings, and angle readings |
| Decision | Drawing-specific limit; pass, hold, or escalate |
| Follow-up | Correction made, retest result, date, and approver |
This record also helps determine when to verify again. Plan checks around utilization, quality requirements, and observed stability. Repeat relevant checks after a relocation, significant repair, collision, or unexplained rise in rejects. A universal recalibration interval cannot replace a documented, machine-specific plan.
Operators can document symptoms and perform checks within their training. A qualified service specialist should handle work that requires protected service parameters, hydraulic synchronization changes, encoder reference adjustments, structural assessment, or unresolved safety faults.
Stop and escalate if alignment readings will not repeat, an axis reports a persistent fault, the ram behaves abnormally, or a safety device does not function as intended. Do not use a passing test coupon to override a machine fault or a failed safety check.
For a useful support request, provide the machine serial number, controller version, error messages, maintenance history, as-found readings, photographs of the setup, and an example part drawing. That evidence helps distinguish a service issue from a tooling or application mismatch.
If your shop produces many short-run parts, calibration is also an equipment-selection issue. Before specifying a new CNC press brake, explain the range of materials, thicknesses, bend lengths, required tolerances, and tool systems you expect it to handle.
Ask the manufacturer to show how the proposed configuration supports axis verification, crowning setup, tool libraries, service documentation, and repeatable changeovers. If you need custom tooling, backgauge arrangements, or integration with other sheet-metal equipment, include those requirements in the OEM or ODM brief.
CNDY-Press develops, manufactures, sells, and services CNC press brakes and related sheet-metal processing equipment, including OEM, ODM, and customized projects. To discuss a machine or service configuration, send our team your part drawings, material and thickness range, bend lengths, tooling requirements, and the accuracy or production problem you need to solve. We can then discuss the appropriate configuration and verification plan rather than suggest a machine from tonnage alone.
Look for repeatable symptoms: changing angles across one bend, incorrect flange dimensions across different X-axis positions, or results that drift during a production run. First rule out material, tooling, program, and measurement errors. A documented, repeated check is more useful than a single rejected part.
Ram alignment concerns the machine's geometry at a defined reference condition. Crowning compensates for deflection when the machine bends a loaded part. Check them separately: correcting a center-angle difference with an unrelated left-to-right axis adjustment may create another problem.
No. A 90° bend at one location confirms only that the tested material, tooling, program, and position produced that result. Check representative positions and the critical dimensions of the actual part before production release.
The backgauge position, blank dimensions, part datum, or bend allowance may be wrong. Verify the finger positions and how the finished flange is measured before changing bend depth. Record whether the error occurs at one gauge location or throughout its travel.
Use the manufacturer's guidance and your facility's quality plan. Set routine verification based on machine use and the stability of recorded results. Perform event-based checks after significant repairs, relocation, collisions, or unexplained changes in part quality.
