Selecting a large press brake for heavy-duty bending is not simply a matter of buying the highest tonnage machine available. The right CNC press brake must match your material grade, plate thickness, bend length, tooling, part geometry, operator workflow, safety requirements, and long-term production plan.
For fabricators producing structural steel components, heavy equipment frames, ship sections, energy infrastructure, railway parts, truck bodies, agricultural machinery, and large industrial enclosures, a poor machine choice can create costly bottlenecks. Common consequences include inconsistent angles across long bends, excessive setup time, frame deflection, tool damage, difficult material handling, high power consumption, and unplanned downtime.
At CNDY-Press, we develop, manufacture, sell, and support CNC press brakes and integrated sheet-metal fabrication equipment. We also provide OEM and ODM manufacturing support for customers that require customized tonnage, working length, tooling, control configuration, safety systems, or production-line integration.
This guide reconstructs and expands the original discussion of large press brakes by focusing on the practical questions industrial buyers should ask before investing in a heavy-duty bending machine.
Quick answer: For heavy-duty bending, the best large press brake is the one that delivers sufficient calculated tonnage, stable frame geometry, reliable crowning, repeatable CNC control, appropriate tooling, verified safety protection, and realistic after-sales support for your actual production mix.
A standard CNC press brake may be suitable for thin sheet metal and short parts, but heavy-duty work changes the engineering requirements.
A large press brake generally combines extended bending length with high press force. In practical industrial purchasing, this often means machines with bed lengths above 4 meters and tonnage ranging from several hundred tons to well above 1,000 tons. The original article identifies a broad heavy-duty range of approximately 400–3,000 tons and notes applications in shipbuilding, construction, energy infrastructure, and heavy-equipment production.
The machine must manage three conditions at the same time:
- High bending force
- Long workpieces
- Repeatable accuracy under load
These requirements increase the importance of frame design, ram guidance, hydraulic synchronization, crowning, machine foundation, tooling selection, and material handling.
A machine may have sufficient nominal tonnage but still produce poor parts if its frame deflects excessively, its crowning system is incorrectly calibrated, its backgauge is unstable, or its tooling cannot support the required load.
A heavy-duty press brake is not defined by one number. It is defined by the complete operating envelope.
| Selection Factor | Why It Matters for Heavy Bending |
|---|---|
| Nominal tonnage | Determines available bending force, but must be matched to material, die opening, bend length, and bend method |
| Bending length | Must accommodate the actual part length plus practical handling margin |
| Frame rigidity | Helps control deflection, angle variation, and long-term geometric stability |
| Crowning system | Compensates for ram and bed deflection during long, high-force bends |
| Open height and stroke | Determines whether tall flanges, deep boxes, and complex profiles can be formed |
| Backgauge axes | Supports repeatable positioning for complex large parts |
| Hydraulic or servo-hydraulic system | Influences synchronization, energy use, response, and controllability |
| CNC controller | Affects programming, collision avoidance, sequencing, angle correction, and production data access |
| Tooling capacity | Must tolerate the required tonnage per meter without damage |
| Safety system | Protects operators and supports compliant operation in the intended market |
| Service and spare parts | Determines downtime risk over the machine’s operating life |
A large press brake should be treated as a production system, not a standalone machine. The machine, tooling, operators, lifting equipment, material flow, programming, safety controls, and maintenance plan must work together.

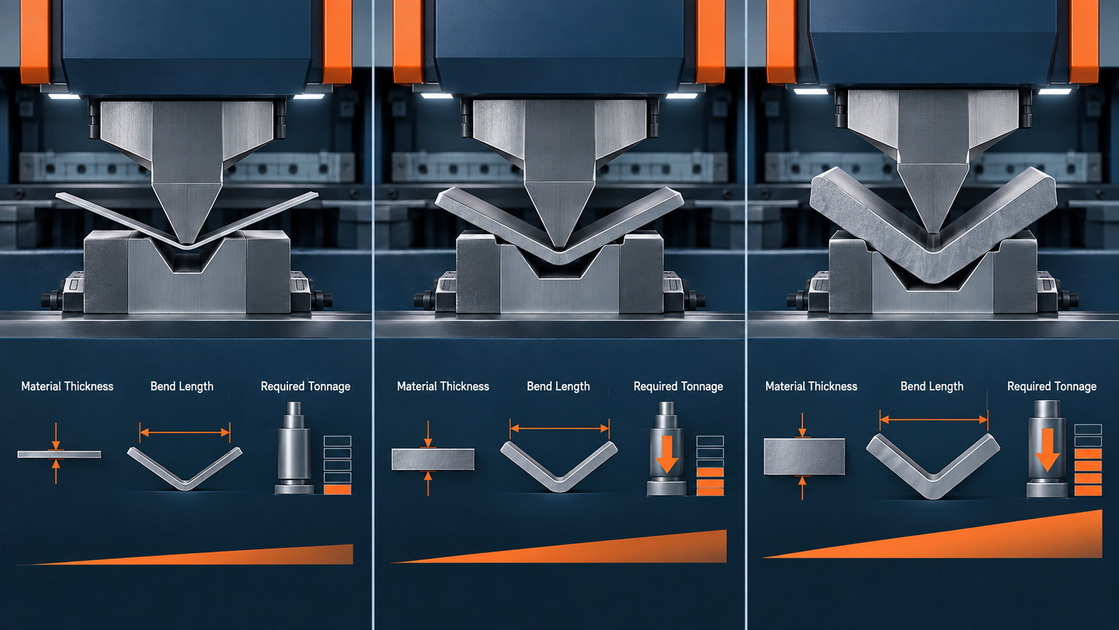

The first technical step is to calculate bending force. The required tonnage changes with:
- Material type
- Tensile strength
- Material thickness
- Bend length
- V-die opening
- Punch radius
- Bending method
- Grain direction
- Target bend angle
- Number of bends
- Whether the work is centered or off-center
For air bending, industry guidance commonly uses a V-die opening of approximately 8 times material thickness for thinner sheet and approximately 10 times thickness for material at or above 1/2 inch, although the correct die opening depends on material, bend radius, tooling design, and application requirements.
The available tonnage must be evaluated as both total force and force per meter. A 600-ton machine may be adequate for one short heavy bend but inadequate for the same material across a long workpiece.
Suppose a fabricator needs to bend a long mild-steel plate. The calculation must account for the full bend length and chosen V-die opening—not only the plate thickness.
A simplified approach is:
Required Press Force=Material Factor×Thickness Factor×Bend Length Factor÷Die Opening Factor
This is only a planning model. Buyers should use verified tonnage charts, machine-builder calculations, tooling supplier data, and physical trials for the actual material grade and tooling. Published tonnage references show clearly that required force changes substantially by gauge, material type, V-die opening, and bend length.
Expert advice: Do not select tonnage using the thinnest or easiest material in your current job list. Size the machine for your most demanding repeatable production job, then include a reasonable safety margin for material variation, off-center loading, and future product development.
A single large CNC press brake is appropriate when the target parts fit within one machine's bending length and tonnage capacity.
Typical applications include:
- Structural steel channels
- Large electrical enclosures
- Construction equipment panels
- Truck and trailer components
- Heavy cabinets and frames
- Energy and infrastructure components
- Industrial ducting and fabricated assemblies
The main advantage is simplicity. One frame, one control system, one crown system, and one work zone reduce coordination complexity.
A tandem press brake uses two synchronized machines to bend extra-long components. The machines can operate together for long workpieces or separately for two independent jobs.
The original article notes that tandem configurations can be used for workpieces exceeding 12 meters and that some suppliers offer tandem capacity approaching 2,000 tons or more, depending on the machine combination.
Tandem operation is useful for:
- Long poles and masts
- Trailer side panels
- Shipbuilding sections
- Architectural facades
- Large transport-equipment components
- Long structural beams
- Wind-energy and infrastructure parts
However, tandem systems demand more than two machines placed side by side. The buyer should verify synchronization accuracy, foundation requirements, control architecture, crowning coordination, tooling alignment, material support, lifting procedures, and operator safety on long workpieces.
Traditional hydraulic press brakes often use pumps that run continuously. Modern servo-hydraulic or hybrid systems can regulate pump output more precisely based on the actual bending cycle.
Potential benefits include:
- Lower energy consumption during idle periods
- Reduced heat generation
- Quieter operation
- Responsive ram control
- Better synchronization control
- Reduced hydraulic-oil stress in some operating conditions
The original article states that its featured CNHAWE configuration uses servo-hydraulic control and claims efficiency and energy-saving benefits versus conventional hydraulic systems. These figures should be treated as manufacturer-specific claims and confirmed using the same tonnage, duty cycle, material, and operating conditions.
When comparing energy performance, ask each supplier for:
- Installed motor power
- Average kWh per part or per production hour
- Idle-power consumption
- Hydraulic-oil cooling requirements
- Energy use during rapid approach, bending, and return
- Duty-cycle assumptions behind published savings claims

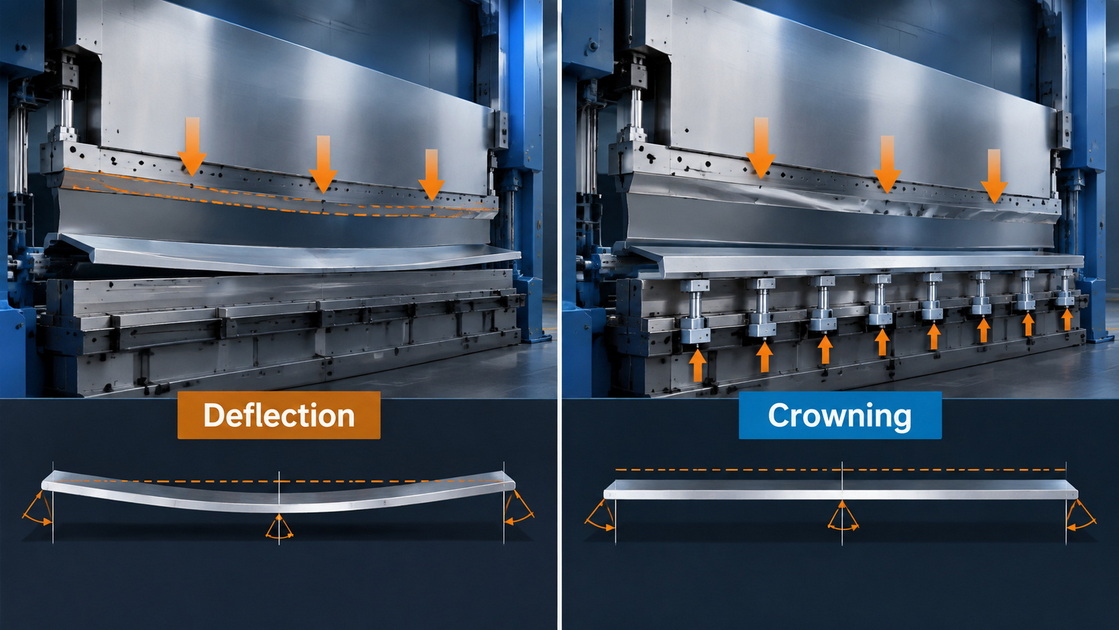

For heavy-duty bending, crowning is not optional. It is one of the most important tools for controlling angle consistency across the full bending length.
Under high load, the ram and bed naturally deflect. Without compensation, the bend angle can vary between the center and the ends of a long workpiece.
Crowning systems may be:
- Mechanical
- Hydraulic
- CNC-controlled hydraulic
- Dynamic or adaptive, depending on the machine and feedback system
The correct crowning curve depends on material thickness, bend length, die opening, tonnage, tooling, and machine deflection behavior.
Before purchasing a large CNC press brake, ask:
- Is crowning standard or optional?
- Is it mechanical, hydraulic, or CNC-controlled?
- Can crowning values be stored by program?
- Does the system compensate based on actual bending load?
- How is the crowning system calibrated?
- Can the machine deliver stable angles across the full rated length?
- Can the supplier demonstrate performance using my actual material and tooling?
A supplier should be willing to perform a bending demonstration using your part drawing, material certificate, plate thickness, bend length, and tooling requirements.
For heavy plate and large workpieces, CNC control affects both accuracy and productivity.
A modern controller can support:
- 2D and 3D part programming
- Automatic bend sequencing
- Tooling-library management
- Collision detection
- Backgauge positioning
- Bend-angle correction
- Crowning adjustment
- Operator instructions
- Production monitoring
- Network and Industry 4.0 integration
The original article highlights CNC controls from Delem, ESA, and Cybelec in its CNHAWE configuration, while also noting that other large press brake manufacturers use dedicated controls, optical angle measurement, automated tool selection, and multi-axis backgauges.
For a heavy-duty press brake, the backgauge requires more than positional accuracy. It needs to tolerate the environment created by large workpieces, high inertia, and difficult part handling.
A useful specification review includes:
| Backgauge Question | Why It Matters |
|---|---|
| How many controlled axes are included? | Determines flexibility for complex or asymmetric parts |
| What is the X-axis travel? | Defines front-to-back positioning range |
| What is the R-axis travel? | Affects gauge height and flange support |
| Are Z1 and Z2 independently controlled? | Supports different part widths and multi-position gauging |
| What is repeatability under load? | Important for batch consistency |
| Are ball screws, linear guides, and drives protected from contamination? | Affects maintenance and long-term reliability |
| Can the gauge be retracted or repositioned for large parts? | Helps avoid collisions and handling interference |

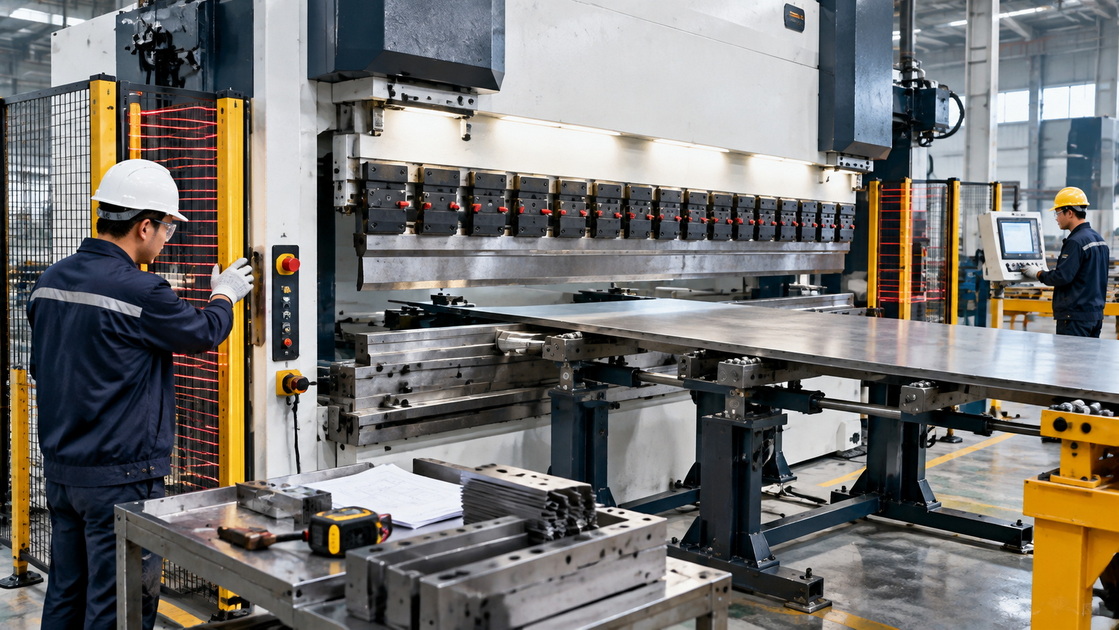

Heavy-duty press brakes create serious pinch-point, crush, backgauge, tooling, and material-handling hazards. A large machine's capacity makes a weak safety plan especially unacceptable.
In the United States, OSHA's machine-guarding requirements apply to powered press brakes. OSHA guidance recognizes that 29 CFR 1910 Subpart O requires guarding methods to protect workers from hazardous machine energy, including physical barriers, physical devices, and—in constrained cases—safe-distance approaches. OSHA also states that safe-distance protection is acceptable only when physical barriers or devices are not feasible, and it sets a minimum 4-inch distance in the specific context described in its directive.
Industry guidance identifies OSHA 29 CFR 1910 and ANSI B11.3 as key references for press brake safeguarding. It also emphasizes control reliability, stopping-time awareness, optoelectronic protective devices, rear guarding, side guards, and job hazard analysis.
Buyers should specify:
- Laser or optical point-of-operation safeguarding
- Light curtain or AOPD system where suitable
- Two-hand control options for appropriate operations
- Emergency-stop circuits
- Anti-repeat capability
- Side and rear guarding
- Safety-rated electrical design
- Documented stopping-time information
- Lockout/tagout procedures
- Operator-training requirements
- Safe material-handling plans for large plates
- Lifting and support equipment for heavy workpieces
Do not treat safety equipment as a line item to remove during negotiation. If a supplier's price falls dramatically after removing guarding, sensors, training, or electrical-safety components, the machine is not necessarily cheaper—it may simply transfer risk to your facility.
The existing article reviews six manufacturers that serve heavy-duty bending markets. Their strengths are summarized below using the information presented in that article.
| Manufacturer | Stated Heavy-Duty Range or Focus | Reported Strengths | Best Evaluation Question |
|---|---|---|---|
| CNDY-Press / CNHAWE | 400–1,000 tons; 4–6 m HPA Large-bend Series; tandem options | Customization, European components, servo-hydraulic control, CNC machining, stress-relieved frames | Can the supplier configure the machine around my actual material, tooling, length, and automation needs? |
| Accurpress | 650–3,000 tons | High-tonnage build, strong backgauge, large workspace, multi-axis control | Does its backgauge and open-height configuration suit my largest parts? |
| Cincinnati | 400–2,000 tons; 12–24 ft beds | Durability, upgradeability, heavy industrial applications | What is the full life-cycle cost and retrofit path? |
| Bystronic | 275–1,100 tons; up to 33.4 ft; tandem to 2,000 tons and 20 m | Optical angle measurement, dynamic crowning, automation options | Does the accuracy system improve first-part acceptance for my material mix? |
| LVD | 400 tons × 13 ft to 3,000 tons × 45 ft | Configure-to-order XXL machines, automation, Industry 4.0 integration | Is the custom machine configuration supported locally after installation? |
| Trumpf | 600–1,000 tons; 5–8 m, tandem capability | Optical angle measurement, touchscreen control, 6-axis gauge, tool handling | Does its automation level match my batch size and labor model? |
The ranges and strengths in this table are based on the original source article's descriptions. Buyers should request current product catalogs, formal quotations, reference installations, and live demonstrations before making a purchase decision.
Provide the manufacturer with:
- Part drawings
- Material grades
- Thickness range
- Maximum bend length
- Bend-angle tolerance
- Annual quantities
- Tooling requirements
- Flange dimensions
- Required open height
- Desired automation level
- Facility power supply
- Available floor space
- Crane capacity
- Shipping and installation constraints
Do not provide only a target tonnage. The supplier needs real production information to recommend a reliable configuration.
A useful proposal should identify:
- Machine tonnage and bending length
- Frame design
- Ram stroke and daylight
- Throat depth
- Crowning system
- CNC controller
- Backgauge axes
- Hydraulic or servo system
- Main electrical components
- Safety configuration
- Tooling package
- Installation scope
- Commissioning and training
- Warranty
- Spare-parts plan
- Delivery time
- Optional automation and tandem synchronization
Request a factory acceptance test using the actual material whenever possible.
The test should check:
- Bend angle at the center and both ends
- Repeatability over multiple cycles
- Springback behavior
- Surface marking
- Tooling fit
- Backgauge positioning
- Setup time
- Operator access
- Safety function
- Cycle time
- Part handling
The purchase price is only one number. Calculate:
Total Cost of Ownership=Purchase Price+Installation+Energy+Tooling+Maintenance+Downtime Risk+Training−Productivity Gain
A lower-cost machine can become expensive if it consumes more energy, needs frequent adjustment, lacks local parts support, produces more scrap, or cannot meet the next generation of parts.
CNDY-Press supports OEM and ODM manufacturing projects for CNC press brakes and complete sheet-metal fabrication equipment. For buyers with non-standard requirements, customization may include:
- Increased tonnage
- Extended bending length
- Tandem press brake systems
- Special throat depth
- Modified open height and stroke
- CNC-control selection
- Specialized backgauge configuration
- Custom tooling
- Laser-safety or optical-safety systems
- Automated material handling
- Production-cell integration
- Export electrical standards and documentation
The original article describes CNHAWE's HPA Large-bend Series as covering 400–1,000 tons with 4–6 meter bed lengths, with customization and tandem configurations available for larger requirements. It also identifies HAWE hydraulics, Delem/ESA/Cybelec CNC controls, Schneider electrical components, stress-relief treatment, and precision-machining processes as stated configuration strengths.
For a serious capital investment, the most valuable supplier is not the one that gives the fastest generic price. It is the one that asks the right engineering questions, provides documented specifications, accepts real-material testing, and remains available after commissioning.
There is no single industry threshold. In heavy fabrication, machines from roughly 400 tons upward are often regarded as large press brakes, especially when combined with bed lengths above 4 meters. Heavy-duty systems may extend to 1,000, 2,000, or 3,000 tons, depending on the manufacturer and application.
Calculate tonnage using material type and tensile strength, thickness, bend length, V-die opening, bend method, and target angle. Use validated tonnage charts or a manufacturer calculation, then confirm with an actual material test. Air-bending references commonly use a V-opening around 8–10 times material thickness as a starting point, but this should not replace engineering review.
Crowning compensates for deflection in the ram and bed under load. Without it, the middle of a long bend can produce a different angle from the ends. CNC-controlled crowning helps maintain more consistent bend angles across long workpieces.
Not always. A tandem system is valuable for very long parts and may also allow two machines to run independently. However, it adds synchronization, foundation, alignment, safety, and handling complexity. A single machine can be simpler if one frame can accommodate the required length and tonnage.
The correct safety package depends on the workpiece and process, but it may include point-of-operation protection, laser or optical safeguarding, light curtains, two-hand controls where appropriate, anti-repeat controls, emergency stops, side and rear guards, safety-rated control circuits, and documented operator training. OSHA guidance requires guarding methods that protect workers from hazardous machine energy.
1. CNHAWE. "Best Large Press Brakes for Heavy Duty Bending Projects in 2026." [https://www.cnhawe.com/best-large-press-brakes-for-heavy-duty-bending/]. Original source article reviewed for its manufacturer comparison, stated machine capacities, configuration information, and heavy-duty bending selection factors. [cnhawe]
2. Occupational Safety and Health Administration. "Machine Guarding: Presses—Powered Press Brakes." [https://www.osha.gov/etools/machine-guarding/presses/powered-press-brakes]. OSHA resource on powered press brake hazards and safeguards. [osha]
3. Occupational Safety and Health Administration. "Guidelines for Point of Operation Guarding of Power Press Brakes." [https://www.osha.gov/enforcement/directives/cpl-02-01-025]. OSHA enforcement directive addressing guarding, hazardous machine energy, physical barriers, safety devices, and safe-distance limitations. [osha]
4. The Fabricator. "An Overview of Press Brake Safeguarding." [https://www.thefabricator.com/thefabricator/article/bending/an-overview-of-press-brake-safeguarding]. Industry explanation of press brake safeguarding and relevant OSHA and ANSI B11.3 considerations. [thefabricator]
5. The Fabricator. "Know Your Press Brake Safeguarding Options." [https://www.thefabricator.com/thefabricator/article/safety/know-your-press-brake-safeguarding-options]. Industry guide covering risk assessment, control reliability, light curtains, rear guarding, side guarding, and safety-distance principles. [thefabricator]
6. MachineMFG. "Air Bending Force Chart." [https://www.machinemfg.com/air-bending-force-chart/]. Industry reference discussing air-bending force and typical V-die opening selection. [machinemfg]
7. AMADA. "Bending Tools Catalogue." [https://cdn.amada.eu/fileadmin/Repository/Products/Brochures/Catalog_AFH_EN_2021.pdf]. Tooling reference providing material, radius, flange-length, and tonnage-per-meter information. [cdn.amada]
8. RMFG. "Press Brake Tonnage Chart and Calculator." [https://www.rmfg.com/resources/press-brake-tonnage-chart-calculator]. Public tonnage reference illustrating how bending force changes with gauge, die opening, material, and bend length. [rmfg]
