Choosing between a 3 roll plate rolling machine and a 4 roll plate rolling machine is one of the most important equipment decisions in sheet metal fabrication. Both machine types can form cylinders, cones, shells, tanks, ducts, and curved steel components. However, they differ in pre-bending capability, cycle time, operator involvement, rolling accuracy, material handling, and long-term productivity.
For many workshops, a 3 roll plate roll is a practical solution for general fabrication and lower-volume work. A 4 roll plate roll is often the better choice when the operation requires high throughput, repeatable geometry, shorter flat ends, safer handling, CNC automation, or more complex bending programs.
The right plate rolling machine is not simply the largest or most automated model. It is the machine that matches your material range, plate thickness, minimum diameter, production volume, part geometry, labor availability, floor space, and future expansion plan.
Choose a 3 roll plate rolling machine for flexible general fabrication, lower initial investment, and moderate production. Choose a 4 roll plate rolling machine for faster pre-bending, improved repeatability, reduced handling, complex shapes, and high-volume rolling operations.
A plate rolling machine, also called a plate roll, plate bender, or sheet metal rolling machine, forms flat metal plate into curved profiles by passing it through a set of powered rolls.
The machine applies controlled pressure to gradually bend the material into shapes such as:
- Cylinders
- Cones
- Arcs
- Rings
- Shell sections
- Tank bodies
- Pipe sections
- Pressure vessel components
- HVAC duct sections
- Wind tower components
- Shipbuilding plates
- Structural curved sections
The final result depends on more than machine tonnage. Material yield strength, thickness, width, rolling direction, minimum bending diameter, roll diameter, pre-bending method, and springback all influence rolled-part quality.
A suitable CNC plate rolling machine should provide sufficient capacity while maintaining control over plate alignment, pre-bending, curvature, and repeatability.

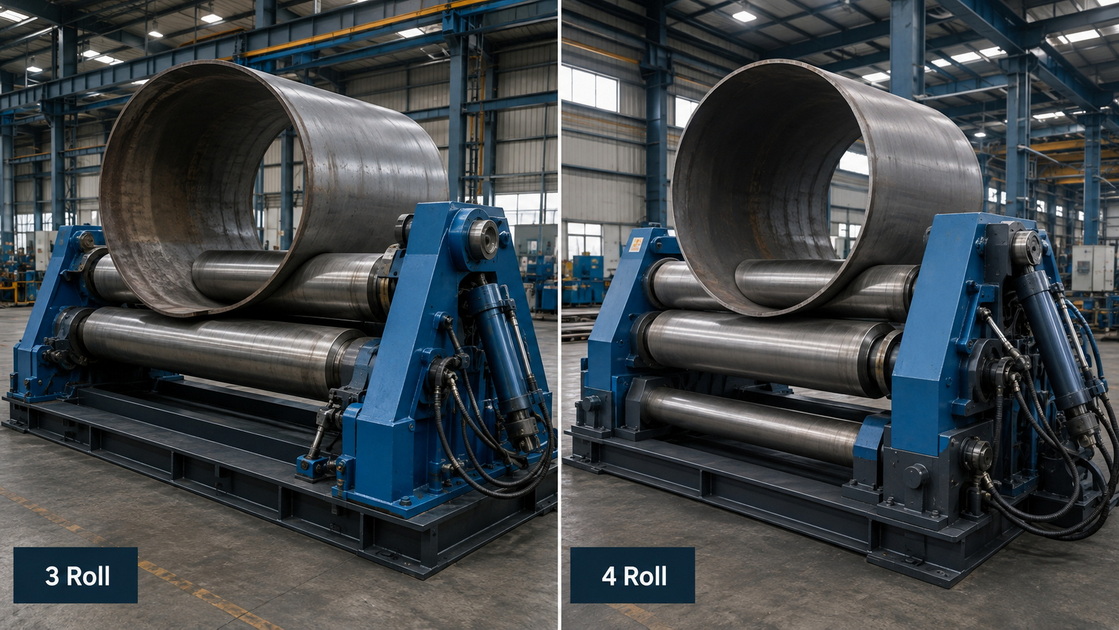

| Feature | 3 Roll Plate Rolling Machine | 4 Roll Plate Rolling Machine |
|---|---|---|
| Main roll configuration | Three rolls | Four rolls |
| Plate clamping | Usually less secure during rolling | Upper and lower rolls clamp the plate |
| Pre-bending process | Usually requires separate operations for each end | Both ends can be pre-bent with one clamping cycle |
| Plate flipping | Often required | Usually not required |
| Operator handling | Higher | Lower |
| Cycle time | Longer for repeated work | Faster for repeated work |
| Straight-edge length | Usually longer | Usually shorter |
| Rolling accuracy | More dependent on setup and operator skill | Generally more repeatable |
| CNC automation potential | Available on advanced models | Strongly suited to CNC and automation |
| Cone rolling | Possible, depending on configuration | Often more controlled with suitable side rolls |
| Initial investment | Lower | Higher |
| Floor-space requirement | Often more compact | Often larger |
| Best use | General fabrication and lower-volume work | Precision, high-volume, and automated production |
The major operational difference is plate control. A 4 roll plate bending machine clamps the sheet between the top and lower rolls. This creates a stable reference while the side rolls form the plate. A 3 roll machine usually requires more manual positioning and material handling.
A 3 roll plate rolling machine uses three rolls to form plate. Common designs include symmetrical three-roll machines, asymmetrical initial-pinch machines, and variable-geometry or pyramid-style configurations.
In a typical three-roll process, the sheet is fed between the rolls. The adjustable roll position creates pressure that progressively bends the plate as it passes through the machine.
To create a complete cylinder, the operator normally needs to pre-bend one plate edge, remove or reposition the sheet, pre-bend the opposite edge, and then complete the main rolling passes.
This is why three-roll machines often leave more straight material at the plate ends unless the operator uses careful pre-bending techniques.
- Lower initial investment
- Suitable for general fabrication applications
- Often requires less floor space
- Available in mechanical, hydraulic, and CNC configurations
- Flexible for standard cylindrical work
- Practical for low-volume and mixed-job workshops
- Suitable for smaller fabrication businesses
- Simple machine structure in conventional configurations
- More material handling is usually required
- Plate flipping may be necessary during pre-bending
- Cycle times can be longer for repeat production
- Final straight edges can be longer if pre-bending is not controlled
- Repeatability often depends more heavily on operator skill
- Plate alignment can be harder to maintain during long rolling operations
- Complex cones and multi-radius parts may require more experience
- Large plates may need extra lifting and support equipment
A three-roll machine can still produce high-quality components. The key is selecting a suitable configuration and following a controlled rolling sequence.

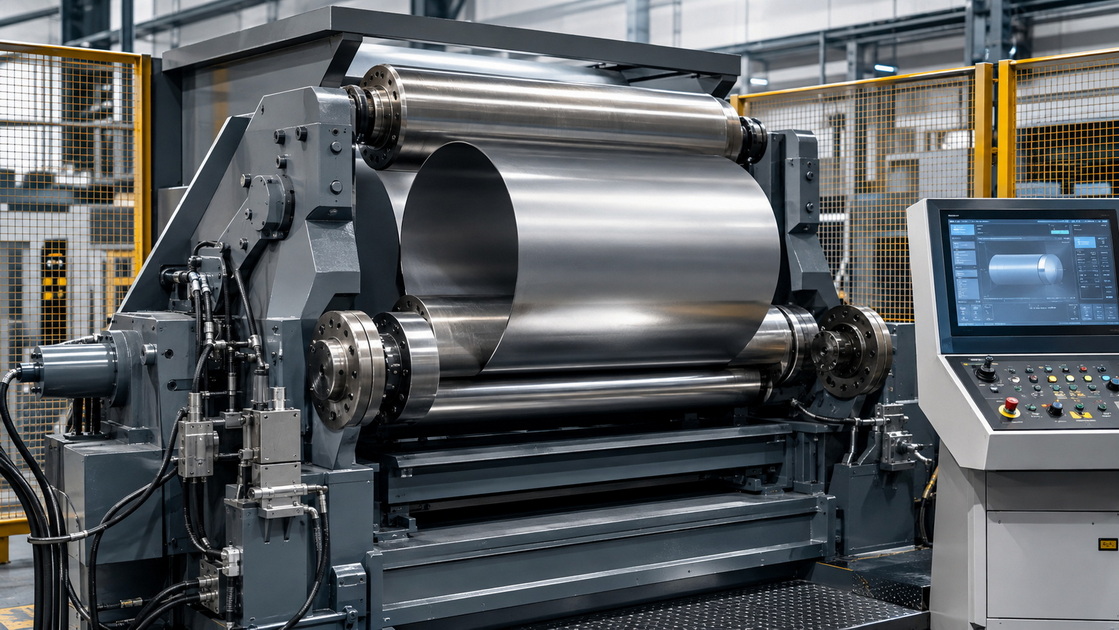

A 4 roll plate rolling machine typically includes an upper roll, a lower pinch roll, and two adjustable side rolls.
The plate is fed between the upper and lower rolls. The lower roll clamps the plate in place. The side rolls then move into position to create the required curve.
Because the plate remains clamped during the process, the operator can pre-bend the leading edge, complete the main rolling operation, and pre-bend the trailing edge without removing or flipping the material.
This process reduces handling and supports more consistent results.
- Single-clamping rolling process
- Faster pre-bending of both plate edges
- Reduced need to flip or reposition the plate
- Shorter remaining flat ends
- Better plate alignment during rolling
- Higher repeatability for production work
- Lower operator handling requirements
- Suitable for CNC control and automated programs
- Strong fit for high-volume operations
- More practical for complex shells, cones, and controlled-radius work
- Improved safety potential due to reduced manual handling
- Higher initial purchase cost
- Larger machine footprint in many configurations
- More complex mechanical, hydraulic, and control systems
- May require more detailed operator training
- Service and spare-parts planning can be more important
- Not always necessary for simple, occasional rolling work
A four-roll machine is not automatically the right choice for every workshop. Its advantages become most valuable when repeatability, production speed, material handling, and tighter control have direct business value.
One of the most important quality issues in plate rolling is the flat end.
The rolls cannot always apply full bending force directly at the extreme edge of a plate. Without controlled pre-bending, the finished cylinder may have straight sections at one or both ends. These flat ends can create gaps during welding, poor roundness, fit-up problems, and additional grinding or rework.
A 3 roll plate rolling machine often requires separate pre-bending procedures for both edges. This may involve plate removal, repositioning, and manual adjustment.
A 4 roll machine can pre-bend both ends while holding the plate in a stable clamped position. This normally reduces the remaining straight edge and improves roundness consistency.
However, plate rolling accuracy still depends on several factors:
- Material grade
- Material thickness
- Plate width
- Yield strength
- Surface condition
- Actual thickness variation
- Required inside diameter
- Roll diameter
- Roll alignment
- Machine rigidity
- Operator setup
- CNC program quality
- Springback compensation
- Number of rolling passes
The machine provides controlled force, but the operator or CNC program must compensate for how the material reacts under load and after release.
Springback occurs when a metal plate partially returns toward its original shape after rolling force is released.
This means the radius inside the machine is often not the same as the final radius after the plate exits the rolls.
Springback is affected by:
- Material yield strength
- Tensile strength
- Plate thickness
- Rolling radius
- Work-hardening behavior
- Rolling direction relative to grain
- Number of passes
- Tooling and roll condition
- Material temperature
- Surface coating
High-strength steels and some stainless steel grades may require more compensation than mild steel. Thin materials may also respond differently from thick plate at the same radius.
A controlled multi-pass process is usually more reliable than attempting to reach the final radius in one aggressive pass.
1. Confirm the actual material grade and thickness.
2. Inspect the plate for camber, damage, rust, or coating variation.
3. Start with a test strip when using a new or critical material.
4. Use gradual roll adjustments rather than large force changes.

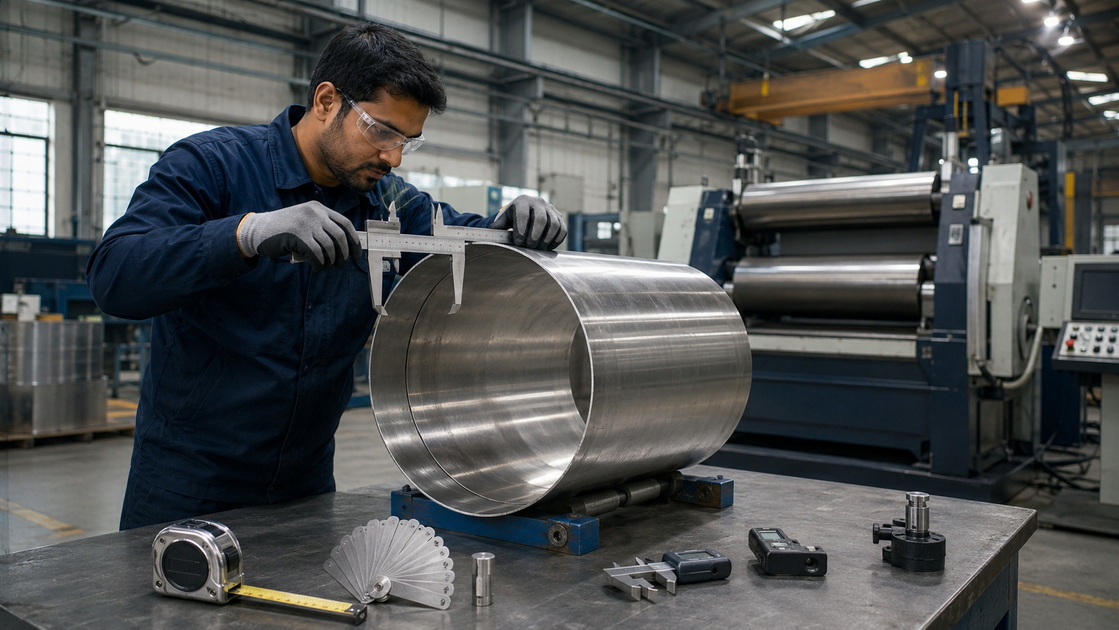

5. Measure the rolled diameter after unloading.
6. Record roll positions and material details for repeat jobs.
7. Build a material-specific rolling database for frequently used plate grades.
This information becomes especially valuable for CNC plate rolling machines because repeat programs can improve with verified production data.
| Application | 3 Roll Plate Roll | 4 Roll Plate Roll |
|---|---|---|
| General repair work | Strong fit | Suitable but may exceed requirements |
| HVAC ducts | Suitable for lower-volume work | Suitable for repeat production |
| Light cylindrical shells | Strong fit | Strong fit |
| High-volume tank production | Possible but slower | Preferred |
| Pressure vessel shells | Suitable with correct setup | Preferred for repeatability |
| Cone rolling | Possible with experienced operation | Often easier with controlled side rolls |
| Shipbuilding plates | Suitable by machine capacity | Preferred for controlled high-volume work |
| Wind tower sections | Depends on plate size and thickness | Strong fit for controlled production |
| Decorative metalwork | Suitable | Suitable |
| Large-diameter cylinders | Suitable | Suitable |
| Tight-tolerance shell production | More operator-dependent | Better repeatability |
| Automated rolling programs | Limited to advanced models | Strong fit |
A reliable machine-selection process starts with actual production data, not only a catalog specification.
Document the materials you roll most often:
- Mild steel
- Stainless steel
- Aluminum
- High-strength steel
- Wear-resistant plate
- Coated sheet
- Specialty alloys
For each material, record:
- Grade
- Thickness
- Width
- Yield strength
- Tensile strength
- Minimum rolling diameter
- Annual production quantity
A machine rated for a certain thickness in mild steel may have lower capacity when rolling stainless steel or high-strength material.
Do not select a machine based only on average production.
Identify the part that creates the greatest load or highest quality requirement:
- Thickest plate
- Widest plate
- Smallest required diameter
- Highest-strength material
- Tightest roundness tolerance
- Most complex cone
- Most frequent repeat order
This part should guide the capacity review.
Machine catalogs may list a maximum rolling thickness. However, this value may be based on a specific material, plate width, and minimum diameter.
Ask the supplier to confirm capacity for:
- Your material grade
- Your actual plate width
- Your required finished diameter
- Your pre-bending requirement
- Your expected production frequency
A machine that can roll 20 mm mild steel may not be suitable for 20 mm material across its full working width at a tight diameter.

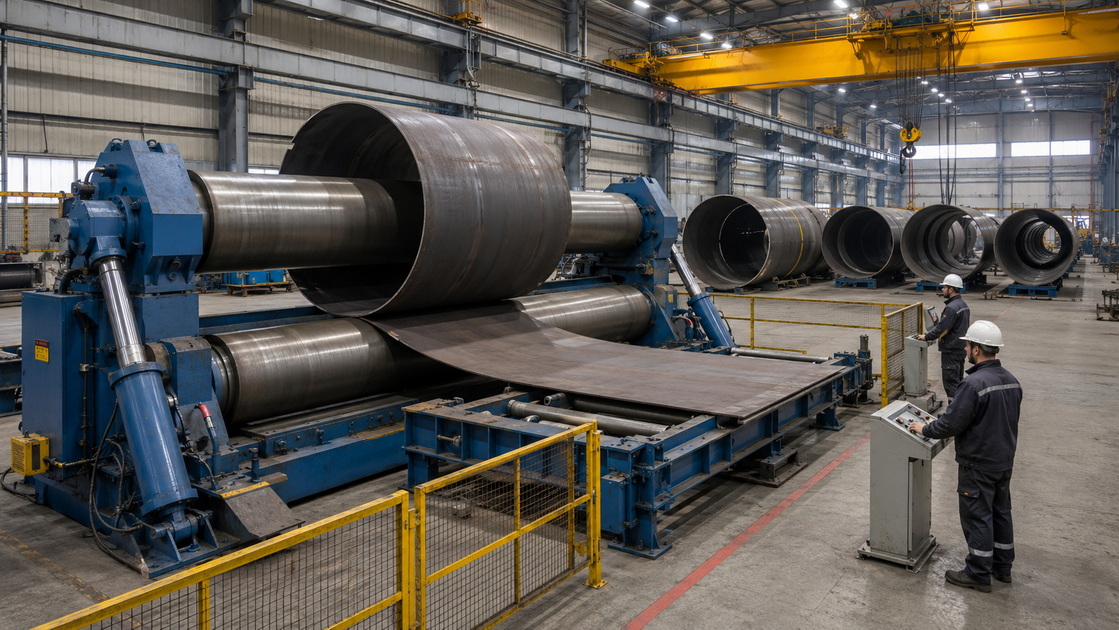

A conventional machine may suit occasional work. A CNC plate rolling machine is more valuable when the workshop needs:
- Repeat parts
- Operator-independent consistency
- Digital program storage
- Controlled multi-pass sequences
- Faster setup
- Better production documentation
- Reduced training time
- Integration with loading systems
- Complex cone or multi-radius work
Automation should address a real production requirement. It should not be selected only because it appears advanced.
Heavy plate handling affects safety, quality, and cycle time as much as the rolling machine itself.
Consider whether the project requires:
- Overhead crane access
- Side supports
- Top supports
- Vertical supports
- Feeding tables
- Alignment devices
- Loading systems
- Unloading systems
- Cone-rolling attachments
- Material-turning assistance
For thick or wide plates, supporting equipment can be essential for maintaining roundness and reducing operator risk.
Many buyers ask for the minimum rolling diameter of a plate roll. This is important, but the answer is not always one fixed number.
The achievable minimum diameter changes according to:
- Plate thickness
- Material strength
- Plate width
- Top-roll diameter
- Side-roll geometry
- Pre-bending requirement
- Machine configuration
- Whether the plate is rolled to full width
- Required roundness tolerance
- Allowable surface marking
- Number of rolling passes
A machine may produce a small diameter with thin mild steel but be unable to achieve the same diameter with thicker stainless steel over the full working width.
Before purchase, request a documented rolling test using your material or a technically comparable material. The test should include plate thickness, width, material grade, final diameter, remaining flat end, and roundness measurement.
Thickness alone does not define rolling capacity.
A correct evaluation must include material grade, yield strength, width, final diameter, and pre-bending requirements.
If the finished shell requires close welding fit-up, long straight ends can create major rework.
Confirm the expected remaining flat-end length and whether the machine can pre-bend both edges effectively.
A machine may have sufficient rolling capacity but still be inefficient or unsafe if the workshop lacks cranes, supports, or loading equipment.
Review the complete material flow before purchasing.
CNC control improves repeatability, but operators still need to understand material behavior, springback, safe loading, roll alignment, and inspection.
Training remains essential.
A heavy-duty plate roll may be excellent for thick plate but less efficient for thin sheet or small-diameter jobs.
If the workshop handles a wide product mix, review whether one machine can cover both heavy and light work efficiently.
Plate rolling machines create serious pinch-point and material-handling risks. Operators must follow machine-specific safety instructions and use suitable protective equipment.
Basic operating practices include:
- Keep hands away from rotating rolls.
- Do not adjust or guide material by hand near pinch points.
- Keep clothing, gloves, and accessories clear of moving rolls.
- Verify emergency-stop functions before operation.
- Inspect roll surfaces and machine guards regularly.
- Check hydraulic oil, lubrication, and fasteners according to the maintenance schedule.
- Keep work areas clear of scrap, oil, and unnecessary tools.
- Use cranes, lifting devices, and supports for large plates.
- Do not exceed rated rolling capacity.
- Stop the machine immediately if abnormal noise, vibration, leakage, or roll movement occurs.
A regular maintenance plan should include roll-surface inspection, lubrication, hydraulic-system inspection, electrical-cabinet checks, alignment verification, fastener inspection, and control-system backup.
CNDY-Press develops and manufactures CNC plate rolling machines and other sheet metal processing equipment, including CNC press brakes, fiber laser cutting machines, CNC shearing machines, and CNC grooving machines.
Maanshan Deyan Precision Machinery Technology Co., Ltd. supports OEM and ODM manufacturing projects and can configure equipment according to customer requirements. This can include machine working length, rolling capacity, control configuration, material-handling accessories, safety features, and production-line integration.
For plate rolling projects, a detailed technical review should include material grade, plate thickness, plate width, minimum required diameter, part geometry, pre-bending requirement, target output, workshop layout, power supply, and destination-market requirements.
A properly matched machine configuration can improve rolling quality, reduce manual handling, and support more consistent production throughout the machine's operating life.
Choose a 3 roll plate rolling machine when your work is lower volume, your parts are relatively simple, your budget is limited, and your operators have the time and skill to manage separate pre-bending and rolling steps.
Choose a 4 roll plate rolling machine when your work requires faster throughput, shorter flat ends, repeatable shell geometry, reduced plate handling, complex bends, CNC programs, or higher production consistency.
For many growing fabrication businesses, the decision should be based on total operating cost rather than initial machine price. A four-roll plate roll may cost more at the beginning but can save time, reduce handling, improve first-pass quality, and create a more stable platform for repeat production.
Prepare a complete technical brief before comparing machine options. Include material grade, thickness, width, finished diameter, cone requirement, straight-end limit, tolerance, expected production volume, workshop conditions, and delivery destination. A realistic rolling demonstration with your actual material will provide the clearest basis for selecting suitable equipment.
A 3 roll machine uses three rolls and often requires separate handling to pre-bend both plate ends. A 4 roll machine uses an upper roll, lower pinch roll, and two side rolls. It can clamp the plate and pre-bend both ends with less repositioning.
A four-roll machine generally offers better plate control and repeatability because the plate remains clamped during rolling. However, final accuracy still depends on material properties, roll condition, machine configuration, CNC programming, operator setup, and springback compensation.
Yes. A three-roll plate rolling machine can form cones when it has suitable roll geometry, cone-rolling capability, and experienced operators. A four-roll machine can provide more stable control for repeat cone production when properly configured.
Capacity depends on plate thickness, material yield strength, plate width, required diameter, roll diameter, and whether pre-bending is required. Provide the supplier with complete material and part information, then request a written capacity calculation and rolling-test recommendation.
The diameter changes because of springback. Metal partially returns toward its original shape after the rolling force is released. The amount of springback varies by material grade, thickness, yield strength, rolling radius, and process settings.
1. [Moore Machine Tools — 3 Roll vs. 4 Roll Plate Bender: Which Is Right for You?]
2. [CNDY-Press — About Maanshan Deyan Precision Machinery Technology Co., Ltd.]
3. [NovoTech Machine Tools — Plate Roller Buying Guide]
4. [Revolution Machine Tools — Benefits of a 4 Roll Plate Roll]
5. [Plate Roller — Plate Rolling Process and Calculator]
